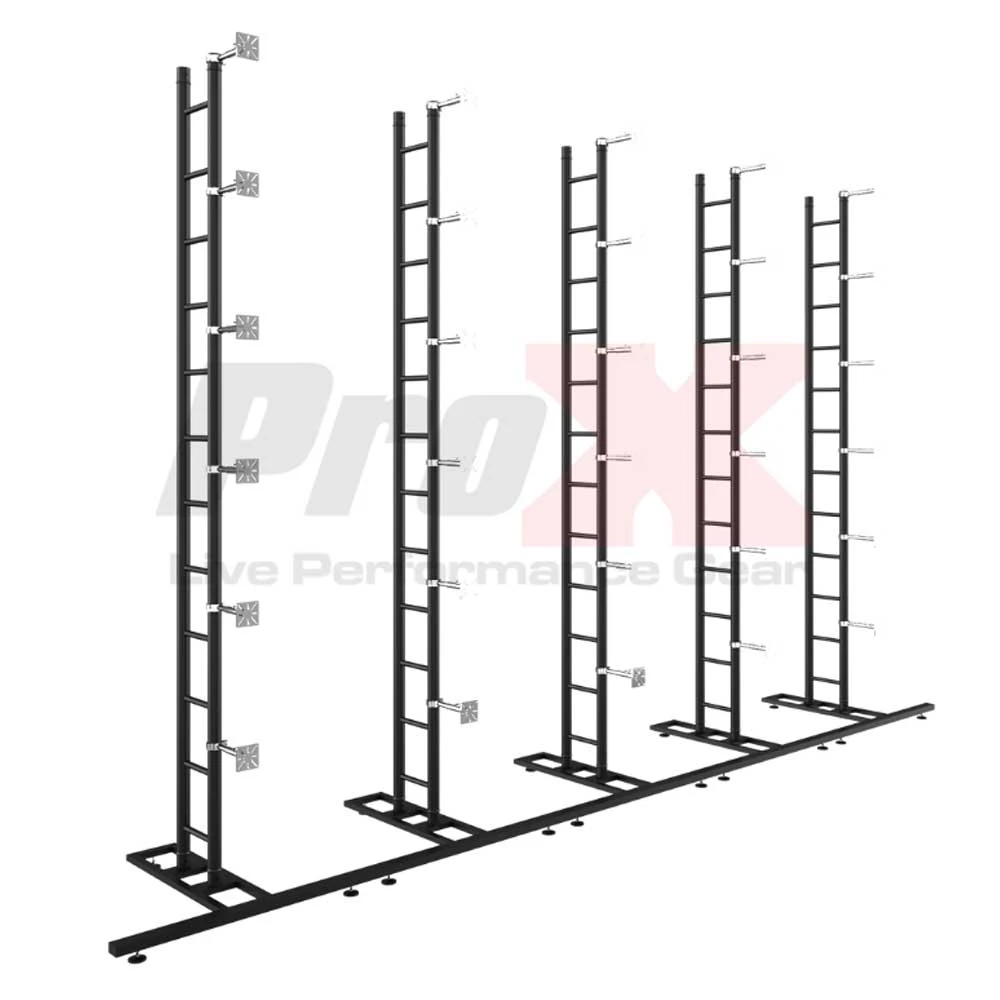

ProX XTP-GSLED5X300BLK LED Video Display Panel Ground Support System Package – 5M x 3M, Black

Product Description

The ProX XTP-GSLED5X300BLK is a complete LED video display panel ground support system package designed for a nominal 16.40 ft. (5M) wide x 9.84 ft. (3M) high LED video wall. Featuring five XT-GSWSB MK2 stabilizing T-bases, five black XT-F32LB984BLK F32 I-Beam linear truss segments, and 30 adjustable LED panel mounting plates, this freestanding support package provides the principal structural components for compatible ground-stacked LED display installations without requiring overhead rigging as the primary support method.

Designed for professional staging companies, AV integrators, rental houses, touring productions, corporate events, trade shows, and broadcast environments, the ProX XTP-GSLED5X300BLK combines a modular support structure with adjustable panel mounting hardware. Its matching black finish helps minimize the visibility of support components behind LED display panels, making it suitable for professional stages, exhibition displays, corporate presentations, broadcast sets, and live entertainment productions.

Key Features of ProX XTP-GSLED5X300BLK

• ProX XTP-GSLED5X300BLK LED Video Display Panel Ground Support System Package
• Nominal 16.40 ft. (5M) wide x 9.84 ft. (3M) high LED wall configuration
• Freestanding ground support design for compatible LED video walls without overhead suspension as the primary support method
• Includes five XT-GSWSB MK2 Ground Support Stabilizing T-Bases
• Includes five XT-F32LB984BLK black F32 I-Beam linear truss segments
• 9.84 ft. (3M) linear truss segments with a listed 2 mm wall thickness
• Includes 30 XT-TC5LEDPABLK LED panel wall mounting plates
• Adjustable 10–13 inch telescoping offset clamps for compatible 2-inch pole truss
• Designed for compatible 500 x 500 mm and 500 x 1000 mm LED panels
• Ground support bases designed for up to two vertical columns of 500 mm wide LED panels, subject to panel weight, wall height, ballast, and engineering approval
• Matching black finish across the listed package components
• Compact T-base design for efficient transportation, storage, and touring applications
• Modular components designed for professional staging and rental inventory
• Suitable for concerts, touring productions, trade shows, exhibitions, corporate presentations, and broadcast environments
• Adjustable-height alternative available in a separately specified ProX ground support package; verify the exact model and configuration before ordering
• Ballast required but not included
• LED video display panels not included
• ProX Limited Warranty, subject to applicable terms

Technical Specifications

• Brand: ProX
• Model: XTP-GSLED5X300BLK
• Product Type: LED Video Display Panel Ground Support System Package
• Nominal System Width: 16.40 ft. / 5M
• Nominal System Height: 9.84 ft. / 3M
• System Configuration: Freestanding ground support
• Finish: Black
• Ground Support Base Model: XT-GSWSB MK2
• Ground Support Base Quantity: 5
• Ground Support Base Length: 3.28 ft. / 1M per base, as specified
• Linear Truss Model: XT-F32LB984BLK
• Linear Truss Quantity: 5
• Individual Truss Length: 9.84 ft. / 3M
• Truss Profile: F32 I-Beam linear truss
• Truss Wall Thickness: 2 mm, as listed
• Mounting Plate Model: XT-TC5LEDPABLK
• Mounting Plate Quantity: 30
• Mounting Clamp Adjustment Range: 10–13 inches
• Mounting Clamp Compatibility: Compatible 2-inch pole truss
• Compatible LED Panel Sizes: 500 x 500 mm and 500 x 1000 mm, subject to mounting compatibility
• LED Panels Included: No
• Ballast Included: No
• Ballast Requirements: Must be determined according to the approved installation design
• Suggested Shipping Method: LTL freight
• Warranty: ProX Limited Warranty, subject to applicable terms

Package Contents

• (5) XT-GSWSB MK2: Ground Support Stabilizing 1M / 3.28 ft. T-Bases for compatible LED screen wall ground stacking with F32 or compatible 12-inch bolt truss segments.
• (5) XT-F32LB984BLK: 9.84 ft. (3M) F32 I-Beam linear truss segments with a listed 2 mm wall thickness in black.
• (30) XT-TC5LEDPABLK: Black LED panel wall mounting plates with adjustable 10–13 inch extension clamps for compatible 2-inch pole truss.
• Not Included: LED display panels, ballast weights, and any additional equipment required by the approved installation design.

XT-GSWSB MK2 Ground Support Stabilizing T-Bases

The XT-GSWSB MK2 Ground Support Stabilizing T-Bases provide the floor-mounted foundation for the LED video wall support structure. This package includes five 1M (3.28 ft.) bases designed for compatible ground-stacked LED screen wall configurations. Their compact T-base profile helps reduce transportation and storage demands compared with bulkier support arrangements, making them practical for touring productions, rental inventories, and professional event installations.

Each base is intended to support a compatible vertical truss arrangement. The supplied product information identifies configurations accommodating up to two vertical columns of 500 mm wide LED panels per base, subject to the actual panel weight, wall height, ballast, floor conditions, and approved structural design. Confirm the permitted loading and base configuration with the manufacturer before installation.

XT-F32LB984BLK F32 I-Beam Linear Truss

The package includes five XT-F32LB984BLK F32 I-Beam linear truss segments, each measuring 9.84 ft. (3M) and featuring a listed 2 mm wall thickness. These black truss sections form the vertical structural components of the intended LED wall support configuration.

The F32 I-Beam profile and coordinated package components provide a modular framework for compatible LED video wall installations. The black finish helps the support structure remain visually unobtrusive behind display panels, making it suitable for stage backdrops, concerts, corporate presentations, exhibition displays, and broadcast environments. Use the specified connection components and follow the manufacturer's instructions when assembling the structure.

XT-TC5LEDPABLK Adjustable LED Panel Mounting Plates

The XT-TC5LEDPABLK LED panel wall mounting plates provide adjustable mounting points for compatible LED display installations. The package includes 30 black mounting plates featuring 10–13 inch telescoping offset clamps designed for compatible 2-inch pole truss.

The adjustable mounting range helps installers position compatible LED panels according to the planned layout and maintain consistent alignment across the display. The supplied product information identifies compatibility with standard 500 x 500 mm and 500 x 1000 mm LED panels. Verify the panel mounting interface, weight, dimensions, attachment hardware, and approved installation arrangement before use.

Freestanding 5M x 3M LED Video Wall Ground Support

The ProX XTP-GSLED5X300BLK is designed for compatible ground-supported LED display configurations in venues where overhead suspension is not the intended installation method. Its nominal 5M x 3M configuration provides a framework for planning a large-format LED video wall for concerts, touring productions, corporate presentations, trade shows, exhibitions, and professional AV events.

With five stabilizing bases, five vertical truss segments, and 30 adjustable mounting plates, the package brings together the principal support components needed to plan a coordinated ground-stacked display. The completed structure must be assembled and evaluated as a system. Nominal dimensions and included component quantities do not establish the allowable load capacity. Verify manufacturer instructions, connection requirements, applicable load tables, panel weight, floor conditions, ballast, and structural stability before use.

Fast Deployment for Touring and Rental Productions

The ProX XTP-GSLED5X300BLK consolidates compatible ground support bases, vertical truss segments, and LED panel mounting hardware under one product model. This coordinated package can simplify equipment planning, quoting, inventory management, and preparation for recurring event installations.

Its modular components support repeatable assembly workflows for qualified production crews working in concert venues, exhibition halls, corporate event spaces, and broadcast facilities. Actual setup time depends on the installation design, crew experience, display configuration, venue conditions, and required safety checks.

All-Black Finish for Professional Production

All listed structural components are supplied in a matching black finish. This understated appearance is well suited to professional stage environments, LED video backdrops, exhibition booths, broadcast sets, corporate events, and installations where support hardware should remain visually unobtrusive.

The coordinated finish helps maintain a consistent appearance across the bases, truss segments, and mounting plates. The package is intended for production teams and rental businesses that need compatible support hardware for professional LED display deployments.

Ballast and Installation Safety

Ballast is required for safe operation and is not included with this package. The supplied product information identifies ballast weight equal to the total installed LED panel weight as a baseline recommendation from ProX. This baseline must not be treated as a universal engineering calculation or a substitute for an installation-specific ballast assessment.

Actual ballast requirements depend on the complete installation, including panel weight and arrangement, wall height, base configuration, floor conditions, environmental exposure, and applicable engineering requirements. Sandbags and steel ballast weights may be used where appropriate to the approved design. A qualified structural professional must determine and approve the ballast, anchoring, and stability requirements for the specific installation.

Outdoor installations and environments exposed to wind require specific engineering review and approval. Do not use the system in high winds or severe weather unless the installation has been specifically evaluated and approved for those conditions. All installations must comply with manufacturer instructions, venue requirements, applicable local codes, and relevant engineering standards.

This product consists of ground-stack trussing and LED panel support hardware. It must be used according to accepted industry practices for LED video wall installations. ProX disclaims responsibility for improper use, incorrect ballast selection, and installations performed without appropriate professional evaluation.

Adjustable-Height Alternative

For productions that need additional vertical adjustment to accommodate different stage heights and sight lines, the supplied product information identifies an adjustable-height alternative in the ProX ground support system range featuring XT-GSWSB2440 stands with a stated vertical adjustment range of 35–54 inches.

The source description references the XTP-GSLED4X250BLK-SB2440 for this alternative, rather than a direct 5M x 3M equivalent. Confirm the exact model number, system dimensions, included components, compatibility, and approved installation configuration with the manufacturer or supplier before ordering.

Exterior Dimensions & Weight

• XT-TC5LEDPABLK Mounting Plates (30): 15.00 in. H x 5.00 in. W x 5.00 in. L per plate, as listed.
• Individual Mounting Plate Weight: 2.50 lbs.
• Calculated Combined Mounting Plate Weight: 75 lbs. for 30 plates, calculated from the listed individual weight of 2.50 lbs.
• Ground Support Base Length: 1M / 3.28 ft. per XT-GSWSB MK2 base, as specified.
• Individual Linear Truss Length: 3M / 9.84 ft.
• Nominal System Dimensions: 16.40 ft. wide x 9.84 ft. high.
• Total Package Weight: Confirm with the manufacturer or supplier.

Shipping Dimensions & Weight

• XT-F32LB984BLK Linear Truss: Listed carton dimensions of 3.00 in. H x 12.00 in. W x 119.00 in. L, with a listed shipping weight of 20.00 lbs. The supplied information describes five truss boxes.
• XT-GSWSB MK2 Ground Support Bases: Listed carton dimensions of 44.00 in. H x 20.00 in. W x 4.00 in. L, with a listed shipping weight of 42.00 lbs. The supplied information describes five base boxes.
• Suggested Shipping Method: LTL freight.
• Mounting Plate Shipping Details: Separate carton dimensions and shipping weight were not provided.

Shipping note: Confirm whether the listed dimensions and weights apply to each individual carton or a grouped shipment before publishing freight estimates. Verify the total number of cartons, final shipment weight, and freight classification with the supplier.

Ideal Applications for the ProX XTP-GSLED5X300BLK

The ProX XTP-GSLED5X300BLK is designed for compatible ground-supported LED display installations across professional event, staging, and production environments.

• LED video walls and digital displays
• Concerts and touring productions
• Corporate events and business presentations
• Trade shows and exhibition booths
• Broadcast studios and production facilities
• Stage backdrops and live entertainment venues
• Professional AV integration projects
• Event rental and staging companies
• Product launches and brand activations
• Conferences and convention venues
• Temporary ground-stacked LED video wall installations

Why Choose the ProX XTP-GSLED5X300BLK?

The ProX XTP-GSLED5X300BLK combines five stabilizing T-bases, five black F32 I-Beam linear truss segments, and 30 adjustable LED panel mounting plates in one coordinated package. Its nominal 5M x 3M configuration provides a practical starting point for compatible large-format LED video wall installations without relying on overhead suspension as the primary support method.

The matching black finish, modular support components, compact bases, and adjustable mounting hardware make this package suitable for professional AV integrators, staging companies, touring crews, and equipment rental businesses. Consolidating the principal support components into one package can simplify equipment planning and inventory management. As with any LED wall support structure, panel compatibility, loading, ballast, and installation safety must be evaluated for the complete system.

Buy ProX XTP-GSLED5X300BLK from USATRUSS

Shop the ProX XTP-GSLED5X300BLK 5M x 3M Black LED Video Display Panel Ground Support System Package from USATRUSS. This professional ground support package includes five XT-GSWSB MK2 T-bases, five black 9.84 ft. F32 I-Beam truss segments, and 30 adjustable LED panel mounting plates for compatible LED video wall installations.

Designed for concerts, touring productions, corporate presentations, trade shows, exhibitions, and professional AV applications, this ProX package brings the principal ground support components together for equipment planning. LED panels and ballast are not included and must be provided according to the approved installation design.

Need help selecting LED video wall support equipment or confirming component compatibility? Contact USATRUSS or call 1-800-856-8397 for assistance with product specifications, availability, and ordering.

Frequently Asked Questions About ProX XTP-GSLED5X300BLK

What is the ProX XTP-GSLED5X300BLK?

The ProX XTP-GSLED5X300BLK is a black LED video display panel ground support system package designed for a nominal 16.40 ft. (5M) wide x 9.84 ft. (3M) high LED wall. It includes ground support bases, F32 I-Beam linear truss segments, and adjustable LED panel mounting plates.

What is included in the ProX XTP-GSLED5X300BLK package?

The package includes five XT-GSWSB MK2 stabilizing T-bases, five XT-F32LB984BLK 9.84 ft. (3M) black F32 I-Beam truss segments, and 30 XT-TC5LEDPABLK LED panel mounting plates. LED panels and ballast are not included.

What are the dimensions of the ProX XTP-GSLED5X300BLK?

The nominal support configuration measures 5M (16.40 ft.) wide x 3M (9.84 ft.) high. Each included linear truss segment measures 3M (9.84 ft.). Verify the final assembled configuration against the manufacturer's instructions.

Which LED panel sizes are compatible with this package?

The supplied product information identifies compatibility with standard 500 x 500 mm and 500 x 1000 mm LED panels. Verify the panel mounting interface, panel weight, dimensions, and approved configuration with the manufacturer before installation.

How many LED panel mounting plates are included?

The package includes 30 XT-TC5LEDPABLK LED panel wall mounting plates. Each plate features an adjustable 10–13 inch telescoping offset clamp designed for compatible 2-inch pole truss.

How many ground support bases and truss segments are included?

The package includes five XT-GSWSB MK2 stabilizing T-bases and five XT-F32LB984BLK F32 I-Beam linear truss segments. Each base measures 1M (3.28 ft.) in length, and each truss segment measures 3M (9.84 ft.).

Are LED panels included with this ground support system?

No. The package contains the listed ground support bases, truss segments, and mounting plates. LED display panels must be purchased separately.

Is ballast included with the ProX XTP-GSLED5X300BLK?

No. Ballast is not included and is required for safe operation. The supplied product information identifies ballast weight equal to the total installed LED panel weight as a baseline recommendation. A qualified structural professional must determine and approve the actual ballast and stability requirements for the installation.

Can the ProX XTP-GSLED5X300BLK be used outdoors?

Outdoor use requires a site-specific engineering review and approval, including evaluation of wind exposure, ballast, anchoring, floor conditions, and structural stability. Do not use the system in high winds or severe weather unless the complete installation has been specifically evaluated and approved for those conditions.

What is the shipping method for the ProX XTP-GSLED5X300BLK?

The suggested shipping method is LTL freight because the package includes long truss segments and multiple support bases. Confirm the final carton count, dimensions, shipment weight, and freight requirements with the supplier before ordering.
