ProX XTP-GSLED5X250BLK LED Video Display Panel Ground Support System Package – 5M x 2.5M, Black

Product Description

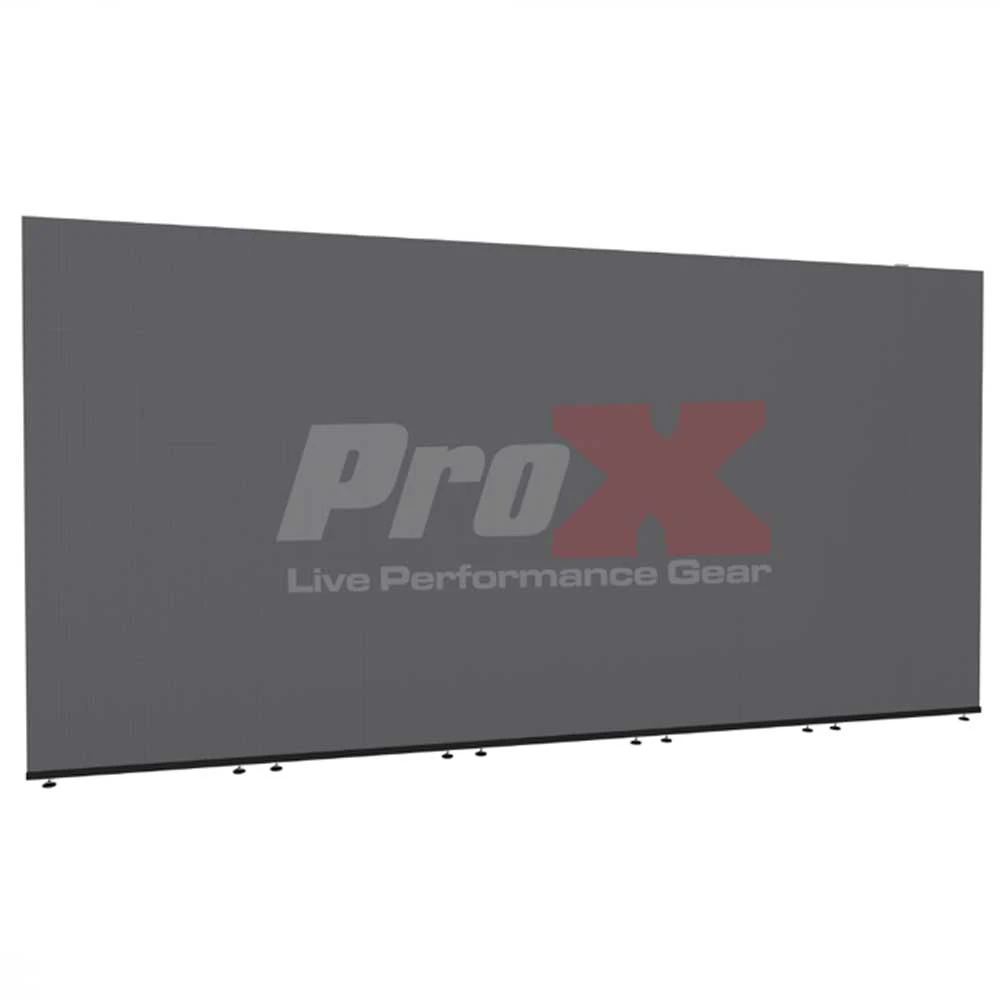

The ProX XTP-GSLED5X250BLK is a complete LED video display panel ground support system package measuring 16.40 ft. (5M) wide x 8.20 ft. (2.5M) high. Designed for professional LED video wall installations, this black freestanding ground support package combines stabilizing T-bases, F32 I-Beam linear truss segments, and adjustable LED panel mounting plates into one coordinated support solution. It is designed for compatible ground-stacked LED displays in concerts, touring productions, corporate events, trade shows, exhibitions, broadcast environments, houses of worship, and professional AV installations.

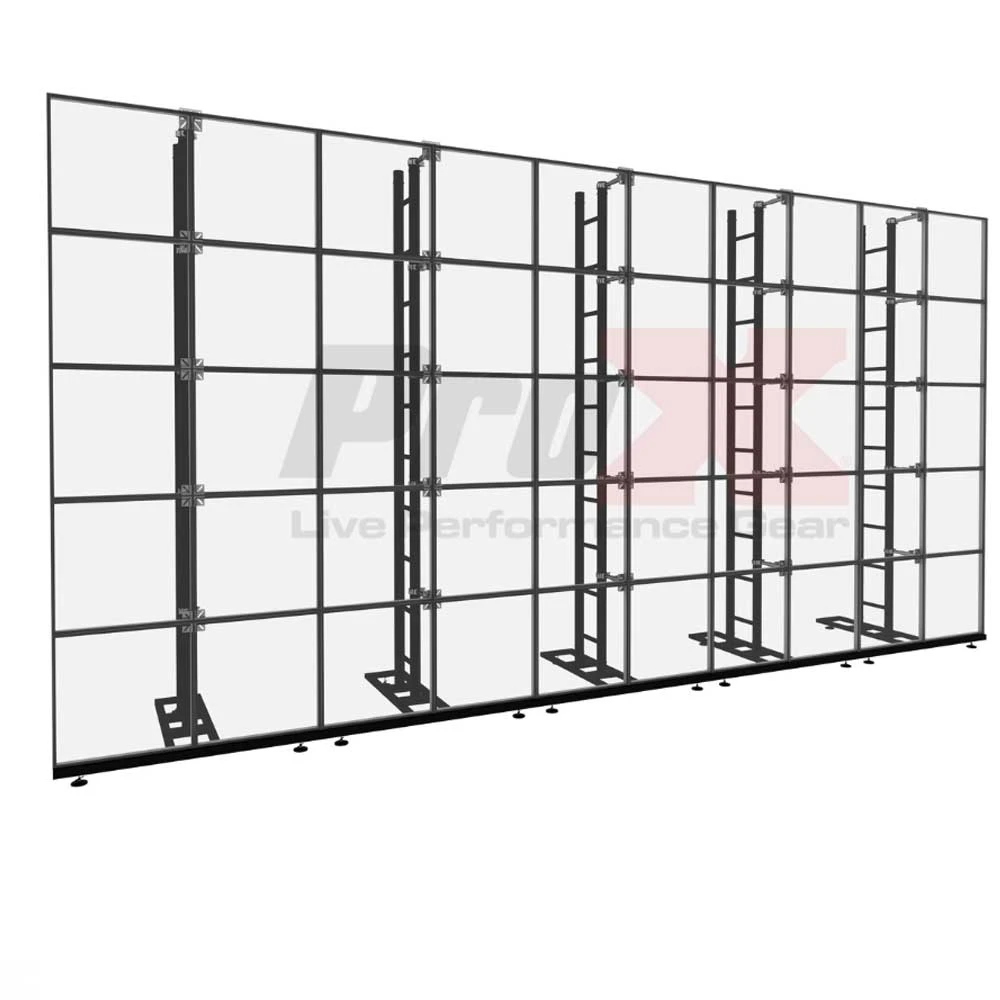

The ProX XTP-GSLED5X250BLK includes five XT-GSWSB ground support stabilizing T-bases, five XT-F32LB820BLK black F32 I-Beam linear truss segments measuring 8.20 ft. (2.50M) each, and 25 XT-TC5LEDPABLK LED panel mounting plates. The coordinated components provide a framework for positioning compatible LED display panels across a nominal 5M-wide x 2.5M-high configuration. The black finish creates a consistent professional appearance that integrates well with stage backdrops, event lighting, exhibition booths, and production environments.

The included XT-GSWSB ground support T-bases provide the floor-mounted foundation for the support structure. Each base measures 1M (3.28 ft.) and is designed for compatible F32 or specified 12-inch bolt truss configurations. Five XT-F32LB820BLK F32 I-Beam linear truss segments form the vertical support framework. Each segment measures 2.50M (8.20 ft.) and features a black finish with a listed 2 mm wall specification. Confirm the approved assembly configuration and structural limits before installation.

The package also includes 25 XT-TC5LEDPABLK LED panel wall mounting plates with adjustable 10–13-inch extension clamps designed for compatible 2-inch pole truss. These mounting components provide attachment points for compatible LED display panels and allow installers to position panels according to the intended wall layout. Panel mounting compatibility depends on the display cabinet's mounting interface, dimensions, weight, and installation requirements. Verify these details with the LED panel and support system manufacturers before use.

The ProX XTP-GSLED5X250BLK is suited to professional production teams that need a coordinated support package for medium-format LED video walls. Its nominal 5M-wide x 2.5M-high configuration can be incorporated into stage backdrops, digital signage installations, corporate presentations, trade show displays, and temporary event video walls. The modular component arrangement supports organized equipment transport, storage, and repeated deployment by rental companies, staging providers, AV integrators, and event production crews.

Important safety information: LED display panels and ballast are not included. The required ballast, if applicable to the approved configuration, must be determined through a site-specific structural assessment. A qualified structural professional must evaluate the complete installation, including stability, panel loading, ballast, floor conditions, and environmental exposure. Outdoor installations and installations exposed to wind require particular attention to engineering approval and applicable local codes. Do not assume that the nominal dimensions alone establish a safe load capacity.

Key Features

• ProX XTP-GSLED5X250BLK LED Video Display Panel Ground Support System Package
• Nominal 16.40 ft. (5M) wide x 8.20 ft. (2.5M) high configuration
• Black freestanding ground support framework for compatible LED video walls
• Complete coordinated package of support bases, linear truss, and mounting plates
• Includes five XT-GSWSB ground support stabilizing T-bases
• 1M (3.28 ft.) T-bases designed for compatible F32 or specified 12-inch bolt truss configurations
• Includes five XT-F32LB820BLK F32 I-Beam linear truss segments
• Each truss segment measures 8.20 ft. (2.50M)
• Black truss finish for a consistent professional stage appearance
• Listed 2 mm truss wall specification
• Includes 25 XT-TC5LEDPABLK LED panel mounting plates
• Adjustable 10–13-inch extension mounting clamps
• Mounting clamps designed for compatible 2-inch pole truss
• Designed for compatible LED display panel mounting configurations
• Modular components for professional event production and rental applications
• Suitable for concerts, trade shows, exhibitions, corporate events, and stage productions
• Useful for digital backdrops, temporary video walls, and event display installations
• LED display panels not included
• Ballast not included; determine requirements for the approved installation
• Manufacturer warranty subject to applicable ProX terms

Technical Specifications

• Brand: ProX
• Model: XTP-GSLED5X250BLK
• Product Type: LED Video Display Panel Ground Support System Package
• Nominal System Width: 16.40 ft. / 5M
• Nominal System Height: 8.20 ft. / 2.50M
• System Configuration: Ground support for compatible LED video wall installations
• Finish: Black
• Ground Support Base Model: XT-GSWSB
• Ground Support Base Quantity: 5
• Individual Ground Support Base Length: 1M / 3.28 ft.
• Linear Truss Model: XT-F32LB820BLK
• Linear Truss Quantity: 5
• Individual Truss Length: 8.20 ft. / 2.50M
• Truss Profile: F32 I-Beam linear truss
• Truss Wall Specification: 2 mm, as listed
• Mounting Plate Model: XT-TC5LEDPABLK
• Mounting Plate Quantity: 25
• Mounting Plate Adjustment Range: 10–13 inches
• Mounting Clamp Compatibility: Compatible 2-inch pole truss
• LED Panel Compatibility: Verify mounting interface, panel dimensions, and weight before installation
• LED Display Panels Included: No
• Ballast Included: No
• Ballast Requirement: Determine according to the approved installation design
• UPC: 798239006800
• Application: LED video walls, concerts, touring productions, corporate events, exhibitions, broadcast environments, and professional AV installations

Package Contents

• (5) XT-GSWSB: ProX Ground Support Stabilizing 1M / 3.28 ft. T-Bases for LED Screen Wall Stacking, designed for compatible F32 or specified 12-inch bolt truss configurations.
• (5) XT-F32LB820BLK: ProX 8.20 ft. (2.50M) F32 I-Beam Linear Truss Segments with a listed 2 mm wall specification and black finish.
• (25) XT-TC5LEDPABLK: ProX Black LED Panel Wall Mounting Plates with adjustable 10–13-inch extension clamps for compatible 2-inch pole truss.
• Not Included: LED display panels, ballast, and any additional equipment required for the approved installation.

Exterior Dimensions & Weight

• XT-TC5LEDPABLK Mounting Plate Dimensions: 15.00 in. H x 5.00 in. W x 5.00 in. L
• XT-TC5LEDPABLK Mounting Plate Weight: 2.50 lbs. each

Shipping Dimensions & Weight

• Box 1 of 3 – Mounting Plates: Listed dimensions of 16.00 in. H x 6.00 in. W x 6.00 in. L; listed shipping weight of 3.00 lbs.
• Box 2 of 3 – Truss Segments: Listed dimensions of 2.50 in. H x 13.00 in. W x 99.00 in. L; listed shipping weight of 17.00 lbs.
• Box 3 of 3 – Ground Support Bases: Listed dimensions of 3.50 in. H x 20.00 in. W x 44.00 in. L; listed shipping weight of 42.00 lbs.

Shipping note: Confirm final carton quantities, dimensions, and shipping weights with the supplier before publishing freight estimates. The mounting plate shipping information is listed with a carton quantity of 25, so the stated 3.00 lb. weight should not be assumed to represent the entire mounting plate shipment.

Where Can You Use the ProX XTP-GSLED5X250BLK?

The ProX XTP-GSLED5X250BLK is designed for professional LED video wall installations that require a coordinated ground support framework. Its nominal 5M-wide x 2.5M-high configuration offers a practical starting point for compatible display layouts in event production and presentation environments.

• Live concerts and music festivals
• Touring productions and stage performances
• Corporate events and business presentations
• Trade shows and exhibition booths
• Conference and convention centers
• Broadcast studios and production facilities
• Houses of worship and auditorium installations
• Professional AV integration projects
• Event rental and staging companies
• Product launches and promotional events
• Brand activations and digital backdrops
• Temporary ground-supported LED video walls
• Commercial presentations and event signage
• Live entertainment venues
• Exhibition displays and corporate environments

Buy ProX XTP-GSLED5X250BLK from USATRUSS

Shop the ProX XTP-GSLED5X250BLK 5M x 2.5M LED Video Display Panel Ground Support System Package at USATRUSS. This black ground support package includes five stabilizing T-bases, five 8.20 ft. F32 I-Beam linear truss segments, and 25 adjustable LED panel mounting plates for compatible professional LED video wall applications.

Designed for concerts, corporate presentations, exhibitions, trade shows, broadcast environments, and professional AV installations, this ProX package provides a coordinated support framework for ground-stacked LED displays. LED panels and any required ballast are sold separately. Confirm compatibility and installation requirements before ordering.

Need assistance selecting an LED video wall support configuration or confirming component compatibility? Contact USATRUSS for help with product specifications, availability, and ordering.

Frequently Asked Questions

What is the ProX XTP-GSLED5X250BLK LED Ground Support System?

The ProX XTP-GSLED5X250BLK is a black LED video display panel ground support package with a nominal configuration of 16.40 ft. (5M) wide x 8.20 ft. (2.5M) high. It includes five ground support T-bases, five black 2.5M F32 I-Beam linear truss segments, and 25 adjustable LED panel mounting plates.

What is included in the ProX XTP-GSLED5X250BLK package?

The package includes (5) XT-GSWSB stabilizing T-bases, (5) XT-F32LB820BLK linear truss segments, and (25) XT-TC5LEDPABLK LED panel mounting plates. LED panels and ballast are not included.

What are the dimensions of the ProX XTP-GSLED5X250BLK?

The nominal system configuration measures 5M (16.40 ft.) wide x 2.5M (8.20 ft.) high. Each included F32 I-Beam linear truss segment measures 2.50M (8.20 ft.). Verify the assembled configuration against the manufacturer's documentation.

Are LED panels included with this ProX ground support package?

No. The package includes the support bases, truss segments, and mounting plates. LED display panels must be purchased separately, and their mounting interface and weight must be checked before installation.

Does the ProX XTP-GSLED5X250BLK require ballast?

Ballast requirements depend on the actual installation design, panel load, support configuration, and site conditions. Ballast is not included. Consult a qualified structural professional to determine the appropriate requirements and approve the completed installation.

What type of LED panel mounting plates are included?

The package includes 25 XT-TC5LEDPABLK LED panel mounting plates with adjustable 10–13-inch extension clamps designed for compatible 2-inch pole truss. Verify the mounting interface and compatibility with your selected LED panels before assembly.

Is the ProX XTP-GSLED5X250BLK suitable for concerts and trade shows?

Yes. The package is intended for compatible LED video wall support applications in professional event environments, including concerts, corporate presentations, trade shows, exhibitions, and live productions. The completed installation must comply with the manufacturer's requirements and applicable structural safety standards.
