ProX XTP-GSLED7X300BLK 7M x 3M LED Video Wall Ground Support System – Black

Product Description

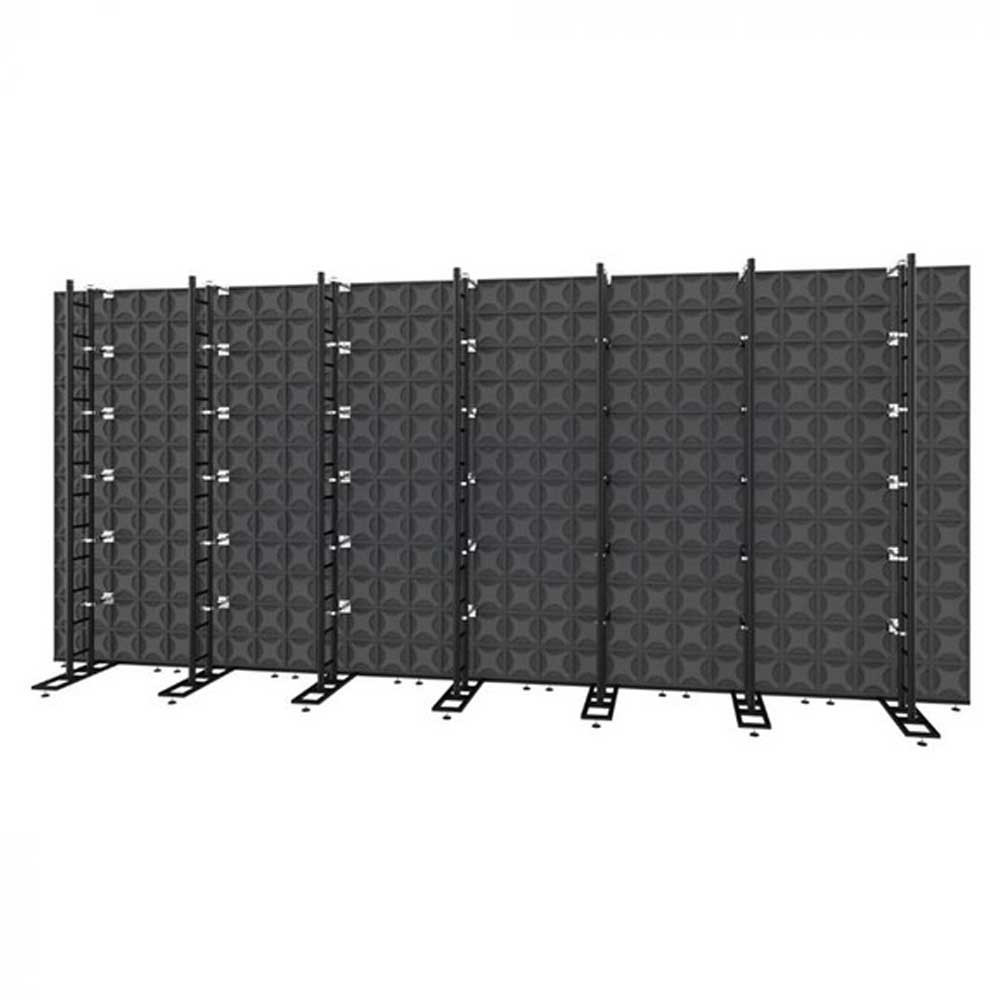

The ProX XTP-GSLED7X300BLK is a complete LED video display panel ground support system package measuring 22.96 ft. (7M) wide x 9.84 ft. (3M) high. Designed for professional LED video wall installations, this freestanding ground support structure includes seven stabilizing T-bases, seven black F32 I-Beam linear truss segments, and 42 adjustable LED panel wall mounting plates. The system provides a dedicated structural framework for ground-stacked LED displays without requiring overhead rigging, making it suitable for concerts, touring productions, corporate events, trade shows, broadcast studios, houses of worship, and professional AV installations.

The ProX XTP-GSLED7X300BLK features seven XT-GSWSB MK2 ground support stabilizing T-bases, each measuring 1M (3.28 ft.) and designed to provide a compact floor-mounted foundation. Seven XT-F32LB984BLK F32 I-Beam linear truss segments, each measuring 9.84 ft. (3.00M), form the vertical support structure. The black truss finish helps the framework blend into stage environments and behind LED display content. The T-base design also provides a compact footprint for storage, transportation, and touring production applications.

The system includes 42 XT-TC5LEDPABLK LED panel wall mounting plates with adjustable 10–13-inch telescoping offset clamps designed for 2-inch pole truss. These mounting plates help position LED panels and align display columns across the support structure. The system is designed for standard 500 x 500 mm and 500 x 1000 mm LED panel formats, subject to the panel mounting interface and installation requirements. Each base and mounting arrangement may accommodate up to two vertical columns of 500 mm-wide LED panels, depending on panel weight, wall height, ballast, and engineering approval.

The ProX XTP-GSLED7X300BLK is designed for repeatable deployment in professional event production environments where a freestanding LED wall is required. Its coordinated truss segments, stabilizing bases, and mounting plates provide an organized support solution for rental companies, staging providers, production crews, and AV integrators. An adjustable-height version, the XTP-GSLED7X300BLK-SB2440, is also available with seven XT-GSWSB2440 ground support stands offering a 35–54-inch vertical adjustment range.

Important safety information: LED panels and ballast are not included. Ballast is required for safe operation, and the appropriate ballast quantity must be determined for the actual installation. ProX recommends ballast weight equal to the total installed LED panel weight as a baseline. A qualified structural professional must evaluate and approve the installation, including ballast, stability, panel loading, and environmental conditions. Outdoor installations and installations exposed to wind require particular attention to engineering approval, venue requirements, and applicable local codes.

Key Features

• ProX XTP-GSLED7X300BLK LED video display panel ground support system package
• Nominal 22.96 ft. (7M) wide x 9.84 ft. (3M) high configuration
• Freestanding ground-stacked LED video wall support structure
• No overhead rigging required for the intended ground-support configuration
• Includes seven XT-GSWSB MK2 stabilizing T-bases
• 1M (3.28 ft.) ground support T-bases with a compact footprint
• Includes seven XT-F32LB984BLK F32 I-Beam linear truss segments
• 9.84 ft. (3.00M) black F32 I-Beam truss sections
• 2 mm truss wall specification as listed by the manufacturer
• Includes 42 XT-TC5LEDPABLK LED panel wall mounting plates
• Adjustable 10–13-inch telescoping offset mounting clamps
• Mounting plates designed for 2-inch pole truss
• Compatible with standard 500 x 500 mm and 500 x 1000 mm LED panel formats, subject to interface verification
• Supports up to two vertical columns of 500 mm-wide LED panels per base and mounting arrangement, subject to engineering approval
• Matching black finish across the package components
• Designed for professional AV, touring, and rental production applications
• Compact T-base design for transportation and storage
• Coordinated components for repeatable system assembly
• Adjustable-height version available as XTP-GSLED7X300BLK-SB2440
• Adjustable-height version includes seven XT-GSWSB2440 stands
• Adjustable-height stand range of 35–54 inches on the alternate version
• Ballast required and sold separately
• LED video panels not included
• ProX limited warranty

Technical Specifications

• Brand: ProX
• Model: XTP-GSLED7X300BLK
• Product Type: LED Video Display Panel Ground Support System Package
• Nominal System Width: 22.96 ft. / 7M
• Nominal System Height: 9.84 ft. / 3M
• System Configuration: Freestanding ground support
• Finish: Black
• Ground Support Base Model: XT-GSWSB MK2
• Ground Support Base Quantity: 7
• Ground Support Base Length: 1M / 3.28 ft. each
• Linear Truss Model: XT-F32LB984BLK
• Linear Truss Quantity: 7
• Individual Truss Length: 9.84 ft. / 3.00M
• Truss Profile: F32 I-Beam linear truss
• Truss Wall Specification: 2 mm
• Mounting Plate Model: XT-TC5LEDPABLK
• Mounting Plate Quantity: 42
• Mounting Plate Adjustment Range: 10–13 inches
• Mounting Clamp Compatibility: 2-inch pole truss
• LED Panel Formats: 500 x 500 mm and 500 x 1000 mm, subject to mounting compatibility
• Panel Column Configuration: Up to two vertical columns of 500 mm-wide panels per base and mounting arrangement, subject to engineering approval
• LED Panels Included: No
• Ballast Included: No
• Ballast Requirement: Required; determine according to the approved installation configuration
• Alternate Adjustable-Height Model: XTP-GSLED7X300BLK-SB2440
• Alternate Stand Model: XT-GSWSB2440
• Alternate Stand Quantity: 7
• Alternate Stand Adjustment Range: 35–54 inches
• Application: LED video walls, concerts, touring, corporate events, exhibitions, broadcast, and professional AV production

Package Contents

• (7) XT-GSWSB MK2: Ground Support Stabilizing 1M / 3.28 ft. T-Base for LED Screen Wall Stacking, compatible with specified F32 or 12-inch bolt truss configurations
• (7) XT-F32LB984BLK: 9.84 ft. (3.00M) F32 I-Beam Linear Truss Segments with 2 mm wall specification in black
• (42) XT-TC5LEDPABLK: Black LED Panel Wall Mounting Plates with adjustable 10–13-inch extension and 2-inch pole truss clamps
• Not Included: LED display panels and required ballast

Exterior Dimensions & Weight

• XT-TC5LEDPABLK (42): 15.00 in. H x 5.00 in. W x 5.00 in. L
• XT-TC5LEDPABLK Weight: 2.50 lbs. each

Shipping Dimensions & Weight

• Box 1 of 2: XT-F32LB984BLK truss segments (7 boxes) — 3.00 in. H x 12.00 in. W x 119.00 in. L
• Box 1 Shipping Weight: 20.00 lbs. as supplied in the product information; verify whether this is per box or the combined shipment weight
• Box 2 of 2: XT-GSWSB MK2 bases (7 boxes) — 44.00 in. H x 20.00 in. W x 4.00 in. L
• Box 2 Shipping Weight: 42.00 lbs. as supplied in the product information; verify whether this is per box or the combined shipment weight

Where Can You Use the ProX XTP-GSLED7X300BLK?

The ProX XTP-GSLED7X300BLK is designed for professional LED video wall installations that require a freestanding ground support structure. Its nominal 7M-wide x 3M-high configuration provides a framework for integrating large-format LED displays into event and production environments where overhead suspension is not part of the installation plan.

• Live concerts and music festivals
• Touring productions
• Corporate events and presentations
• Trade shows and exhibitions
• Broadcast studios and production facilities
• Houses of worship
• Professional AV installations
• Stage backdrops and digital displays
• Event rental and staging companies
• Live entertainment productions
• Conference and convention venues
• Temporary ground-stacked LED video walls
• Corporate brand activations
• Exhibition display installations
• Production company inventory

Why Choose the ProX XTP-GSLED7X300BLK?

The ProX XTP-GSLED7X300BLK combines seven stabilizing T-bases, seven F32 I-Beam linear truss segments, and 42 adjustable LED panel mounting plates into one coordinated ground support package. Its nominal 7M x 3M configuration is intended for productions that need a substantial LED display framework without relying on overhead rigging.

The black F32 truss sections and matching mounting hardware provide a consistent appearance for stage and studio environments. The adjustable mounting plates allow installers to position compatible LED panels relative to the support columns, helping achieve the intended panel arrangement when the system is configured according to manufacturer instructions.

For touring crews, AV integrators, and equipment rental companies, the modular components provide an organized approach to transport, storage, and repeated deployment. The compact T-base design helps manage floor and cargo space, while the coordinated package simplifies equipment planning for compatible ground-stacked LED wall applications.

Ballast and LED panels must be sourced separately. The completed installation must be assessed for panel weight, stability, ballast requirements, venue conditions, and applicable engineering limits before use. The manufacturer's instructions and qualified professional approval should determine the final configuration.

Adjustable-Height Alternative

For installations requiring additional height flexibility, the ProX XTP-GSLED7X300BLK-SB2440 is an alternate package featuring seven XT-GSWSB2440 adjustable-height ground support stands. These stands provide a stated vertical adjustment range of 35–54 inches. Verify the alternate package specifications and compatibility with the planned installation before ordering.

Important Safety Information

• LED panels are not included with this package.
• Ballast is not included and is required for safe operation.
• ProX recommends ballast weight equal to the total installed LED panel weight as a baseline; the actual ballast requirement must be established for the specific configuration.
• Sandbags or steel ballast weights may be considered when approved for the installation.
• A qualified structural professional must evaluate and approve ballast, stability, loading, and installation conditions.
• Outdoor installations and installations exposed to wind require specific professional assessment and approval.
• All installations must comply with applicable local codes, venue requirements, manufacturer instructions, and engineering standards.
• Use the system only for its intended ground-support application and within the approved configuration.

Buy ProX XTP-GSLED7X300BLK from USATRUSS

Shop the ProX XTP-GSLED7X300BLK 7M x 3M LED Video Display Panel Ground Support System Package at USATRUSS. This black freestanding support package includes seven stabilizing T-bases, seven 9.84 ft. F32 I-Beam linear truss segments, and 42 adjustable LED panel mounting plates for professional LED video wall applications.

Designed for concerts, touring productions, corporate events, exhibitions, broadcast environments, houses of worship, and professional AV installations, the ProX ground support package provides a coordinated framework for compatible LED displays. LED panels and ballast are sold separately, and the final setup must be approved for the specific installation conditions.

Need help choosing an LED video wall support configuration or confirming compatible components? Contact USATRUSS for assistance with product specifications, availability, and ordering.

Frequently Asked Questions

What is the ProX XTP-GSLED7X300BLK LED Ground Support System?

The ProX XTP-GSLED7X300BLK is a freestanding LED video wall ground support system measuring 22.96 ft. (7M) wide x 9.84 ft. (3M) high. It includes seven stabilizing T-bases, seven black F32 I-Beam linear truss segments, and 42 adjustable LED panel mounting plates for professional event and AV installations.

What is included in the ProX XTP-GSLED7X300BLK package?

The package includes (7) XT-GSWSB MK2 stabilizing T-bases, (7) XT-F32LB984BLK 9.84 ft. F32 I-Beam linear truss segments, and (42) XT-TC5LEDPABLK adjustable LED panel mounting plates. LED display panels and ballast are not included and must be supplied separately.

Which LED panel sizes are compatible with this ProX ground support system?

The ProX XTP-GSLED7X300BLK is designed for standard 500 x 500 mm and 500 x 1000 mm LED panel formats. Confirm the panel mounting interface, panel weight, and approved configuration with the manufacturer before installation.

Does the ProX XTP-GSLED7X300BLK require ballast?

Yes. Ballast is required for safe operation but is not included with the package. ProX recommends ballast weight equal to the total installed LED panel weight as a baseline. The actual ballast requirements must be determined for the specific configuration and approved by a qualified structural professional.

Is an adjustable-height version of the ProX XTP-GSLED7X300BLK available?

Yes. The ProX XTP-GSLED7X300BLK-SB2440 is an alternative package that includes seven XT-GSWSB2440 adjustable-height ground support stands with a stated vertical adjustment range of 35–54 inches. Verify the manufacturer's specifications and compatibility with your intended installation before ordering.
