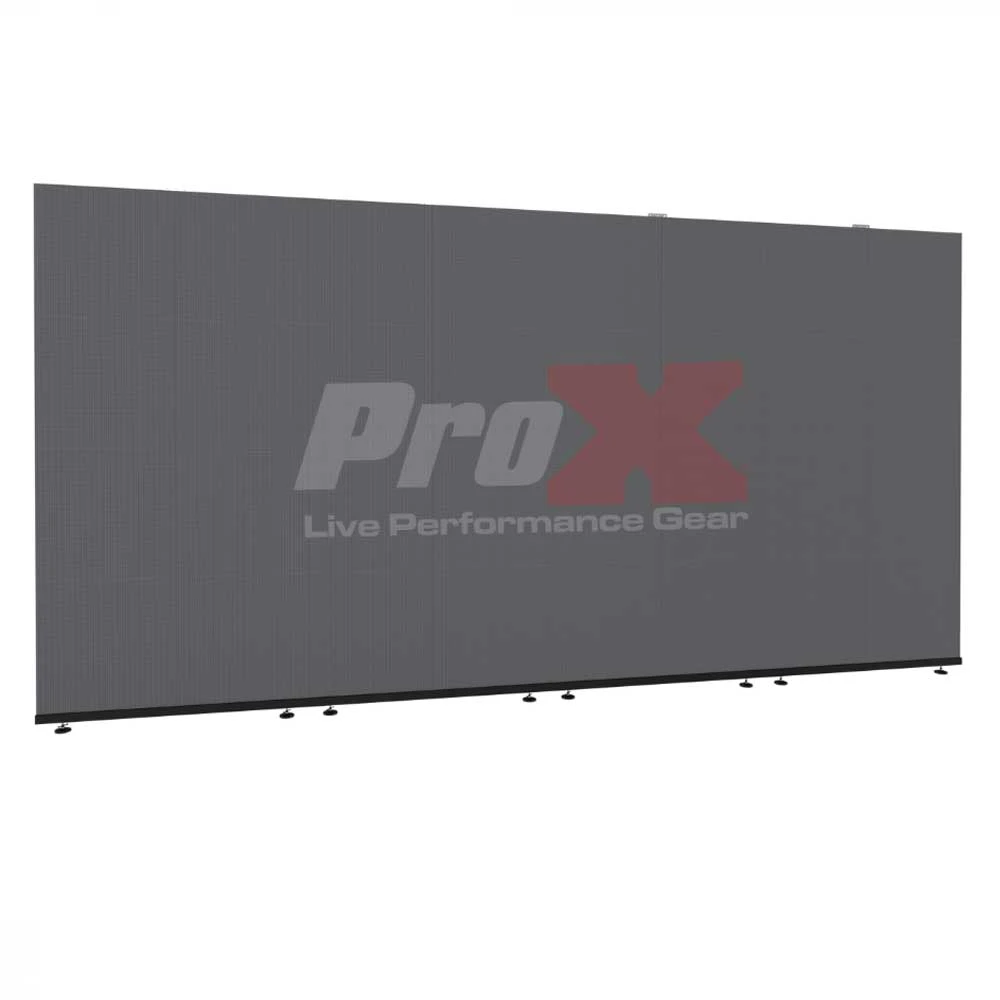

ProX XTP-GSLED4X200BLK LED Video Display Panel Ground Support System Package – 4M x 2M, Black

Product Description

The ProX XTP-GSLED4X200BLK is a complete LED video display panel ground support system package measuring 13.12 ft. (4M) wide x 6.56 ft. (2M) high. Designed for professional LED video wall installations, this black ground support package combines four stabilizing bases, four F32 I-Beam linear truss segments, and 16 adjustable LED panel mounting plates. The freestanding support configuration is intended for compatible ground-stacked LED displays in concerts, touring productions, corporate events, trade shows, exhibitions, broadcast environments, houses of worship, and professional AV installations.

The ProX XTP-GSLED4X200BLK provides a coordinated support solution for production teams that need a compact LED display framework without relying on overhead suspension for the intended ground-support configuration. Its nominal 4M-wide x 2M-high dimensions make it suitable for smaller video walls, stage backdrops, digital displays, corporate presentations, and temporary event installations. The matching black finish helps the support hardware blend into professional stage and studio environments.

Foundation: XT-GSWSB Ground Support Stabilizing T-Bases

Four XT-GSWSB ground support stabilizing T-bases provide the floor-mounted foundation for the system. Designed for compatible F32, F34, and specified 12-inch bolt truss configurations, these bases support the intended vertical truss assembly. Their compact profile is useful for event rental companies, staging providers, and production crews that need to manage equipment transportation, storage, and repeated deployment. The completed installation must be evaluated for stability, panel loading, ballast requirements, and site conditions.

Vertical Structure: XT-F32LB656BLK F32 I-Beam Linear Truss

Four black XT-F32LB656BLK F32 I-Beam linear truss segments, each measuring 6.56 ft. (2.00M) with a listed 2 mm wall specification, form the vertical support framework. The black finish provides a consistent appearance for stage backdrops, exhibition displays, broadcast sets, and corporate production environments. These truss segments are intended to be assembled with the specified support bases and mounting hardware according to the manufacturer's instructions.

Panel Positioning: XT-TC5LEDPABLK Mounting Plates

The package includes 16 XT-TC5LEDPABLK black LED panel wall mounting plates, featuring adjustable 10–13-inch extension clamps designed for compatible 2-inch pole truss. These mounting plates provide attachment points for positioning compatible LED display panels according to the intended layout. Each plate measures 15.00 in. H x 5.00 in. W x 5.00 in. L and weighs 2.50 lbs. Verify the mounting interface, panel dimensions, panel weight, and approved assembly configuration before installation.

Professional Black Finish

The matching black finish across the truss and mounting components creates a consistent appearance in professional production environments. The support structure is suitable for stage decks, digital backdrops, trade show displays, corporate presentations, and studio installations where minimizing the visual prominence of support hardware is desirable.

Ballast and Safety

LED panels and ballast are not included. Ballast requirements must be determined for the actual installation based on the panel configuration, total installed weight, support arrangement, floor conditions, and environmental exposure. A qualified structural professional must evaluate and approve the installation as required. Outdoor installations and setups exposed to wind require specific engineering assessment and approval. All installations must follow manufacturer instructions, venue requirements, applicable local codes, and relevant engineering standards.

Designed for Professional Event Production

The ProX XTP-GSLED4X200BLK brings the principal support components together in one coordinated package for rental companies, touring crews, staging providers, and AV integrators. Its nominal 4M x 2M configuration offers a practical starting point for compatible LED video wall installations at concerts, exhibitions, corporate events, and other professional production venues.

Key Features

• ProX XTP-GSLED4X200BLK LED Video Display Panel Ground Support System Package
• Nominal 13.12 ft. (4M) wide x 6.56 ft. (2M) high configuration
• Freestanding ground support framework for compatible LED video walls
• Designed for ground-stacked LED display installations
• Includes four XT-GSWSB ground support stabilizing T-bases
• Includes four XT-F32LB656BLK F32 I-Beam linear truss segments
• 6.56 ft. (2.00M) black linear truss sections with a listed 2 mm wall specification
• Includes 16 XT-TC5LEDPABLK LED panel mounting plates
• Adjustable 10–13-inch extension clamps for compatible 2-inch pole truss
• Mounting hardware for compatible LED panel support configurations
• Matching black finish for a professional stage and studio appearance
• Modular components for transportation, storage, and repeated deployment
• Suitable for concerts, touring productions, corporate events, and exhibitions
• Designed for professional AV, staging, and rental production applications
• LED display panels not included
• Ballast not included; requirements depend on the approved installation design
• ProX limited warranty, subject to applicable terms

Technical Specifications

• Brand: ProX
• Model: XTP-GSLED4X200BLK
• Product Type: LED Video Display Panel Ground Support System Package
• Nominal System Width: 13.12 ft. / 4M
• Nominal System Height: 6.56 ft. / 2M
• System Configuration: Ground support for compatible LED video walls
• Finish: Black
• Ground Support Base Model: XT-GSWSB
• Ground Support Base Quantity: 4
• Linear Truss Model: XT-F32LB656BLK
• Linear Truss Quantity: 4
• Individual Truss Length: 6.56 ft. / 2.00M
• Truss Profile: F32 I-Beam linear truss
• Truss Wall Specification: 2 mm, as listed
• Mounting Plate Model: XT-TC5LEDPABLK
• Mounting Plate Quantity: 16
• Mounting Plate Dimensions: 15.00 in. H x 5.00 in. W x 5.00 in. L
• Individual Mounting Plate Weight: 2.50 lbs.
• Mounting Clamp Adjustment Range: 10–13 inches
• Mounting Clamp Compatibility: Compatible 2-inch pole truss
• LED Panels Included: No
• Ballast Included: No
• Ballast Requirements: Determine according to the approved installation design
• UPC: 798239006787
• Application: LED video walls, concerts, corporate events, trade shows, exhibitions, broadcast environments, and professional AV installations

Package Contents

• (4) XT-GSWSB: Ground Support Stabilizing T-Bases for LED Screen Wall Stacking, designed for compatible F32, F34, and specified 12-inch bolt truss configurations.
• (4) XT-F32LB656BLK: 6.56 ft. (2.00M) F32 I-Beam Linear Truss Segments with a listed 2 mm wall specification in black.
• (16) XT-TC5LEDPABLK: Black LED Panel Wall Mounting Plates with adjustable 10–13-inch extension clamps for compatible 2-inch pole truss.
• Not Included: LED display panels, ballast, and any additional equipment required for the approved installation.

Exterior Dimensions & Weight

• XT-TC5LEDPABLK Mounting Plates (16): 15.00 in. H x 5.00 in. W x 5.00 in. L
• Individual Mounting Plate Weight: 2.50 lbs.
• Combined Mounting Plate Weight: 40.00 lbs., calculated from the listed individual weight of 2.50 lbs. per plate.

Shipping Dimensions & Weight

• Box 1 of 3 – XT-TC5LEDPABLK Mounting Plates: Listed dimensions of 16.00 in. H x 6.00 in. W x 6.00 in. L; listed shipping weight of 3.00 lbs.
• Box 2 of 3 – XT-F32LB656BLK Truss Segments: Listed dimensions of 3.00 in. H x 12.00 in. W x 79.00 in. L; listed shipping weight of 13.00 lbs.
• Box 3 of 3 – XT-GSWSB Ground Support Bases: Listed dimensions of 3.50 in. H x 20.00 in. W x 44.00 in. L; listed shipping weight of 42.00 lbs.
• Suggested Shipping Method: Confirm with the seller based on the final shipment dimensions, weight, and destination.

Shipping note: The listed mounting plate carton weight appears unusually low for a shipment containing 16 plates. Verify carton quantities, packaging dimensions, and actual shipping weights with the supplier before publishing freight estimates.

Where Can You Use the ProX XTP-GSLED4X200BLK?

The ProX XTP-GSLED4X200BLK is designed for compatible LED video wall installations requiring a ground support framework. Its nominal 4M-wide x 2M-high configuration is suited to smaller video walls, event backdrops, and presentation displays across professional production environments.

• Live concerts and music performances
• Touring productions and stage performances
• Corporate events and business presentations
• Trade shows and exhibition booths
• Conference and convention venues
• Broadcast studios and production facilities
• Houses of worship and auditoriums
• Professional AV integration projects
• Event rental and staging companies
• Product launches and brand activations
• Digital backdrops and promotional displays
• Temporary ground-stacked LED video walls
• Commercial presentations and event signage
• Live entertainment venues
• Corporate and exhibition environments

Why Choose the ProX XTP-GSLED4X200BLK?

The ProX XTP-GSLED4X200BLK combines four ground support bases, four black F32 I-Beam linear truss segments, and 16 adjustable LED panel mounting plates in one coordinated package. Its nominal 4M x 2M configuration provides a practical support framework for compatible LED video wall installations in professional event and presentation environments.

The black finish provides a consistent appearance across the support structure, while the adjustable mounting plates allow installers to position compatible display panels according to the planned layout. The modular components also help rental companies, staging providers, and AV integrators organize equipment for transportation, storage, and repeated deployment.

For concerts, exhibitions, corporate presentations, and live entertainment, this ProX package brings the principal ground support components together for equipment planning. Panel compatibility, loading, stability, and ballast requirements must be verified for the actual installation before use.

Buy ProX XTP-GSLED4X200BLK from USATRUSS

Shop the ProX XTP-GSLED4X200BLK 4M x 2M LED Video Display Panel Ground Support System Package at USATRUSS. This black ground support package includes four stabilizing bases, four 6.56 ft. F32 I-Beam linear truss segments, and 16 adjustable LED panel mounting plates for compatible professional LED video wall installations.

Designed for concerts, touring productions, corporate presentations, trade shows, exhibitions, and professional AV installations, the ProX package provides a coordinated framework for ground-supported LED displays. LED panels and ballast are sold separately and must be supplied according to the approved installation design.

Need help choosing an LED video wall support configuration or confirming component compatibility? Contact USATRUSS for assistance with product specifications, availability, and ordering.

Frequently Asked Questions

What is the ProX XTP-GSLED4X200BLK LED Ground Support System?

The ProX XTP-GSLED4X200BLK is a black LED video display panel ground support package with a nominal configuration of 13.12 ft. (4M) wide x 6.56 ft. (2M) high. It includes four ground support bases, four black 2M F32 I-Beam linear truss segments, and 16 adjustable LED panel mounting plates.

What is included in the ProX XTP-GSLED4X200BLK package?

The package includes (4) XT-GSWSB ground support bases, (4) XT-F32LB656BLK linear truss segments, and (16) XT-TC5LEDPABLK LED panel mounting plates. LED panels and ballast are not included.

What are the dimensions of the ProX XTP-GSLED4X200BLK?

The nominal system configuration measures 4M (13.12 ft.) wide x 2M (6.56 ft.) high. Each included linear truss segment measures 2M (6.56 ft.). Confirm the final assembled configuration against the manufacturer's instructions.

How many mounting plates are included?

The package includes 16 XT-TC5LEDPABLK LED panel wall mounting plates. Each plate features an adjustable 10–13-inch extension clamp designed for compatible 2-inch pole truss.

Are LED display panels included?

No. This package contains the ground support bases, truss segments, and mounting plates. LED panels must be purchased separately, and their mounting interface and weight must be verified before installation.

Does the ProX XTP-GSLED4X200BLK require ballast?

Ballast requirements depend on the completed installation, panel loading, support configuration, and site conditions. Ballast is not included. Consult a qualified structural professional to determine the appropriate requirements and approve the installation.

Can this ProX ground support system be used for concerts and trade shows?

Yes. It is designed for compatible LED video wall support applications in professional event environments, including concerts, trade shows, exhibitions, corporate presentations, and live productions. The final installation must comply with the manufacturer's requirements and applicable structural safety standards.
