ProX XT-F32JBOX F32 6 Way Universal Box Junction | 3mm Wall

Product Description

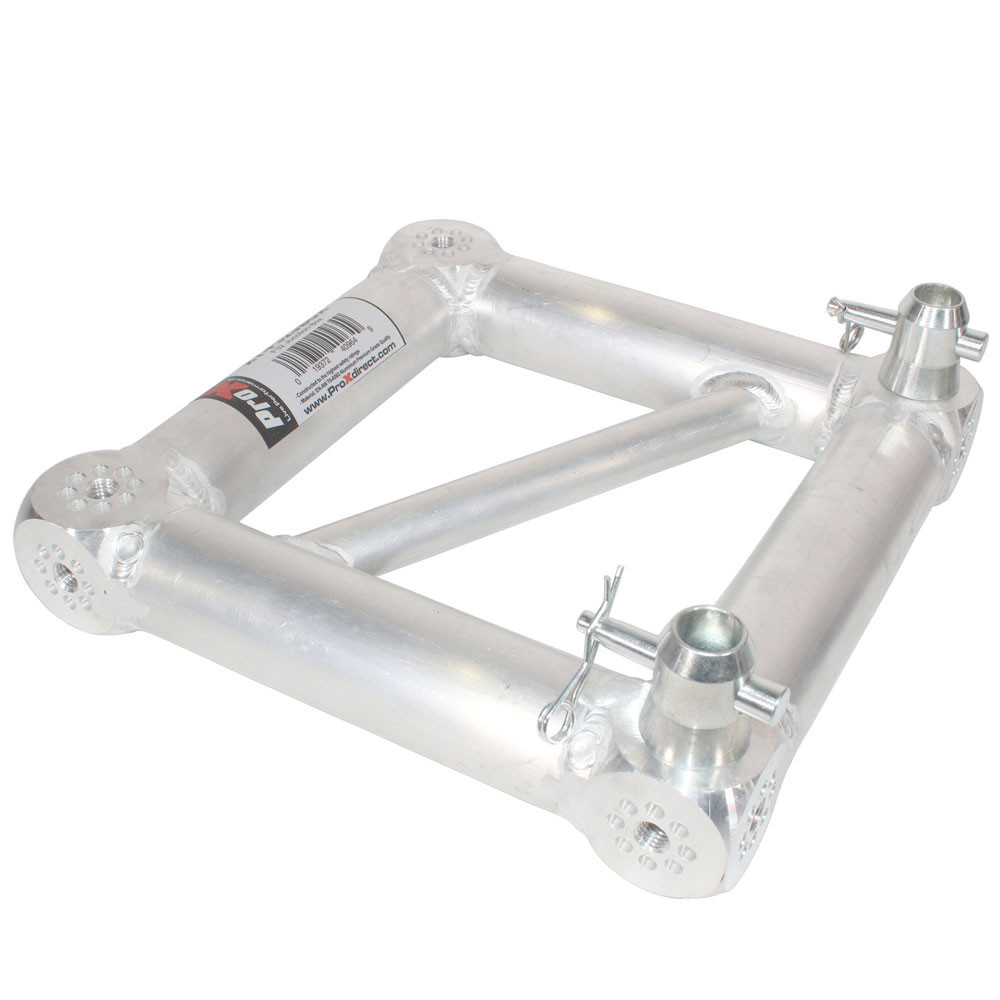

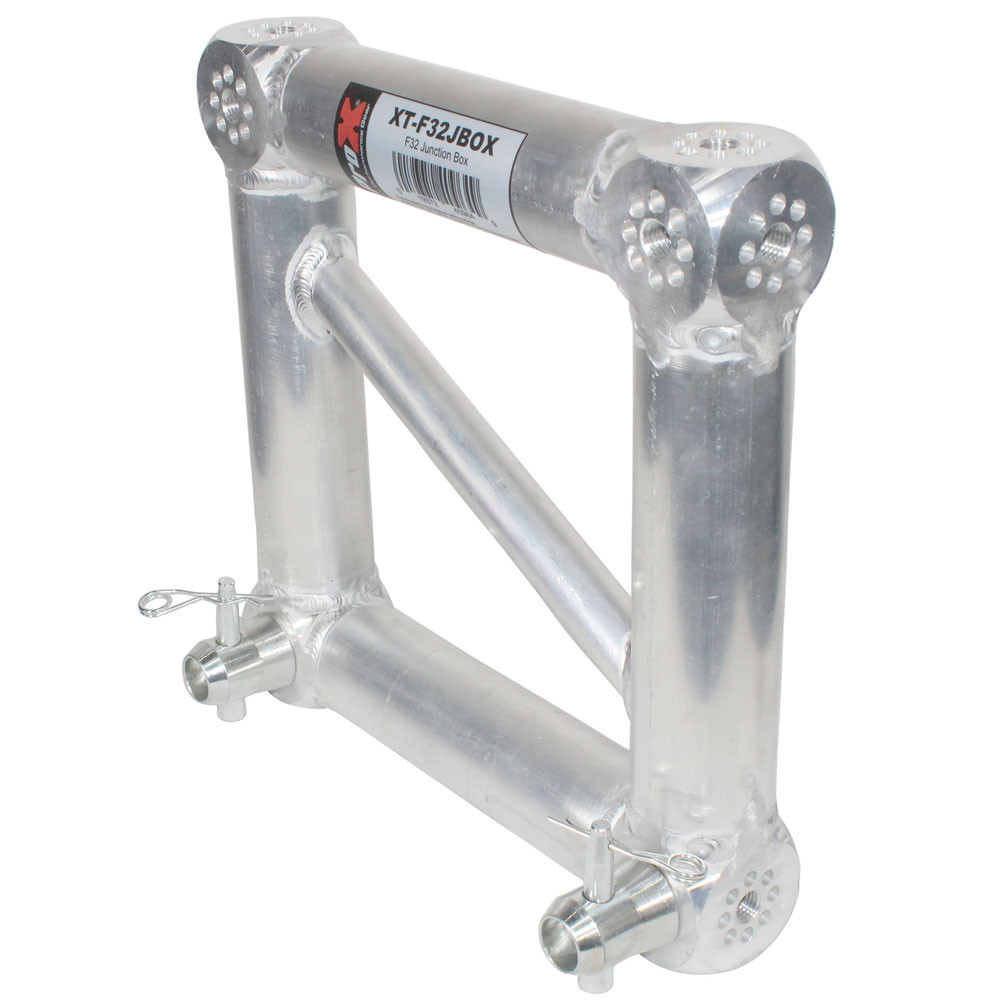

The ProX XT-F32JBOX is an F32 6 Way Universal Box Junction designed to connect compatible F32 I-Beam truss sections in multiple directions. With six connecting points, this junction box provides flexibility for creating complex truss layouts for trade shows, exhibitions, stage production, lighting, event technology, retail displays, and permanent installations.

The XT-F32JBOX features a 3 mm wall thickness and is constructed from EN-AWT6 6082 aluminum. Its F32 configuration uses 2-inch (50 mm) main tubing and 3/4-inch (20 mm) braces. The junction box uses a tolerance-free standard conical connector system designed for compatible F32 truss components.

The ProX XT-F32JBOX can be combined with compatible F32 straight segments, corners, junctions, base plates, connectors, and accessories to create customized truss structures. It is also designed to work with comparable F32 trussing that uses the same dimensions and connector style. Always verify complete system compatibility, load requirements, and installation conditions before assembly.

Key Features

• ProX XT-F32JBOX F32 6 Way Universal Box Junction
• Six connecting points for flexible truss configurations
• F32 2-point I-Beam truss system compatibility
• 2 in / 50 mm main tube diameter
• 3/4 in / 20 mm brace diameter
• 3 mm / 0.11 in main tube wall thickness
• EN-AWT6 6082 aluminum construction
• TUV-certified aluminum welding
• Tolerance-free standard conical connector system
• Designed for compatible ProX F32 truss systems
• Compatible with comparable F32 trussing using the same connector style
• Connecting hardware not included

Technical Specifications

• Brand: ProX
• Model: XT-F32JBOX
• Truss Series: F32
• Product Type: 6 Way Universal Box Junction
• Truss Design: 2-Point I-Beam Truss
• Connecting Points: 6 Way
• Overall Width: 11.42 in / 290 mm
• Overall Height: 11.42 in / 290 mm
• Main Tube Diameter: 2 in / 50 mm
• Brace Diameter: 3/4 in / 20 mm
• Wall Thickness: 0.11 in / 3 mm
• Material: EN-AWT6 6082 Aluminum
• Connection System: Tolerance-Free Standard Conical Connector
• Welding: TUV-Certified Aluminum Welding
• Finish: Silver
• Connecting Hardware: Not Included
• UPC: 019372409649

Where Can You Use the ProX XT-F32JBOX?

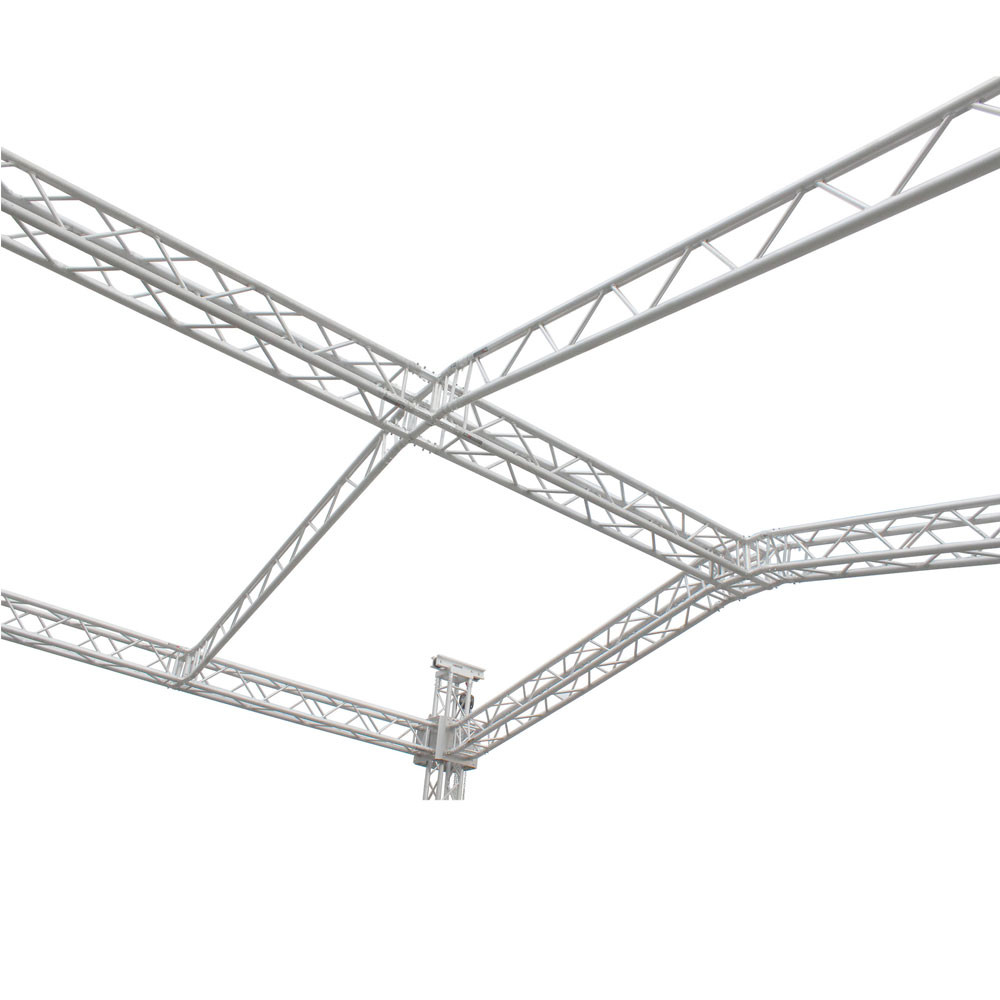

The ProX XT-F32JBOX is designed for creating multi-directional F32 truss configurations. Its six connecting points allow compatible straight truss sections and other F32 components to be arranged into more complex structures.

• Trade show booths
• Exhibition structures
• Retail displays
• Stage production
• Event production
• Lighting support structures
• Live entertainment setups
• Mobile DJ productions
• Nightclubs and entertainment venues
• Permanent installations
• Custom truss structures
• Production and event technology applications

Why Choose the ProX XT-F32JBOX?

The ProX XT-F32JBOX provides six connection points in a single F32 junction component, making it useful when a standard straight truss section is not enough for a particular layout. The box junction allows compatible F32 truss sections to branch in multiple directions and can help create customized configurations.

Its 3 mm wall construction, EN-AWT6 6082 aluminum material, and TUV-certified aluminum welding provide a professional construction suitable for compatible event and production truss systems.

The tolerance-free conical connector system is designed for precise connections between compatible truss components. Before combining products, always confirm the dimensions, connector style, component specifications, and requirements of the complete truss system.

F32 6 Way Universal Box Junction Design

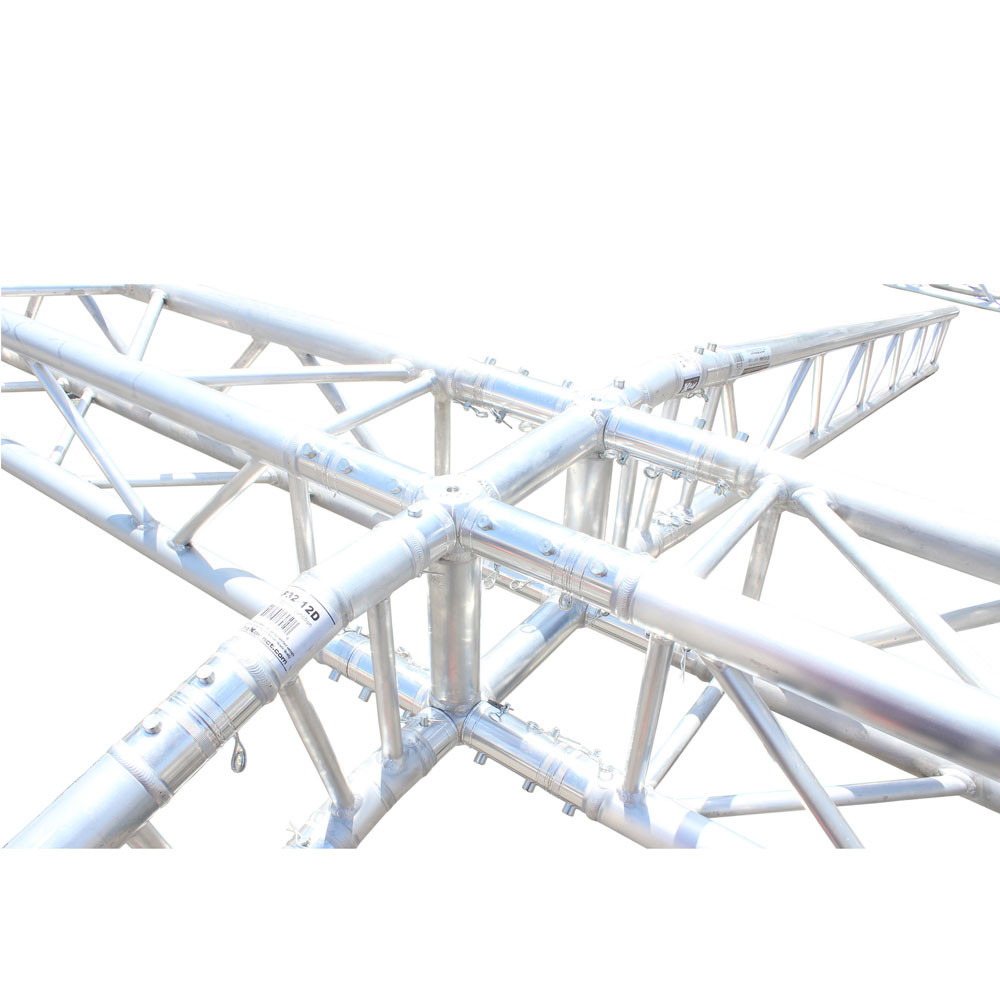

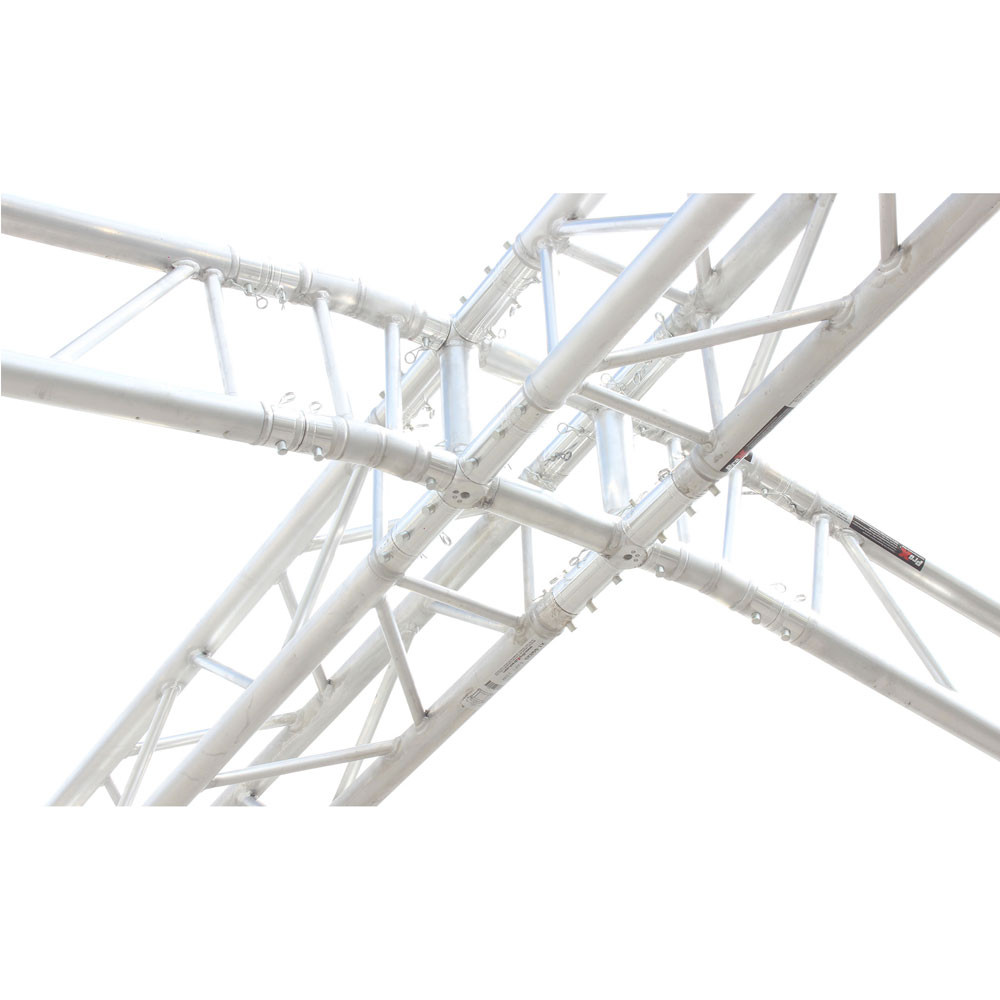

The XT-F32JBOX is a 6-way universal box junction for the ProX F32 I-Beam truss system. Its six connecting points allow F32 truss sections to be connected in multiple directions, making it useful for building customized structures and more complex truss layouts.

The F32 system uses 2-inch (50 mm) main tubes and 3/4-inch (20 mm) braces. The XT-F32JBOX uses a 3 mm wall thickness for its main tube construction and has an overall F32 dimension of approximately 290 mm (11.42 inches).

Buy ProX XT-F32JBOX from USATRUSS

Buy the ProX XT-F32JBOX F32 6 Way Universal Box Junction | 3mm Wall from USATRUSS for building compatible F32 I-Beam truss configurations for events, lighting, exhibitions, trade shows, productions, displays, and installations.

With six connecting points, EN-AWT6 6082 aluminum construction, a 3 mm tube wall, TUV-certified aluminum welding, and a tolerance-free conical connector system, the XT-F32JBOX provides a versatile junction component for compatible F32 truss systems.

Need help selecting compatible F32 truss components? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-F32JBOX?

The ProX XT-F32JBOX is an F32 6 Way Universal Box Junction designed to connect compatible F32 I-Beam truss sections in multiple directions.

How many connecting points does the XT-F32JBOX have?

The ProX XT-F32JBOX has six connecting points, allowing compatible F32 truss sections to be configured in multiple directions.

What is the wall thickness of the ProX XT-F32JBOX?

The ProX XT-F32JBOX has a 3 mm (0.11 inch) main tube wall thickness.

What are the dimensions of the XT-F32JBOX?

The F32 junction box has an overall width and height of approximately 11.42 inches (290 mm).

What size tubing does the XT-F32JBOX use?

The F32 system uses 2-inch (50 mm) main tubing and 3/4-inch (20 mm) diagonal braces.

What material is the ProX XT-F32JBOX made from?

The XT-F32JBOX is manufactured from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

What type of connector does the XT-F32JBOX use?

The XT-F32JBOX uses a tolerance-free standard conical connector system for compatible F32 truss components.
