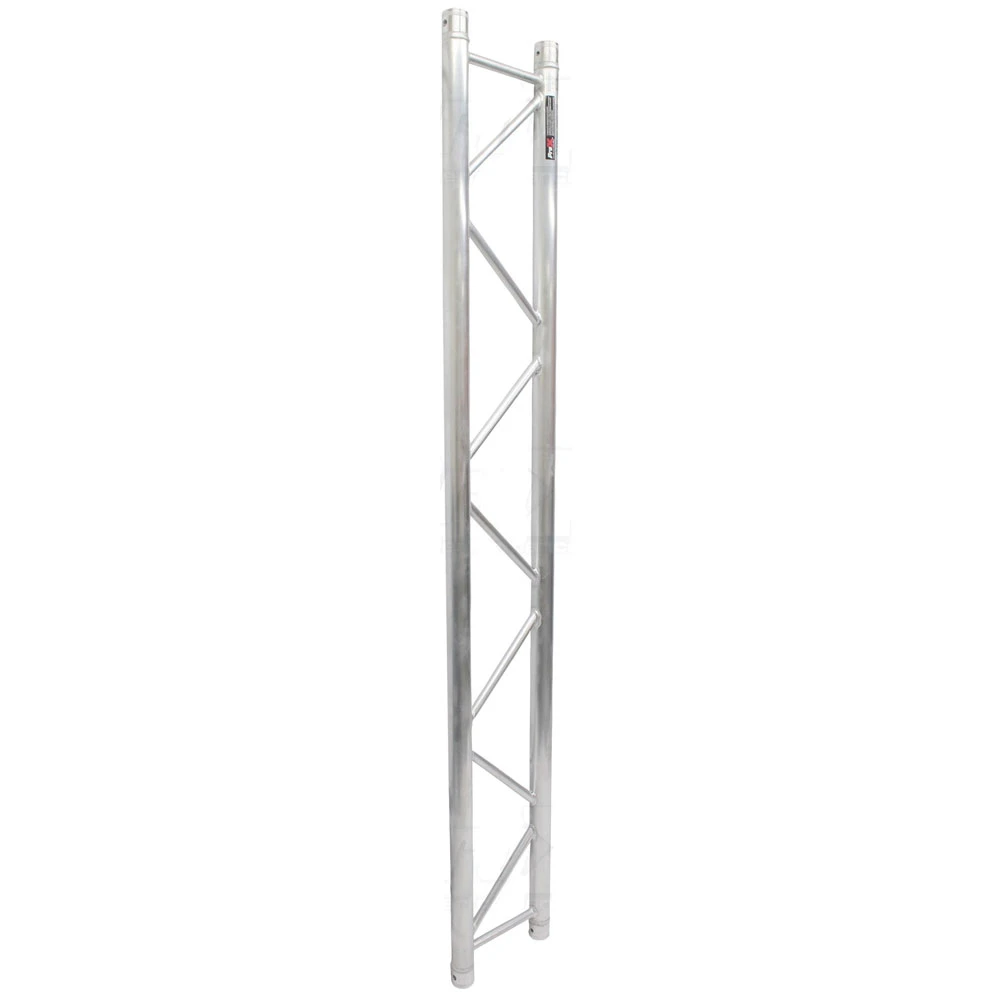

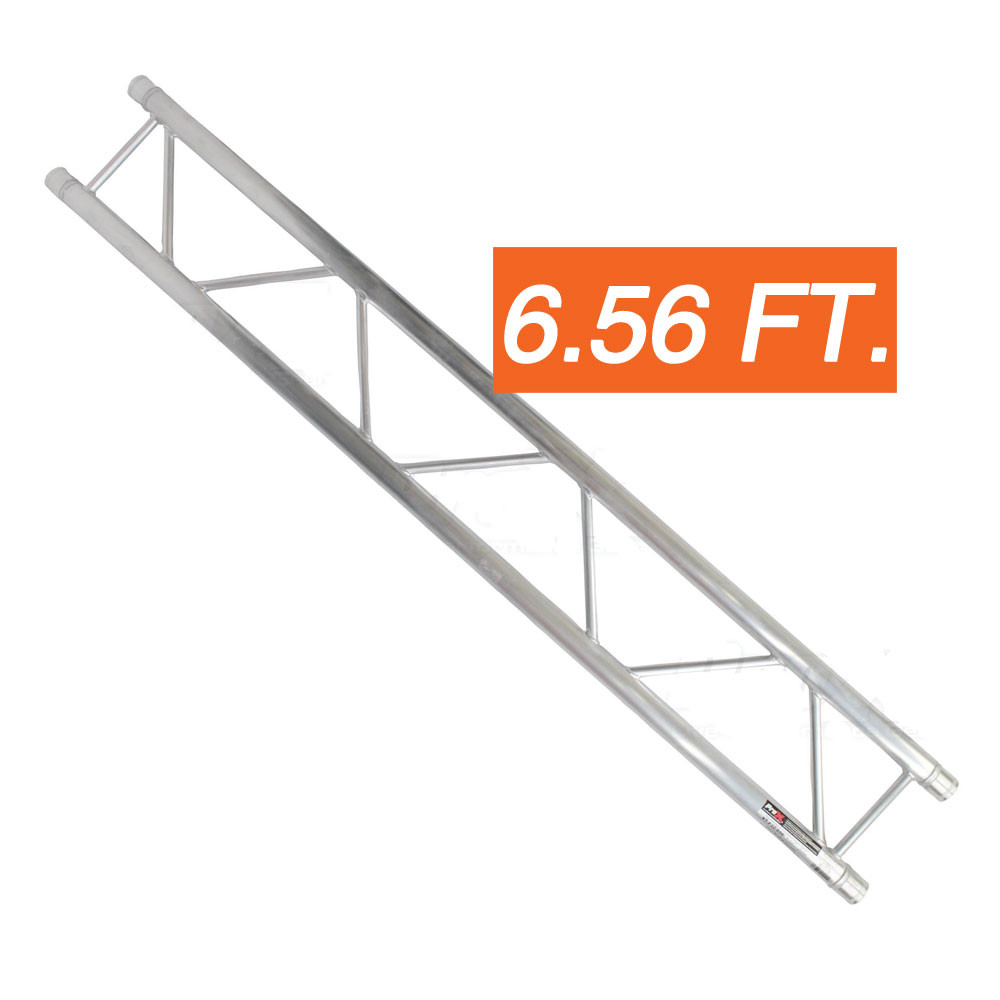

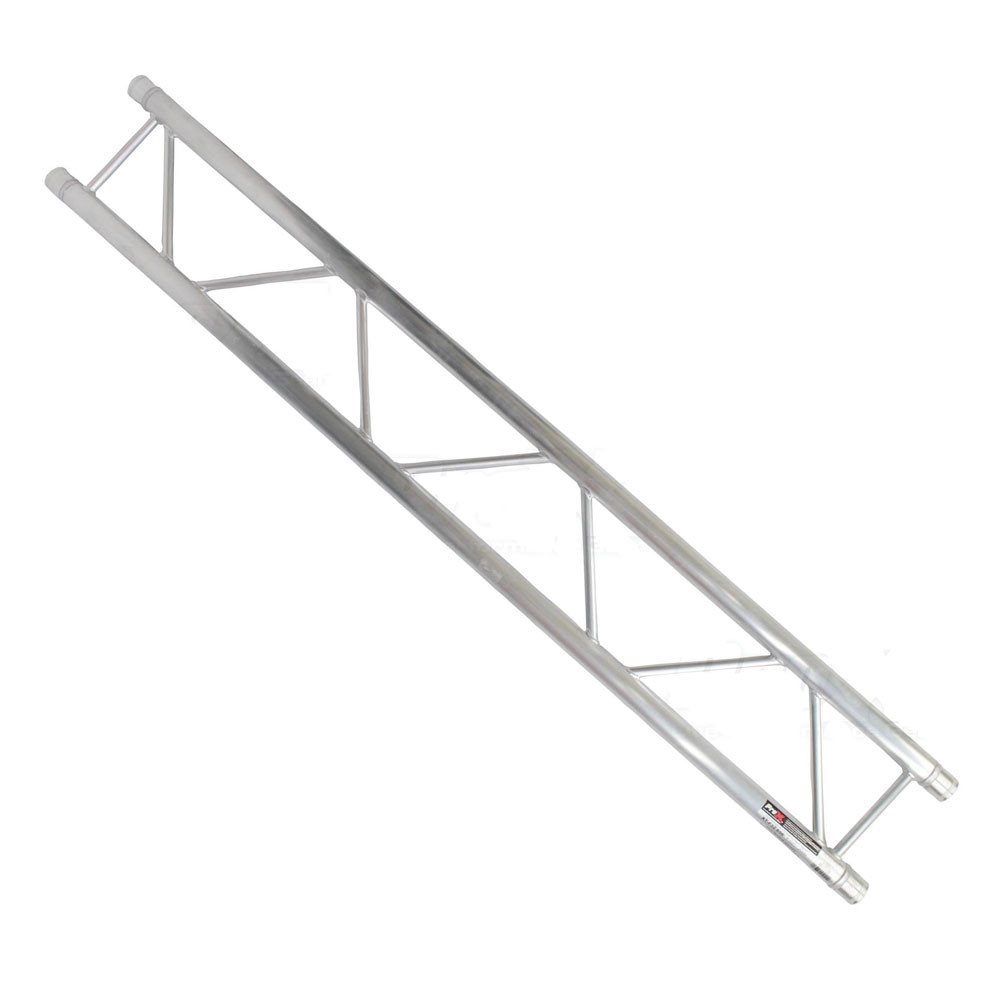

ProX XT-F32-656 6.56 Ft. (2.00m) F32 I-Beam Segment Truss 2mm Wall

Product Description

The ProX XT-F32-656 is a 6.56-foot (2.00 m) F32 I-Beam Segment Truss designed for professional trade shows, exhibitions, event technology, lighting support, staging, mobile productions, and custom truss structures. Its compact 2-point design provides a practical solution for creating straight sections within compatible F32 truss configurations.

The XT-F32-656 features a 2 mm wall thickness, 2-inch (50 mm) main tubing, and 3/4-inch (20 mm) diagonal braces. The F32 system is constructed from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding for professional truss applications.

The ProX XT-F32-656 uses a tolerance-free standard conical connector system and includes one set of connecting hardware. Compatible F32 straight segments, corners, base plates, connectors, and accessories can be combined to create customized truss configurations. ProX states that its truss products use industry-standard dimensions that can connect with other manufacturers' trussing using the same size and connector style. Always verify complete system compatibility and load requirements before assembly.

Key Features

• ProX XT-F32-656 F32 I-Beam Segment Truss
• 6.56 ft / 2.00 m straight truss segment
• F32 2-point I-Beam truss design
• 2 in / 50 mm main tube diameter
• 3/4 in / 20 mm diagonal braces
• 2 mm / 0.08 in wall thickness
• 11.42 in / 290 mm F32 width
• EN-AWT6 6082 aluminum construction
• TUV-certified aluminum welding
• Tolerance-free standard conical connector system
• Includes one set of connecting hardware
• Designed for compatible F32 standard trussing
• Can connect with compatible trussing using the same dimensions and connector style
• Suitable for indoor and outdoor event and production applications when properly designed

Technical Specifications

• Brand: ProX
• Model: XT-F32-656
• SKU: XT-F32-656
• Truss Series: F32
• Truss Type: 2-Point I-Beam Segment Truss
• Length: 6.56 ft / 2.00 m

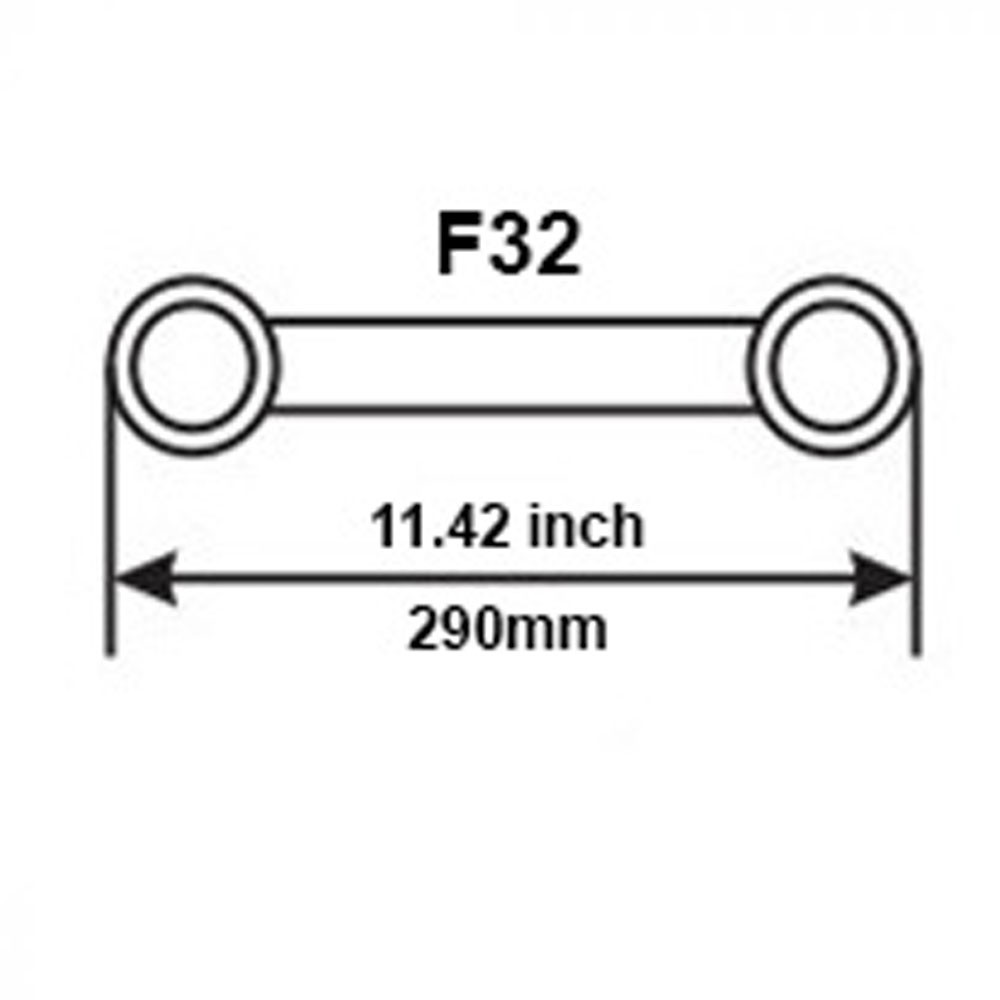

• Width: 11.42 in / 290 mm
• Main Tube Diameter: 2 in / 50 mm
• Brace Diameter: 3/4 in / 20 mm
• Wall Thickness: 0.08 in / 2 mm
• Material: EN-AWT6 6082 Aluminum
• Connection System: Tolerance-Free Standard Conical Connector
• Welding: TUV-Certified Aluminum Welding
• Finish: Silver
• To Fit: F32 Standard Conical Trussing
• Connecting Hardware: 1 Set Included
• Shipping Dimensions: 79.00"L x 12.00"W x 3.00"H
• Shipping Weight: 13 lbs
• UPC: 019372410409

Where Can You Use the ProX XT-F32-656?

The ProX XT-F32-656 is designed for compatible F32 truss configurations used in a wide range of professional event, production, display, and lighting applications.

• Trade show booths
• Exhibition stands
• Shop and retail construction
• Event technology
• Lighting support systems
• Stage production
• Concert and live entertainment setups
• Mobile DJ productions
• Outdoor performances
• Nightclubs and entertainment venues
• Live mobile productions
• Permanent installations
• Custom truss structures

Why Choose the ProX XT-F32-656?

The ProX XT-F32-656 provides a 6.56-foot (2-meter) straight section for compatible F32 I-Beam truss configurations. Its compact 2-point design makes it useful for applications where a lower-profile truss solution is preferred.

The segment combines EN-AWT6 6082 aluminum construction with a 2 mm wall thickness, TUV-certified aluminum welding, and a professional conical connection system. The included connecting hardware helps simplify assembly with compatible F32 components.

Multiple compatible F32 segments can be combined with appropriate corners, junctions, base plates, connectors, and accessories to create customized layouts. Always verify the complete system's structural requirements, component compatibility, equipment loads, support method, and applicable safety requirements.

F32 I-Beam Truss Design

The F32 is a 2-point I-Beam truss design intended for compatible staging, lighting, event, exhibition, and production configurations. The XT-F32-656 uses 2-inch (50 mm) main tubing and 3/4-inch (20 mm) diagonal braces.

With a width of approximately 11.42 inches (290 mm), the F32 profile provides a compact alternative for compatible truss structures. The 6.56-foot (2-meter) segment can be combined with other F32 lengths and accessories to create customized configurations.

Buy ProX XT-F32-656 from USATRUSS

Buy the ProX XT-F32-656 6.56 Ft. (2.00m) F32 I-Beam Segment Truss 2mm Wall from USATRUSS for compatible stage, lighting, event, exhibition, trade show, display, and production applications.

The XT-F32-656 provides a 2-meter F32 I-Beam straight section with 2 mm wall construction, EN-AWT6 6082 aluminum, TUV-certified aluminum welding, a tolerance-free conical connection system, and one set of connecting hardware.

Need help selecting compatible F32 truss components for your project? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-F32-656?

The ProX XT-F32-656 is a 6.56-foot (2.00-meter) F32 2-point I-Beam Segment Truss designed for compatible trade show, exhibition, event, lighting, staging, production, and display applications.

How long is the ProX XT-F32-656?

The ProX XT-F32-656 is 6.56 feet (2.00 meters) long and is designed to be used as a straight section in compatible F32 truss configurations.

What is the wall thickness of the XT-F32-656?

The ProX XT-F32-656 has a 2 mm (0.08 inch) main tube wall thickness.

What are the main tube and brace sizes?

The F32 I-Beam design uses 2-inch (50 mm) main tubing and 3/4-inch (20 mm) diagonal braces.

What is the width of the ProX XT-F32-656?

The XT-F32 series has a width of approximately 11.42 inches (290 mm).

What material is the ProX XT-F32-656 made from?

The XT-F32-656 is manufactured from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

What type of connector does the XT-F32-656 use?

The ProX XT-F32-656 uses a tolerance-free standard conical connector system for compatible F32 truss components.

Does the XT-F32-656 include connecting hardware?

Yes. The ProX XT-F32-656 includes one set of connecting hardware.
