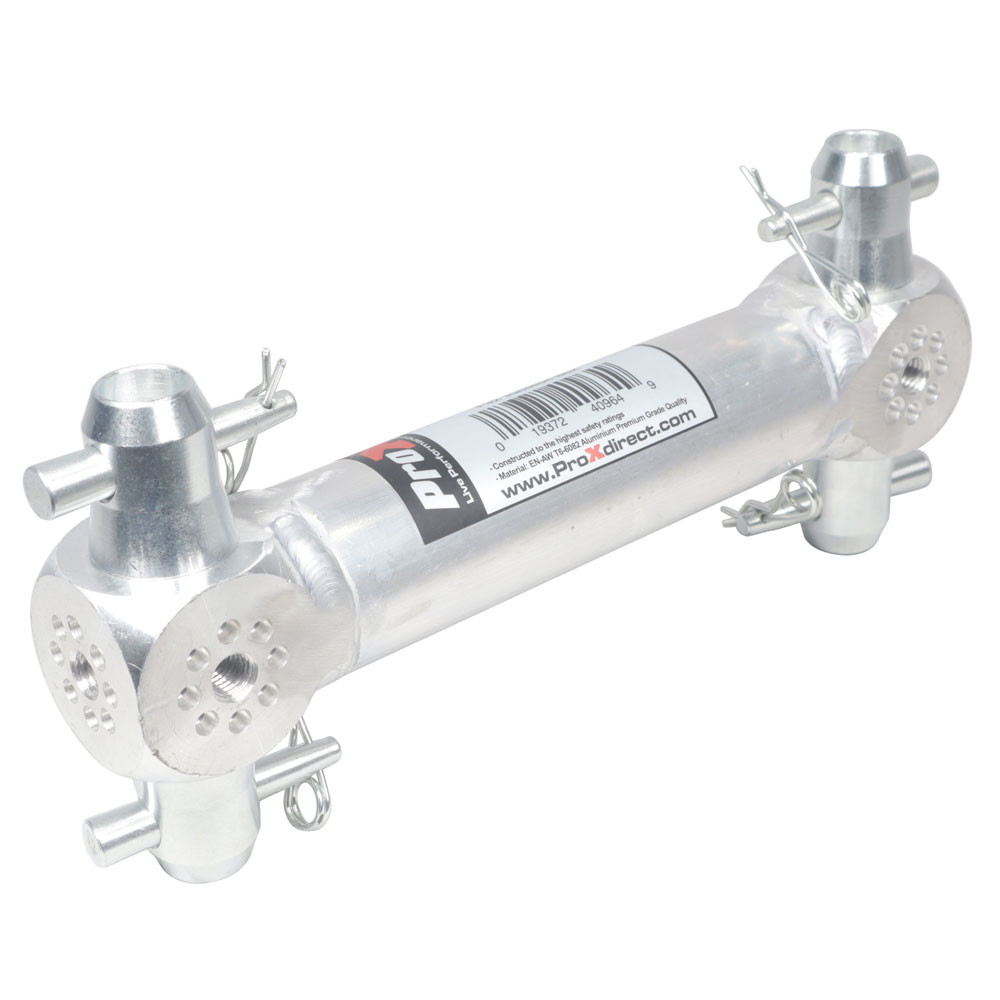

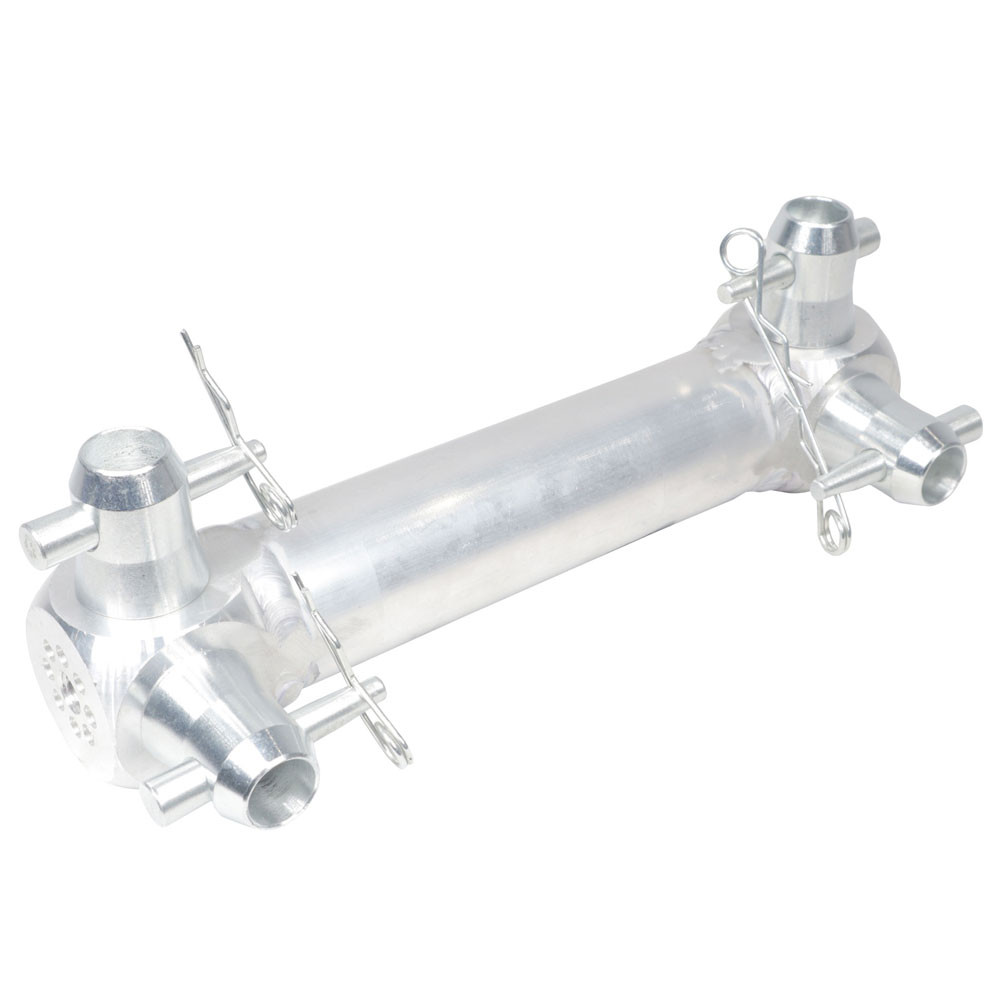

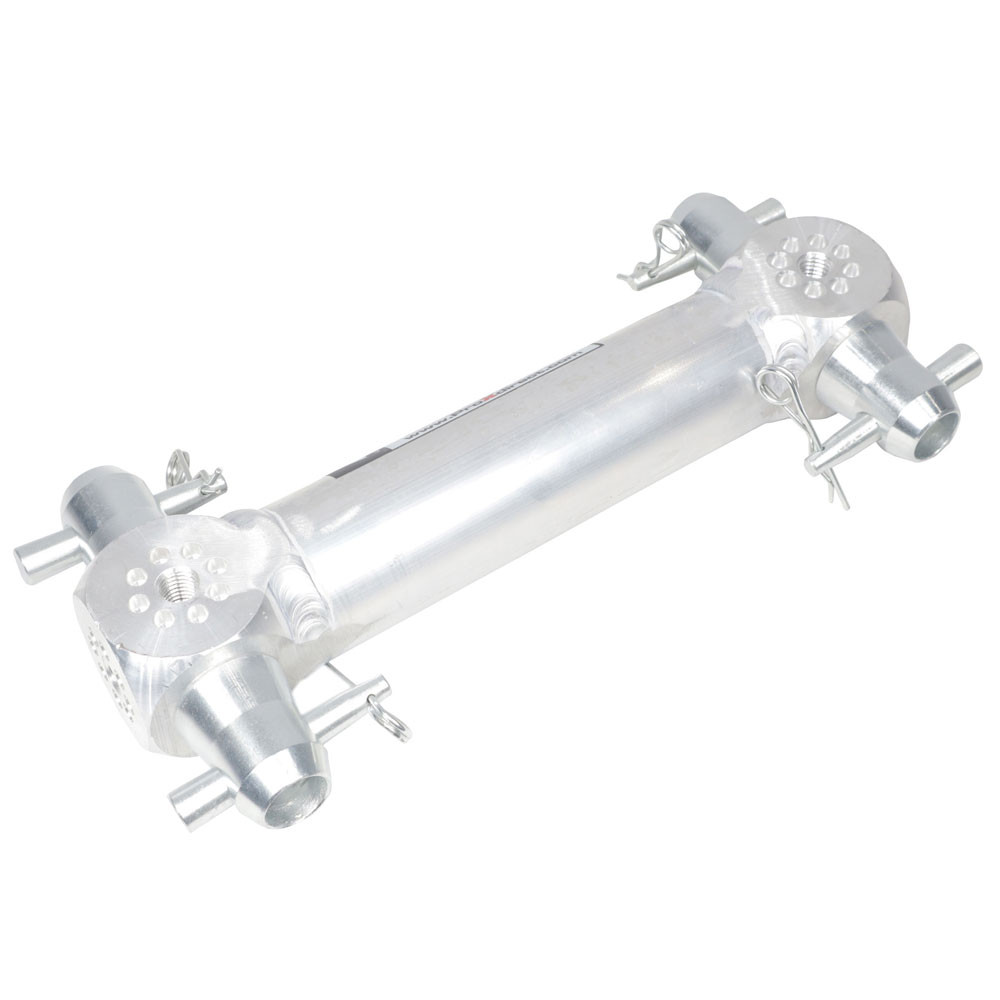

ProX XT-F31JBOX F31 6 Way Universal Box Junction | 3mm Wall

Product Description

The ProX XT-F31JBOX is an F31 6-way universal box junction designed to connect compatible F31 truss sections for professional staging, trade shows, retail displays, event productions, mobile DJ setups, nightclubs, live performances, and permanent installations. Its junction-box design provides multiple connection points for building customized modular truss configurations.

The ProX XT-F31JBOX features 2-inch (50 mm) main tubing with a 0.11-inch (3 mm) wall thickness. It is constructed from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding for professional truss construction.

The XT-F31JBOX uses a standard tolerance-free conical connector system and is supplied with 2-way half-conical couplers. It is designed for ProX F31 truss systems and can mate with compatible trussing from other manufacturers when the truss uses the same dimensions and connector style. Connecting hardware is not included with the junction box.

Key Features

• ProX XT-F31JBOX F31 6-way universal box junction
• Designed for professional F31 truss configurations
• 2-way connecting points
• 2 in / 50 mm main tube diameter
• 0.11 in / 3 mm main tube wall thickness
• 0.75 in / 20 mm brace diameter
• Constructed from EN-AWT6 6082 aluminum
• TUV-certified aluminum welding
• Standard tolerance-free conical connector system
• Includes 2-way half-conical couplers
• Connecting hardware is not included
• Designed for compatible ProX F31 truss systems
• Can connect with compatible truss from other manufacturers using the same size and connector style
• Suitable for trade shows, retail displays, event productions, and staging applications
• Suitable for mobile DJs, bands, outdoor events, nightclubs, and live productions
• Compatible with F31 truss lengths, corners, base plates, connectors, and accessories

Technical Specifications

• Brand: ProX
• Model: XT-F31JBOX
• Product Type: F31 6-Way Universal Box Junction
• Truss Series: F31
• Connecting Points: 2-Way Connecting Points
• Height: 11.42 in / 290 mm
• Main Tube Diameter: 2 in / 50 mm
• Wall Thickness: 0.11 in / 3 mm
• Brace Diameter: 0.75 in / 20 mm
• Material: EN-AWT6 6082 Aluminum
• Welding: TUV Certified Aluminum Welding
• Connection System: Standard Tolerance-Free Conical Connector
• Couplers: 2-Way Half-Conical Couplers
• Connecting Hardware: Not Included
• Finish: Silver
• Compatibility: ProX F31 Truss Systems and Compatible F31 Truss
• Shipping Dimensions: 12.00"L x 7.00"D x 3.00"H
• Shipping Weight: 4.00 lbs
• UPC: 804589612308

Where Can You Use the ProX XT-F31JBOX?

The ProX XT-F31JBOX is designed for a wide range of professional staging, event, exhibition, retail, and entertainment applications. Its junction-box configuration makes it useful when multiple F31 truss sections need to be connected as part of a customized modular structure.

The XT-F31JBOX can be used for trade shows, shop construction, event technology, mobile DJ setups, bands, outdoor performances, nightclubs, live mobile productions, and permanent installations. Its multiple connection points provide flexibility when designing custom truss layouts.

It can also be incorporated into compatible lighting structures, exhibition displays, event booths, retail installations, DJ production systems, and other applications requiring properly matched F31 truss components.

Why Choose the ProX XT-F31JBOX?

The ProX XT-F31JBOX provides a versatile junction solution for professional F31 truss systems. Its 6-way universal junction-box design allows compatible truss sections to be incorporated into different modular configurations.

The junction box features 2-inch (50 mm) main tubing with a 3 mm wall thickness and is manufactured from EN-AWT6 6082 aluminum. TUV-certified aluminum welding provides professionally manufactured construction for compatible truss applications.

The XT-F31JBOX also uses a standard tolerance-free conical connector system with 2-way half-conical couplers. This allows compatible F31 truss components to be connected when their dimensions and connector specifications match.

F31 6-Way Universal Junction Box Design

The F31 6-way universal junction box provides a central connection point for compatible F31 truss sections. Its design can be incorporated into modular truss structures where multiple sections need to meet at a junction.

The XT-F31JBOX has a listed height of 11.42 inches (290 mm), a 2-inch (50 mm) main tube, a 3 mm wall thickness, and 20 mm braces. These dimensions are part of the ProX XT-F31 series specification.

Buy ProX XT-F31JBOX from USATRUSS

Shop the ProX XT-F31JBOX F31 6 Way Universal Box Junction | 3mm Wall from USATRUSS. This professional F31 junction component features 2-inch tubing, 3 mm wall thickness, EN-AWT6 6082 aluminum construction, TUV-certified aluminum welding, and a conical connector system for compatible modular truss configurations.

Need help selecting the right truss segments, corners, connectors, base plates, or accessories for your project? Our team can help you identify compatible components for your application. Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-F31JBOX?

The ProX XT-F31JBOX is an F31 6-way universal junction box designed to connect compatible F31 truss sections for staging, events, exhibitions, retail displays, and other professional truss applications.

What size tubing does the XT-F31JBOX use?

The ProX XT-F31JBOX uses a 2-inch (50 mm) main tube with a 0.11-inch (3 mm) wall thickness.

What is the height of the ProX XT-F31JBOX?

The listed height of the ProX XT-F31JBOX is 11.42 inches (290 mm).

What material is the ProX XT-F31JBOX made from?

The ProX XT-F31JBOX is manufactured from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

What type of connector does the XT-F31JBOX use?

The ProX XT-F31JBOX uses a standard tolerance-free conical connector system and is supplied with 2-way half-conical couplers.

Does the XT-F31JBOX include couplers?

Yes. The product is supplied with 2-way half-conical couplers. Current listings identify four 2-way half-conical couplers in the retail box.
