ProX XT-F32TOPC 1.6 FT F32 Roof Element with Single Side Clamp 0.5 Meter | 2mm Wall

Product Description

The ProX XT-F32TOPC is a 1.6-foot (0.5-meter) F32 Roof Element with a Single Side Clamp designed to transition compatible F32 I-Beam trussing from a two-point configuration to a single clamp connection on the upper chord. This specialty truss component is designed for roof support applications and can be used in event technology, exhibition, shop construction, lighting support, and other compatible F32 truss structures.

The XT-F32TOPC has an overall length of approximately 23.62 inches (60 cm) with a 0.5-meter (19.69-inch) extension length. It features 2-inch (50 mm) main tubes with 2 mm wall thickness and 3/4-inch (20 mm) braces. The component is manufactured from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

The ProX XT-F32TOPC uses a single side clamp to provide a transition point from compatible F32 two-point trussing to a single-point connection. It includes one set of connecting hardware for assembly with compatible F32 truss components. The F32 truss system can be mounted horizontally or vertically depending on the application and system design.

Key Features

• ProX XT-F32TOPC F32 Roof Element with Single Side Clamp
• 1.6 ft / 0.5 m extension length
• 23.62 in / 60 cm overall length
• 2-point to 1-point F32 truss transition
• Single side clamp on the upper chord
• Designed for compatible F32 roof structures
• 2 in / 50 mm main tube diameter
• 3/4 in / 20 mm brace diameter
• 2 mm tube wall thickness
• EN-AWT6 6082 aluminum construction
• TUV-certified aluminum welding
• Includes one set of connecting hardware
• Suitable for event technology, exhibitions, shop construction, and lighting support applications

Technical Specifications

• Brand: ProX
• Model: XT-F32TOPC
• SKU: XT-F32TOPC
• Truss Series: F32
• Product Type: F32 Roof Element with Single Side Clamp
• Truss Design: 2-Point to 1-Point Transition
• Overall Length: 23.622 in / 60 cm
• Extension Length: 19.685 in / 0.5 m

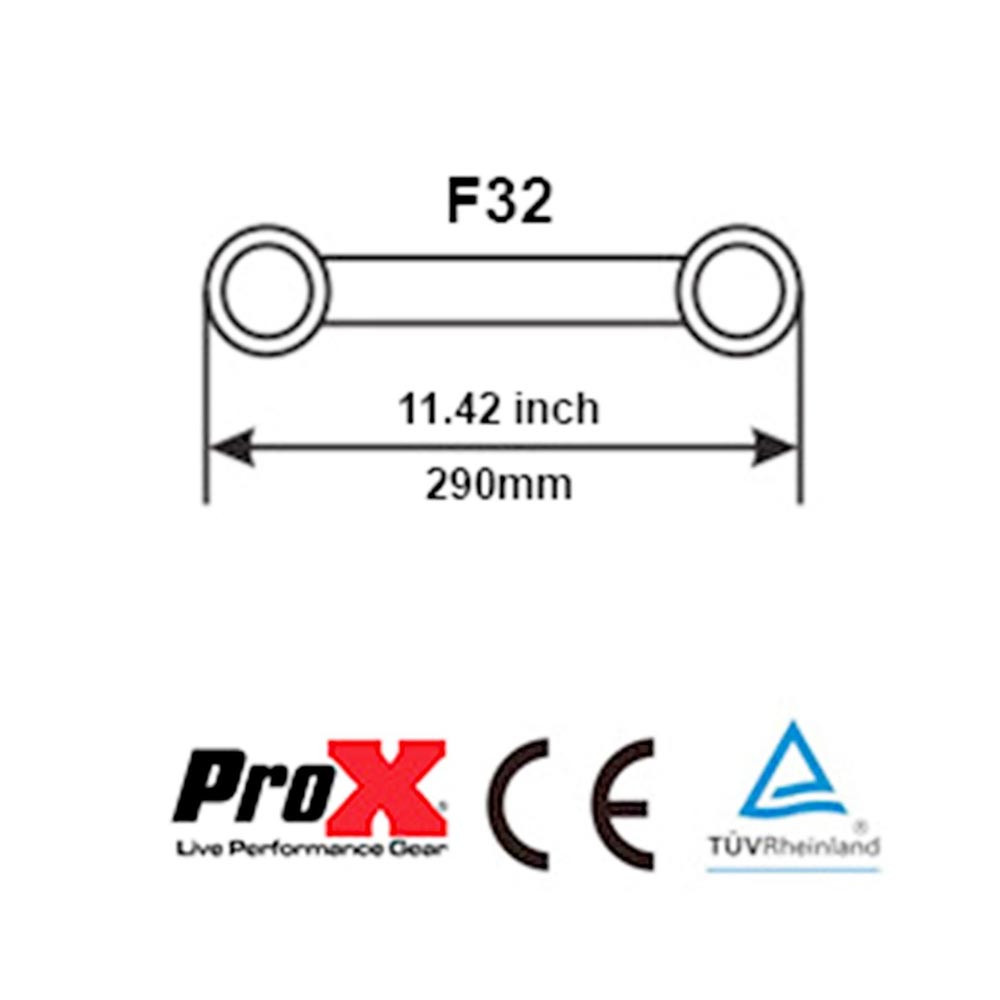

• Overall Width: 11.42 in / 290 mm
• Main Tube Diameter: 2 in / 50 mm
• Main Tube Wall Thickness: 0.08 in / 2 mm
• Brace Diameter: 3/4 in / 20 mm
• Brace Wall Thickness: 2 mm
• Material: EN-AWT6 6082 Aluminum
• Welding: TUV-Certified Aluminum Welding
• Connection: Single Side Clamp
• Connecting Hardware: 1 Set Included
• Shipping Dimensions: 24.00"L x 13.00"W x 3.00"H
• Shipping Weight: 6 lbs
• UPC: 019372410492

Where Can You Use the ProX XT-F32TOPC?

The ProX XT-F32TOPC is designed for compatible F32 truss systems where a transition from a two-point truss configuration to a single clamp connection is required. Its specialty design makes it particularly useful for roof structures and low-clearance applications.

• Stage roof structures
• Event technology
• Exhibition structures
• Trade show construction
• Shop and retail construction
• Lighting support systems
• Low-ceiling event installations
• Live production environments
• Mobile event structures
• Compatible permanent installations

Why Choose the ProX XT-F32TOPC?

The ProX XT-F32TOPC provides a specialized connection solution for F32 truss structures where a single side clamp is needed on the upper chord. Its 0.5-meter extension gives designers additional flexibility when configuring compatible roof and support structures.

Constructed from EN-AWT6 6082 aluminum with 2 mm tube walls and TUV-certified aluminum welding, the XT-F32TOPC is designed as a professional component for compatible F32 truss applications.

The component can be mounted horizontally or vertically depending on the application and complete system design. Always follow the manufacturer's loading information and verify the complete truss structure before use.

F32 2-Point to 1-Point Truss Transition

The XT-F32TOPC is specifically designed to provide a 2-point to 1-point truss transition. The F32 side connects to compatible F32 trussing while the upper chord incorporates a single side clamp for attachment to an appropriate support structure.

This design makes the component particularly useful when configuring stage roofs, event structures, and other applications where a single-point connection is required at the upper chord.

Single Side Clamp Design

The integrated single side clamp provides a connection point for compatible roof-support configurations. It allows the F32 truss structure to transition to a single clamp connection without requiring a separate adapter component.

The clamp and connecting hardware should only be used with compatible components and according to the manufacturer's specifications. Verify the complete system design, connection points, loads, and support arrangement before installation.

Buy ProX XT-F32TOPC from USATRUSS

Buy the ProX XT-F32TOPC 1.6 FT F32 Roof Element with Single Side Clamp 0.5 Meter | 2mm Wall from USATRUSS for compatible F32 roof, stage, event, exhibition, shop construction, and lighting support applications.

The XT-F32TOPC provides a specialized 2-point to 1-point transition with a single side clamp, 0.5-meter extension, EN-AWT6 6082 aluminum construction, 2 mm tube walls, TUV-certified aluminum welding, and included connecting hardware.

Need help selecting compatible F32 roof and truss components? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-F32TOPC?

The ProX XT-F32TOPC is a 1.6-foot (0.5-meter) F32 Roof Element with a Single Side Clamp designed to transition compatible F32 trussing from a two-point configuration to a single clamp connection.

What is the length of the XT-F32TOPC?

The ProX XT-F32TOPC has an overall length of approximately 23.62 inches (60 cm) and an extension length of 19.685 inches (0.5 meter).

What is the wall thickness of the XT-F32TOPC?

The ProX XT-F32TOPC has 2 mm tube walls.

What is the XT-F32TOPC used for?

The XT-F32TOPC is used as a specialty transition component for compatible F32 roof and truss structures, particularly where a single clamp connection is required on the upper chord.

What type of truss transition does the XT-F32TOPC provide?

The XT-F32TOPC provides a 2-point to 1-point truss transition using a single side clamp on the upper chord.

What material is the ProX XT-F32TOPC made from?

The XT-F32TOPC is manufactured from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

Does the XT-F32TOPC include connecting hardware?

Yes. The ProX XT-F32TOPC includes one set of connecting hardware.

Can the F32 truss be mounted horizontally or vertically?

Yes. The ProX F32 truss system can be mounted horizontally or vertically depending on the application and complete system design.

Where can the XT-F32TOPC be used?

The XT-F32TOPC is designed for compatible stage roofing, event technology, exhibition, shop construction, lighting support, and low-clearance truss applications.

Does the XT-F32TOPC affect F32 load capacity?

Yes. ProX product information states that use of this element can reduce the load capacities by 50% or more compared with the F32 Truss Loading Chart. Always consult the applicable loading chart and safety documentation before designing or installing a structure.
