Product Description

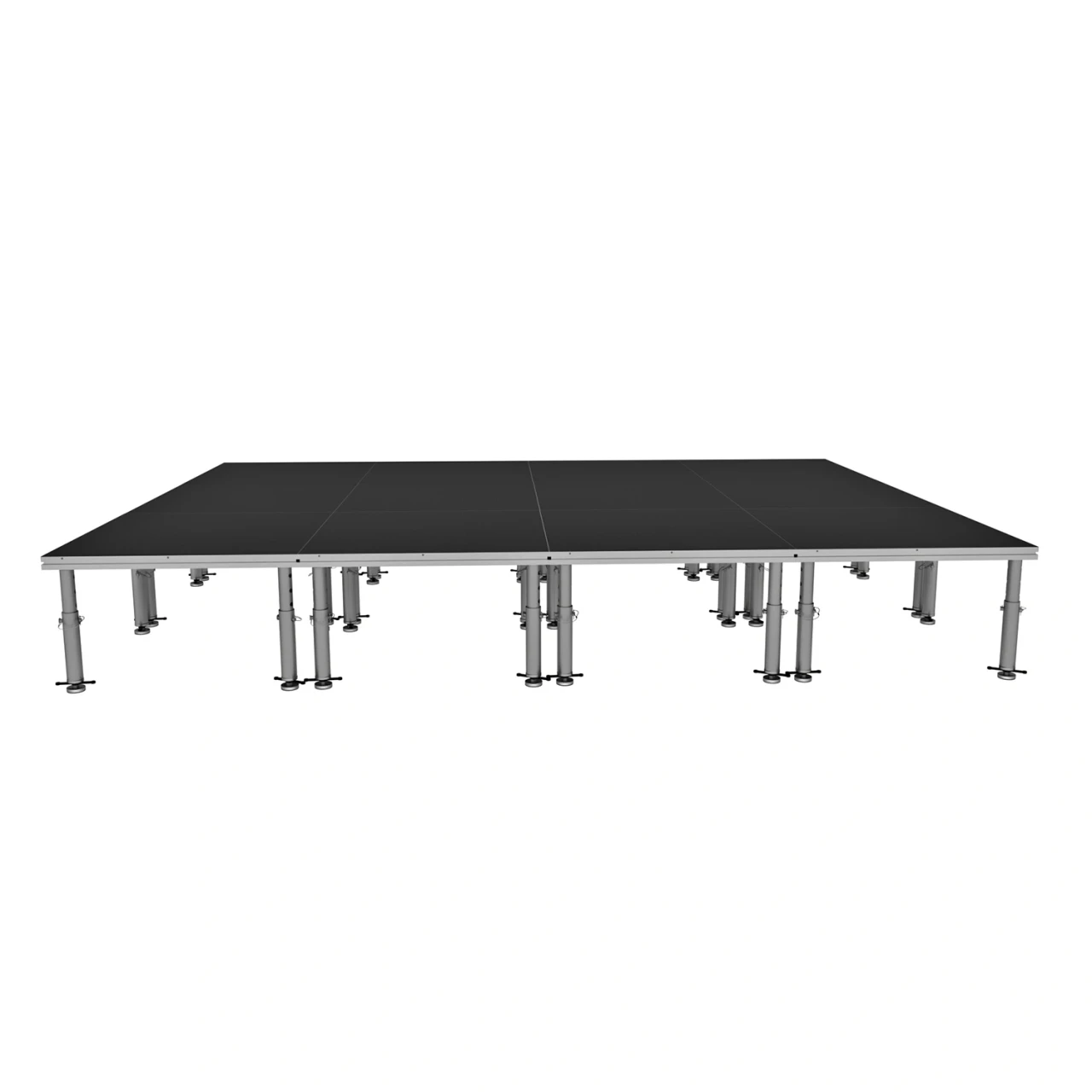

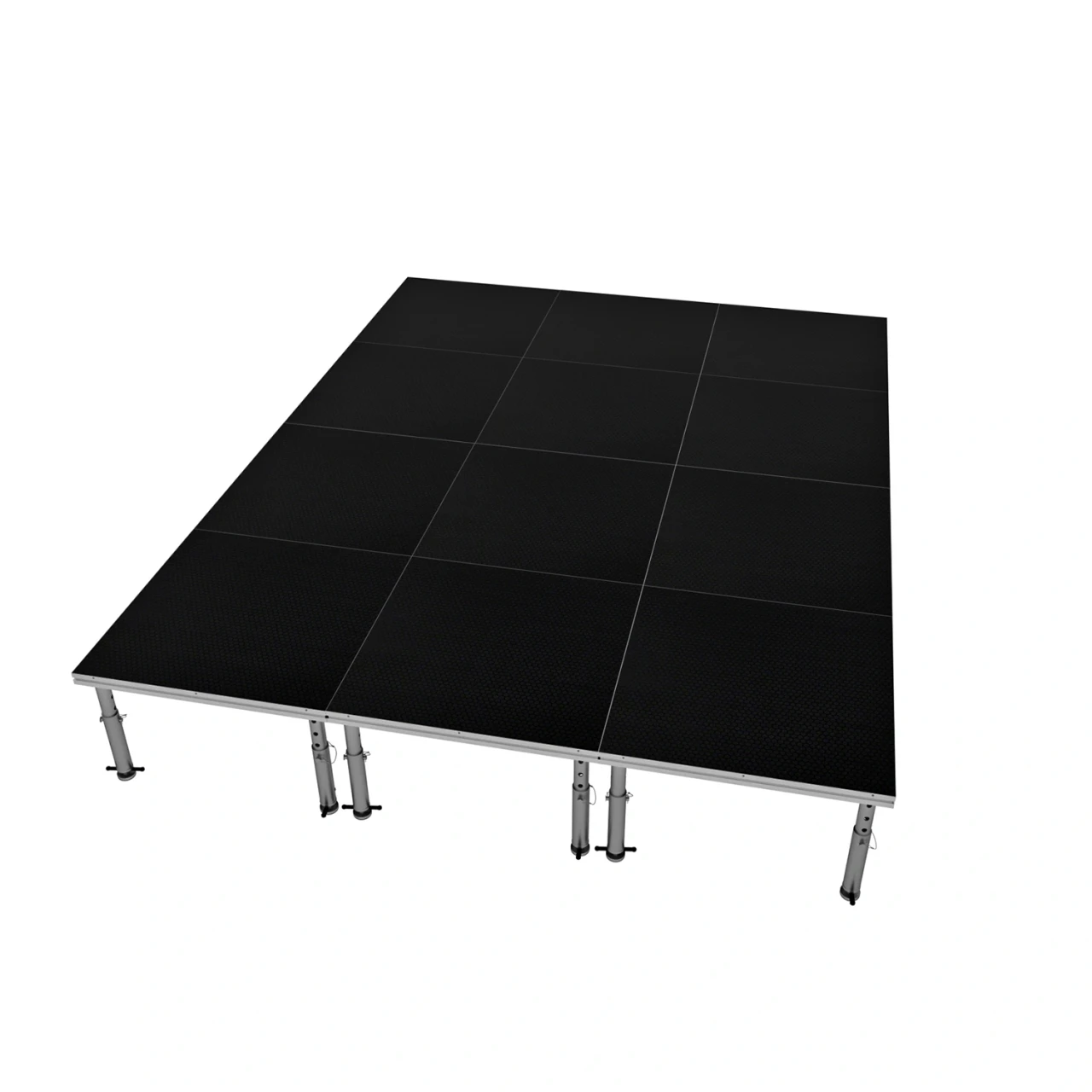

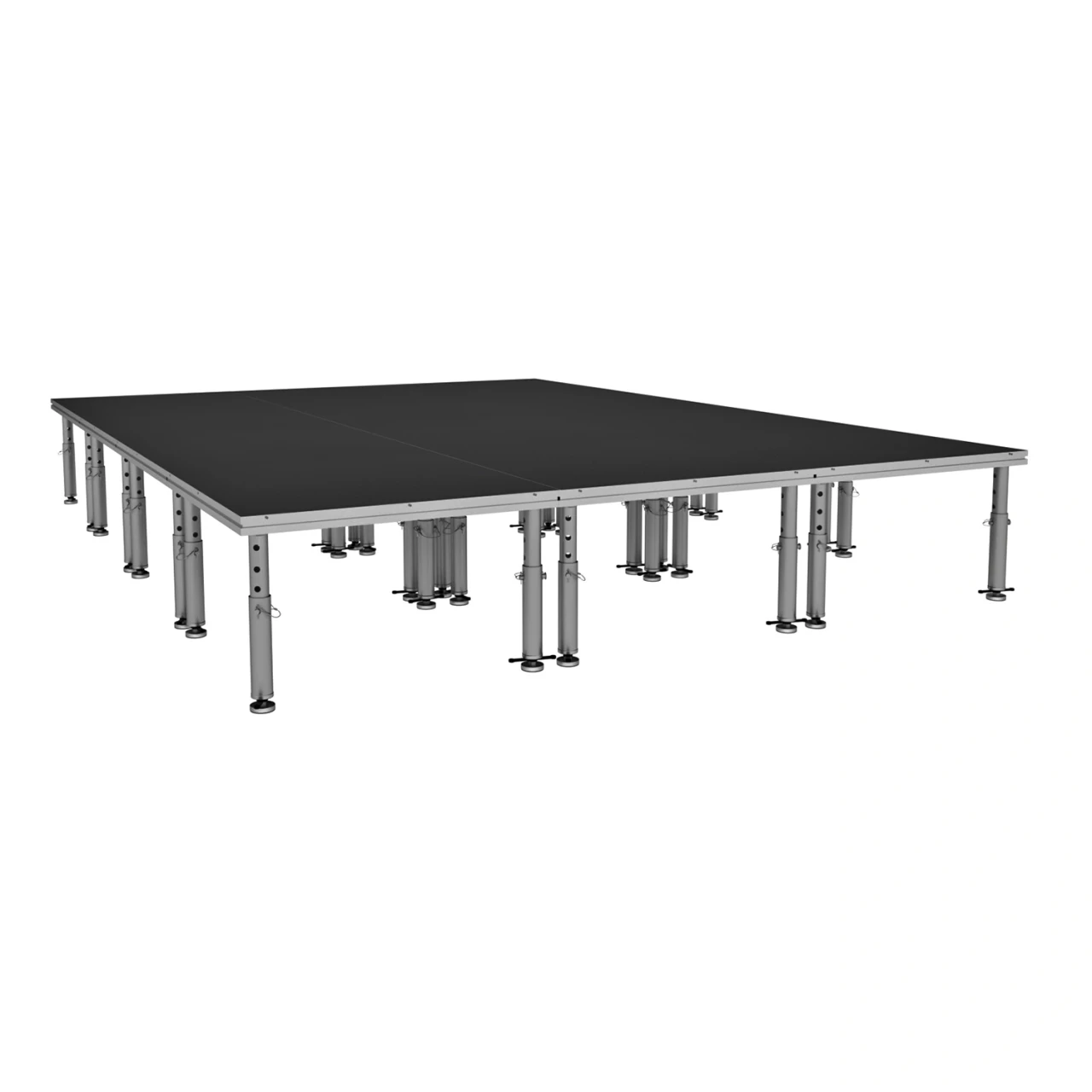

ProX XSU-12X16PKG StageOne 12x16 Ft Portable Stage Package

ProX XSU-12X16PKG StageOne 12 ft x 16 ft 4x4 Package 12 Decks w/ 16–22 inch Adjustable Legs

Featuring the ProX STAGEone™ XSU-12X16PKG, a complete 12 ft x 16 ft portable stage package built for working professionals who need a fast, reliable, and scalable platform without compromise. This package delivers everything you need to build a full-size performance stage right out of the box. Whether you are a mobile DJ, a rental company, a house of worship, a school, or a club operator, the ProX XSU-12X16PKG is engineered to handle real events in real environments, and it shows in every detail.

What's Included Each package comes with 12 STAGEone™ XSU-4X4 stage deck units, 48 telescoping legs, 24 stage security clamps, and 12 deck leveling clips. Every component needed to assemble a fully connected, level, 192 sq ft stage is in the box.

Platform Construction Each 4 ft x 4 ft deck measures a full 48" x 48" and is built on a core of 5/8" (16mm) zero-void plywood. The rigid, gap-free core is what separates a professional stage from one that shifts, flexes, or fails under load. Each deck supports up to 800 lbs. of evenly distributed weight, giving you the structural confidence to put performers, equipment, and crowds on top of it without second-guessing the build.

Signature Honeycomb Digital™ Surface The deck surface features the Signature Honeycomb Digital™ top, a high-pressure laminate (HPL) finish with a non-slip black textured pattern. It provides dependable traction underfoot and holds up to repeated use in both indoor and outdoor environments. This is the same surface technology ProX deploys across its professional staging lineup.

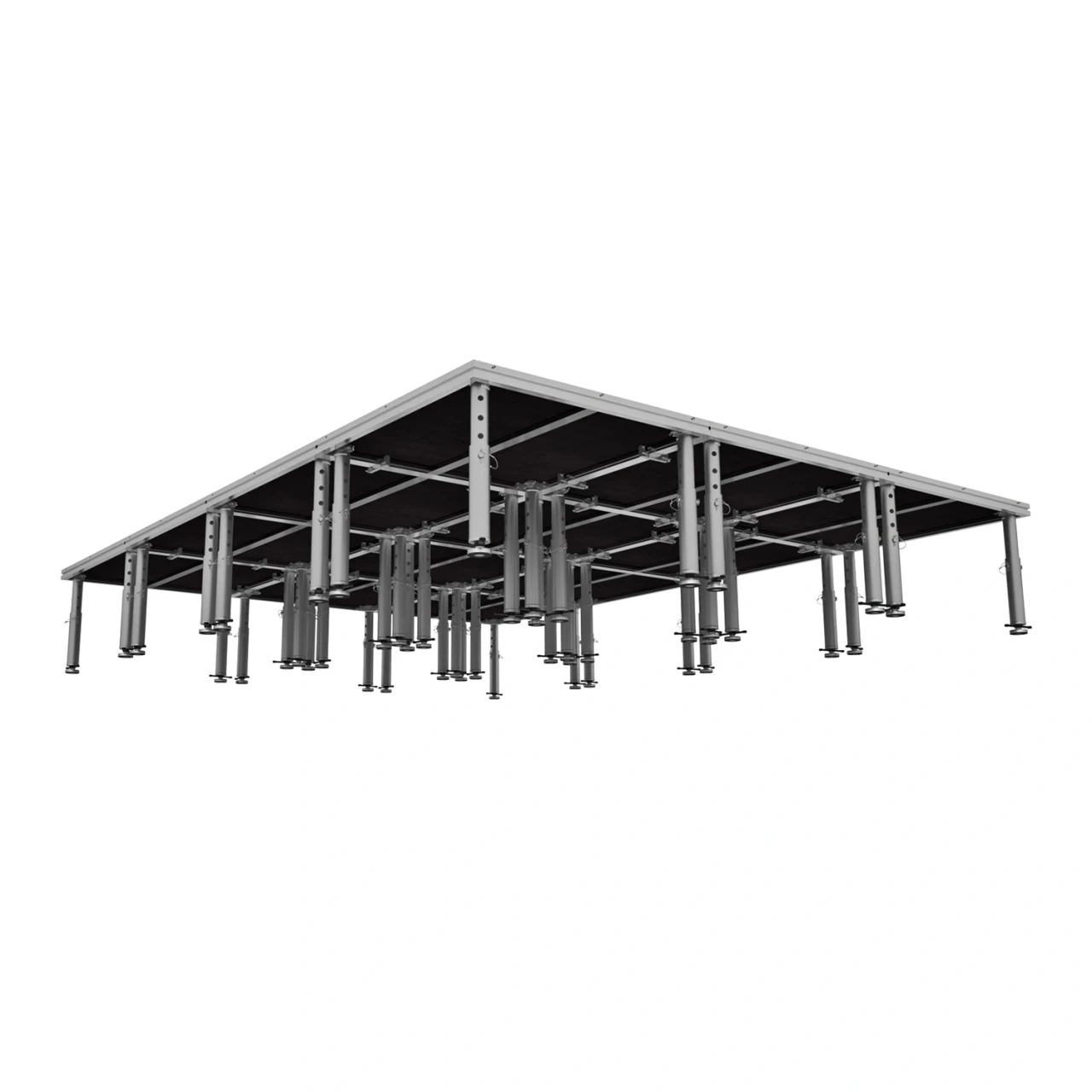

Frame and Corner System Each deck is built around an aluminum frame with reinforced corners and cross profiles. The frame keeps each unit rigid and square so that when you lock 12 decks together, the assembled stage performs as a single, unified surface. The clamp and leveler system pulls each deck flush against the next, eliminating gaps and creating a seamless stage floor.

Telescoping Leg System The included telescoping legs adjust from 16" to 22" in height. Each leg locks into position with an integrated security pin and cable system, so there is no guess work and no shifting once the height is set. The twist-adjustable foot adds up to 2" of additional height, bringing the maximum elevation to 24". That adjustable foot also handles uneven terrain, letting you dial in a level surface even when the ground underneath is not.

Tool-Free Setup The entire 12 ft x 16 ft stage assembles without tools. The leg system, clamp connections, and leveling clips are all designed for fast, one-person deployment. For production companies and rental operators, that means less time setting up and more time focused on the event.

Expandable Configuration The STAGEone system is modular. The XSU-12X16PKG can be expanded with additional decks or integrated with taller leg systems (sold separately) when your event calls for higher risers. The consistent 48" x 48" deck format means every unit in the system is interchangeable.

Where It Works This stage package is well-suited for mobile DJs, small clubs and venues, party and event rental companies, churches, schools, corporate events, and any application that needs a dependable portable platform that installs fast and stores efficiently.

Features

• Complete 12 ft x 16 ft Stage Package includes 12 deck units, 48 telescoping legs, 24 security clamps, and 12 leveling clips. Everything needed to build a full 192 sq ft stage is in the box
• Full 48" x 48" Deck Size each deck is a true 48" x 48" for consistent, gap-free assembly across the full stage footprint
• 800 lb. Per Deck Load Rating each 4 ft x 4 ft deck supports up to 800 lbs. of evenly distributed weight
• Signature Honeycomb Digital™ Surface high-pressure laminate (HPL) non-slip black textured top for dependable traction in indoor and outdoor use
• 5/8" (16mm) Zero-Void Plywood Core rigid, gap-free construction throughout each deck for a solid, stable platform with no flex
• Aluminum Frame with Reinforced Corners keeps each deck rigid and square so the assembled stage performs as one unified surface
• Telescoping Legs Adjust 16" to 22" integrated security pin and cable locking system holds each leg securely at the set height
• Twist-Adjustable Foot adds up to 2" of additional height adjustment and handles uneven terrain for a level stage on imperfect ground
• Tool-Free Assembly legs, clamps, and leveling clips all connect without tools for fast one-person setup
• Modular and Expandable the consistent 48" x 48" deck format means every unit is interchangeable and the system can be expanded with additional decks or taller leg systems sold separately
• Deck Leveling Clips Included 12 clips keep adjacent decks flush and eliminate surface gaps across the full stage
• ProX One-Year Limited Warranty

Package Contents

• XSU-4X4 (12) StageOne 4 ft x 4 ft Single Stage Package - Deck w/ Adjustable 16–22 inch Legs

Exterior Dimensions & Weight

• XSU-4X4 (12): 3.00"H x 48.00"W x 48.00"L - Weight: 58.00 lbs

Shipping Dimensions & Weight

• Box 1 of 1: XSU-4X4 (12 boxes) 4.00"H x 50.00"W x 50.00"L - Shipping Weight: 65.00 lbs

Suggested Shipping Method: LTL

• 1 Skid, 50x50x67 840 LBS

Frequently Asked Questions - FAQ

What is the ProX XSU-12X16PKG?
The ProX XSU-12X16PKG is a StageOne modular portable stage package that creates a 12' x 16' performance platform.

How large is the ProX XSU-12X16PKG?
The assembled stage measures 12 ft wide by 16 ft deep, providing approximately 192 square feet of stage area.

How many stage decks are included?
The package includes 12 StageOne 4' x 4' stage deck units.

What height can the stage be adjusted to?
The included telescoping legs adjust from 16 to 22 inches. The leveling feet provide an additional 2 inches, allowing approximately 24 inches of total height.

What are the StageOne deck sections made from?
The decks use 5/8-inch (16 mm) exterior-rated plywood reinforced with an aluminum frame and cross profiles.

Does the ProX XSU-12X16PKG have a non-slip surface?
Yes. The stage decks feature a textured laminate surface designed to provide grip and traction.
