Product Description

ProX XSQ-20X40PKG-48 StageQ 20x40 ft Portable Stage Package

StageQ 20x40ft Portable Stage Platform Package with 25 Decks Event Staging System 28-48" Height

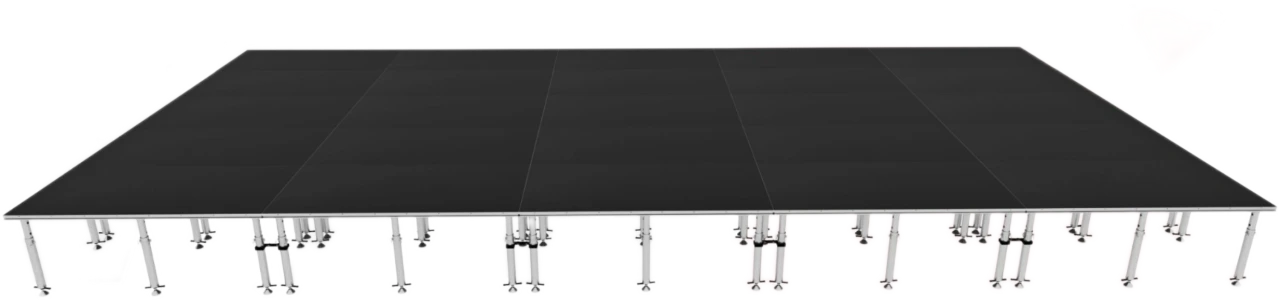

Introducing the ProX StageQ™ XSQ-20X40PKG48 Portable Stage Platform Package, a complete 20 ft x 40 ft modular staging system built from 25 StageQ 4 ft x 8 ft decks with adjustable legs from 28" to 48" in height. This is 800 square feet of professional performance space in one package, sized for main stages, worship platforms, school auditoriums, festival risers, and corporate keynote setups. Production companies and rental houses buy this package because it solves the whole problem at once. The decks, the legs, and the clamps that lock everything together all ship in one order, so a crew can pull it off the truck and build a full concert stage without hunting for missing hardware. Every deck carries a 1500 lb load rating per 4 ft x 4 ft section evenly distributed, and the complete system is TÜV Rheinland tested, so what you put on top of it stays where you put it.

Signature Honeycomb Digital™ Laminate Deck Surface Each StageQ deck is finished with the exclusive ProX Signature Honeycomb Digital™ high pressure laminate. The textured surface gives performers real traction under stage lighting and holds up to repeated load in, load out, and drag from rolling road cases. It resists wear far better than a painted or plain plywood top, which matters when the same decks go out fifty times a season.

AAA Grade Birch Plywood Deck Core Under the laminate sits AAA grade 7/8" (22 mm) exterior rated birch plywood with minimal voids. Exterior rating means the deck can handle outdoor festival work and humidity that would swell a lesser panel. Minimal voids means the core is solid where the load lands, not hollow in spots you cannot see.

High Strength Aluminum Frame with TIG Welded Corners Every platform is framed in high strength aluminum with precision TIG welded corners. The welds are what keep the deck square over years of setup and teardown. A bolted corner works loose over time. A welded corner does not.

Precision Welded Aluminum Cross Bracing The underside of each deck is reinforced with heavy duty aluminum cross bracing welded directly to the structural frame. These internal braces carry the birch plywood across its span and stop the deck from flexing under concentrated weight. The result is a stage that feels solid underfoot instead of bouncing when a performer moves across it.

Six Leg Design for Better Load Distribution ProX was among the first to engineer a 4 ft x 8 ft platform supported by six legs rather than the traditional four. That extra pair of legs spreads the load across more contact points and cuts down on center span deflection. Across 25 decks, that adds up to a noticeably more rigid stage.

Telescoping Legs Adjustable from 28" to 48" Each deck ships with a set of six telescoping legs that adjust anywhere from 28" to 48" in height. A locking pin safety system holds the selected height in place during use. One package covers a low 28" riser for a school gym and a tall 48" main stage for an outdoor festival with no extra parts to buy.

• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"

Micro Adjustable Leveling Feet with M16 Thread Every leg ends in a micro adjustable rubber leveling foot on an M16 threaded bolt. Parking lots slope. Fields dip. Gym floors are rarely as flat as they look. The threaded feet let a crew dial each leg in until the entire 20 ft x 40 ft surface reads level, which protects both the performers and the gear standing on it.

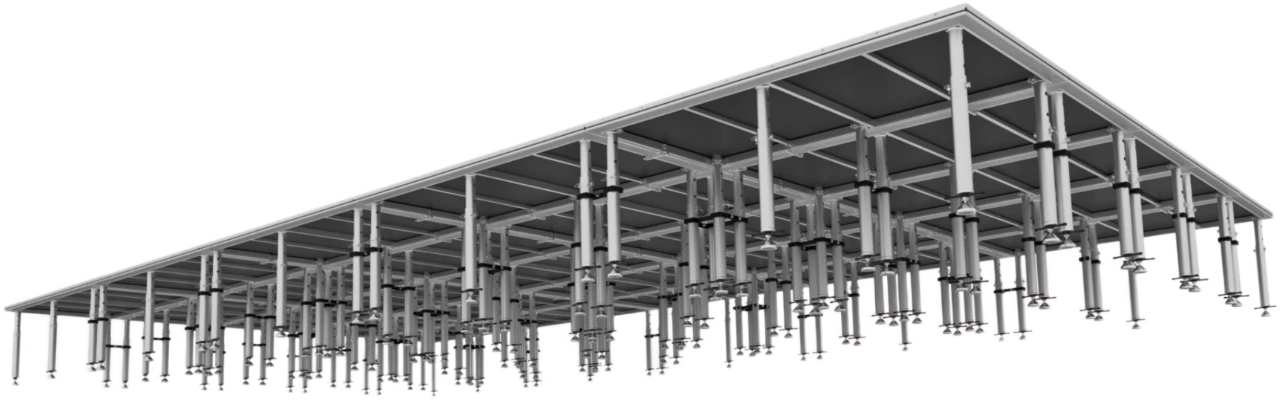

Leg Clamps Included for a Locked Together Structure The package includes 16 XSQ-MX2 MK3 clamps for joining two legs and 16 XSQ-MX4 clamps for joining four legs. Tying the legs together beneath the deck turns 25 separate platforms into one connected structure. The stage becomes stiffer, quieter, and safer, with far less movement between adjacent decks once the show is running.

Deck to Deck Connection Hardware Each platform in this package also carries its own lower deck security clamps and a deck leveler joint. The security clamps mount underneath and pull adjacent decks tight together using a large wing knob that tightens by hand with no tools. The leveler joint installs between the aluminum profiles of two platforms and holds them flush so the seam stays smooth instead of stepping up or down.

Sizing Your Steps Stage steps are not included, which lets you match the step count to the exact height you plan to build. As a general rule, figure roughly 8" per step. Divide your finished stage height by 8 to get the number you need. A 32" stage height works out to a 4 step unit. Common configurations include 4 step, 5 step, and 7 step units. Guardrails and stage skirts are also available separately to finish the installation.

Built to Ship and Handle Each stage platform measures 3.00"H x 48.00"W x 96.00"L and weighs 125 lbs. Each set of six legs measures 7.50"H x 7.50"W x 28.00"L and weighs 23 lbs. The complete package moves as three skids by LTL freight, packed and palletized for transit.

Each platform includes:

• (1) XSQ-2848X6 (Set of 6) 28"-48" Telescoping Legs
• (2) XSQ-C11MK2 Lower deck Security Clamp
• (1) XSQ-C05 Deck Leveler Joint

Specifications

• Platform Size: 47.25" x 94.5"
• Deck Material: 7/8" 22 mm Birch Plywood Zero Voids
• Frame Material: High Strength Aluminum
• Surface Finish: Honeycomb Digital™ High Pressure Laminate
• Leg Quantity: 6 Adjustable Telescoping Legs
• Leg Height Range: 28" – 48"
• Leveling Feet: Micro Adjustable Rubber Feet with M16 Thread
• Maximum Load: 1500 lbs per 4 ft x 4 ft evenly distributed
• Certification: TÜV Rheinland Tested

Features

• Complete 20 ft x 40 ft Stage Package 25 StageQ 4 ft x 8 ft platforms combine to build 800 square feet of professional performance space
• Signature Honeycomb Digital™ High Pressure Laminate Surface Textured deck finish for superior grip and long term wear resistance
• AAA Grade 7/8" (22 mm) Exterior Rated Birch Plywood Deck Minimal void core rated for indoor and outdoor use
• High Strength Aluminum Frame with Precision TIG Welded Corners Stays square through repeated setup and teardown
• Heavy Duty Welded Aluminum Cross Bracing Internal braces support the deck and prevent flex under load
• ProX Six Leg Support Design Improved weight distribution and rigidity over traditional four leg platforms
• Six Telescoping Legs per Deck, Adjustable 28" to 48" One package covers low risers through full height main stages
• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"
• Integrated Locking Pin Safety System Secures each leg at the selected height during use
• Micro Adjustable Leveling Feet with M16 Threaded Bolts Precise leveling on uneven ground, grass, gravel, or sloped surfaces
• 16 XSQ-MX2 MK3 Two Leg Clamps and 16 XSQ-MX4 Four Leg Clamps Included Lock adjacent legs together for a stiffer, safer structure
• Lower Deck Security Clamps with Tool Free Wing Knob Pull adjacent platforms tight together by hand
• Deck Leveler Joints Included Keep connected platforms flush for a smooth continuous stage surface
• 1500 lb Maximum Load Capacity per 4 ft x 4 ft Section Evenly distributed rating for bands, drum risers, and production gear
• TÜV Rheinland Tested and Certified Independently verified for safety and quality
• Platform Size 47.25" x 94.5" Standard 4 ft x 8 ft modular footprint
• Fully Modular System Connect additional StageQ decks to expand into larger configurations
• Steps, Guardrails, and Stage Skirts Available Separately Match step height and finishing options to your build
• Engineered and Designed by ProX Live Performance Gear
• ProX Limited Warranty

Package Contents

• XSQ-4X8MK3 (25) Professional 4 ft x 8 ft Stage Platform with 6 Adjustable Legs 28"–48" Height Modular Event Deck System
• XSQ-2848X6 (25) Set of Six StageQ Platform Telescoping Legs 28 to 48 inch Height Adjustable Legs Only D-100
• XSQ-MX2 MK3 (16) Heavy Duty Clamp for 2 Legs StageQ Staging
• XSQ-MX4 (16) Heavy Duty Clamp for 4 Legs StageQ Staging

Exterior Dimensions & Weight

• Stage Platform (25): 3.00"H x 48.00"W x 96.00"L - Weight: 125.00 lbs
• Legs (25): 7.50"H x 7.50"W x 28.00"L - Weight: 23.00 lbs

Shipping Dimensions & Weight

• Box 1 of 3: XSQ-MX2 MK3 (16 boxes) 1.50"H x 4.00"W x 10.00"L - Shipping Weight: 1.40 lbs
• Box 2 of 3: XSQ-2848X6 (25 boxes) 10.00"H x 28.00"W x 10.00"L - Shipping Weight: 30.00 lbs
• Box 3 of 3: XSQ-4X8MK3 (25 boxes) 4.00"H x 50.00"W x 100.00"L - Shipping Weight: 132.00 lbs
• Suggested Shipping Method: LTL
• 3 skids each: 100x50x65 1300 lbs

Frequently Asked Questions - FAQ

What is the ProX XSQ-20X40PKG-48?
The ProX XSQ-20X40PKG-48 is a StageQ modular portable stage package designed to create a 20 ft × 40 ft stage platform for concerts, DJs, live performances, corporate events, schools, churches, and other productions.

What are the dimensions of the ProX XSQ-20X40PKG-48?
The assembled StageQ configuration measures approximately 20 ft wide × 40 ft long, providing a large performance and event platform.

What is included with the ProX XSQ-20X40PKG-48?
The package consists of compatible StageQ modular stage platforms and adjustable support legs designed to create the 20 ft × 40 ft stage configuration.

Can the stage height be adjusted?
Yes. The StageQ system uses adjustable telescoping legs, allowing the platform height to be adjusted according to the requirements of the installation.

Is the ProX XSQ-20X40PKG-48 suitable for DJs?
Yes. The large platform provides plenty of space for DJ controllers, turntables, mixers, speakers, lighting equipment, performers, and other production equipment, subject to applicable load limits.
