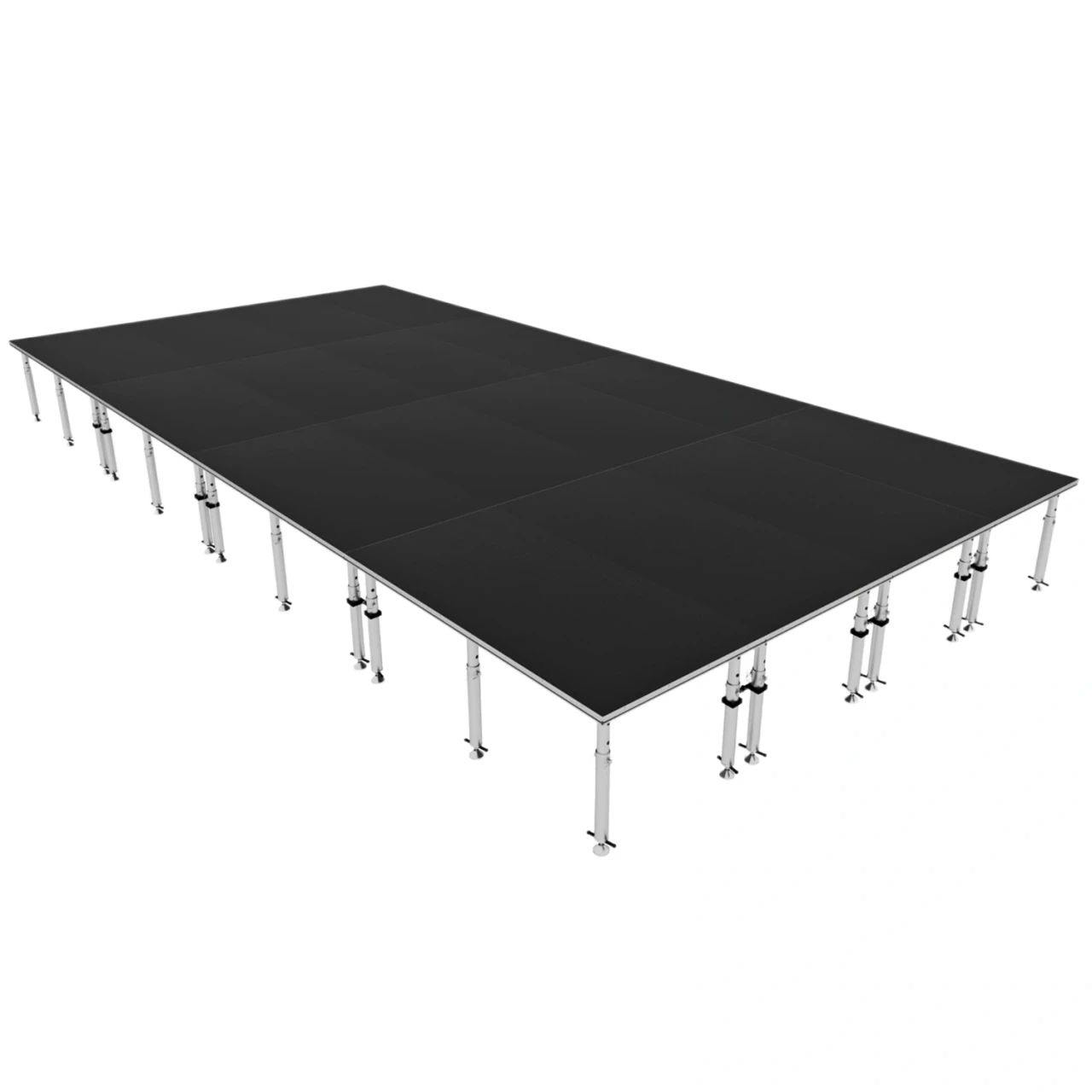

Featuring the ProX XSQ-16X32PKG48 StageQ™ 16 ft x 32 ft Portable Stage Platform Package, a complete 512 square foot modular staging system built from 16 professional 4 ft x 8 ft decks with adjustable legs and a full set of leg clamp hardware. This is the stage you buy when a small riser is no longer enough. Production companies, rental houses, houses of worship, schools, and mobile event teams get a full size performance deck that ships in one order, assembles without tools, adjusts from 28" to 48" in height, and breaks down for the next gig. Everything you need to build the platform is in the box. Set the height, lock the legs, clamp the decks together, and the stage is ready for the band, the DJ booth, the choir, or the corporate keynote.

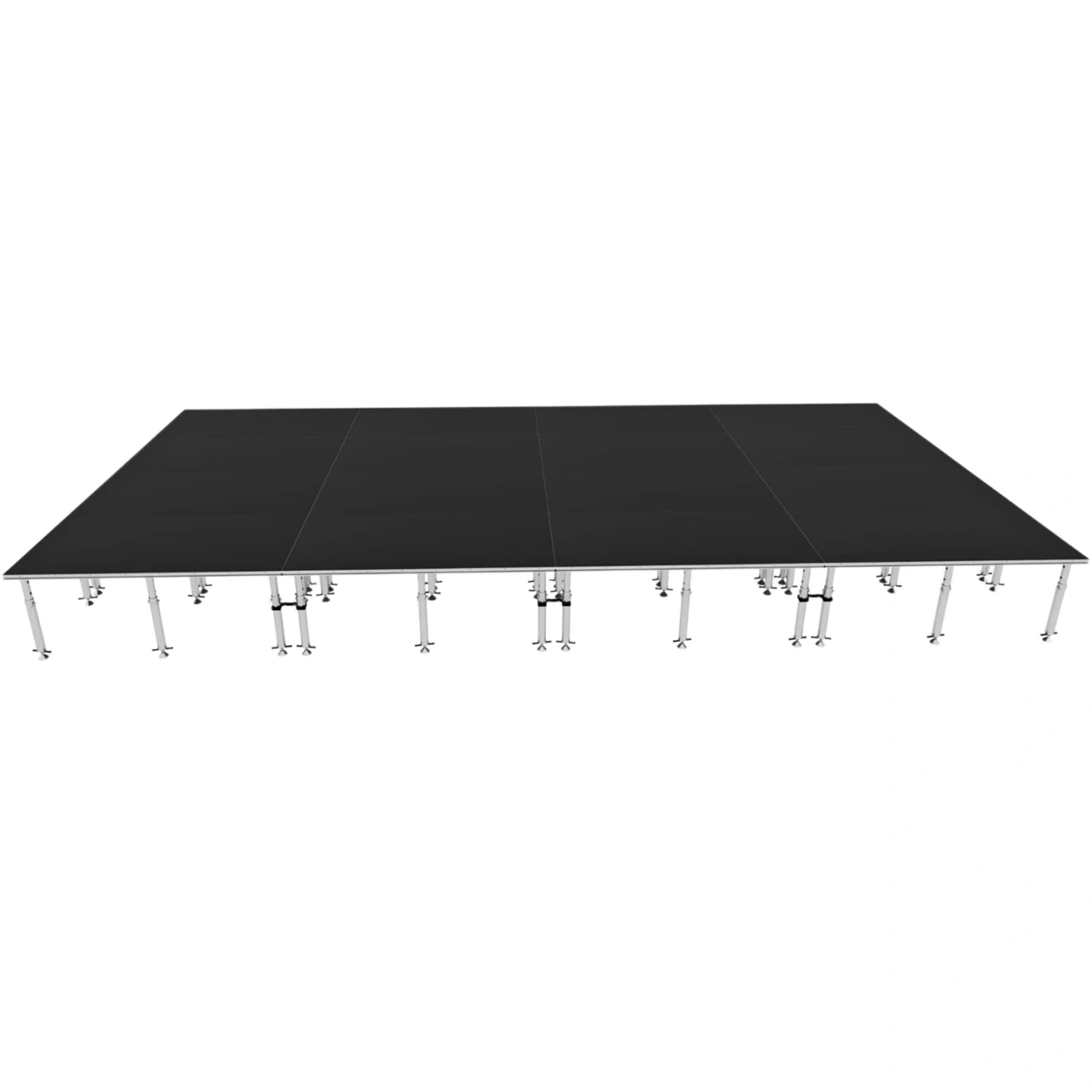

Full 16 ft x 32 ft Stage Footprint The package is configured from 16 ProX StageQ XSQ-4X8MK3 platforms, each measuring 47.25" x 94.5". Arranged in a four by four deck layout, they create a 16 ft x 32 ft stage surface. Because the system is modular, the same 16 decks can be reconfigured into other shapes and footprints as your venue or event layout changes.

Signature Honeycomb Digital™ Performance Surface Every deck top is finished with the exclusive ProX Signature Honeycomb Digital™ high pressure laminate. The textured surface delivers reliable grip underfoot and under equipment, resists scuffing and wear from repeated load in and load out, and holds up in both indoor and outdoor productions.

AAA Grade Birch Plywood Deck Core Under the laminate, each platform uses AAA grade 7/8" (22 mm) exterior rated birch plywood with minimal voids. That dense core is what gives the deck its solid feel and keeps the surface from telegraphing flex when performers move across it.

High Strength Aluminum Frame with TIG Welded Corners Each deck is framed in high strength aluminum with precision TIG welded corners. The welded frame carries the load, protects the deck edges during transport, and provides the clean profile that adjacent platforms lock against.

Heavy Duty Welded Cross Bracing The underside of every platform is reinforced with heavy duty aluminum cross bracing welded directly to the structural frame. These internal braces support the birch deck across its full span and add rigidity to the frame, which prevents flex and keeps the stage solid under demanding loads in touring, rental, and production use.

Six Leg Design for Better Load Distribution ProX was among the first manufacturers to engineer a 4 ft x 8 ft stage platform supported by six legs instead of the traditional four. The extra pair of legs at the center of the span spreads weight more evenly and adds rigidity right where a long deck needs it most.

Telescoping Legs Adjustable from 28" to 48" Each platform includes a set of six telescoping legs (XSQ-2848X6) that adjust from 28" to 48". A locking pin safety system holds the selected height during use, so the whole stage can be set to a low riser height, a full concert height, or anything in between using the same hardware.

• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"

Micro Adjustable Leveling Feet Every leg finishes with a micro adjustable rubber leveling foot on an M16 threaded bolt. On sloped parking lots, uneven grass, or a warehouse floor that is not quite true, you dial in each foot until the deck sits flat and quiet.

Complete Leg Clamp Package Included This package ships with 12x XSQ-MX2 MK3 clamps for joining two legs and 9x XSQ-MX4 clamps for joining four legs. Tying the legs together underneath the stage locks the deck grid into a single structure, cuts down on movement between platforms, and reduces vibration for a firmer, safer performance surface.

Deck Connection Hardware on Every Platform Each of the 16 platforms also includes two XSQ-C11MK2 lower deck security clamps that mount underneath and pull adjacent decks tightly together. A large wing knob allows tool free tightening. One XSQ-C05 deck leveler joint per platform installs between the aluminum profiles of two decks to keep the surfaces perfectly flush, eliminating lips and gaps across the stage.

1500 lb Load Capacity and TÜV Rheinland Tested Each platform is rated for a maximum load of 1500 lbs per 4 ft x 4 ft section evenly distributed, and the StageQ platform is TÜV Rheinland tested. That capacity covers full bands, drum risers, choirs, podiums, LED walls, and heavy AV loads with confidence.

Built for Indoor and Outdoor Events The exterior rated deck, aluminum frame, and laminate surface are all specified for use outside as well as in. Concerts, festivals, corporate events, worship services, school assemblies, fashion runways, and mobile DJ setups all run on the same platform.

Steps, Guard Rails, and Skirts Sold Separately Steps are not included so you can match the exact height of your build. As a general rule each step rises about 8", so divide your stage height by 8 to find the step count. A 30" stage height typically calls for a 5 step unit. ProX offers 4 step, 5 step, and 7 step options along with guard rails and stage skirts to finish the installation.

Each platform includes:

• (1) XSQ-2848X6 (Set of 6) 28"-48" Telescoping Legs
• (2) XSQ-C11MK2 Lower deck Security Clamp
• (1) XSQ-C05 Deck Leveler Joint

Specifications

• Platform Size: 47.25" x 94.5"
• Deck Material: 7/8" 22 mm Birch Plywood Zero Voids
• Frame Material: High Strength Aluminum
• Surface Finish: Signature Honeycomb Digital™ High Pressure Laminate
• Leg Quantity: 6 Adjustable Telescoping Legs
• Leg Height Range: 28" to 48"
• Leveling Feet: Micro Adjustable Rubber Feet with M16 Thread
• Maximum Load: 1500 lbs per 4 ft x 4 ft evenly distributed
• Certification: TÜV Rheinland Tested

Features

• Complete 16 ft x 32 ft Stage Package 16x StageQ 4 ft x 8 ft platforms create a full 512 square foot performance stage
• Signature Honeycomb Digital™ High Pressure Laminate Surface Textured deck finish for superior grip and long term wear resistance
• AAA Grade 7/8" (22 mm) Exterior Rated Birch Plywood Deck Dense core with minimal voids for a solid, stable surface
• High Strength Aluminum Frame with Precision TIG Welded Corners Carries the load and protects deck edges in transport
• Heavy Duty Welded Aluminum Cross Bracing Underside reinforcement that prevents flex under demanding loads
• Innovative 6 Leg Support Design Improved weight distribution and rigidity compared to traditional 4 leg platforms
• Telescoping Legs Adjustable from 28" to 48" Six legs per platform with locking pin safety system
• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"
• Micro Adjustable Leveling Feet with M16 Thread Precise leveling on uneven indoor and outdoor terrain
• 12x XSQ-MX2 MK3 and 9x XSQ-MX4 Leg Clamps Included Locks the leg grid together for added stability and reduced vibration
• 2x XSQ-C11MK2 Lower Deck Security Clamps per Platform Tool free wing knob tightening pulls adjacent decks together
• 1x XSQ-C05 Deck Leveler Joint per Platform Keeps connected decks perfectly flush across the stage surface
• 1500 lb Maximum Load Capacity Per 4 ft x 4 ft section evenly distributed
• TÜV Rheinland Tested Independently verified for safety and quality
• Fully Modular Design Reconfigure the 16 decks into other stage footprints as needed
• Rated for Indoor and Outdoor Installations Concerts, festivals, worship, schools, and corporate events
• Platform Weight 125.00 lbs Each Ships LTL on 2 skids
• Steps, Guard Rails, and Stage Skirts Available Separately Complete the build to match your stage height
• Engineered and Designed by ProX Live Performance Gear
• ProX Limited Warranty

Package Contents

• XSQ-4X8MK3 (16) Professional 4 ft x 8 ft Stage Platform with 6 Adjustable Legs 28"–48" Height Modular Event Deck System
• XSQ-MX2 MK3 (12) Heavy Duty Clamp for 2 Legs StageQ Staging
• XSQ-MX4 (9) Heavy Duty Clamp for 4 Legs StageQ Staging

Exterior Dimensions & Weight

• Stage Platform (16): 3.00"H x 48.00"W x 96.00"L - Weight: 125.00 lbs
• Legs (16): 7.50"H x 7.50"W x 28.00"L - Weight: 23.00 lbs

Shipping Dimensions & Weight

• Box 1 of 2: XSQ-MX2 MK3 (12 boxes) 1.50"H x 4.00"W x 10.00"L - Shipping Weight: 1.40 lbs
• Box 2 of 2: XSQ-4X8MK3 (16 boxes) 4.00"H x 50.00"W x 100.00"L - Shipping Weight: 132.00 lbs

• Suggested Shipping Method: LTL
• 2 skids each: 100x50x65 1500 lbs

Frequently Asked Questions - FAQ

What is the ProX XSQ-16X32PKG48?
The ProX XSQ-16X32PKG48 is a StageQ modular portable stage package that creates a 16 ft × 32 ft performance platform. It is designed for DJs, concerts, live performances, corporate events, schools, churches, and other event applications.

What is included in the ProX XSQ-16X32PKG48 package?
The package includes multiple StageQ 4 ft × 8 ft stage decks along with adjustable telescoping legs required to assemble the 16 ft × 32 ft stage configuration.

What are the assembled dimensions of the stage?
The completed stage measures approximately 16 ft wide × 32 ft long.

Can the stage height be adjusted?
Yes. The StageQ system uses adjustable telescoping legs, allowing the platform height to be configured for different event and performance requirements.

Is the ProX XSQ-16X32PKG48 suitable for DJs?
Yes. The large 16 ft × 32 ft platform provides substantial space for DJ equipment, performers, speakers, lighting equipment, and other production gear, subject to the manufacturer's load requirements.

Can the StageQ platform be used for live performances?
Yes. Its modular design makes it suitable for stages used for live music, presentations, performances, ceremonies, and other events.
