Product Description

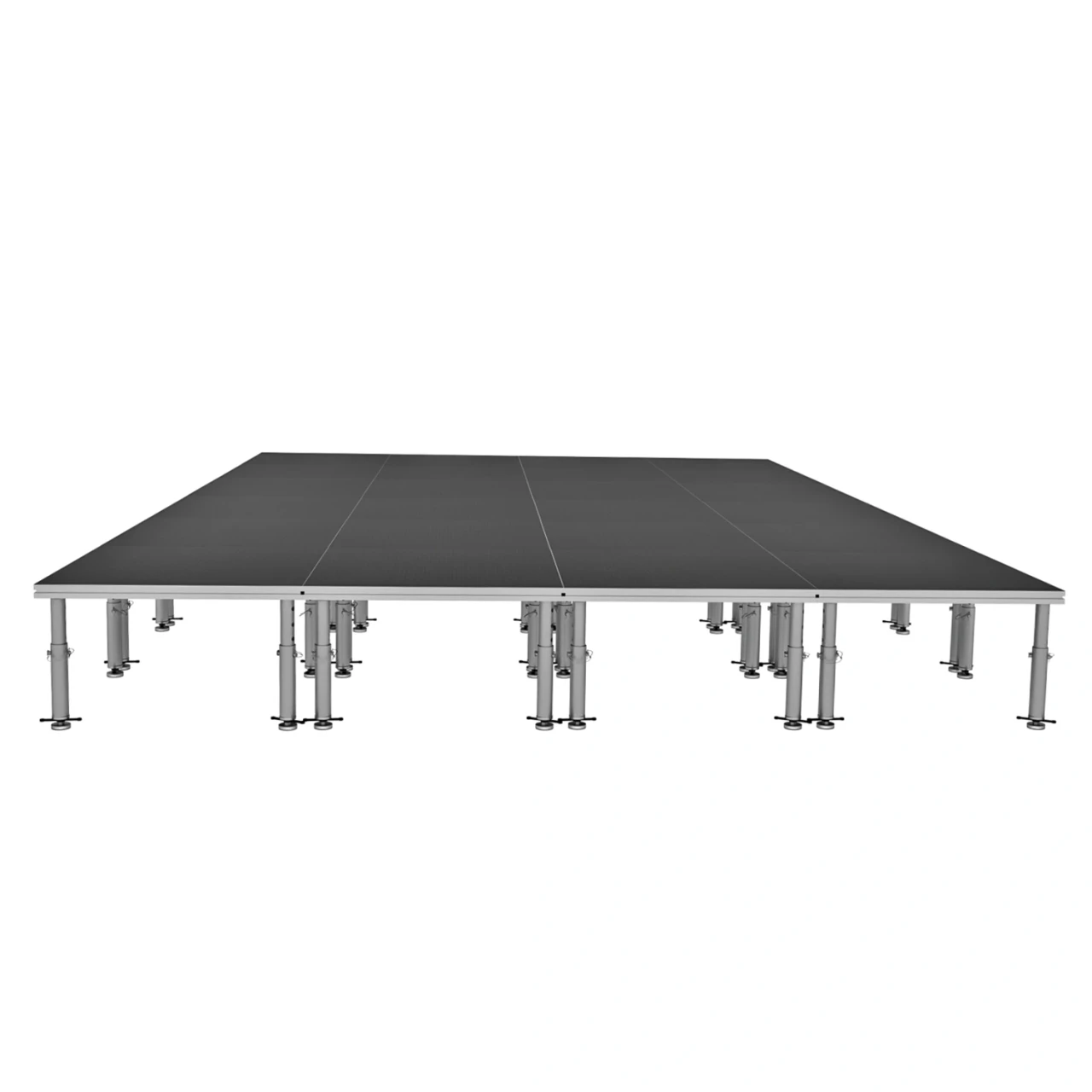

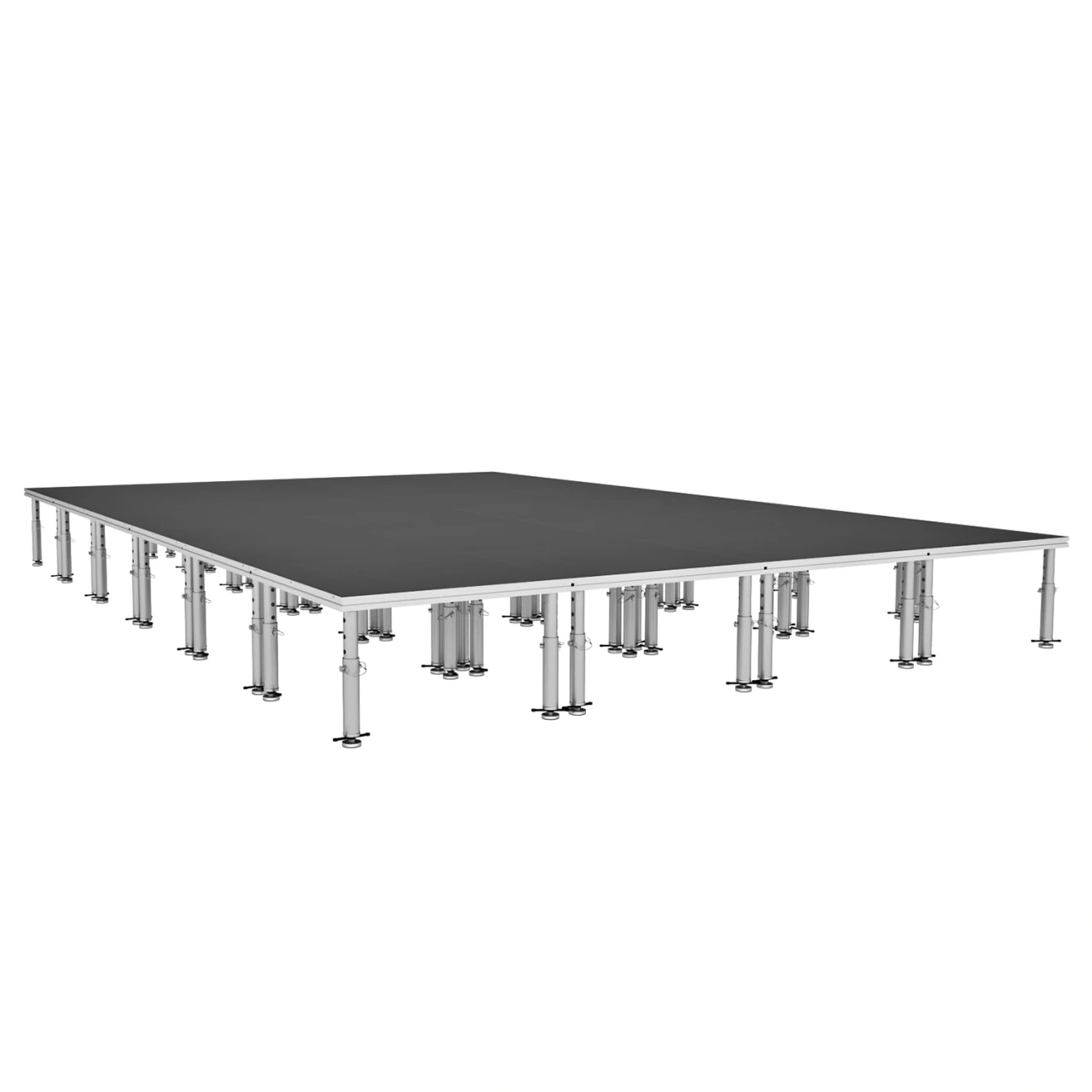

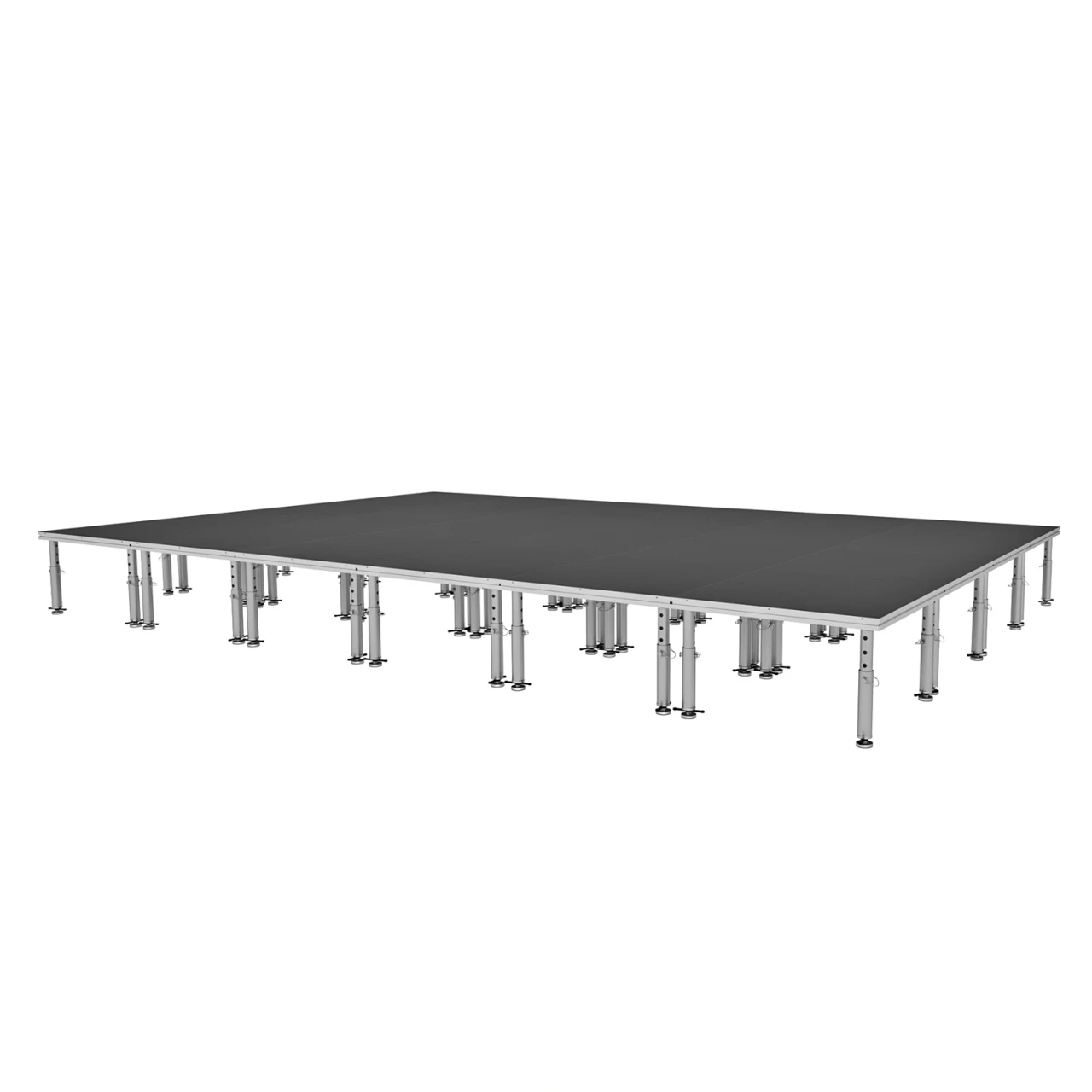

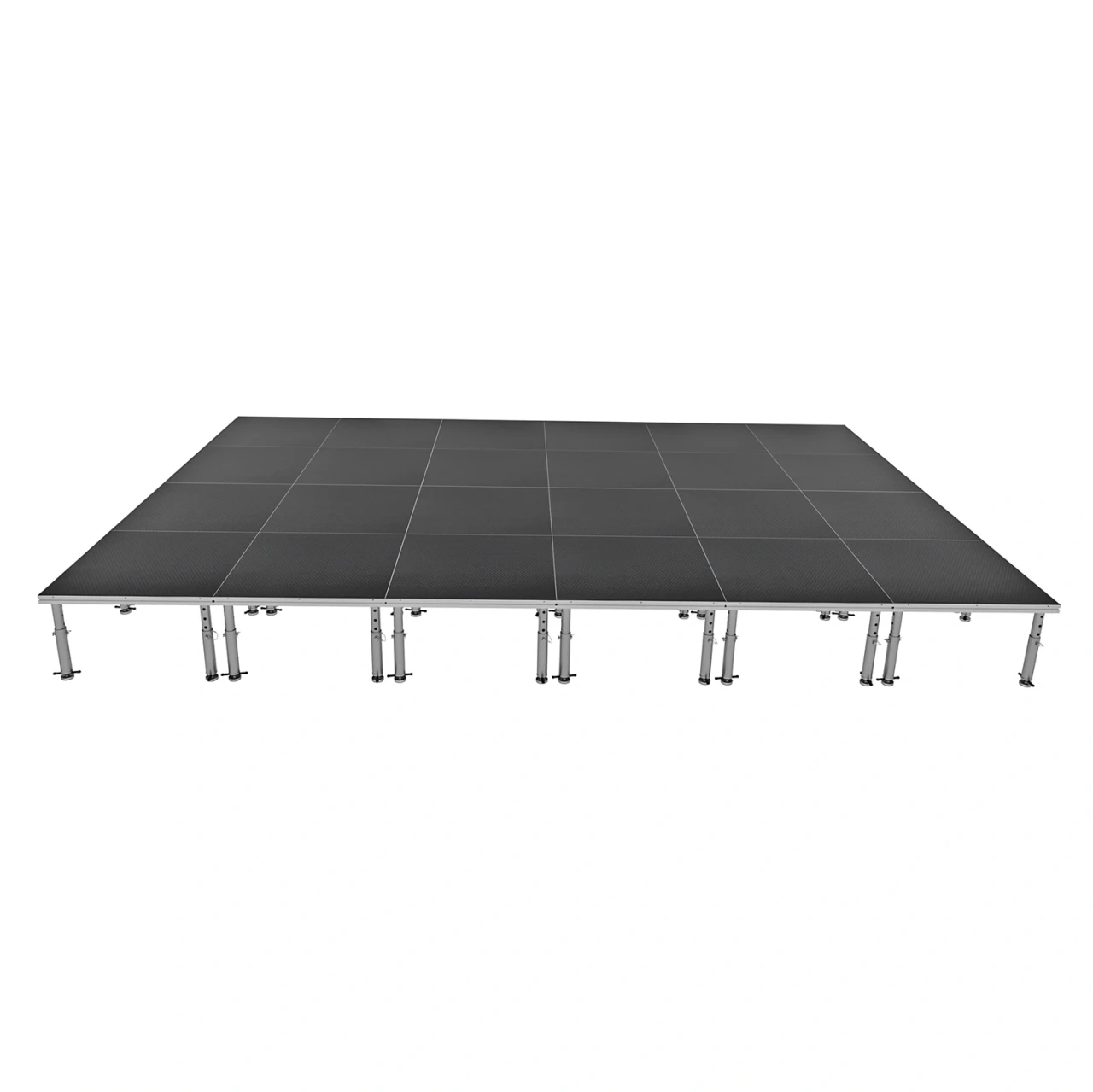

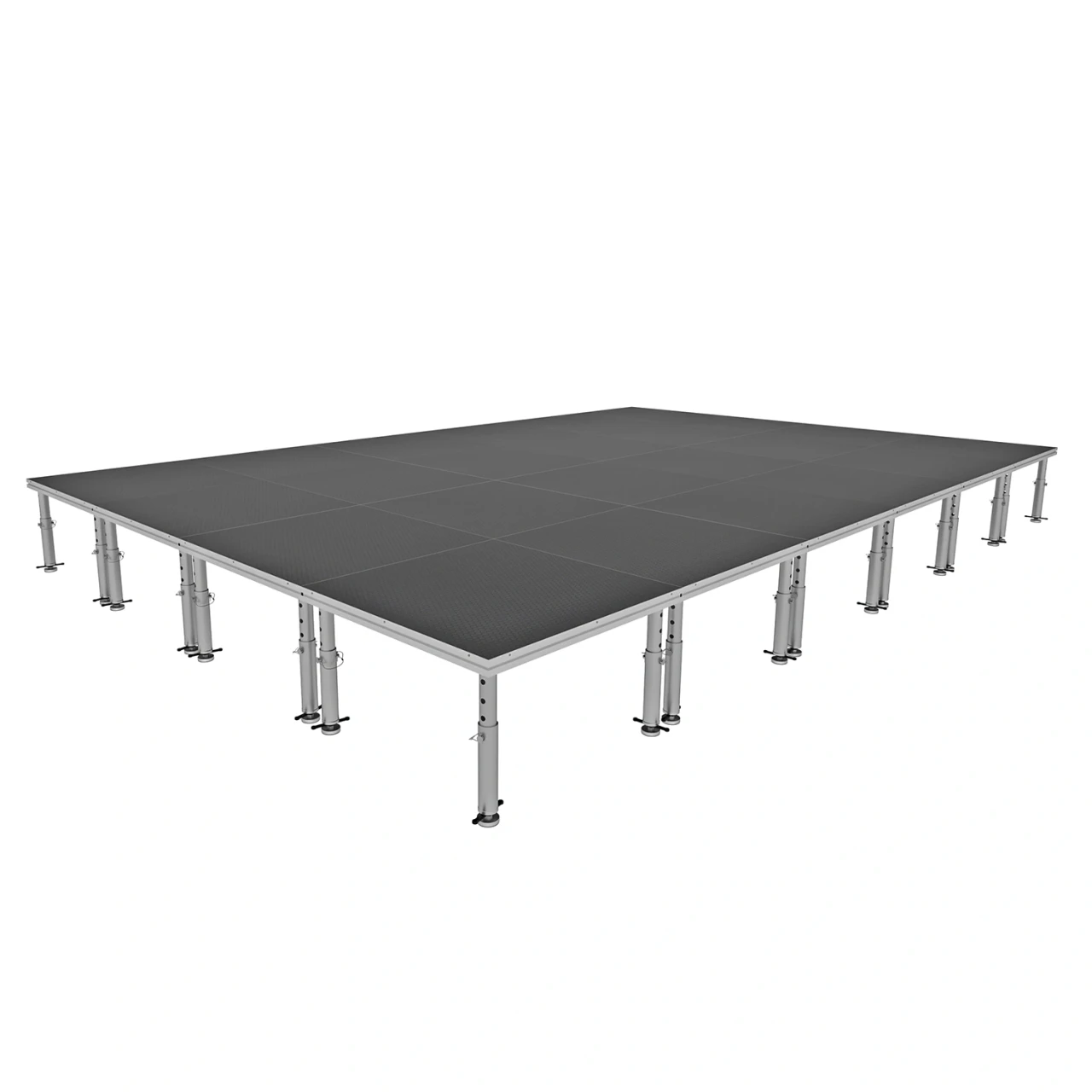

ProX XSU-16X24PKG StageOne 16x24 Portable Stage Package

ProX XSU-16X24PKG StageOne 16 ft x 24 ft 4x4 Package 24 Decks w/ 16–22 inch Adjustable Legs

Featuring the ProX STAGEone™ XSU-16X24PKG, this is the large-format portable staging package built for productions that demand a real stage presence. With 24 individual 4 ft x 4 ft decks assembling into a full 16 ft x 24 ft performance surface, this package gives you 384 square feet of solid, level stage that goes up fast and performs without compromise. Whether you're running a corporate event, a church service, a school performance, a DJ setup, a party rental operation, or a touring show, the ProX XSU-16X24PKG delivers the kind of reliable, professional staging that keeps you focused on the performance rather than the equipment.

Stage Surface Each deck measures 48" x 48" and is constructed with a 5/8" (15 mm) zero-void plywood core. The top surface features the Signature Honeycomb Digital™ finish, a high-pressure laminate (HPL) treatment with a textured, non-slip pattern engineered to provide secure footing in demanding conditions. The result is a stage surface that is durable, slip-resistant, and built to hold up across repeated setups and teardowns.

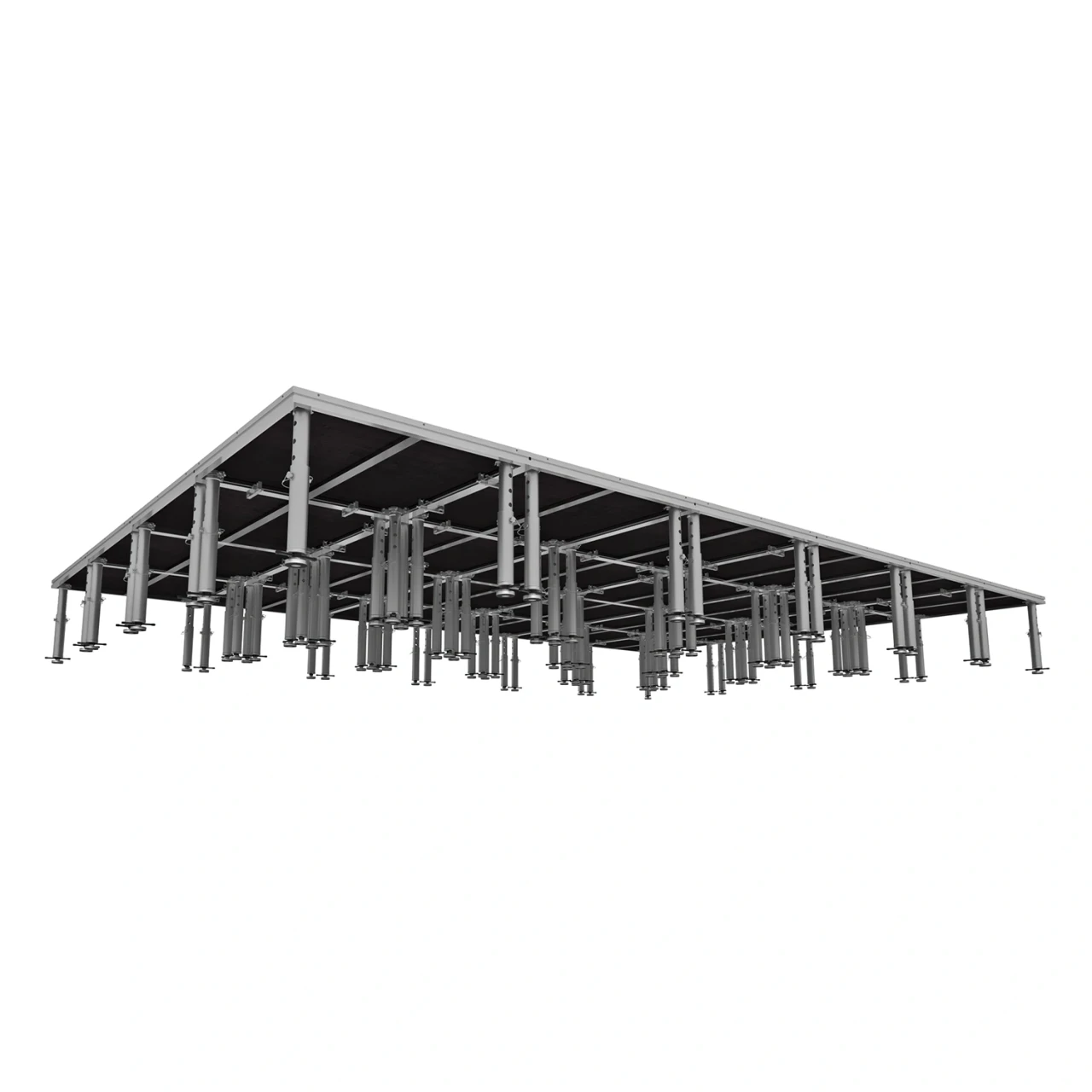

Adjustable Leg System Every deck ships with six telescoping legs that adjust from 16" to 22" in height. Each leg locks into position with an integrated security pin system, keeping your stage solid once it's set. The legs also feature a twist-adjustable rubber foot that adds up to 2" of additional height and allows for precise leveling on uneven ground, bringing maximum elevation to 24" when fully extended. This flexibility makes the XSU-16X24PKG a strong choice for both indoor venues and outdoor events where the ground is rarely perfect.

Load Capacity Each 4 ft x 4 ft deck is rated to support up to 800 lbs. of evenly distributed weight, giving the full 16 ft x 24 ft configuration a combined load capacity that is more than capable of handling bands, performers, furniture, and production equipment together on the same surface.

Tool-Free Setup The entire system is designed for quick, single-person assembly with no tools required. Decks connect using stage clamps and leveling clips that lock adjacent sections together, creating a flush, monolithic surface across the full stage. Setup and teardown are straightforward enough to be completed efficiently even under tight show schedules.

Package Contents This package includes everything needed to build the full 16 ft x 24 ft stage right out of the box. The complete contents are: 24 STAGEone XSU-4X4 Stage Deck Units, 96 telescoping legs (16" to 22"), 48 stage security clamps, and 24 deck leveling clips.

Compatibility The XSU-16X24PKG is fully compatible with additional STAGEone leg systems for taller riser configurations, stage steps, guard rails, skirts, and stage carts available separately from ProX. The system is designed to scale with your setup as your production needs grow.

Features

• Complete 16 ft x 24 ft Stage Package includes 24 individual 48" x 48" STAGEone™ decks, delivering 384 sq ft of performance surface right out of the box
• 800 lb Load Rating per Deck supports up to 800 lbs of evenly distributed weight per 4 ft x 4 ft section, built for performers, equipment, and production loads
• Signature Honeycomb Digital™ Surface high-pressure laminate (HPL) top with a textured, non-slip finish engineered for secure footing in professional use environments
• 5/8" Zero-Void Plywood Core each deck is built on a 15 mm exterior-grade plywood core with virtually no voids for consistent, reliable structural integrity across the entire surface
• Aluminum Frame Construction reinforced aluminum frame with corner and cross profiles for strength and long-term durability
• Telescoping Adjustable Legs (16" to 22") six legs per deck adjust to height using an integrated security pin locking system, keeping the stage locked in position once set
• Twist-Adjustable Rubber Foot each leg includes a rubber foot that adds up to 2" of additional elevation, bringing maximum height to 24" and allowing precise leveling on uneven ground
• Tool-Free, Single-Person Assembly stage decks connect using clamps and leveling clips, no tools required, fast enough for tight event schedules
• Flush, Monolithic Stage Surface stage security clamps and deck leveling clips lock adjacent sections together for a seamless, level surface across the full configuration
• Compatible with ProX Staging Accessories works with additional ProX leg systems for taller riser heights, plus stage steps, guard rails, skirts, and stage carts (sold separately)
• Ideal for a Wide Range of Applications suited for mobile DJs, corporate events, church services, schools, party rental companies, and temporary outdoor events
• Package Contents: (24) XSU-4X4 Stage Deck Units, (96) Telescoping Legs 16" to 22", (48) Stage Security Clamps, (24) Deck Leveling Clips
• ProX One-Year Limited Warranty

Package Contents

• XSU-4X4 (24) StageOne 4 ft x 4 ft Single Stage Package - Deck w/ Adjustable 16–22 inch Legs

Exterior Dimensions & Weight

• XSU-4X4 (24): 3.00"H x 48.00"W x 48.00"L - Weight: 58.00 lbs

Shipping Dimensions & Weight

• Box 1 of 1: XSU-4X4 (24 boxes) 4.00"H x 50.00"W x 50.00"L - Shipping Weight: 65.00 lbs

Suggested Shipping Method: LTL

• 2 Skid, 50x50x55 960 LBS (EACH)

Frequently Asked Questions - FAQ

What is the ProX XSU-16X24PKG?
The ProX XSU-16X24PKG is a StageOne modular portable stage package that creates a 16 ft × 24 ft stage platform.

How high is the ProX XSU-16X24PKG stage?
Its telescoping legs adjust from 16 to 22 inches, with the leveling feet allowing additional adjustment up to approximately 24 inches.

What size are the individual stage decks?
The StageOne system uses 4 ft × 4 ft modular stage deck sections.

What is the load capacity of each stage section?
Each 4 ft × 4 ft section supports up to 800 lbs. when the weight is evenly distributed.

Is the ProX XSU-16X24PKG suitable for outdoor events?
Yes. The stage decks use exterior-rated plywood and the system is designed for indoor and outdoor applications.

Who can use the ProX XSU-16X24PKG?
It is suitable for mobile DJs, clubs, party rental companies, schools, churches, and event productions.
