ProX XSQ-2X6MK2 StageQ 2 ft x 6 ft Stage Platform with Adjustable 28–48 Inch Legs

Product Description

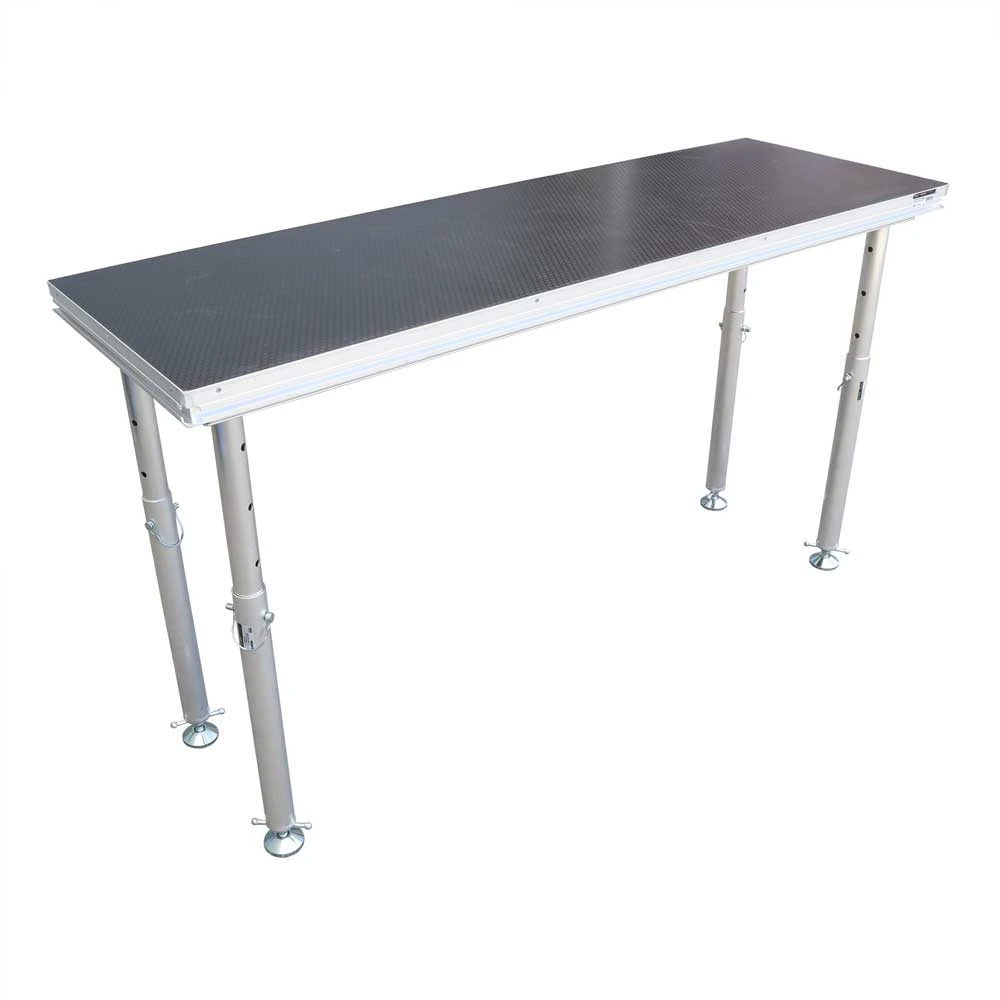

ProX XSQ-2X6MK2 StageQ 2 ft x 6 ft Stage Platform

The ProX XSQ-2X6MK2 StageQ 2 ft x 6 ft Single Stage Package is a versatile modular staging solution designed for mobile DJs, live performances, schools, houses of worship, corporate events, and professional AV productions. This complete package includes one 2 ft x 6 ft stage platform, four adjustable telescoping legs, lower deck security clamps, and a deck leveler joint for convenient assembly and stable performance.

Built with a durable 7/8-inch (22 mm) plywood deck and a heavy-duty aluminum frame, this StageQ platform provides a sturdy foundation for performers, presenters, instruments, and event equipment. Its Signature Honeycomb Digital high-pressure laminate surface offers traction and abrasion resistance for demanding event environments.

Adjustable Height and Ground Leveling

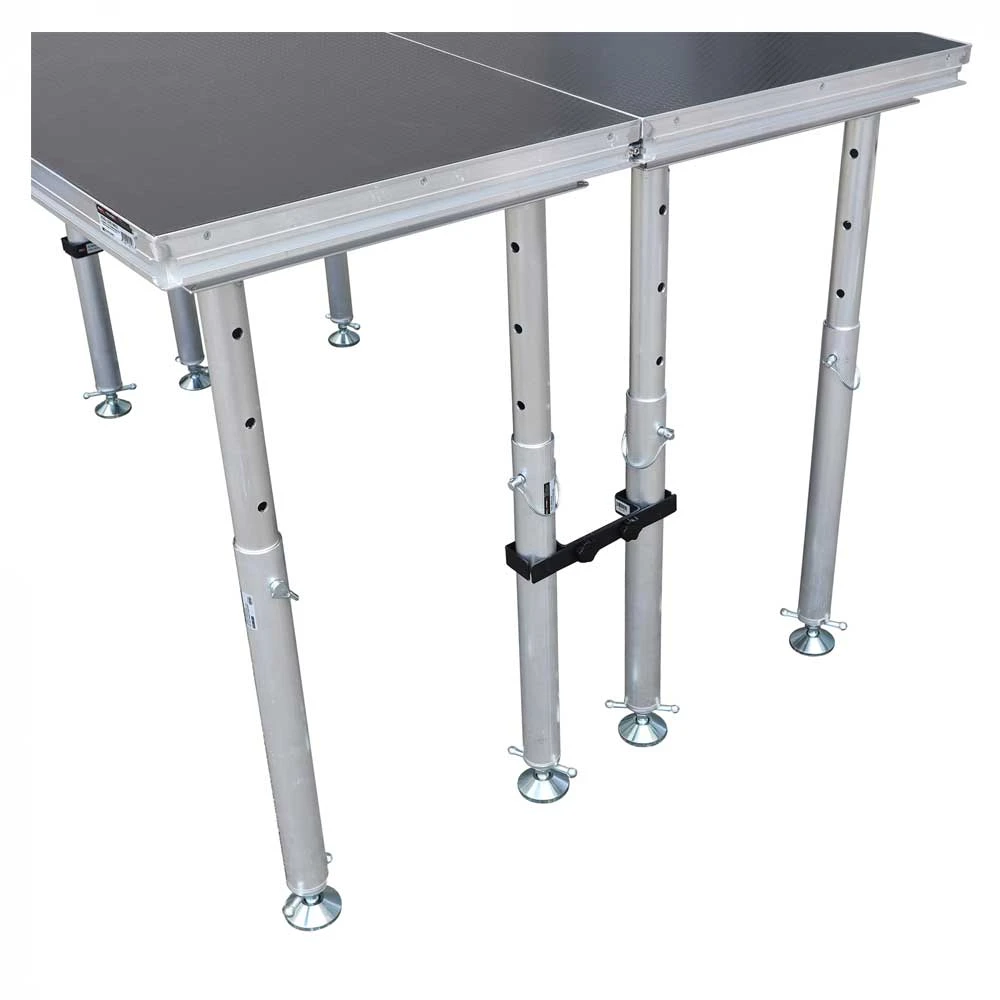

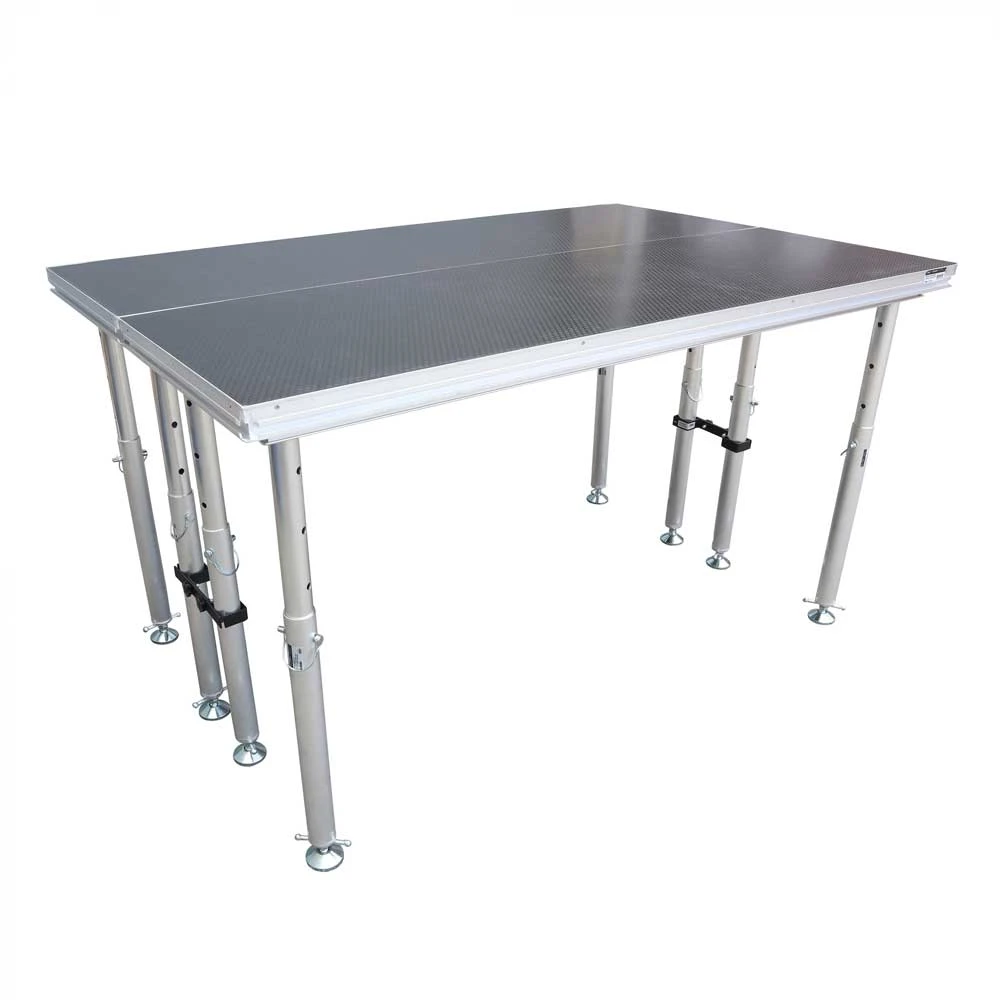

The included telescoping legs adjust from 28 inches to 48 inches, allowing you to configure the platform for different staging requirements. Individual ground leveling feet help compensate for uneven floors and outdoor surfaces, providing a more stable platform when properly installed.

Each leg features a security pin and cable locking system to help keep the leg securely positioned at the selected height. The adjustable design makes this stage package suitable for presentations, band risers, choir platforms, DJ setups, and other temporary staging applications.

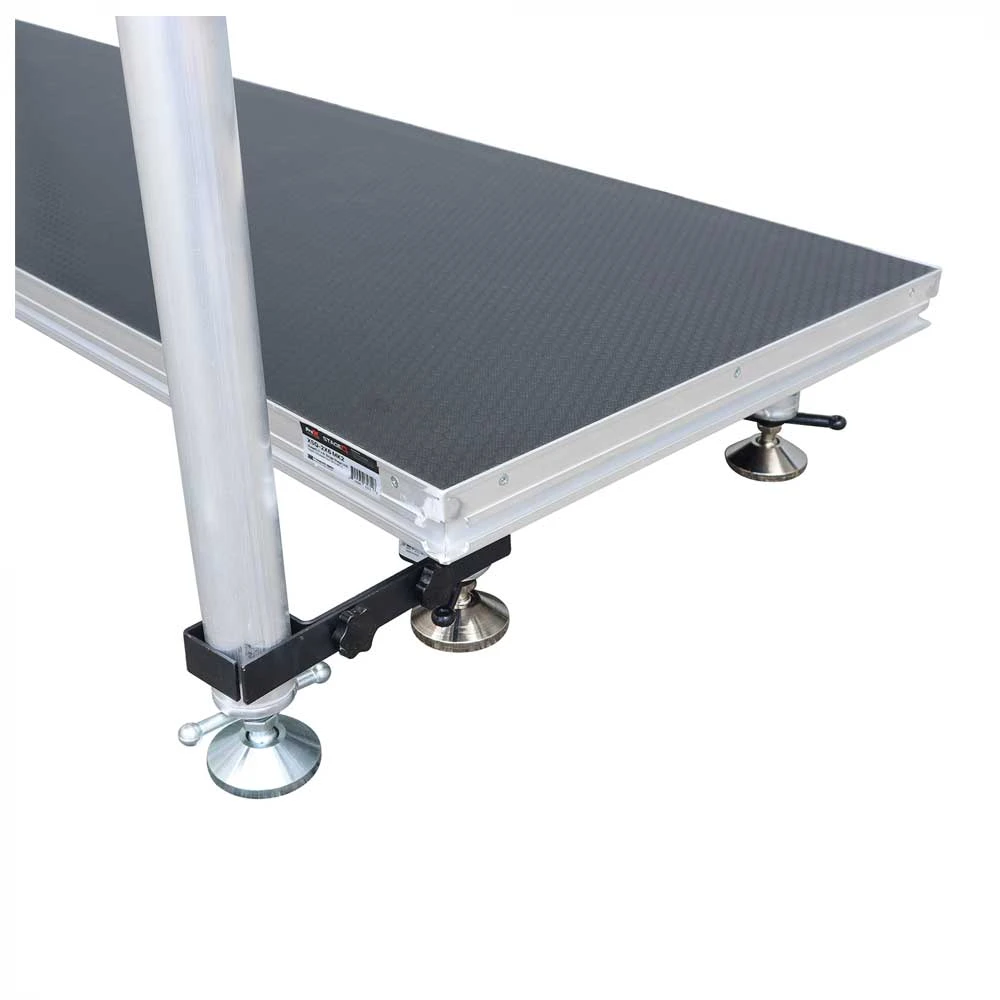

Durable Honeycomb Digital Deck Surface

The StageQ deck features a hexagonal-pattern High Pressure Laminate (HPL) surface designed to provide grip and resist scuffs and abrasion. A high-temperature heat-press lamination process bonds the surface to the 7/8-inch plywood core, helping maintain the deck's appearance through repeated use.

Heavy-Duty Aluminum Frame

A reinforced aluminum extrusion frame surrounds the platform, providing structural support while keeping the unit manageable to handle. The assembled platform weighs approximately 66 lbs and measures 2 ft x 6 ft in nominal deck size, making it a practical modular section for portable staging systems.

Modular Stage Configuration

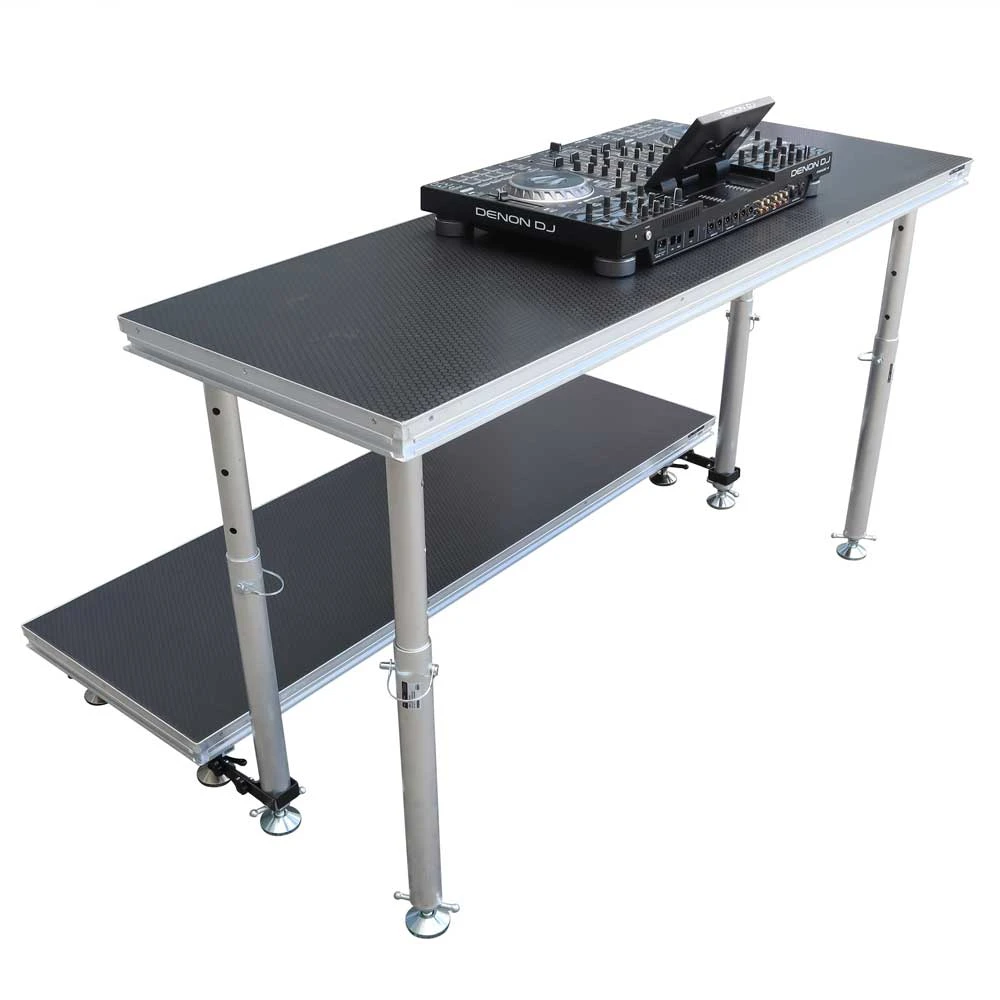

The XSQ-2X6MK2 is designed to connect with other compatible StageQ deck sections to create wider platforms, tiered risers, performance areas, and custom stage layouts. The included lower deck security clamps and deck leveler joint help connect and align compatible sections. Additional leg clamps are sold separately.

Key Features

• ProX StageQ modular stage platform package
• 2 ft x 6 ft nominal platform size
• 7/8-inch (22 mm) plywood deck core
• Heavy-duty aluminum frame with internal reinforcement
• Signature Honeycomb Digital high-pressure laminate surface
• Four telescoping legs adjustable from 28 to 48 inches
• Security pin and cable leg-locking system
• Adjustable ground leveling feet for uneven surfaces
• Rated for a 1,500 lb evenly distributed load
• Tool-free assembly
• Includes two lower deck security clamps and one deck leveler joint
• Designed for compatible modular StageQ configurations
• Ships in two separate boxes

Technical Specifications

• Brand: ProX
• Series: StageQ MK2
• Model: XSQ-2X6MK2
• Platform Size: 2 ft x 6 ft
• Deck Core: 7/8-inch (22 mm) plywood
• Deck Surface: Honeycomb Digital high-pressure laminate
• Frame: Heavy-duty aluminum extrusion
• Leg Quantity: Four telescoping legs
• Adjustable Leg Height: 28–48 inches
• Upper Leg Shaft Exterior Diameter: 50 mm (2 inches)
• Lower Leg Shaft Exterior Diameter: 57 mm (2.25 inches)
• Upper Leg Shaft Interior Diameter: 44 mm (approximately 1.7 inches)
• Lower Leg Shaft Interior Diameter: 51 mm (2 inches)
• Load Capacity: 1,500 lbs evenly distributed
• Assembled Platform Dimensions: 3.50 inches H x 23.75 inches W x 72 inches L
• Platform Weight: 66 lbs
• Shipping Boxes: Two
• Setup: Tool-free assembly
• Leg Clamps: Sold separately

What's Included

• (1) ProX XSQ-2X6 Stage Platform Unit
• (1) XSQ-2848X4 Set of 28–48 Inch Telescoping Legs
• (2) XSQ-C11 MK2 Lower Deck Security Clamps
• (1) XSQ-C05 Deck Leveler Joint

Ideal Applications

• Mobile DJ platforms and performance risers
• Live bands and musical performances
• Choir and church staging
• School theater and auditorium productions
• Corporate presentations and conference stages
• Event production and rental staging
• Modular stage extensions and custom platform layouts

Buy the ProX XSQ-2X6MK2 StageQ Platform at USATRUSS

Build a reliable staging setup with the ProX XSQ-2X6MK2 StageQ 2 ft x 6 ft Stage Platform Package. With adjustable legs, ground leveling feet, a durable laminate deck, and modular expansion capability, this platform is designed to support a variety of professional event applications.

Ready to upgrade your staging setup? Shop the ProX XSQ-2X6MK2 at USATRUSS. For product questions or assistance with your staging requirements, Contact USATRUSS or call 1-800-856-8397.

Frequently Asked Questions

1. What are the dimensions of the ProX XSQ-2X6MK2 StageQ platform?

The ProX XSQ-2X6MK2 has a nominal deck size of 2 ft x 6 ft. Its listed assembled dimensions are 3.50 inches high x 23.75 inches wide x 72 inches long.

2. How high can the ProX XSQ-2X6MK2 stage platform be adjusted?

The package includes four telescoping legs that adjust from 28 inches to 48 inches, allowing you to configure the platform for different event and performance requirements.

3. What is the weight capacity of the StageQ XSQ-2X6MK2?

The platform has a rated load capacity of 1,500 lbs when the load is evenly distributed. Always follow the manufacturer's setup and loading guidelines.

4. What accessories are included with the ProX XSQ-2X6MK2?

The package includes one XSQ-2X6 stage platform, one set of XSQ-2848X4 telescoping legs, two XSQ-C11 MK2 lower deck security clamps, and one XSQ-C05 deck leveler joint. Leg clamps are sold separately.

5. Where can I buy the ProX XSQ-2X6MK2 StageQ platform?

You can purchase the ProX XSQ-2X6MK2 StageQ 2 ft x 6 ft Stage Platform Package from USATRUSS. Visit our Contact USATRUSS page or call 1-800-856-8397 for assistance.
