Product Description

ProX XSQ-8X16PKG48 StageQ 8x16 Portable Stage Package

6X4 ft - 8" Curved Platform ProX LUMOStage™ Modular Illuminated Acrylic Stage Platform System with Interlocking Cube Sections

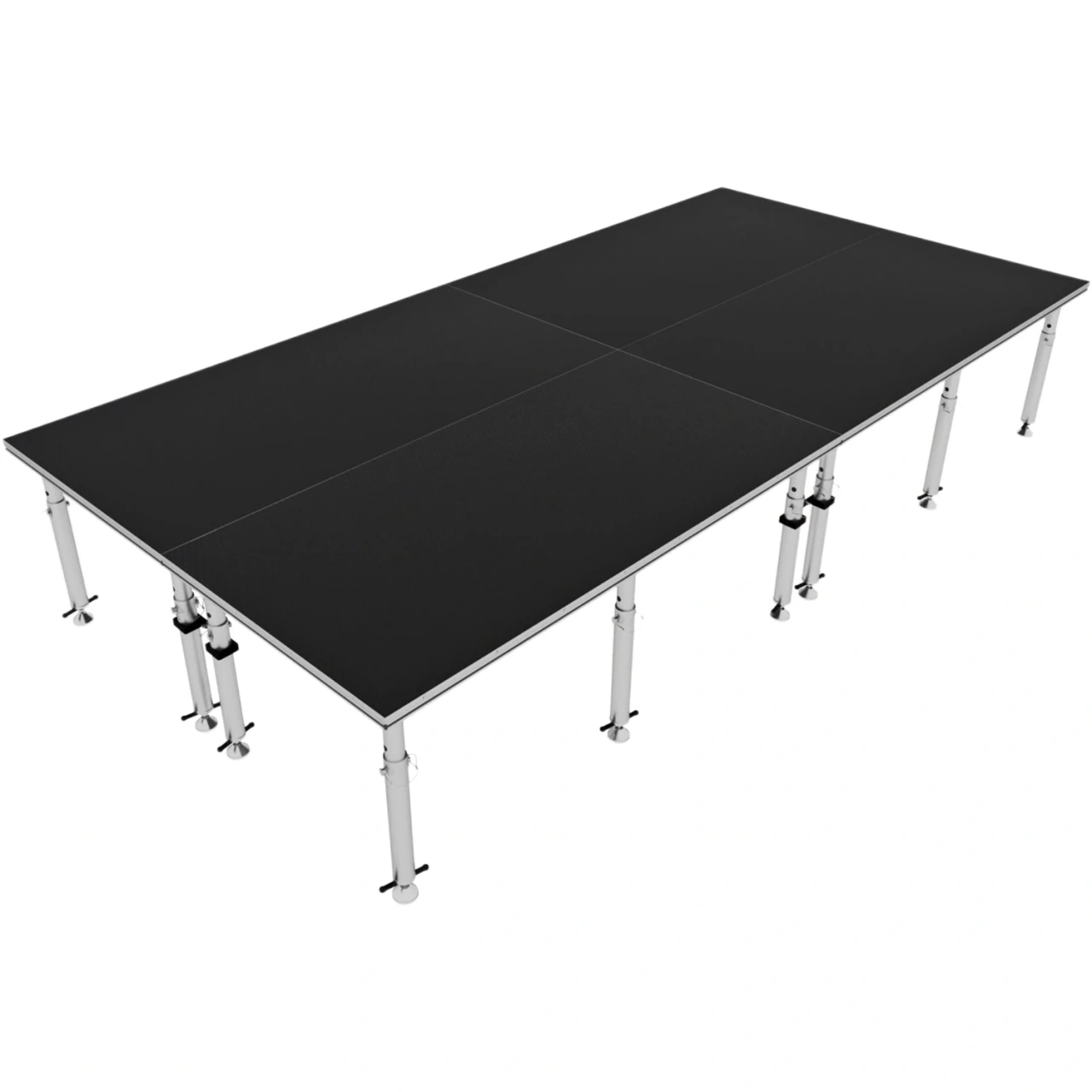

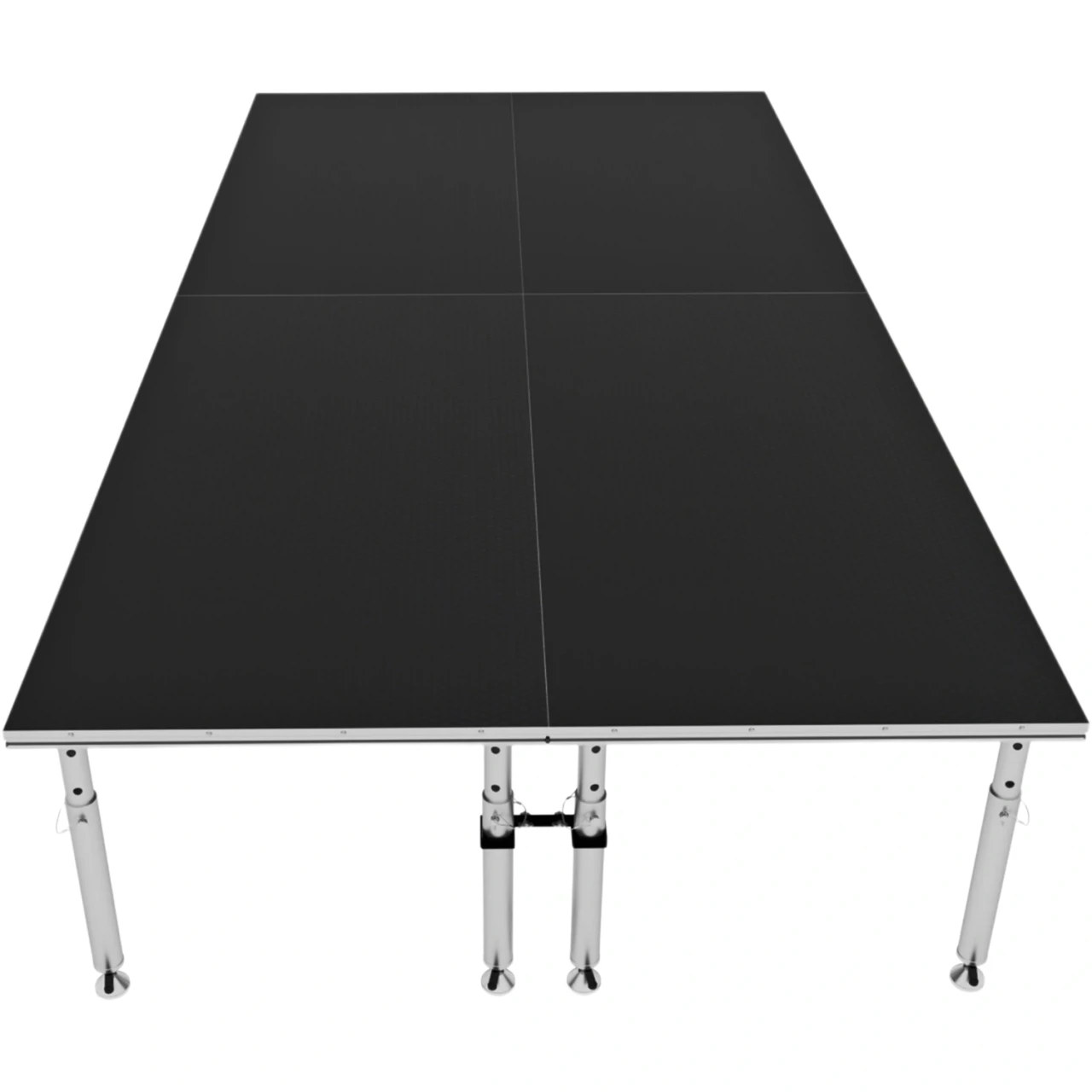

Featuring the ProX XSQ-8X16PKG48 StageQ™ 8x16ft Portable Stage Platform Package, a four deck modular staging system that puts down 128 square feet of professional performance surface at any height between 28" and 48". Four 4 ft x 8 ft StageQ decks, twenty four telescoping legs, and all the clamping hardware needed to tie it into one flat structure. This is the size most buyers land on when a single riser is not enough and a full touring stage is more than the room can take. It goes up without tools, comes apart flat, and ships LTL on a pallet. If you are renting a stage every weekend, this is the package where owning one starts making financial sense.

Signature Honeycomb Digital™ Surface The top of every deck is finished with the exclusive Signature Honeycomb Digital™ high pressure laminate. The texture gives real traction to performers, crew, and rolling road cases, including outdoors when the surface is damp. It also holds up to years of load in and load out without the scuffing and wear you get from painted or bare plywood tops.

Deck Core Under the laminate sits AAA grade birch plywood at 7/8" (22 mm) thick, exterior rated, with minimal voids. Exterior rating means humidity, temperature swings, and outdoor gigs will not swell or delaminate the core. Minimal voids means no soft spots and no hollow sound anywhere on the deck.

Aluminum Frame Each platform is wrapped in a high strength aluminum perimeter frame with precision TIG welded corners. Welded corners stay square under load and impact instead of working loose the way bolted joints eventually do. The frame profile also shields the deck edge during transport and gives the security clamps solid metal to grip.

Underside Bracing The bottom of every platform carries heavy duty aluminum cross bracing, precision welded into the structural frame. These braces support the plywood across its span and eliminate the flex you feel in the middle of a cheaper platform when someone walks across it. Under a drum kit, a speaker stack, or a full band, the deck stays planted.

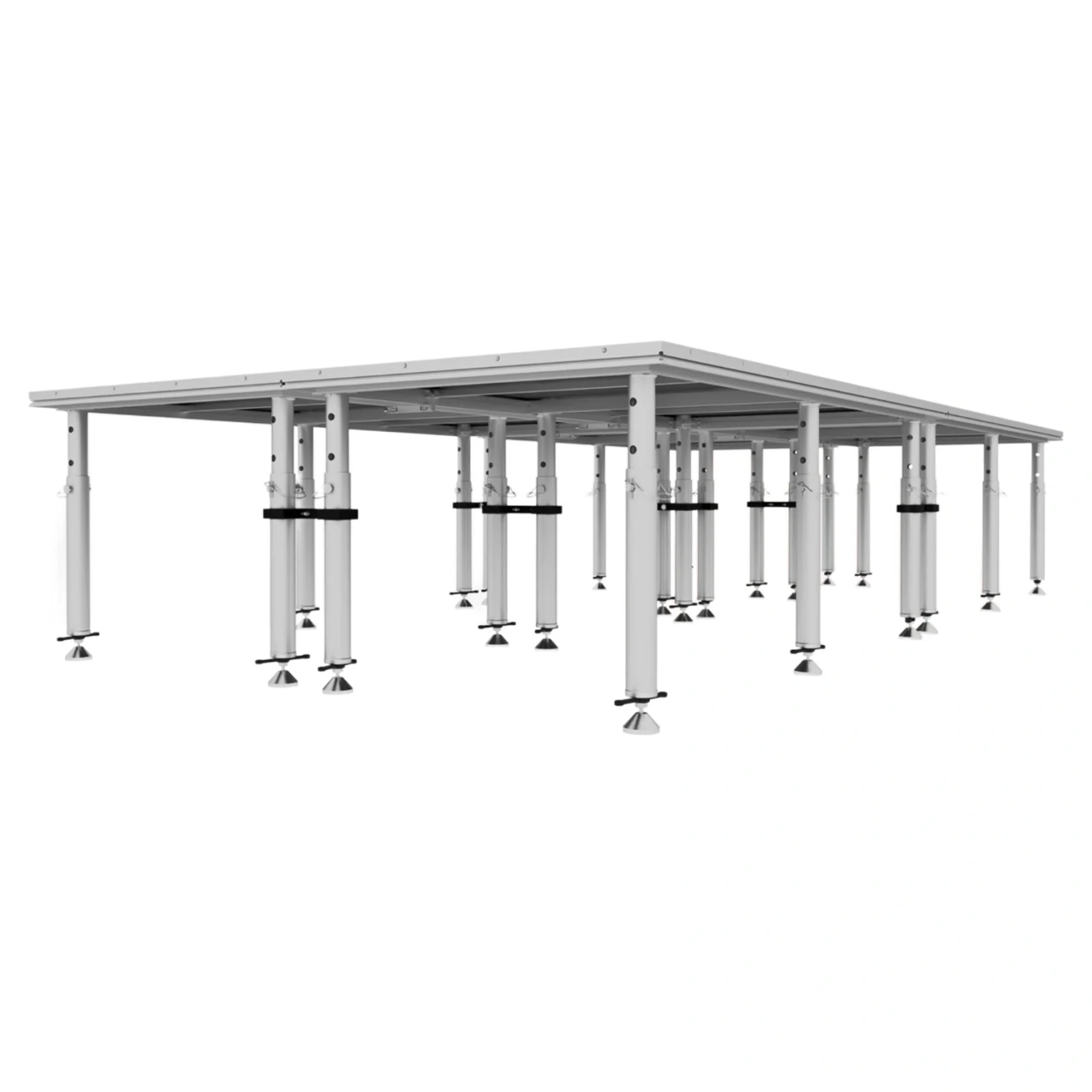

Six Leg Support Design ProX was among the first manufacturers to build a 4 ft x 8 ft platform on six legs instead of four. The two additional legs sit at the center of the span, spreading the load evenly and cutting deflection where four leg platforms are weakest. Across this package that comes to twenty four legs carrying the full 8 ft x 16 ft footprint.

Telescoping Legs and Locking Pins Every platform ships with six legs that telescope from 28" to 48", each held at the chosen height by a locking pin safety system. Set the height at the leg before the deck goes down, pin it, and move on. No tools, no loose hardware to lose in the grass at an outdoor call.

• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"

Leveling Feet Each leg terminates in a micro adjustable rubber foot on an M16 threaded bolt. Twist to fine tune each corner and take out the small ground variations that make a stage rock underfoot. This is what lets the system go down on grass, gravel, a sloped lot, or a warped venue floor and still finish flat. On soft ground, set something solid under each foot so the legs do not sink once the stage is loaded.

Deck Connection Hardware Every platform includes two XSQ-C11MK2 lower deck security clamps that mount underneath and pull neighboring frames tight so sections cannot creep apart under foot traffic. Each platform also includes one XSQ-C05 deck leveler joint that installs between the aluminum profiles of two decks and holds the surfaces flush at the seam, leaving no lip to catch a shoe or a case wheel. The package adds one XSQ-MX4 heavy duty clamp that ties four adjacent legs together beneath the stage for additional rigidity between decks.

Load Rating and Certification Each platform is rated at 1500 lbs per 4 ft x 4 ft section, evenly distributed, and the StageQ platform system is TÜV Rheinland tested. That covers backline, drum risers, DJ setups, choir stands, speaker stacks, and heavy production gear, verified by independent third party testing rather than an in house claim.

Modular and Expandable This 8 ft x 16 ft layout is a starting point, not a ceiling. Additional decks connect to the same hardware to build larger footprints, and the StageQ series mixes deck sizes on one stage, so smaller platforms can fill corners, form returns, add a drum riser, or work around a room that is not a clean rectangle. Buy the 8x16 now and grow the same system later.

Steps, Guard Rails, and Skirts Steps are not included so you can match the unit to your finished stage height. Each step covers roughly 8 inches, so divide your stage height by 8 to size the staircase. A 30" stage typically calls for a 5 step unit, and ProX offers 4 step, 5 step, and 7 step options. Guard rails and stage skirts are also available separately to finish the installation.

Who This Is Built For Production companies, rental houses, houses of worship, schools, venues, and mobile DJs who set up and break down constantly. It stacks flat for storage, travels on a pallet, and assembles with nothing but your hands. Concert stage, corporate platform, church stage, school riser, DJ platform, or outdoor festival deck, this package holds solid from soundcheck through load out.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX StageQ XSQ-8X16PKG48 is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

Each platform includes:

• (1) XSQ-2848X6 (Set of 6) 28"-48" Telescoping Legs
• (2) XSQ-C11MK2 Lower deck Security Clamp
• (1) XSQ-C05 Deck Leveler Joint

Specifications

• Platform Size: 47.25" x 94.5"
• Deck Material: 7/8" 22 mm Birch Plywood Zero Voids
• Frame Material: High Strength Aluminum
• Surface Finish: Honeycomb Digital™ High Pressure Laminate
• Leg Quantity: 6 Adjustable Telescoping Legs
• Leg Height Range: 28" – 48"
• Leveling Feet: Micro Adjustable Rubber Feet with M16 Thread
• Maximum Load: 1500 lbs per 4 ft x 4 ft evenly distributed
• Certification: TÜV Rheinland Tested

Features

• Complete 8 ft x 16 ft Stage Package Four 4 ft x 8 ft StageQ platforms build a full 128 square foot performance surface
• Signature Honeycomb Digital™ High Pressure Laminate Surface Textured finish for superior grip and long term wear resistance
• AAA Grade 7/8" (22 mm) Exterior Rated Birch Plywood Deck Minimal voids for consistent strength indoors and outdoors
• High Strength Aluminum Frame with Precision TIG Welded Corners Stays square under load and protects the deck edge in transport
• Heavy Duty Welded Aluminum Cross Bracing Precision welded underside supports prevent deck flex
• ProX Six Leg Support Design Improved load distribution and rigidity over traditional four leg platforms
• 24 Telescoping Legs Total, Adjustable 28" to 48" Six legs per platform for full height flexibility
• Exterior Shaft Dimensions Upper Shaft Exterior OD: 50 mm / 2" - Lower Shaft Exterior OD: 57 mm / 2.25"
• Interior Shaft Dimensions Upper Shaft Interior OD:44 mm /1.7" - Lower Shaft Interior OD:51 mm /2"
• Locking Pin Safety System Secures each leg at the selected height during use
• Micro Adjustable Leveling Feet with M16 Thread Bolts Fine tune each corner on uneven or outdoor terrain
• 1500 lb Maximum Load Capacity per 4 ft x 4 ft Section Evenly distributed rating for backline, risers, and production gear
• TÜV Rheinland Tested and Certified Independently verified for safety and quality
• XSQ-C11MK2 Lower Deck Security Clamps Included Two per platform to lock adjacent frames together underneath
• XSQ-C05 Deck Leveler Joint Included One per platform to keep connected deck surfaces flush at the seam
• XSQ-MX4 Heavy Duty 4 Leg Clamp Included Ties four adjacent legs together for added structural stability
• Tool Free Setup and Breakdown Legs insert and pin, feet twist to level, no hardware required
• Fully Modular and Expandable Connects with additional StageQ decks and mixes with other StageQ deck sizes
• Platform Size 47.25" x 94.5" True 4 ft x 8 ft modular footprint per deck
• Suitable for Indoor and Outdoor Installations Concerts, corporate events, houses of worship, schools, DJ stages, and festivals
• Steps, Guard Rails, and Stage Skirts Available Separately Match step height to your finished stage elevation
• Ships LTL on a Pallet Stacks flat for storage and transport
• Engineered and Designed by ProX Live Performance Gear
• ProX Limited Warranty

Package Contents

• XSQ-4X8MK3 (4) Professional 4 ft x 8 ft Stage Platform with 6 Adjustable Legs 28"–48" Height Modular Event Deck System
• XSQ-MX4 (1) Heavy Duty Clamp for 4 Legs StageQ Staging

Exterior Dimensions & Weight

• Stage Platform (4): 3.00"H x 48.00"W x 96.00"L - Weight: 125.00 lbs
• Legs (4): 7.50"H x 7.50"W x 28.00"L - Weight: 23.00 lbs

Shipping Dimensions & Weight

• Box 1 of 1: XSQ-4X8MK3 (4 boxes) 4.00"H x 50.00"W x 100.00"L - Shipping Weight: 132.00 lbs

• Suggested Shipping Method: LTL

Frequently Asked Questions - FAQ

What is the ProX XSQ-8X16PKG48?
The ProX XSQ-8X16PKG48 is a StageQ modular stage package measuring 8 ft × 16 ft. It includes four 4 ft × 8 ft stage decks with adjustable legs for creating a stable, professional performance platform.

What is included with the ProX XSQ-8X16PKG48?
The package includes four 4 ft × 8 ft StageQ platforms and adjustable telescoping legs. Each deck is supported by six adjustable legs.

What are the dimensions of the ProX XSQ-8X16PKG48?
When assembled, the stage measures approximately 8 ft wide × 16 ft long. The leg height can be adjusted from approximately 28 to 48 inches.

Can the stage height be adjusted?
Yes. The included telescoping legs allow the stage height to be adjusted between approximately 28 and 48 inches, making it suitable for different event and performance requirements.

How much weight can the ProX XSQ-8X16PKG48 support?
Each 4 ft × 4 ft section is designed to support up to 1,500 lbs when the load is evenly distributed. Always follow the manufacturer's load and installation requirements.

Is the ProX StageQ suitable for outdoor events?
Yes. The StageQ system is designed for both indoor and outdoor applications. Proper setup, leveling, and weather considerations should be followed for outdoor use.
