ProX XSQ-1624MK2 Set of (4) Telescoping Stage Legs with Ball Joint, Adjustable 16–24 Inches for StageQ™ Platforms

Product Description

ProX XSQ-1624MK2 Adjustable Telescoping Stage Legs

The ProX XSQ-1624MK2 Set of (4) Telescoping Stage Legs with Ball Joint provides adjustable support for compatible ProX StageQ™ platforms. Designed for portable staging applications, these aluminum legs adjust from 16 to 24 inches in 2-inch increments, making them suitable for a range of stage heights. The ball joint feet and adjustable screw feet help with leveling on different surfaces, while the black rubber pads help protect indoor flooring from scratches and marks.

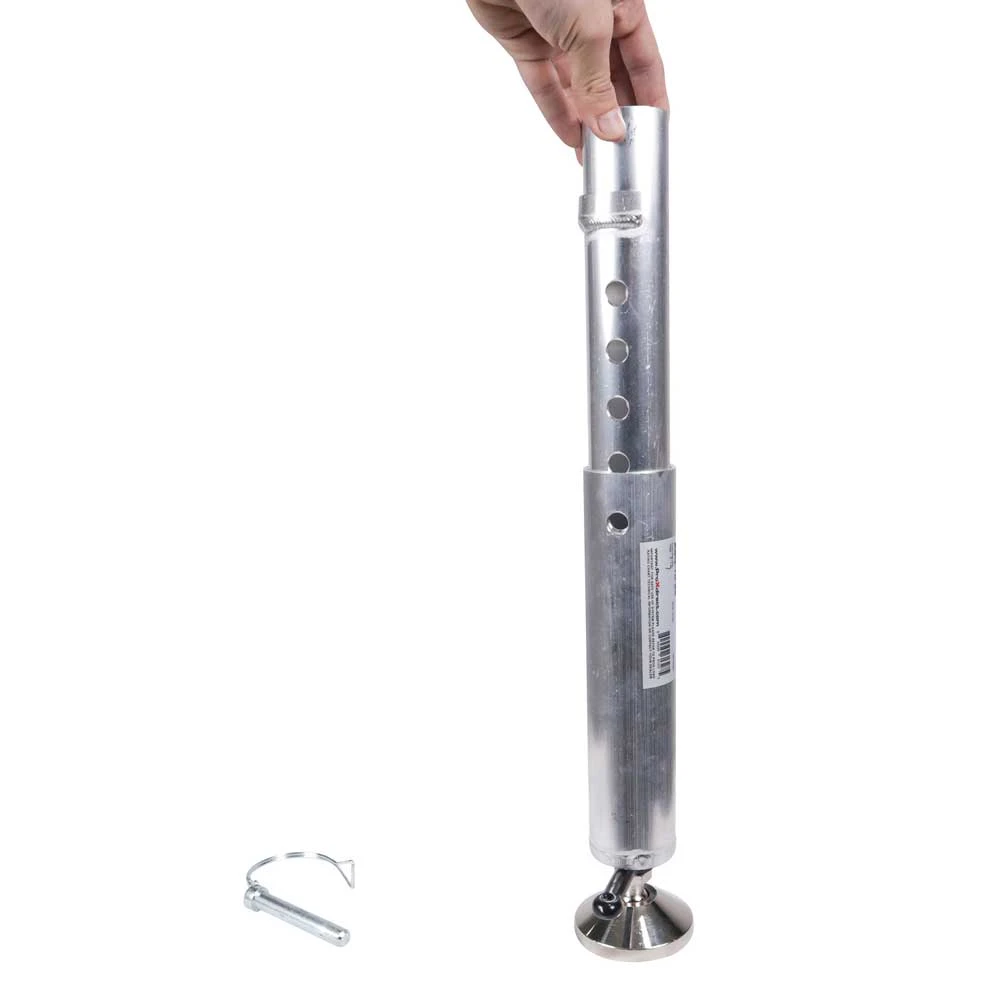

Each leg features rugged 2-inch aluminum tubing with a telescoping design, a steel locking pin, and a safety clip attached by a stainless steel cable. The outer tube slides over the inner leg to adjust the height, and the locking pin secures the selected position. The adjustable screw foot provides additional fine leveling beyond the main height increments. Designed to fit compatible StageQ™ platform pockets, this four-leg set provides the legs needed for one deck section.

Key Features

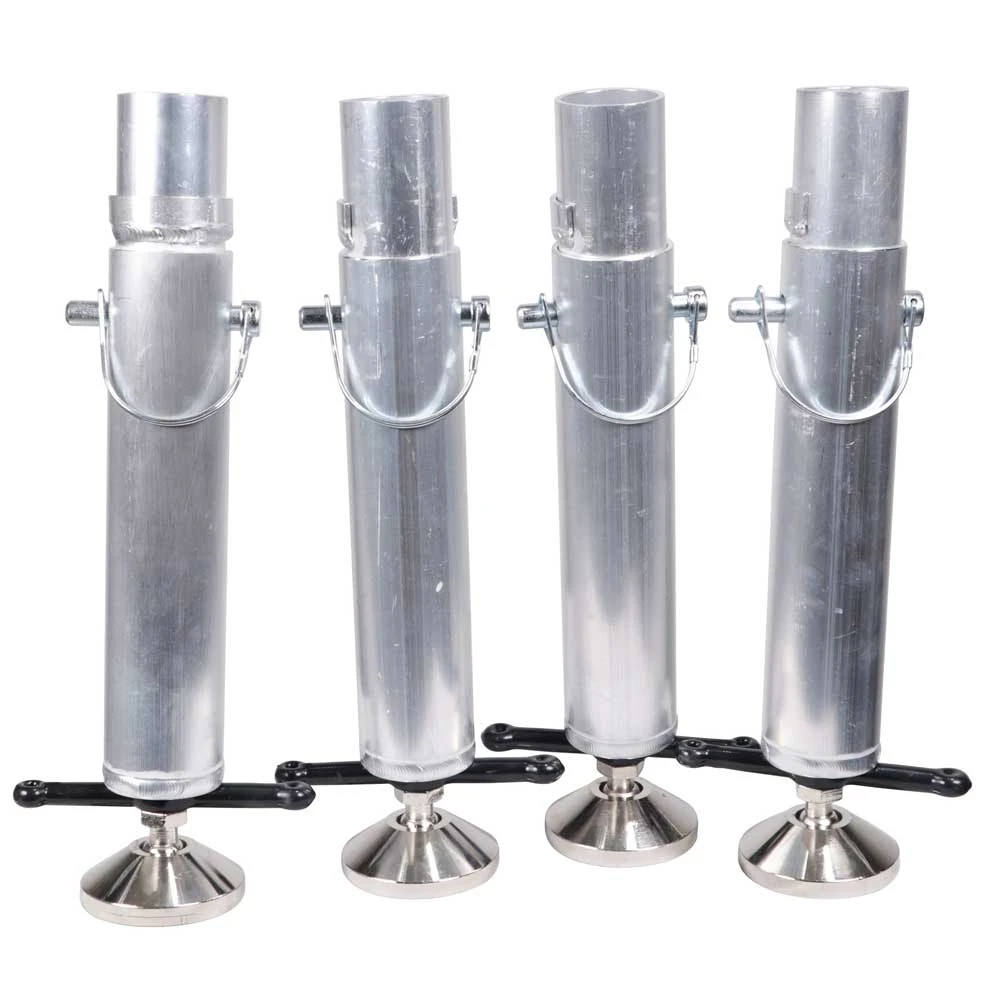

• Set of four telescoping stage legs for compatible ProX StageQ™ platforms
• Adjustable height from 16 to 24 inches
• Height adjustment in 2-inch increments

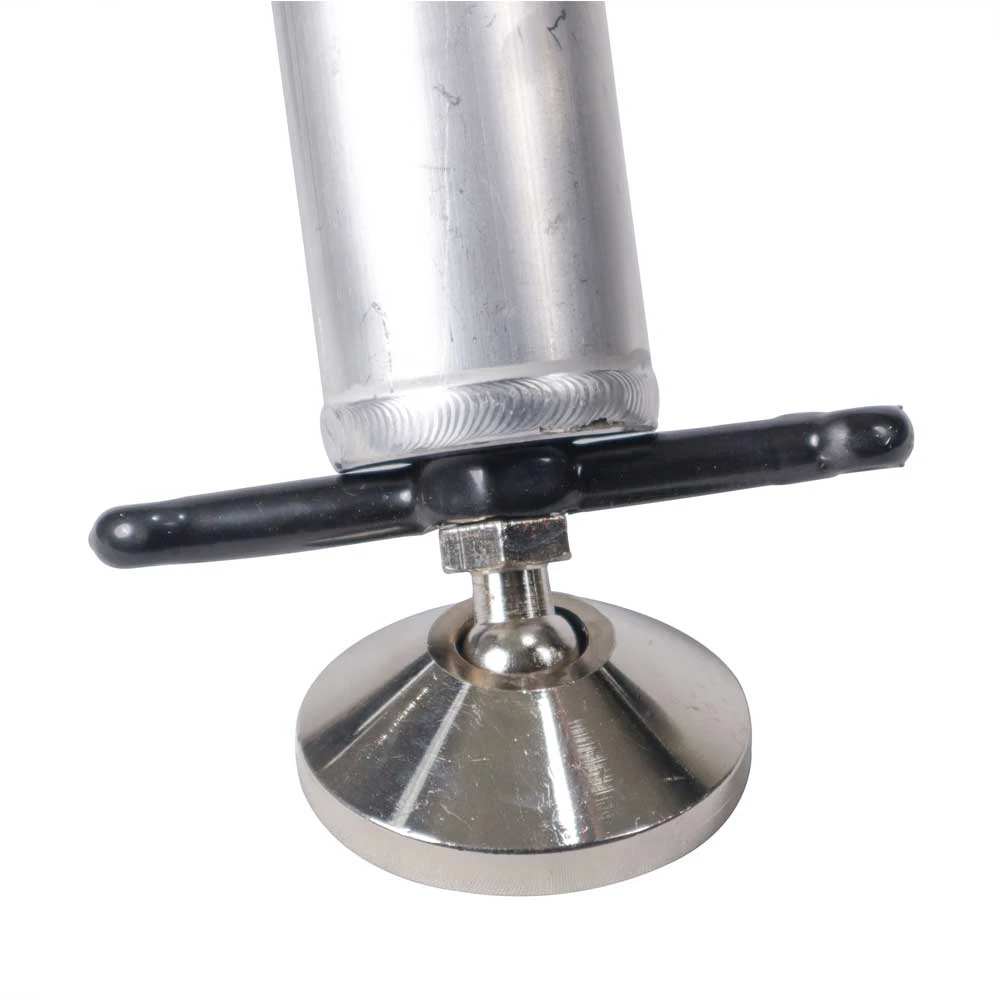

• Ball joint base for adapting to the angle of the supporting surface
• Rugged 2-inch aluminum tubing
• Steel locking pin to secure the selected height
• Safety clip tethered with stainless steel cable to help prevent loss

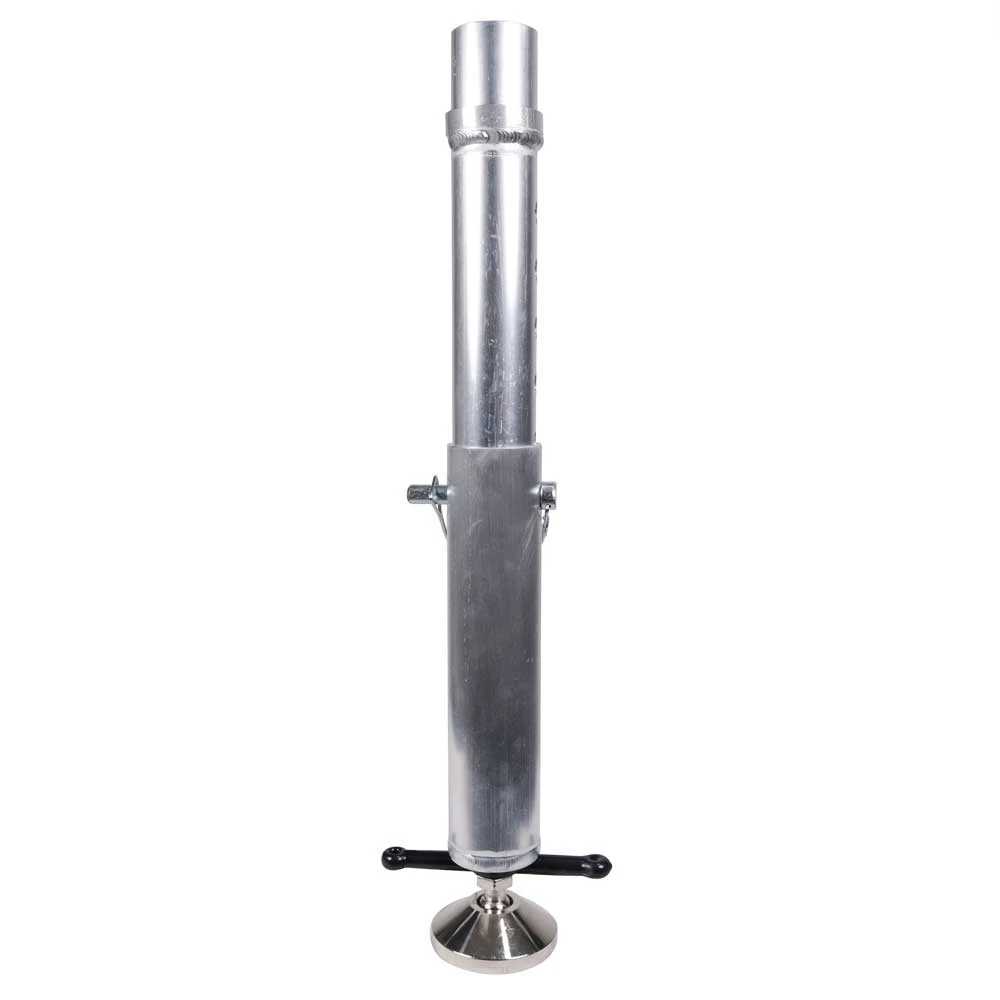

• 2-inch adjustable screw foot for fine leveling
• Black rubber foot pad helps protect gym floors and other indoor surfaces
• Suitable for compatible indoor and outdoor staging applications
• Four legs per set, designed to support one compatible StageQ™ deck section

Technical Specifications

• Brand: ProX
• Model: XSQ-1624MK2
• Product Type: Adjustable telescoping stage legs
• Quantity: 4 legs per set
• Height Range: 16–24 inches
• Adjustment Increments: 2 inches
• Material: Aluminum tubing
• Tube Size: 2-inch nominal tubing
• Upper Shaft Exterior Diameter: 50 mm / 2 inches
• Lower Shaft Exterior Diameter: 57 mm / 2.25 inches
• Upper Shaft Interior Diameter: 44 mm / 1.7 inches
• Lower Shaft Interior Diameter: 51 mm / 2 inches
• Foot Type: Ball joint with adjustable screw foot
• Foot Pad: Black rubber
• Locking Mechanism: Steel locking pin with tethered safety clip
• Compatibility: Compatible ProX StageQ™ staging platforms; verify the platform model before ordering
• Shipping Carton: 18 × 7 × 7 inches
• Shipping Weight: 11 lbs

What’s Included

• 4 × ProX XSQ-1624MK2 adjustable telescoping stage legs with ball joint feet

Why Choose ProX XSQ-1624MK2 Stage Legs?

The ProX XSQ-1624MK2 offers height flexibility for portable stage configurations without requiring separate fixed-height leg sets for every setup. Its telescoping construction, locking pins, ball joint feet, and fine-adjustment screw feet make it a practical choice for compatible StageQ™ platforms used at DJ events, presentations, performances, and other live productions. Confirm the platform compatibility and follow the manufacturer's installation and load requirements before use.

Buy ProX XSQ-1624MK2 Stage Legs at USATRUSS

Shop the ProX XSQ-1624MK2 Set of (4) Telescoping Stage Legs at USATRUSS for adjustable support for compatible StageQ™ platforms. For assistance with platform compatibility or stage accessories, Contact USATRUSS or call 1-800-856-8397.

Frequently Asked Questions

1. What is the height range of the ProX XSQ-1624MK2 stage legs?

The ProX XSQ-1624MK2 telescoping stage legs adjust from 16 to 24 inches in 2-inch increments. The adjustable screw feet provide additional fine leveling.

2. How many stage legs are included in this set?

This package includes four adjustable telescoping stage legs, designed to provide support for one compatible ProX StageQ™ deck section.

3. Are the ProX XSQ-1624MK2 legs compatible with all stage platforms?

These legs are designed for compatible ProX StageQ™ platforms. They are not universal, so verify the platform pocket dimensions and manufacturer compatibility before purchasing.

4. What is the purpose of the ball joint feet?

The ball joint feet help the legs adapt to the angle of the supporting surface. The adjustable screw feet allow additional leveling, while the rubber pads help protect indoor flooring.

5. Are these adjustable stage legs suitable for indoor and outdoor use?

These legs are intended for compatible staging applications indoors and outdoors. Always install them on suitable supporting surfaces, secure all locking pins, and follow the manufacturer's setup and load requirements.

6. Where can I buy ProX XSQ-1624MK2 adjustable stage legs?

You can buy the ProX XSQ-1624MK2 set of four adjustable telescoping stage legs at USATRUSS. Shop our selection of stage accessories for compatible ProX StageQ™ platforms. For help with product compatibility or ordering, Contact our team or call 1-800-856-8397.
