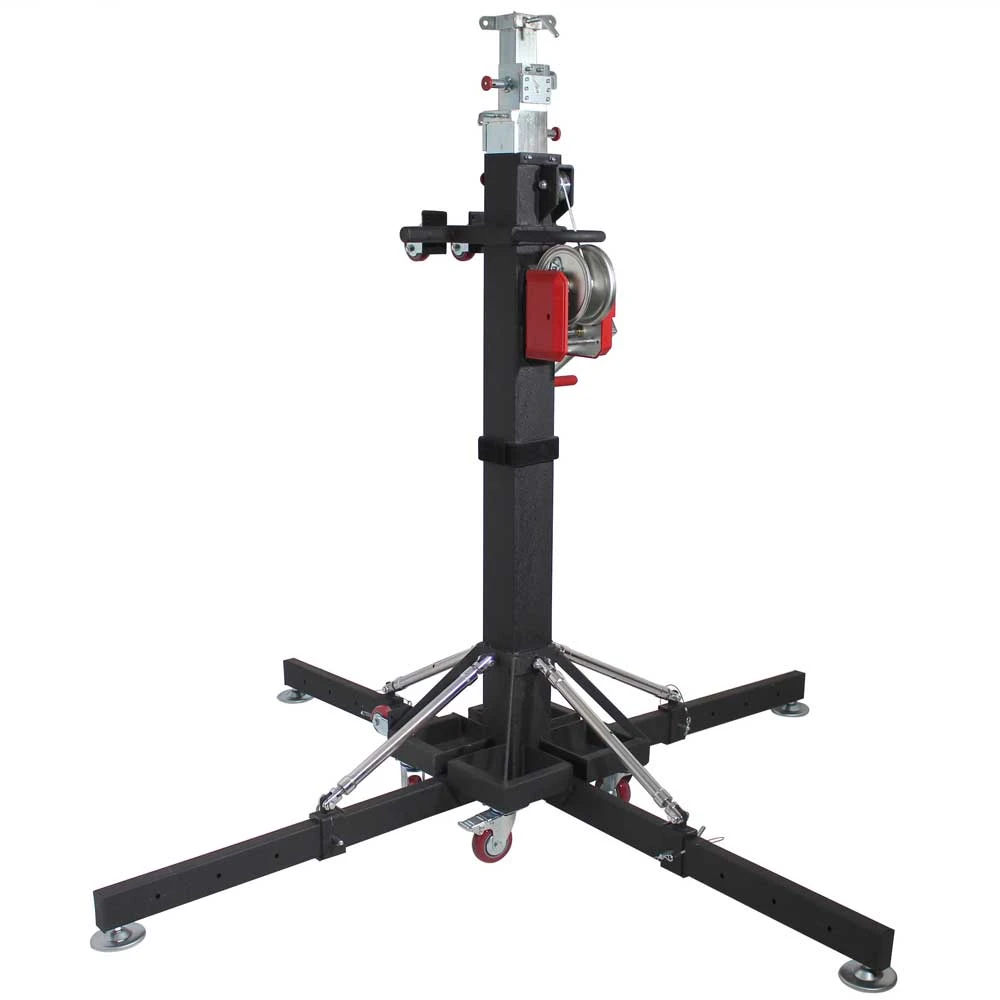

ProX XT-CRANK18FT-500 18ft Heavy-Duty Crank Truss Stand

Product Description

Featuring the ProX XT-CRANK18FT-500 18 Ft. Heavy-Duty Crank Truss Stand, a serious lifting solution built for live events, mobile DJ setups, and production environments where you need reliable overhead rigging without compromising on safety or capacity. This stand is engineered to take on the heavy work, so you can focus on the show.

500 lb. Center Load Capacity

The ProX CRANK18FT-500 is rated to support up to 500 lbs. at center load, making it one of the most capable stands in its class for mid-scale lighting and truss applications. When paired with a second ProX CRANK18FT-500 stand and any compatible truss length using the included T-Adapter, the combined system supports a maximum total load of 1,000 lbs., giving you serious overhead capacity for larger setups.

18 Ft. Maximum Lift Height

This stand raises your truss and lighting to a maximum height of 18 feet, giving you the vertical reach needed for medium to large venue productions, stage shows, and live events. The minimum height starts at 75 inches, so you have a solid working range between ground level setup and full extension.

Key Features

• 500 lb. Capacity: Supports up to 500 lbs. center load per stand (up to 1,000 lbs. combined with a second unit)
• 18 Ft. Max Height: Reaches an impressive 18 feet for large venue productions and stage shows
• Heavy-Duty Construction: Built from robust steel and aluminum components for long-term durability
• Smooth Cranking Winch: Integrated winch lets you safely lift and lower heavy loads with minimal effort
• Wide Outrigger Base: Features independently adjustable leg braces opening to a stability base diameter of 82.2 inches (6.8 feet)
• Integrated Casters: Built-in wheels allow for easy positioning on stage before locking in place
• T-Adapter Included: Comes equipped with a T-Adapter truss mount compatible with 2-inch outer diameter tube stands
• Compact Transport: Base folds down to 24" x 19" for easier loading and storage

Technical Specifications

• Product Name: ProX XT-CRANK18FT-500
• Product Type: Heavy-Duty Crank Truss Stand
• Center Load Capacity: 500 lbs. per stand (1,000 lbs. paired)
• Maximum Height: 18 ft.
• Minimum Height: 75 inches (74 inches operating range)
• Base Footprint / Outrigger Span: 82.2 inches (6.8 ft.)
• Transport Dimensions: 76"H x 20"W x 24"L
• Base Storage Size: 24" x 19"
• Unit Weight: 320.00 lbs (Net unit weight: 240 lbs)
• UPC: 741459147501

What's Included

• 1 x ProX XT-CRANK18FT-500 Crank Truss Stand
• 1 x T-Adapter Truss Mount
• Integrated Outrigger Legs and Casters

Applications

The ProX XT-CRANK18FT-500 is ideal for professional mobile DJ setups, live concert bands, corporate stage productions, trade show lighting rigs, and touring applications. It pairs seamlessly with ProX F34 square truss segments and junction blocks for comprehensive temporary lighting setups.

Safety & Usage Guidelines

• Pre-Use Inspection: A competent person must inspect all rigging hardware, cables, pulleys, and telescopic masts before every use. Replace damaged cables immediately.
• Stable Positioning: Position the stand on a hard, firm, and level surface clear of overhead obstructions. Stabilize outrigger legs completely before lifting any load.
• Wind Precautions: When used outdoors, always secure the tower with appropriate braces or cables to account for wind hazards.
• Cranking Operation: Turn the winch handle clockwise to raise the tower, and counter-clockwise to lower it. Never move the stand when loaded or extended.
• Safety Perimeter: Maintain a safety perimeter with a radius of at least 5 feet greater than the maximum height of the stand during all lifting and lowering operations. Ensure safety pins, locking knobs, and safety chains are securely fastened.

Buy the ProX XT-CRANK18FT-500 from USATRUSS

Shop the ProX XT-CRANK18FT-500 18 Ft. Heavy-Duty Crank Truss Stand at USATRUSS for professional-grade rigging and event safety. Need help coordinating multi-stand packages or shipping details? Contact USATRUSS or call 1-800-856-8397.

Frequently Asked Questions

What is the load capacity of the ProX XT-CRANK18FT-500?

Each stand supports up to 500 lbs. at center load. When paired with a second stand and compatible truss, the combined system supports up to 1,000 lbs.

What is the maximum lift height?

The stand features a maximum lift height of 18 feet, with a minimum starting height of 75 inches.

Does it come with a T-adapter?

Yes, the ProX XT-CRANK18FT-500 includes a T-Adapter truss mount right out of the box.

How does the unit ship?

Due to its weight and size (320 lbs), this unit ships via LTL freight on a standard 48" x 40" x 82" skid.

Where can I buy this crank truss stand?

You can order the ProX XT-CRANK18FT-500 directly from USATRUSS. For freight quotes or technical support, visit Contact USATRUSS or call 1-800-856-8397.
