Product Description

ProX XT-BTBP36ABLK Black Truss Base Plate

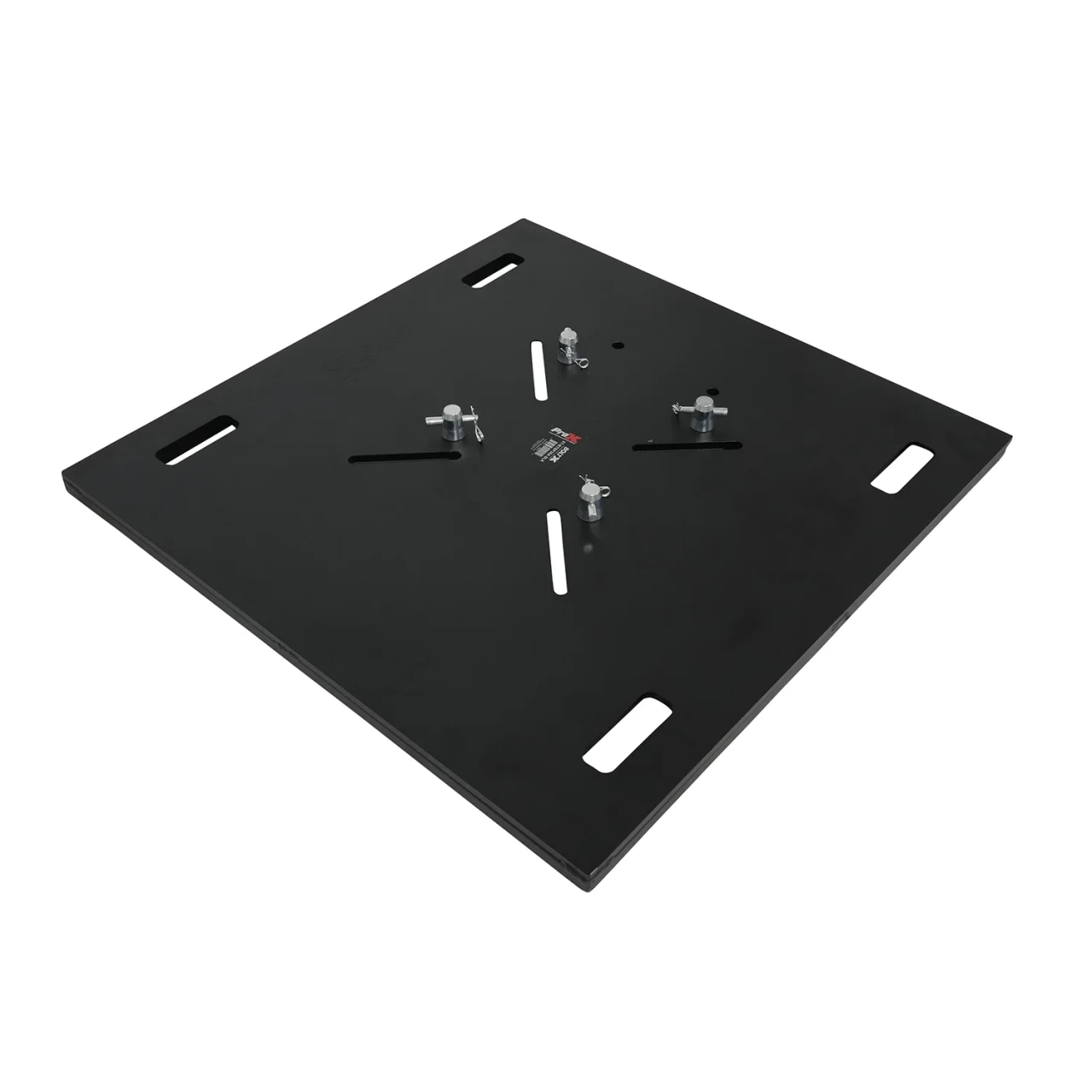

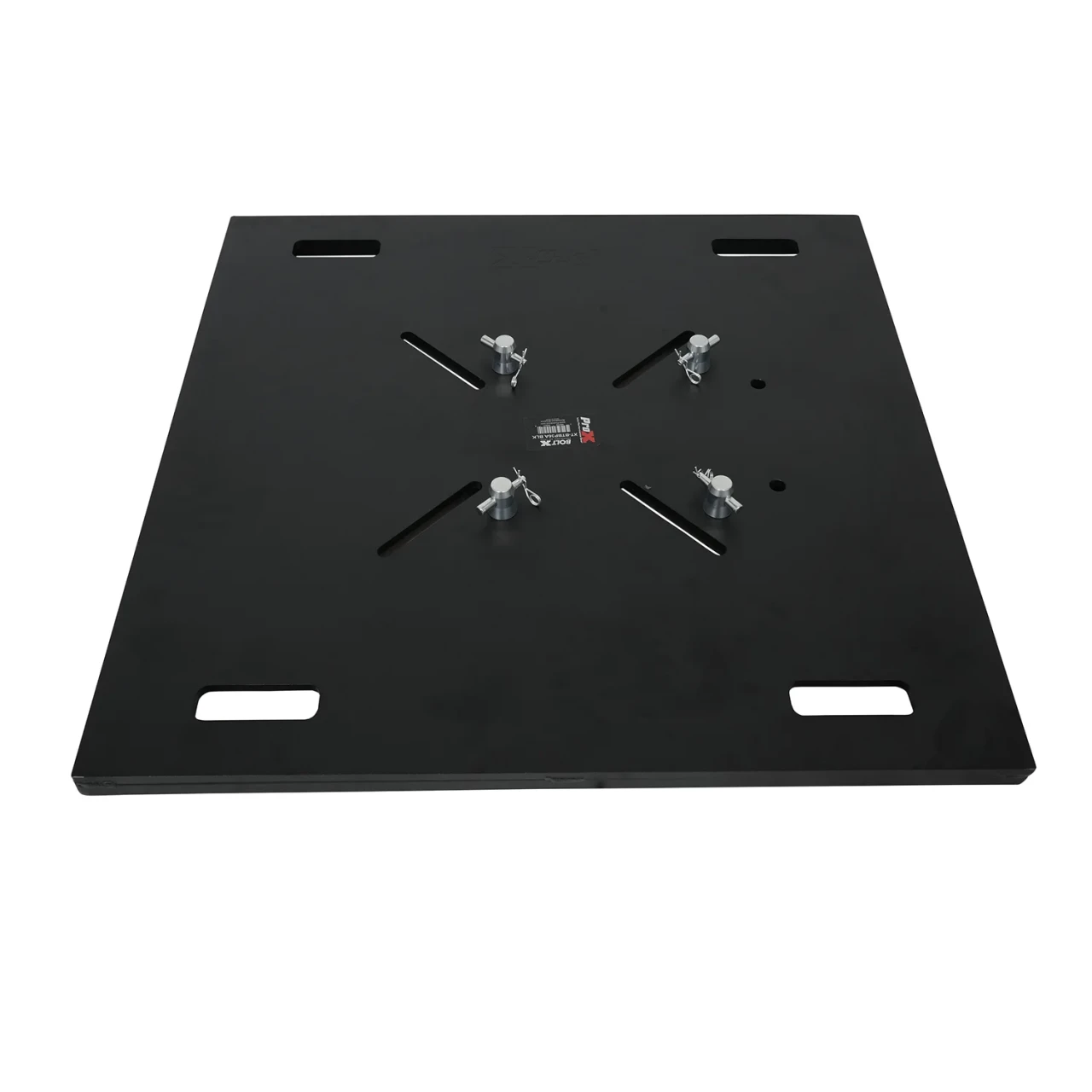

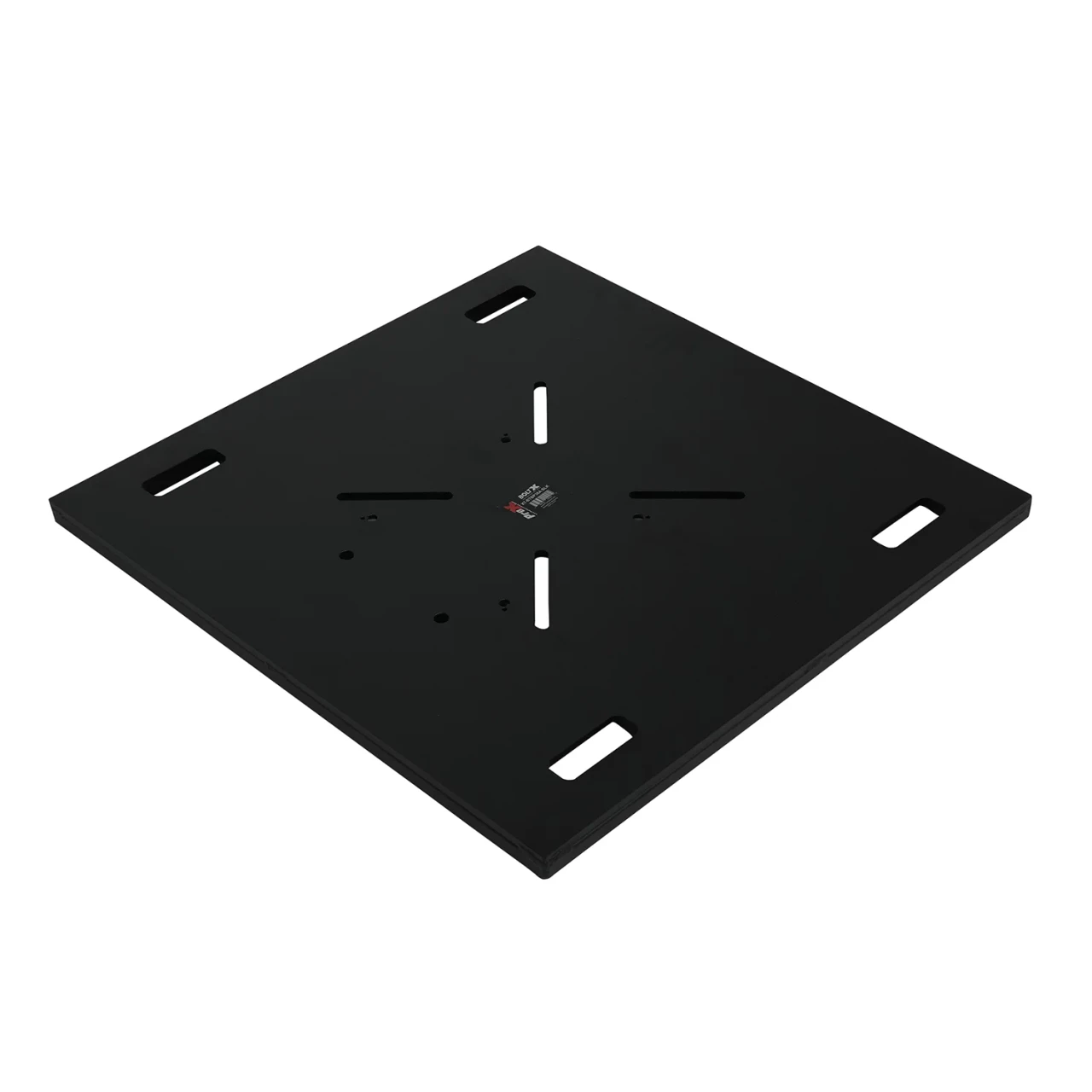

ProX XT-BTBP36ABLK 36" Black Aluminum BoltX™ Base Plate – Raised Frame for 12" & 16" Bolted Box Truss and F34 Truss Systems

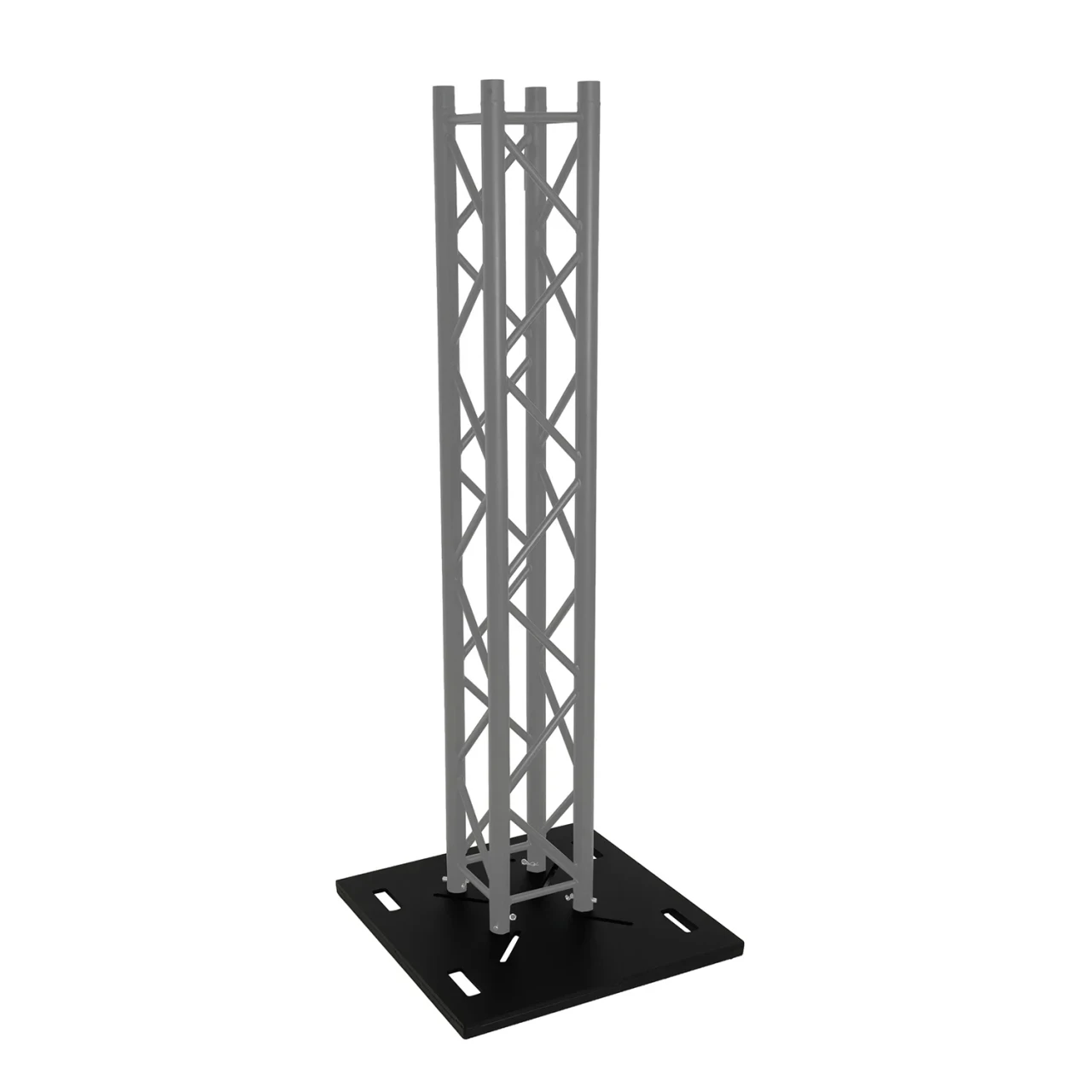

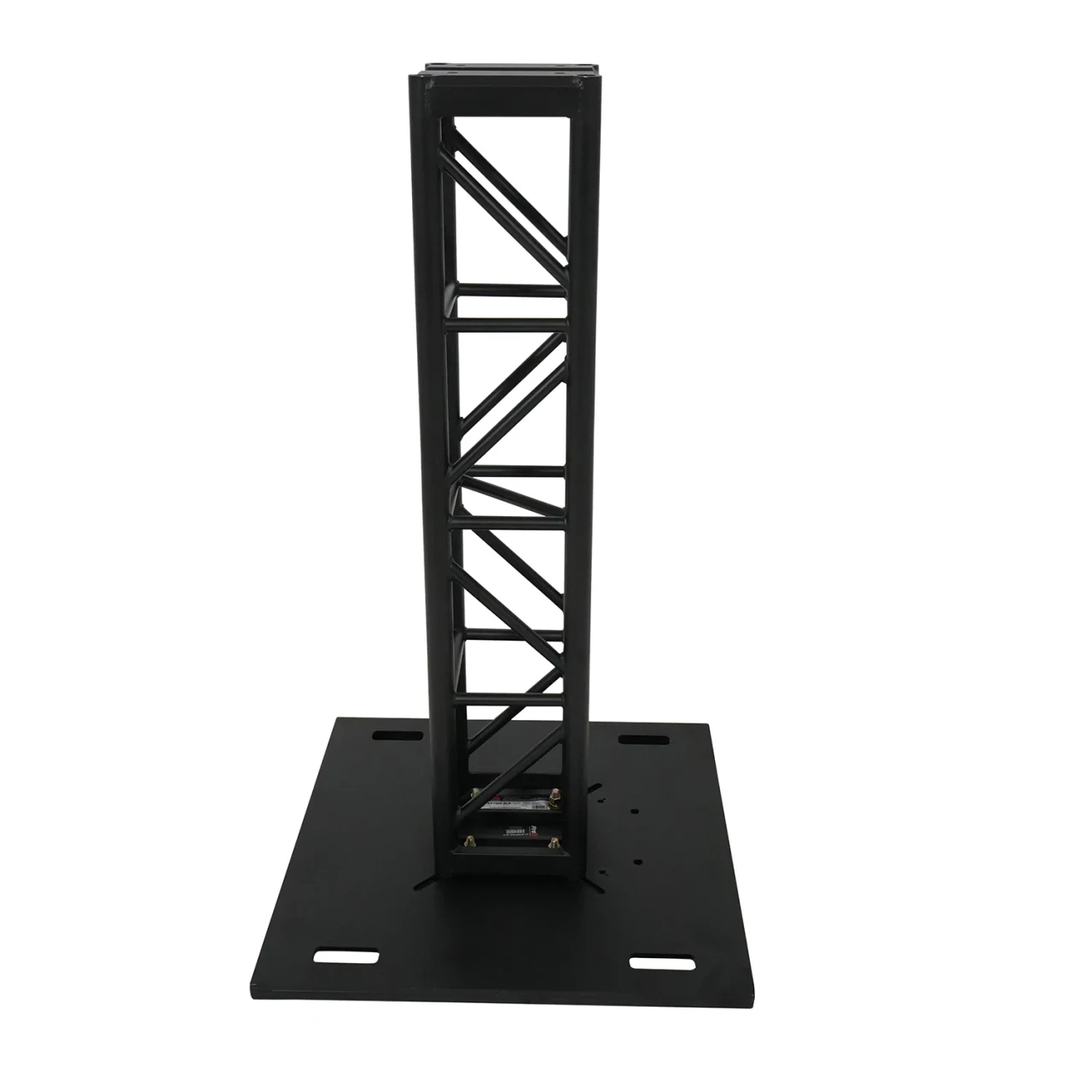

Introducing the ProX XT-BTBP36ABLK 36" Black Aluminum BoltX™ Base Plate, a heavy duty foundation built for crews who need a truss tower to stay put no matter how demanding the build. Whether you're grounding lighting rigs at a concert, anchoring a trade show structure, or setting up an obstacle course tower, this 36" base plate gives you the footprint and rigidity needed to keep the whole system stable and safe for everyone working under it.

Compatibility the ProX BASE PLATE is engineered to work with ProX BoltX™ 12" and 16" bolted box truss systems, and it's also drilled to fit F34 truss patterns. That flexibility means one base plate can serve across multiple truss families instead of forcing you to stock a different plate for every system on the truck.

Footprint and Stability at 36" across, this is the larger format in the BoltX™ base plate lineup. The added surface area spreads load more evenly at the base of the tower, which matters most on taller builds or setups carrying heavier lighting and rigging packages.

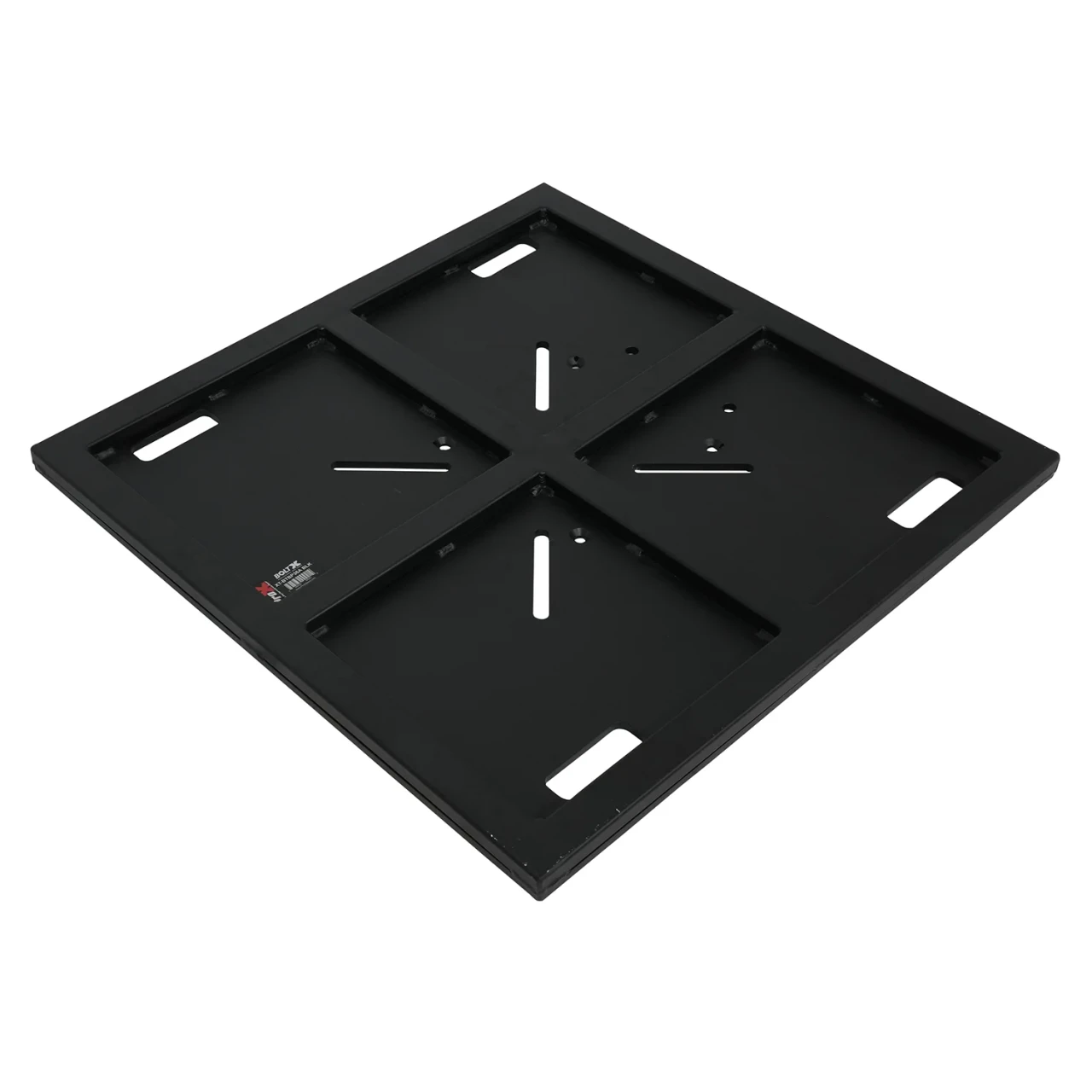

Construction the plate itself is a 1/2" aluminum plate welded to a raised 1" x 1.5" solid aluminum extrusion frame. That raised frame adds real structural reinforcement on top of the base plate, so it holds up to the wear of touring, rental rotation, and long term installation use without flexing or fatiguing.

Mounting the ProX BASE PLATE is slotted and drilled for either center or offset mounting, giving you more freedom in how you position the tower relative to the rest of your stage or set layout.

Hand Holes four integrated hand holes are built into the plate for lifting and positioning, which makes a heavy piece of hardware like this a lot easier to move and set into place on site.

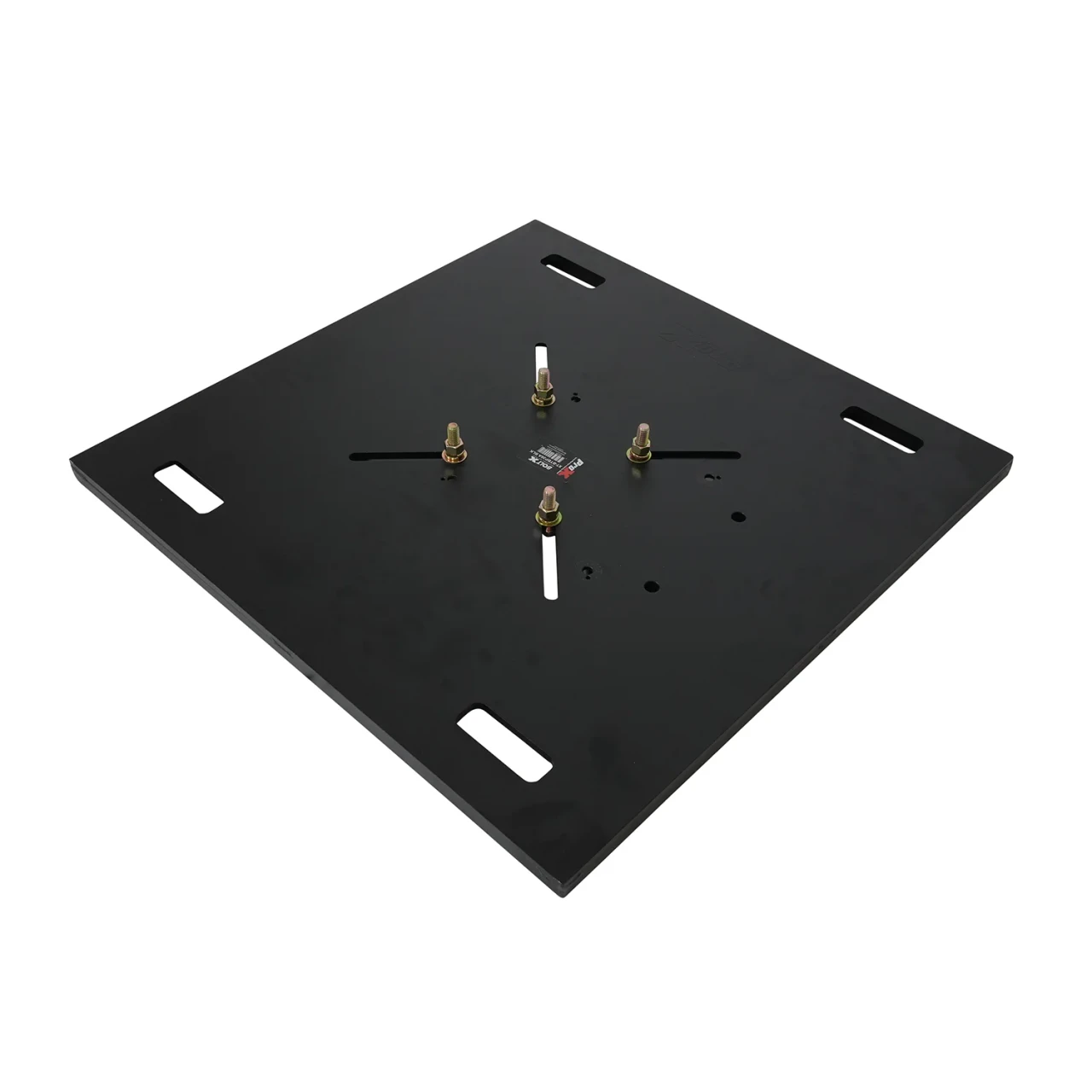

Hardware Included each unit ships with one set of four 5/8"-11 x 2.5" (NC) attachment bolts, nuts, flat washers, and lock washers, so it's ready to bolt onto compatible truss sections right out of the box.

Quality and Certification every ProX BASE PLATE is load tested and inspected during manufacturing and quality control, and it's welded to TÜV standards using 6082-T6 alloy by GSI SLV certified welders. That's the kind of documented, traceable build quality that matters when you're trusting a base plate to hold up a rigged structure.

Important always calculate the total load weight of your structure and mounted equipment before use, and consult the appropriate loading chart for safe operation.

Features

• 36" Base Plate the large 36" footprint gives added surface area and stability, ideal for taller towers or heavier rigging loads at the base of the truss.
• BoltX™ 12" & 16" Compatibility engineered to work directly with ProX BoltX™ 12" and 16" bolted box truss systems for a secure, dependable connection.
• F34 Drilling also drilled to fit F34 truss patterns, giving crews flexibility to use one base plate across multiple truss families.
• 1/2" Aluminum Plate the core plate is built from heavy duty 1/2" aluminum for strength that holds up under repeated load.
• Raised Extrusion Frame welded with a raised 1" x 1.5" solid aluminum extrusion frame that reinforces the plate and resists flexing over time.
• Center or Offset Mounting slotted and drilled to allow either center or offset mounting, giving more freedom when positioning the tower on site.
• Integrated Hand Holes four hand holes are built into the plate to make lifting and positioning easier for the crew handling it.
• Included Hardware ships with one set of four 5/8"-11 x 2.5" (NC) attachment bolts, nuts, flat washers, and lock washers, ready to mount to compatible truss.
• TÜV Welded Construction welded to TÜV standards using 6082-T6 alloy by GSI SLV certified welders for documented, traceable build quality.
• Load Tested every unit is load tested and inspected during manufacturing and quality control before it ships.
• Black Powder Coated Finish finished in a durable black powder coat for a clean, professional look on stage.
• ProX Limited Warranty

Specification

• Exterior Dimensions & Weight: 2.00"H x 36.00"W x 36.00"L - Weight: 72.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 3.00"H x 37.00"W x 37.00"L - Shipping Weight: 80.00 lbs
• Suggested Shipping Method: Parcel

Frequently Asked Questions - FAQs

1. What is the ProX XT-BTBP36ABLK?
The ProX XT-BTBP36ABLK is a black-finish truss base plate intended for compatible truss systems used in staging, lighting, and event production.

2. What is the ProX XT-BTBP36ABLK used for?
It is designed to provide a base for compatible truss structures used in DJ setups, concerts, trade shows, and stage lighting installations.

3. Is the ProX XT-BTBP36ABLK suitable for professional stage lighting?
Yes, it is intended for professional event and staging applications when used with compatible trussing and an appropriately engineered setup.

4. Is the ProX XT-BTBP36ABLK compatible with all truss systems?
No. Compatibility depends on the truss series, connection type, and mounting configuration. Verify compatibility with ProX before purchasing.

5. Does the ProX XT-BTBP36ABLK include truss connectors?
Included hardware should be confirmed with the seller or manufacturer, as accessories may vary by model and package.

6. Where can I buy the ProX XT-BTBP36ABLK?
You can check availability and purchasing options through USATruss.
