Product Description

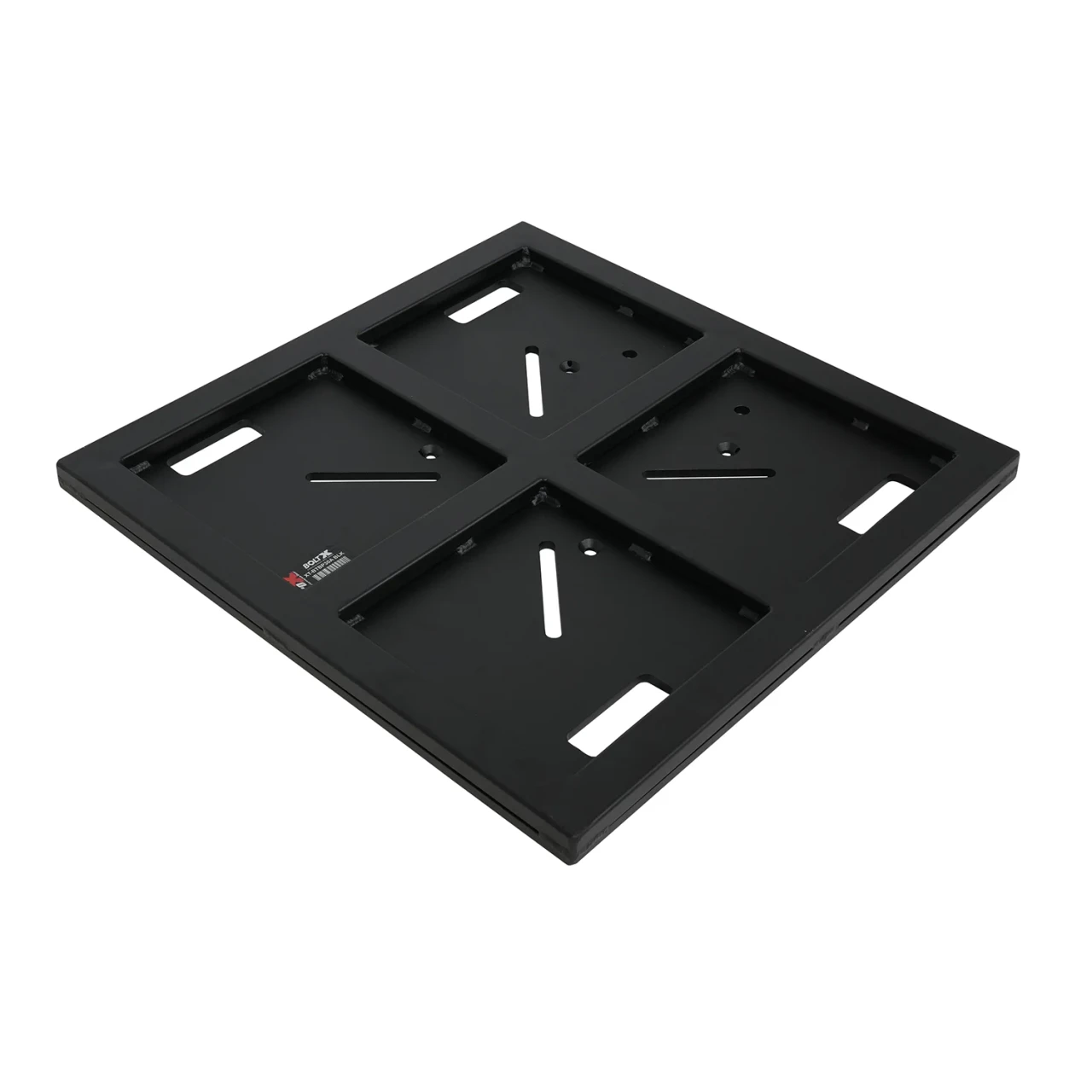

ProX XT-BTBP30ABLK Black Truss Base Plate

ProX XT-BTBP30ABLK30" Aluminum BoltX™ Base Plate – Raised Frame for 12" & 16" Bolted Box Truss and F34 Truss Systems

ProX XT-BTBP30ABLK Black BoltX™ Heavy-Duty Base Plate is engineered for professional box truss systems where strength, stability, and dependable fitment are essential. Built for demanding production environments, this 30-inch base plate is ideal for stage lighting, concerts, event structures, trade show displays, house of worship installations, obstacle course structures, and other rigging-related applications where a secure truss foundation is required.

Designed for professional use, the XT-BTBP30ABLK is built from a 1/2" aluminum plate welded to a 1" raised frame, creating a strong and durable platform for repeated use in touring, rental, and permanent installation settings. The raised frame construction adds rigidity and support while maintaining a clean, professional appearance.

The XT-BTBP30ABLK is designed to mate perfectly with ProX BoltX™ 12" and 16" bolted box truss systems, and it is also drilled to fit F34 truss patterns for added versatility. Its industry-standard 6.75" x 6.75" bolt pattern allows compatibility with many other 12-inch professional box truss manufacturers using the same bolt-center spacing, making it a practical choice for mixed truss inventories and a wide range of staging applications.

For easier handling on the job site, the base plate features four integrated hand holes for lifting and positioning. It is also slotted and drilled for quick center or offset mounting, giving users more flexibility during setup. Each unit includes one full set of four 5/8"-11 attachment bolts, nuts, flat washers, and lock washers for secure connection to compatible truss sections.

Manufactured with quality and reliability in mind, the XT-BTBP30A is load tested and inspected during production and quality control. It is welded to TÜV standards using 6082-T6 alloy by GSI SLV-certified welders, reflecting ProX’s commitment to professional-grade performance and workmanship.

Important: Always determine the total load weight of your structure and mounted equipment before use, and consult the appropriate loading chart for safe operation.

Features

• Designed for 12" and 16" BoltX™ bolted box truss systems
• Also drilled to fit F34 truss patterns (conical connectors included)
• Heavy-duty 30" aluminum base plate for professional truss support
• Built from a 1/2" aluminum plate welded to a 1" raised frame
• Industry-standard 6.75" x 6.75" bolt pattern with 5/8" holes
• Compatible with many other 12" professional box truss manufacturers
• Four convenient hand holes for easier lifting and positioning
• Slotted and drilled for quick center or offset mounting options
• Ideal for stage lighting, concerts, event production, installations, and structural builds
• Load tested and inspected during manufacturing and quality control
• Includes one set of four 5/8"-11 attachment bolts, nuts, flat washers, and lock washers
• Welded to TÜV standards
• Made from 6082-T6 alloy
• Welded by GSI SLV-certified welders
• Finish: Black Powder Coat

Specification

• Exterior Dimensions & Weight: 2.00"H x 30.00"W x 30.00"L - Weight: 52.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 3.00"H x 31.00"W x 31.00"L - Shipping Weight: 60.00 lbs
• Suggested Shipping Method: Parcel

Frequently Asked Questions - FAQs

1. What is the ProX XT-BTBP30ABLK?
The ProX XT-BTBP30ABLK is a black-finish truss base plate intended for compatible truss systems used in professional staging and event production.

2. What is the ProX XT-BTBP30ABLK used for?
It is intended for truss setups used in DJ events, stage lighting, concerts, trade shows, and live performances.

3. Is the ProX XT-BTBP30ABLK suitable for professional lighting setups?
Yes, when used with compatible trussing and an appropriately designed setup, it can be used in professional stage and lighting applications.

4. Is the ProX XT-BTBP30ABLK compatible with all truss systems?
No. Compatibility depends on the truss series, connection type, and mounting requirements. Check the manufacturer's specifications before purchasing.

5. Does the ProX XT-BTBP30ABLK include mounting hardware?
Included connectors and mounting hardware should be confirmed with the manufacturer or seller before ordering.
