Product Description

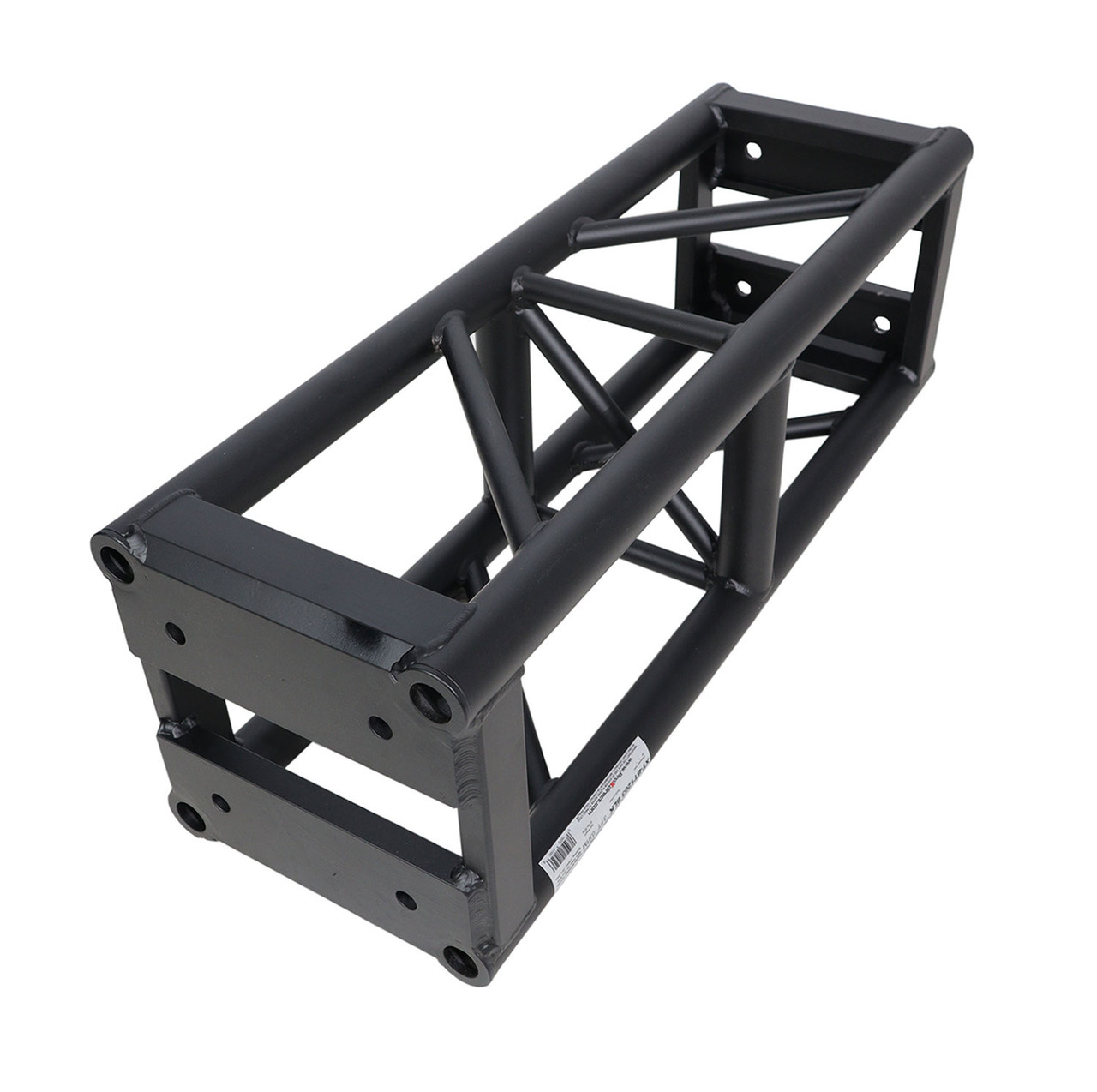

The ProX XT-BT1203 BLK BoltX™ 3 Ft. Black Professional Box Truss Segment is a heavy-duty aluminum trussing solution designed for stage lighting, concerts, event production, and custom structural applications, including Ninja obstacle course construction. Featuring a 12-inch x 12-inch square profile and a durable black-coated aluminum finish, this professional box truss delivers dependable construction for demanding production environments.
Engineered with 2-inch outer tubing and 3mm wall thickness, the ProX BoltX™ truss features reinforced aluminum end plates welded on both sides. Its exclusive circular corner rings help protect the main chord ends from damage caused by dragging, dropping, and everyday handling. These design features help reduce maintenance and extend the service life of your truss investment.
The XT-BT1203 BLK uses an industry-standard 6.75-inch x 6.75-inch bolt center pattern with 5/8-inch holes, making it compatible with most other 12-inch professional bolted box truss manufacturers that use the same connection specifications. Each section includes one complete set of four 5/8"-11 x 2.5" attachment bolts, nuts, flat washers, and lock washers for assembly.
Key Features
- 3-foot-long professional 12-inch x 12-inch square box truss segment.
- Durable black-coated aluminum finish for professional stage and event setups.
- Heavy-duty 2-inch outer tubing with 3mm wall thickness.
- 1-inch diagonal bracing with 3mm wall thickness.
- 6082-T6 aluminum alloy construction.
- Reinforced aluminum end plates welded on both sides.
- Exclusive circular corner rings help protect main chord ends from damage.
- Industry-standard 6.75-inch x 6.75-inch bolt center pattern with 5/8-inch holes.
- Includes four 5/8"-11 x 2.5" attachment bolts, nuts, flat washers, and lock washers.
- Compatible with most 12-inch professional bolted box truss systems using the same connection pattern.
- Load tested and inspected during manufacturing and quality control.
- Welded to TÜV standards by GSI SLV-certified welders.
- Ideal for stage lighting, concerts, event production, and custom truss structures.
Technical Specifications
- Brand: ProX
- Model: XT-BT1203 BLK
- Product Series: BoltX™
- Truss Type: Professional Bolted Box Truss
- Truss Shape: Square
- Height: 12 inches
- Width: 12 inches
- Length: 36 inches (3 feet)
- Main Tube Diameter: 2 inches
- Main Tube Wall Thickness: 3mm (1/8 inch)
- Diagonal Brace Diameter: 1 inch
- Diagonal Brace Wall Thickness: 3mm (1/8 inch)
- Material: 6082-T6 Aluminum Alloy
- Connection Type: Bolted Connection
- Bolt Pattern: 6.75 inches x 6.75 inches
- Bolt Hole Diameter: 5/8 inch
- Included Hardware: Four 5/8"-11 x 2.5" bolts, nuts, flat washers, and lock washers
- Finish: Black Coated Aluminum
- Certification Standard: TÜV Welding Standards
- Product Weight: 27 lbs
- Exterior Dimensions: 12" H x 12" W x 36" L
- Shipping Dimensions: 13" H x 13" W x 37" L
- Shipping Weight: 33 lbs
- Suggested Shipping Method: Parcel
- UPC: 019372414506
Applications
- Stage lighting and concert production
- Live performance and entertainment events
- Professional event staging and rigging
- Exhibition and trade show structures
- Custom aluminum truss frameworks
- Ninja obstacle course construction
- Lighting and equipment support structures
Shop ProX BoltX Truss at USA Truss
Build your next professional truss structure with the ProX XT-BT1203 BLK 3 Ft. Black BoltX Box Truss Segment. USATRUSS offers professional trussing solutions for stage lighting, concerts, and live event production. Contact USATRUSS for product information and assistance with your truss requirements, or call 1-800-856-8397 to speak with our team.
Frequently Asked Questions
1. What is the ProX XT-BT1203 BLK box truss used for?
The ProX XT-BT1203 BLK is a 3-foot professional aluminum box truss segment designed for stage lighting, concerts, live events, exhibition structures, and custom truss applications.
2. What are the dimensions of the ProX XT-BT1203 BLK?
This BoltX™ truss segment measures 12 inches high, 12 inches wide, and 36 inches long (3 feet). It weighs approximately 27 lbs.
3. Does the ProX XT-BT1203 BLK include connection hardware?
Yes. Each truss section includes four 5/8"-11 x 2.5" attachment bolts, nuts, flat washers, and lock washers for bolted connections.
4. Is the ProX XT-BT1203 BLK compatible with other box truss brands?
Yes. It is compatible with most other 12-inch professional bolted box truss manufacturers that use the same 6.75-inch x 6.75-inch bolt center pattern. Always verify connection dimensions and structural compatibility before assembly.
5. Where can I buy the ProX XT-BT1203 BLK 3 Ft. Black BoltX Truss?
You can buy the ProX XT-BT1203 BLK 3 Ft. Black BoltX Professional Box Truss Segment at USATRUSS. For product information, availability, and ordering assistance, contact us online or call 1-800-856-8397.
