ProX XT-BT1210BLK BoltX 10 Ft Black Bolted 12 Inch Professional Box Truss Segment – 3mm Wall

Product Description

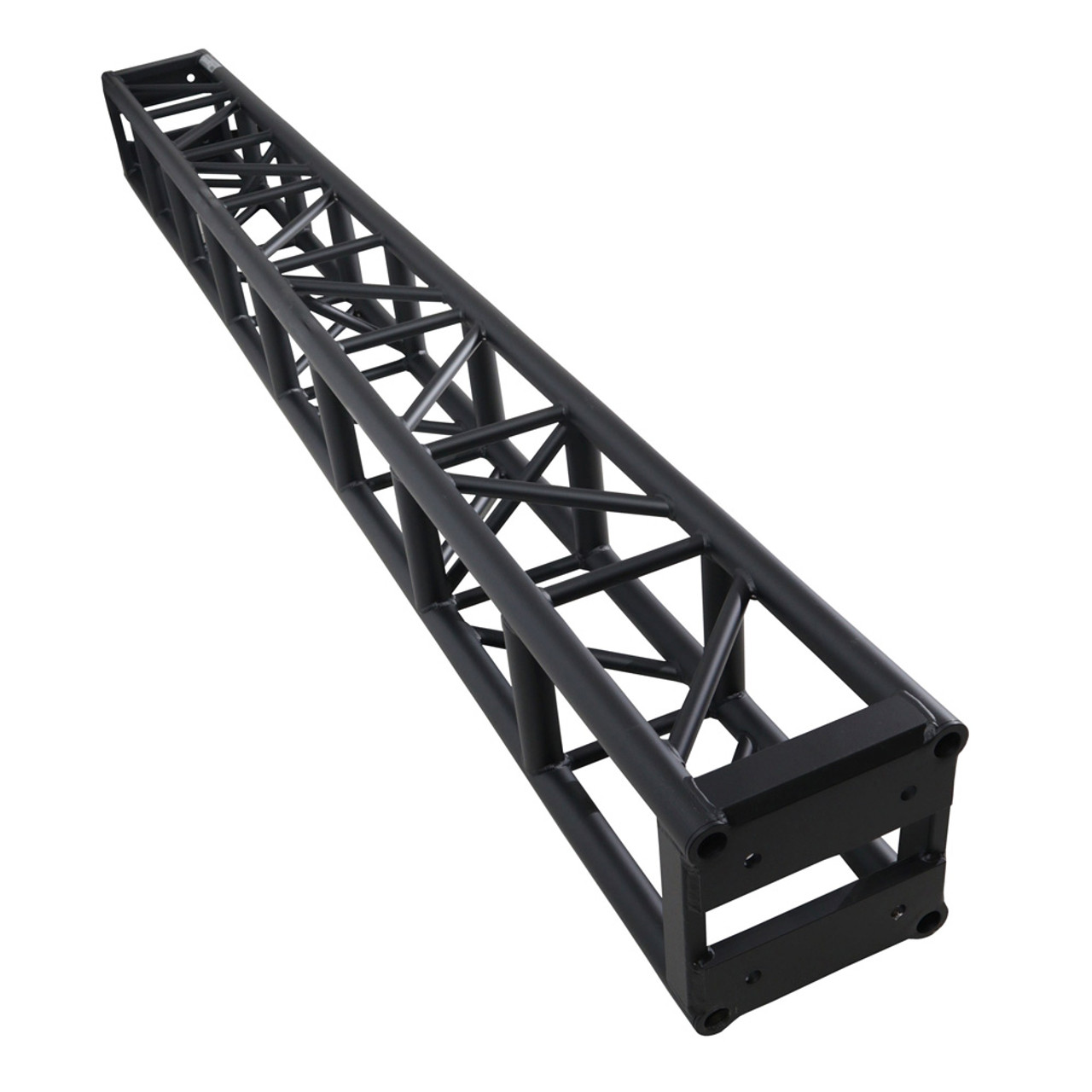

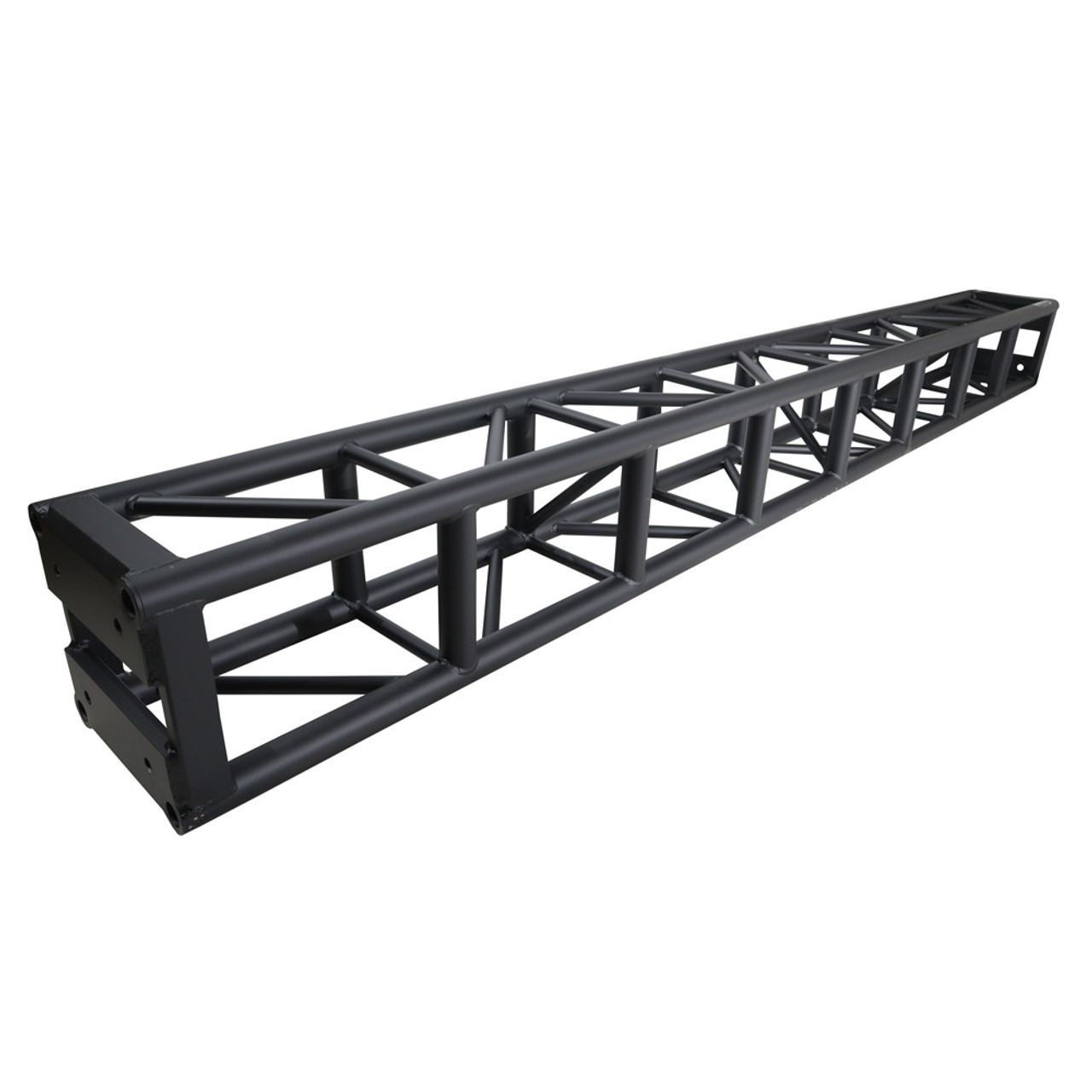

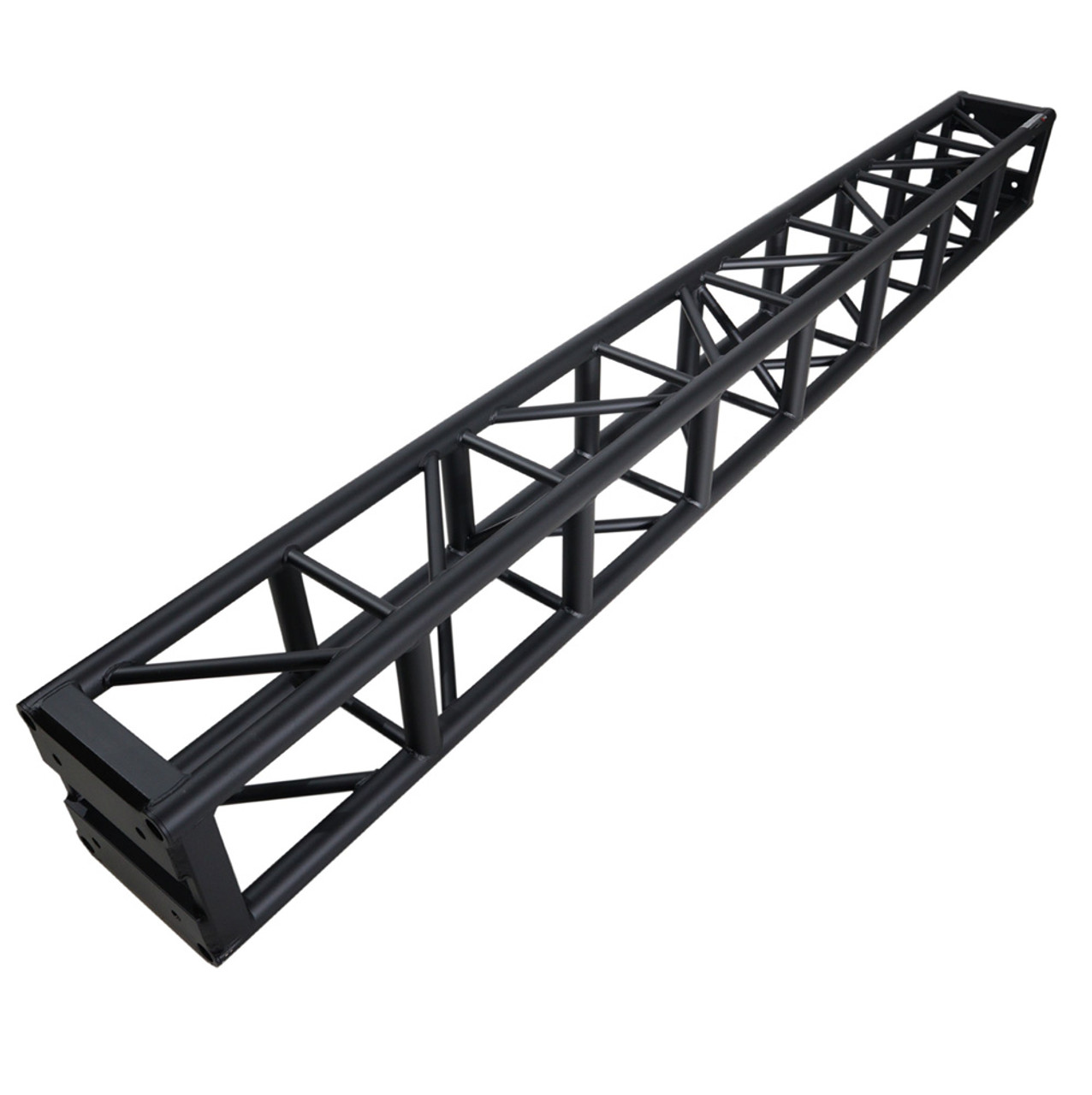

ProX XT-BT1210BLK BoltX 10 Ft Black Bolted 12 Inch Professional Box Truss Segment

The ProX XT-BT1210BLK BoltX 10 Ft Black Bolted 12 Inch Professional Box Truss Segment is a heavy-duty aluminum trussing solution designed for professional stage lighting, concerts, live productions, Ninja obstacle course construction, and demanding event applications. Featuring a durable black-coated finish, 3mm wall tubing, and a professional bolted connection system, this 10-foot box truss segment provides a dependable option for building custom structural configurations.

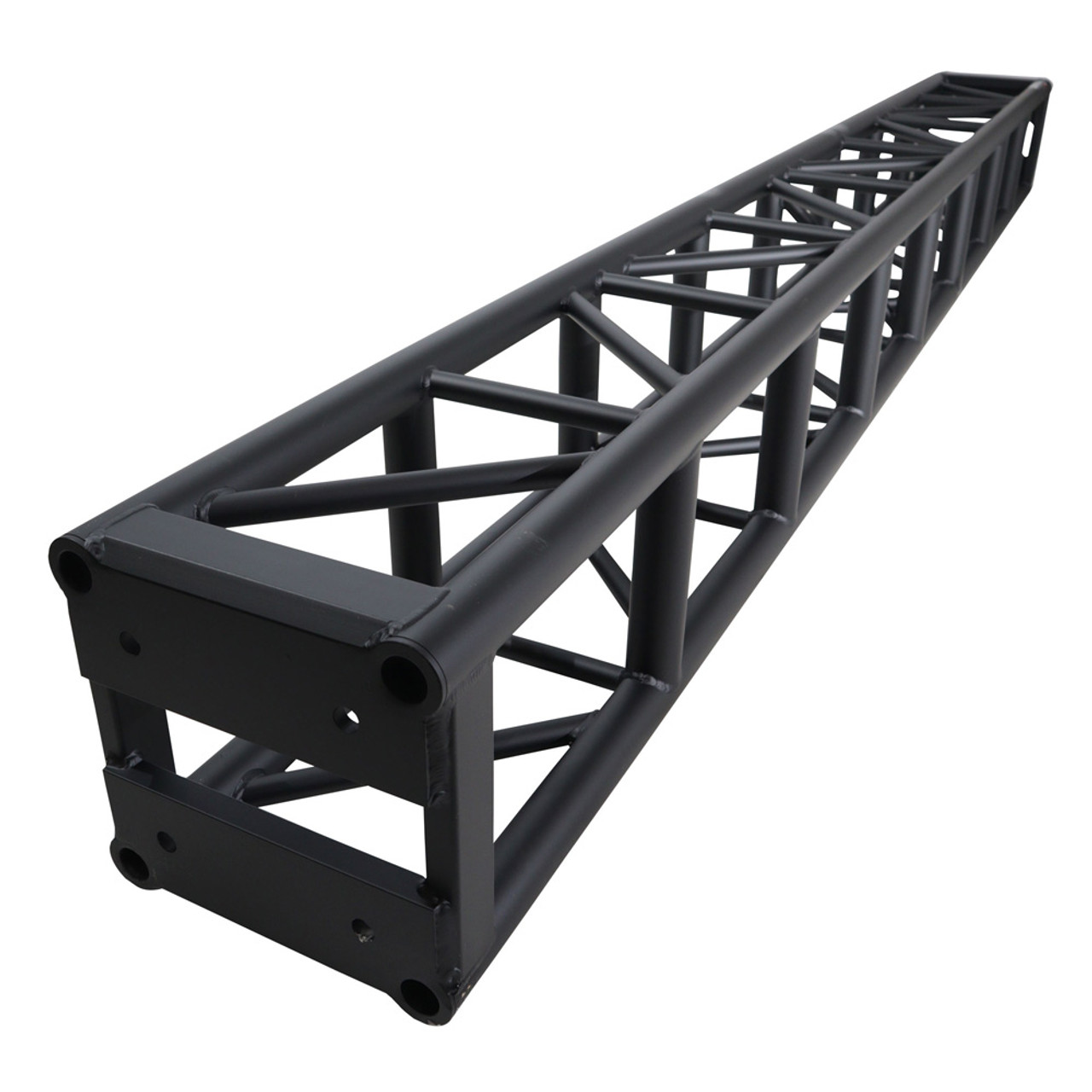

Part of the ProX BoltX™ Professional Box Truss series, the XT-BT1210BLK features an innovative heavy-duty aluminum end plate welded on both sides, along with exclusive circular protective rings at each corner. This reinforced end design helps protect the main chord tube ends from damage caused by dragging, handling, and repeated setup or breakdown, helping reduce potential repair costs.

Built with 6082-T6 aluminum alloy and welded to TÜV standards by GSI SLV-certified welders, this professional box truss features 2-inch outer main tubes with 3mm wall thickness and 1-inch diagonal bracing with 3mm wall thickness. Its industry-standard 6.75-inch x 6.75-inch bolt center pattern with 5/8-inch holes allows compatibility with many other manufacturers' 12-inch professional bolted box truss systems using matching connection specifications.

Key Features

• 10-foot (120-inch) professional black bolted box truss segment.
• 12-inch x 12-inch square aluminum box truss construction.
• Heavy-duty 3mm wall main tubing and diagonal bracing.
• 2-inch outer tube diameter with 1-inch diagonal bracing.
• 6082-T6 aluminum alloy construction.
• Black-coated aluminum finish for a professional appearance.
• Industry-standard 6.75-inch x 6.75-inch bolt center pattern.
• 5/8-inch bolt holes for compatible bolted connections.
• Heavy-duty aluminum end plates welded on both sides.
• Exclusive circular corner rings help protect main chord tube ends.
• Load tested and inspected during manufacturing and quality control.
• Welded to TÜV standards by GSI SLV-certified welders.
• Compatible with many other manufacturers' 12-inch bolted box truss systems using matching connection dimensions.
• Includes one set of four 5/8"-11 x 2.5" NC attachment bolts, nuts, flat washers, and lock washers.

Professional Bolt Connection System

The ProX BoltX™ connection system uses an industry-standard bolt pattern designed for professional 12-inch bolted box trussing. Each XT-BT1210BLK section includes the required attachment hardware for one connection set. Its precision-manufactured end plates help provide consistent fitment and simplify truss assembly.

For compatible installations, verify bolt center spacing, hole dimensions, connection hardware, and manufacturer specifications before connecting different truss brands.

Specifications

• Brand: ProX
• Model: XT-BT1210BLK
• Series: BoltX™ Professional Box Truss
• Truss Type: 12-Inch Bolted Box Truss
• Length: 10 Ft. (120 Inches)
• Exterior Dimensions: 12" H x 12" W x 120" L
• Main Tube Diameter: 2 Inches
• Main Tube Wall Thickness: 3mm (1/8")
• Diagonal Bracing Diameter: 1 Inch
• Diagonal Wall Thickness: 3mm (1/8")
• Bolt Center Pattern: 6.75" x 6.75"
• Bolt Hole Diameter: 5/8 Inch
• Material: 6082-T6 Aluminum Alloy
• Finish: Black-Coated Aluminum
• Connection Type: Bolted Connection
• Welding Standard: TÜV Standards
• Weight: 62 lbs.
• Included Hardware: One set of four 5/8"-11 x 2.5" NC attachment bolts, nuts, flat washers, and lock washers
• UPC: 019372414452

Shipping Information

• Shipping Package: Box 1 of 1
• Shipping Dimensions: 13" H x 13" W x 121" L
• Shipping Weight: 73 lbs.
• Suggested Shipping Method: LTL Freight

Applications

• Concert stages and live performance productions
• Professional stage lighting installations
• Event production and entertainment structures
• Ninja obstacle course construction
• Exhibition and display structures
• Custom aluminum truss frameworks
• Professional production and rigging applications

Why Choose ProX BoltX Black Box Trussing?

ProX BoltX™ Professional Box Truss combines heavy-duty aluminum construction, reinforced end plates, protective corner rings, and an industry-standard bolted connection system. Its black-coated finish provides a clean professional appearance for stage, event, and installation environments, while its modular design allows compatible truss sections to be assembled into customized structures.

Buy ProX XT-BT1210BLK Black BoltX Truss at USATRUSS

Shop the ProX XT-BT1210BLK 10 Ft Black BoltX Professional Box Truss Segment at USATRUSS for professional stage lighting, concerts, event production, and custom truss installations.

Need help selecting compatible bolted truss sections or accessories? Visit our Contact USA Truss page or call 1-800-856-8397 for assistance with your project.

Frequently Asked Questions

1. What are the dimensions of the ProX XT-BT1210BLK BoltX truss?

The ProX XT-BT1210BLK measures 12 inches high x 12 inches wide x 120 inches long (10 feet). It features 2-inch main tubes with 3mm wall thickness and 1-inch diagonal bracing with 3mm wall thickness.

2. What type of connection does the ProX XT-BT1210BLK use?

This BoltX professional box truss uses a bolted connection system with a 6.75-inch x 6.75-inch bolt center pattern and 5/8-inch bolt holes. Each section includes one set of four attachment bolts, nuts, flat washers, and lock washers.

3. Is the ProX XT-BT1210BLK compatible with other manufacturers' trussing?

Yes. The ProX BoltX system is compatible with many other manufacturers' 12-inch professional bolted box truss systems that use matching 6.75-inch bolt center patterns and compatible connection specifications. Always verify dimensions and hardware before assembly.

4. What material and finish does this black box truss feature?

The ProX XT-BT1210BLK is constructed from 6082-T6 aluminum alloy with 3mm wall tubing and features a black-coated aluminum finish. Its reinforced end plates and circular corner rings help protect the main chord tube ends during handling.

5. Where can I buy the ProX XT-BT1210BLK 10 Ft Black BoltX Box Truss?

You can buy the ProX XT-BT1210BLK 10 Ft Black BoltX Professional Box Truss Segment at USATRUSS. Shop professional aluminum trussing for stage lighting, concerts, and event production. For product information or ordering assistance, visit our Contact Us page or call 1-800-856-8397.
