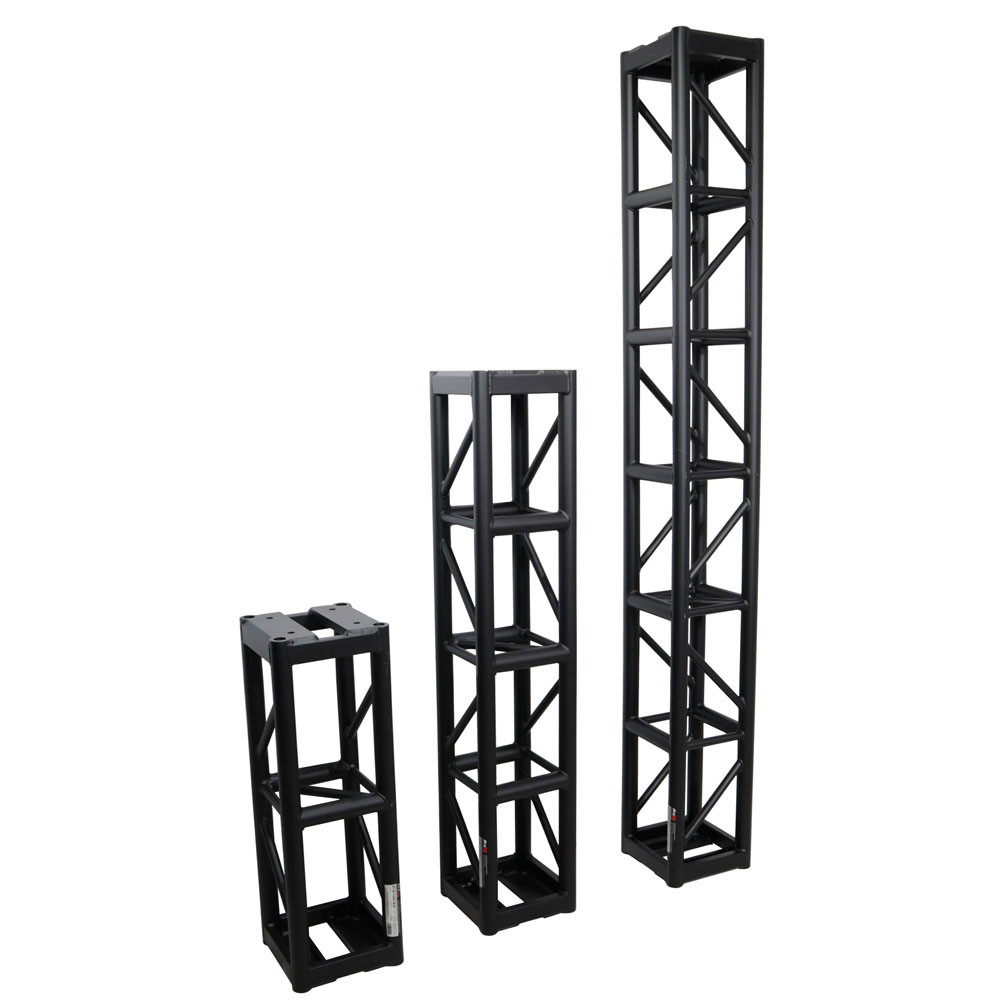

ProX XT-BT1202 BLK 2 Ft. BoltX Black 12 Inch Professional Box Truss Segment | 3mm Wall

Product Description

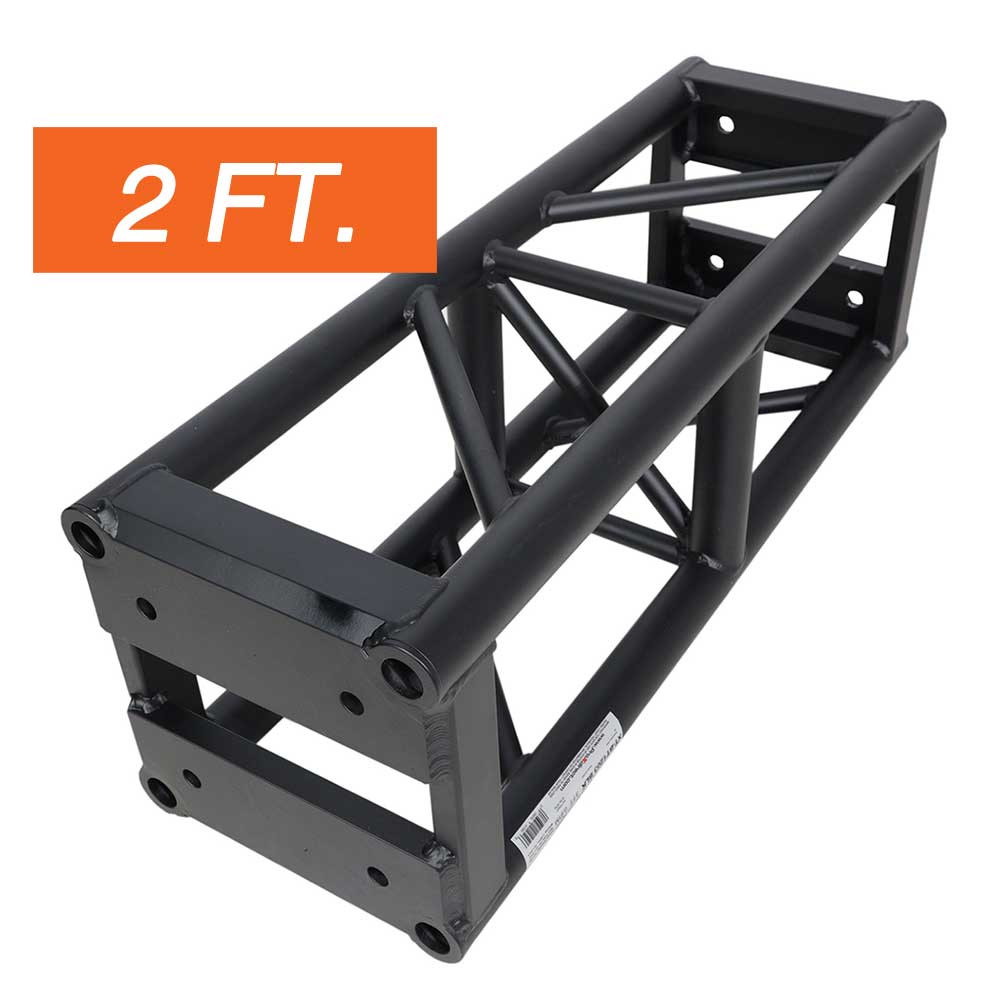

The ProX XT-BT1202 BLK is a 2-foot (0.60 m) BoltX 12-inch Professional Box Truss Segment designed for professional stage lighting, concerts, event production, entertainment applications, Ninja obstacle course construction, and custom truss structures. Its compact 12" x 12" box truss profile provides a practical solution for creating short straight sections within compatible 12-inch bolted box truss configurations.

The XT-BT1202 BLK features a 3 mm (1/8") wall thickness, 2-inch (50.8 mm) outer tubing, and 1-inch (25.4 mm) diagonal tubing. The BoltX system is constructed from 6082-T6 aluminum alloy and features aluminum welding to TÜV standards by GSI SLV-certified welders. Its black-coated aluminum finish provides a professional appearance for stage, event, entertainment, and production environments.

The ProX XT-BT1202 BLK uses an industry-standard 6.75" x 6.75" bolt center pattern with 5/8" holes and includes one set of four 5/8"-11 x 2.5" attachment bolts, nuts, flat washers, and lock washers. Compatible 12-inch bolted box truss segments, blocks, base plates, and accessories can be combined to create customized configurations. ProX states that BoltX truss products use industry-standard dimensions for compatibility with many other 12-inch bolted box truss products using the same bolt pattern. Always verify complete system compatibility, structural requirements, and load requirements before assembly.

Key Features

• ProX XT-BT1202 BLK BoltX 12-Inch Professional Box Truss Segment
• 2 ft / 0.60 m straight truss segment
• 12 in / 304.8 mm H x 12 in / 304.8 mm W professional box truss design
• Professional bolted box truss connection system
• 2 in / 50.8 mm outer tube diameter
• 1 in / 25.4 mm diagonal tube diameter
• 3 mm / 0.12 in wall thickness
• 6.75 in x 6.75 in industry-standard bolt center pattern
• 5/8 in bolt holes
• 6082-T6 aluminum alloy construction
• TUV-standard aluminum welding
• GSI SLV-certified welders
• Load tested and inspected during manufacturing and quality control
• Heavy-duty BoltX end plate design
• Circular rings at each corner help reduce damage to the main chord ends
• Black-coated aluminum finish
• Includes one set of four attachment bolts, nuts, flat washers, and lock washers
• Designed for compatible 12-inch professional bolted box trussing
• Compatible with many 12-inch bolted box truss systems using the same bolt pattern
• Suitable for professional indoor and outdoor event and production applications when properly designed

Technical Specifications

• Brand: ProX
• Model: XT-BT1202 BLK
• SKU: XT-BT1202BLK
• Truss Series: BoltX
• Truss Type: 4-Point Bolted Box Truss Segment
• Length: 2 ft / 0.60 m
• Height: 12 in / 304.8 mm
• Width: 12 in / 304.8 mm
• Outer Tube Diameter: 2 in / 50.8 mm
• Diagonal Tube Diameter: 1 in / 25.4 mm
• Wall Thickness: 3 mm / 0.12 in / 1/8 in
• Material: 6082-T6 Aluminum Alloy
• Connection System: Bolt Connection
• Bolt Pattern: 6.75 in x 6.75 in
• Bolt Hole Size: 5/8 in
• Welding: TUV-Standard Aluminum Welding
• Welders: GSI SLV-Certified Welders
• Finish: Black-Coated Aluminum
• To Fit: Compatible 12-Inch Professional Bolted Box Truss
• Connecting Hardware: 1 Set Included
• Product Weight: 24 lbs
• Exterior Dimensions: 24 in L x 12 in W x 12 in H
• Shipping Dimensions: 25 in L x 13 in W x 13 in H
• Shipping Weight: 27 lbs
• UPC: 019372414513

Where Can You Use the ProX XT-BT1202 BLK?

The ProX XT-BT1202 BLK is designed for compatible 12-inch bolted box truss configurations used in professional event, production, lighting, entertainment, display, and structural applications.

• Stage lighting structures
• Concert production
• Live entertainment setups
• Event production
• Trade show booths
• Exhibition structures
• Lighting support systems
• Event technology installations
• Ninja obstacle course construction
• Entertainment venues
• Nightclubs
• Mobile productions
• Outdoor event structures
• Permanent installations
• Custom box truss structures

Why Choose the ProX XT-BT1202 BLK?

The ProX XT-BT1202 BLK provides a compact 2-foot (0.60 m) straight section for compatible 12-inch professional bolted box truss configurations. Its 12" x 12" profile is useful when shorter truss sections are needed for customized stage, lighting, event, exhibition, and production structures.

The segment combines 6082-T6 aluminum alloy construction with 3 mm wall thickness, TUV-standard aluminum welding, a 6.75" x 6.75" bolt pattern, and a professional BoltX connection design. The heavy-duty end plates are welded on both sides, while circular rings at the corners are designed to help reduce damage to the main chord ends during handling and transportation.

The black-coated aluminum finish provides a professional appearance for applications where a darker truss finish is preferred. Multiple compatible BoltX truss segments can be combined with appropriate blocks, corners, base plates, and accessories to create customized layouts. Always verify the complete system's structural requirements, component compatibility, equipment loads, support method, and applicable safety requirements before use.

BoltX 12-Inch Box Truss Design

The BoltX system is a 12-inch professional bolted box truss design intended for compatible staging, lighting, event, entertainment, exhibition, and production configurations. The XT-BT1202 BLK uses 2-inch (50.8 mm) outer tubing and 1-inch (25.4 mm) diagonal tubing with a 3 mm wall thickness.

The 12-inch (304.8 mm) square profile provides a professional solution for compatible box truss structures, while the 2-foot (0.60 m) length is useful for creating precise straight sections within a larger truss layout. The segment can be combined with compatible BoltX lengths, 6-way blocks, base plates, corners, and other accessories.

Buy ProX XT-BT1202 BLK from USATRUSS

Buy the ProX XT-BT1202 BLK 2 Ft. BoltX Black Bolted 12 Inch Professional Box Truss Segment | 3mm Wall – Black Finish from USATRUSS for compatible stage lighting, concert, event, exhibition, trade show, entertainment, and production applications.

The XT-BT1202 BLK provides a compact 2-foot (0.60 m) 12-inch box truss section with 3 mm wall construction, 6082-T6 aluminum, TUV-standard aluminum welding, a 6.75" x 6.75" bolt connection pattern, black-coated aluminum finish, and one set of connecting hardware.

Need help selecting compatible BoltX or 12-inch box truss components for your project? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-BT1202 BLK?

The ProX XT-BT1202 BLK is a 2-foot (0.60-meter) BoltX 12-inch professional box truss segment with a black-coated aluminum finish, designed for compatible bolted box truss configurations.

What are the dimensions of the ProX XT-BT1202 BLK?

The XT-BT1202 BLK measures 12 inches high by 12 inches wide and 24 inches long, providing a 2-foot (0.60-meter) straight box truss section.

What is the wall thickness of the XT-BT1202 BLK?

The ProX XT-BT1202 BLK features a 3 mm (0.12-inch / 1/8-inch) wall thickness for its tubing. It uses 2-inch (50.8 mm) outer tubing and 1-inch (25.4 mm) diagonal tubing.

What bolt pattern does the XT-BT1202 BLK use?

The ProX XT-BT1202 BLK uses a 6.75-inch x 6.75-inch bolt center pattern with 5/8-inch holes for connecting compatible professional 12-inch bolted box truss sections.

Does the XT-BT1202 BLK include connecting hardware?

Yes. The ProX XT-BT1202 BLK includes one set of four 5/8"-11 x 2.5" attachment bolts with matching nuts, flat washers, and lock washers.
