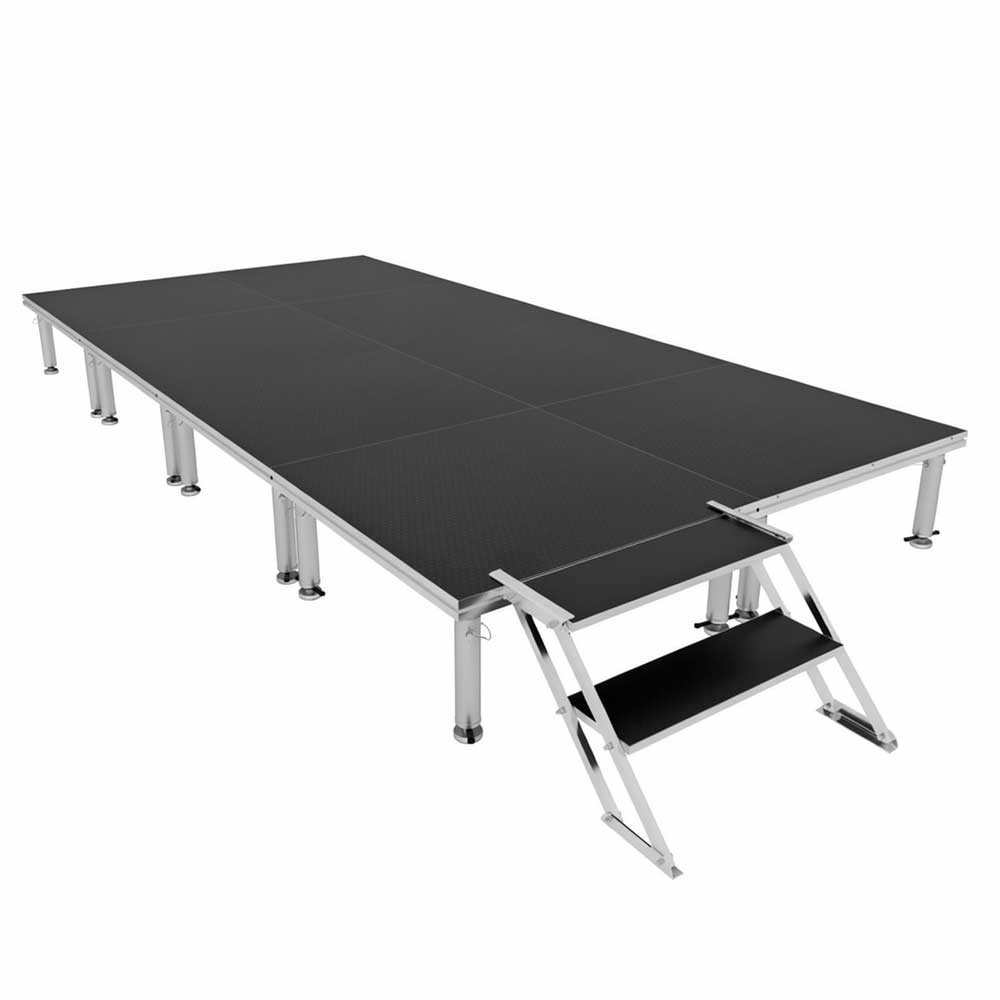

ProX XSU-PKG8X16-4X4ST2 8x16 Portable Modular Stage Package

Product Description

The ProX XSU-PKG8X16-4X4ST2 is an 8 ft. x 16 ft. portable modular stage package that includes a 2-step aluminum staircase and eight 4 ft. x 4 ft. non-slip aluminum-framed stage deck panels. Designed for concerts, corporate events, school performances, house of worship productions, outdoor festivals, and professional event applications, this complete StageOne package provides a large 128 sq. ft. performance surface with adjustable-height legs and leveling feet.

Each 4 ft. x 4 ft. StageOne platform is constructed around AAA-grade 15 mm (0.59-inch) exterior-rated birch plywood with minimal voids and features a non-slip black surface for secure footing. The modular deck panels connect together using an integrated aluminum framing system to create a unified performance surface. The extruded aluminum frame provides a lightweight structure while maintaining the support required for professional staging applications.

The ProX XSU-PKG8X16-4X4ST2 includes six telescoping legs on each platform that can be adjusted from 16 to 22 inches, with a maximum fully extended height of 24 inches. Each leg includes a locking-pin safety system and a micro-adjustable leveling foot with an M16 threaded bolt for precise leveling on uneven floors or outdoor terrain. Each 4 ft. x 4 ft. platform section is rated to support up to 800 lbs. when the load is evenly distributed. The package also includes an XSQ-ST2 two-step aluminum staircase that attaches directly to the platform frame for convenient stage access.

Key Features

• ProX XSU-PKG8X16-4X4ST2 portable modular stage package
• 8 ft. x 16 ft. overall stage configuration
• 128 sq. ft. total performance surface
• Eight 4 ft. x 4 ft. modular StageOne deck panels
• AAA-grade 15 mm / 0.59 in. exterior-rated birch plywood construction
• Non-slip black deck surface
• Extruded aluminum frame construction
• Six adjustable telescoping legs per platform
• 16–22 in. adjustable leg height
• 24 in. maximum fully extended height
• Locking-pin safety system
• Micro-adjustable leveling feet
• M16 threaded leveling bolts
• 800 lbs. capacity per 4 ft. x 4 ft. section when evenly distributed
• Includes 2-step aluminum staircase
• Non-slip staircase treads
• Modular design for transportation and storage
• Tool-friendly assembly and teardown
• Compatible with ProX StageQ accessories
• Stage skirts available separately
• Designed for concerts, corporate events, performances, festivals, and productions

Technical Specifications

• Brand: ProX
• Model: XSU-PKG8X16-4X4ST2
• Product Type: Portable Modular Stage Package
• Stage Size: 8 ft. x 16 ft.
• Total Surface Area: 128 sq. ft.
• Deck Quantity: 8
• Individual Deck Size: 4 ft. x 4 ft.
• Deck Material: AAA-grade exterior-rated birch plywood
• Deck Thickness: 15 mm / 0.59 in.
• Deck Surface: Non-slip black surface
• Frame Material: Extruded aluminum
• Leg Type: Telescoping adjustable legs
• Legs Per Platform: 6
• Adjustable Leg Height: 16–22 in.
• Maximum Fully Extended Height: 24 in.
• Leveling Feet: Micro-adjustable
• Leveling Bolt: M16 threaded bolt
• Safety System: Locking pin
• Weight Capacity: 800 lbs. per 4 ft. x 4 ft. section when evenly distributed
• Staircase: XSQ-ST2 2-step aluminum staircase
• Staircase Height: Adjustable 14–18 in.
• Stair Tread Surface: Non-slip
• Assembly: Tool-friendly modular assembly
• Application: Indoor and outdoor staging applications

Package Contents

• (8) XSU-4X4 StageOne 4 ft. x 4 ft. single stage package deck with adjustable 16–22 in. legs
• (1) XSQ-ST2 StageQ 2-step heavy-duty foldable adjustable 14–18 in. staircase

Exterior Dimensions & Weight

• XSU-4X4 (8): 3.00 in. H x 48.00 in. W x 48.00 in. L
• XSU-4X4 Weight: 58.00 lbs. each

Shipping Dimensions & Weight

• Box 1 of 2: XSQ-ST2 — 5.00 in. H x 33.00 in. W x 37.00 in. L
• Box 1 Shipping Weight: 45.00 lbs.
• Box 2 of 2: XSU-4X4 (8 boxes) — 4.00 in. H x 50.00 in. W x 50.00 in. L
• Box 2 Shipping Weight: 65.00 lbs.

Where Can You Use the ProX XSU-PKG8X16-4X4ST2?

The ProX XSU-PKG8X16-4X4ST2 is designed for professional and portable staging applications where a larger modular performance platform and convenient stage access are required. Its 8 ft. x 16 ft. footprint provides 128 sq. ft. of stage space for performers, presenters, musicians, DJs, equipment, and production setups.

• Live concerts
• Corporate events
• School performances
• House of worship productions
• Outdoor festivals
• Live entertainment
• DJ performances
• Band performances
• Production company events
• Community events
• Corporate presentations
• Portable event staging
• Performance platforms
• Temporary event stages
• Mobile productions

Why Choose the ProX XSU-PKG8X16-4X4ST2?

The ProX XSU-PKG8X16-4X4ST2 provides a complete 8 ft. x 16 ft. portable stage configuration using eight modular 4 ft. x 4 ft. StageOne deck panels. The 128 sq. ft. performance surface provides additional room for larger ensembles, bands, performers, presenters, and production equipment compared with smaller modular stage configurations.

The stage combines 15 mm exterior-rated birch plywood decks with extruded aluminum framing, non-slip deck surfaces, adjustable telescoping legs, and micro-adjustable leveling feet. Each 4 ft. x 4 ft. platform section supports up to 800 lbs. when evenly distributed, while the locking-pin leg system and leveling feet help provide a stable setup on suitable surfaces.

The included XSQ-ST2 two-step aluminum staircase provides a dedicated access point to the stage. The staircase attaches directly to the platform frame and features matching non-slip stair treads. The modular panel construction also allows the stage to break down into individual 4 ft. x 4 ft. sections for transportation and storage. Stage skirts are available separately for applications where a finished front facade is desired.

Buy ProX XSU-PKG8X16-4X4ST2 from USATRUSS

Shop ProX XSU-PKG8X16-4X4ST2 8 ft. x 16 ft. portable modular stage package with eight 4 ft. x 4 ft. non-slip deck panels, adjustable-height legs, leveling feet, and a 2-step aluminum staircase at USATRUSS. Buy online today for concerts, corporate events, performances, festivals, productions, and professional event staging.

The XSU-PKG8X16-4X4ST2 provides a 128 sq. ft. modular stage surface with adjustable 16–22 in. legs and a maximum fully extended height of 24 inches. The included XSQ-ST2 staircase provides convenient stage access, while the modular 4 ft. x 4 ft. deck design makes transportation, setup, teardown, and storage more manageable.

Need help selecting the right ProX stage package or compatible staging accessories? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XSU-PKG8X16-4X4ST2?

The ProX XSU-PKG8X16-4X4ST2 is an 8 ft. x 16 ft. portable modular stage package that includes eight 4 ft. x 4 ft. StageOne deck panels, adjustable legs, leveling feet, and an XSQ-ST2 two-step staircase.

How large is the ProX XSU-PKG8X16-4X4ST2 stage?

The completed stage measures 8 ft. x 16 ft. and provides approximately 128 sq. ft. of performance surface using eight 4 ft. x 4 ft. modular deck panels.

How high can the ProX XSU-PKG8X16-4X4ST2 stage be adjusted?

The included XSU-4X4 platforms use telescoping legs adjustable from 16 to 22 inches, with a maximum fully extended height of approximately 24 inches. The included XSQ-ST2 staircase is adjustable from approximately 14 to 18 inches.

What is the weight capacity of the ProX XSU-PKG8X16-4X4ST2?

Each 4 ft. x 4 ft. StageOne platform section is rated to support up to 800 lbs. when the load is evenly distributed across the section.

Does the ProX XSU-PKG8X16-4X4ST2 include stairs?

Yes. The package includes one XSQ-ST2 StageQ 2-step heavy-duty foldable adjustable staircase. The staircase attaches directly to the platform frame and provides convenient access to the modular stage.
