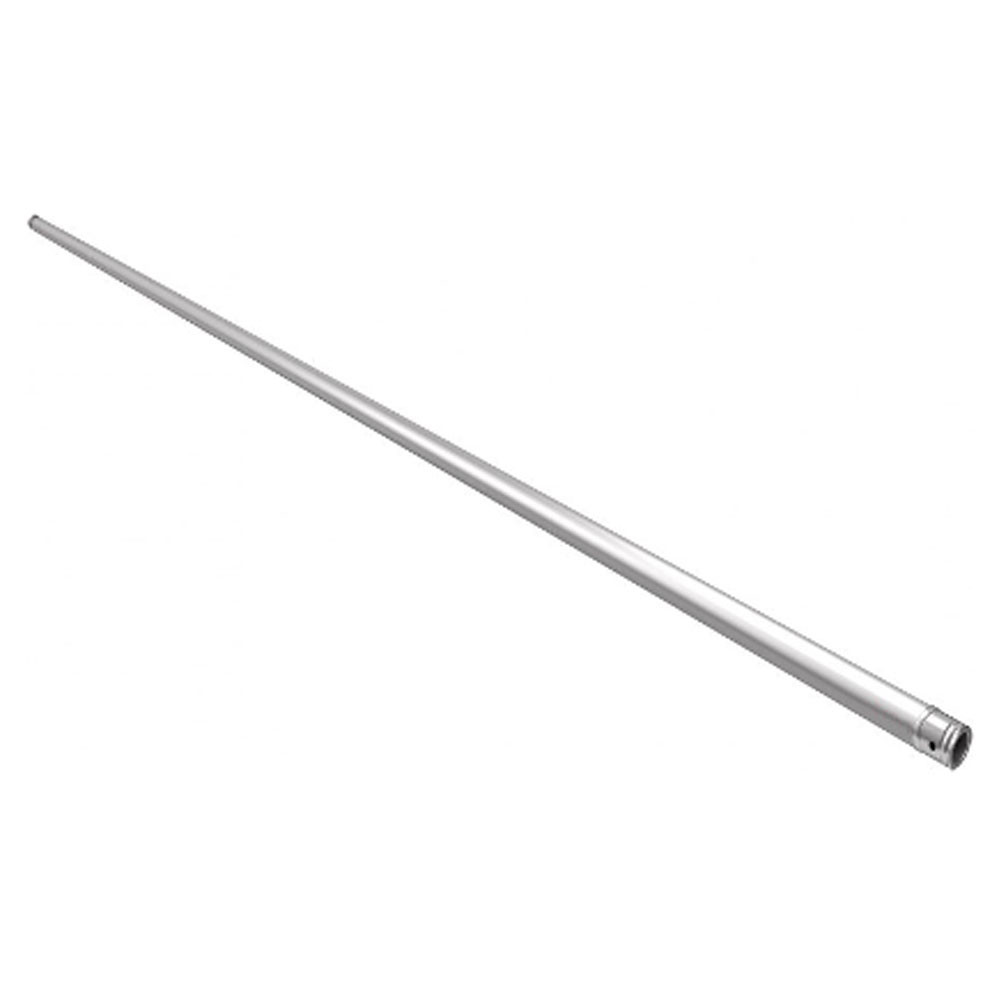

ProX XT-S820 8.20 Foot - 2.5M F31 Single Tube Truss Segment | 2mm Wall

Product Description

The ProX XT-S820 is an 8.20-foot (2.5 m) F31 single tube truss segment designed for professional staging, live entertainment, events, exhibitions, retail displays, nightclubs, and permanent installations. Its 2.5-meter length provides a versatile building block for creating customized truss structures and support configurations.

The ProX XT-S820 features 2-inch (50 mm) outer diameter tubing with a 0.079-inch (2 mm) wall thickness. Constructed from EN-AWT6 6082 aluminum and manufactured using TUV-certified aluminum welding, the XT-S820 is designed for professional truss applications where reliable construction and consistent connections are important.

The ProX XT-S820 utilizes a popular conical connector system and includes one connecting hardware set. ProX XT series trussing uses industry-standard dimensions and can connect with many other manufacturers' compatible truss products using the same size and connector type.

Key Features

• ProX XT-S820 8.20-foot / 2.5-meter F31 single tube truss segment
• 8.20 ft / 2.5 m actual truss segment length
• 2 in / 50 mm outer diameter tubing
• 0.079 in / 2 mm wall thickness
• Constructed from EN-AWT6 6082 aluminum
• TUV-certified aluminum welding
• Popular conical connector system
• Includes one connecting hardware set
• Industry-standard truss dimensions
• Designed for compatible standard-size truss configurations
• Can connect with compatible truss from many other manufacturers using the same size and connector type
• Suitable for indoor and outdoor productions
• Ideal for exhibitions, retail displays, nightclubs, and permanent installations
• Compatible with a variety of corners, base plates, connectors, and accessories

Technical Specifications

• Brand: ProX
• Model: XT-S820
• Truss Type: F31 Single Tube Truss Segment
• Actual Length: 8.20 ft / 2.5 m
• Outer Tube Diameter: 2 in / 50 mm
• Wall Thickness: 0.079 in / 2 mm
• Material: EN-AWT6 6082 Aluminum
• Welding: TUV Certified Aluminum Welding
• Connection System: Conical Connection System
• Connecting Hardware: One Connecting Hardware Set Included
• To Fit: Standard Size Truss Configurations with Conical Connections
• Exterior Dimensions: 98.40"L x 2.00"W x 2.00"H
• Product Weight: 5.00 lbs
• Shipping Dimensions: 102.00"L x 2.50"D x 2.50"H
• Shipping Weight: 6.00 lbs
• Suggested Shipping Method: LTL
• UPC: 741459147945

Where Can You Use the ProX XT-S820?

The ProX XT-S820 can be incorporated into a wide range of live entertainment, staging, event, exhibition, retail display, lighting, and installation applications. Its 8.20-foot (2.5 m) length makes it useful when longer truss segments are required for professional structures and layouts.

The XT-S820 is suitable for indoor and outdoor productions, exhibitions, retail displays, nightclubs, permanent installations, stage environments, lighting structures, and event setups. Compatible corners, base plates, connectors, and accessories can be combined with the tube to create customized truss configurations.

The 2.5-meter segment can also be used as part of larger modular truss systems where longer straight sections are needed. The appropriate configuration will depend on the intended application, support arrangement, attached equipment, environmental conditions, and applicable safety requirements.

Why Choose the ProX XT-S820 F31 Truss?

The ProX XT-S820 F31 single tube truss segment provides a practical solution for professional staging and event applications requiring an 8.20-foot (2.5 m) truss section. Its longer segment length can help create larger structures while maintaining a modular truss design.

The XT-S820 combines a 2-inch (50 mm) outer tube diameter with a 2 mm wall thickness and EN-AWT6 6082 aluminum construction. TUV-certified aluminum welding and controlled manufacturing provide consistent construction and fitment at the connection points.

The XT-S820 also uses a conical connector system and is designed around industry-standard dimensions. This allows compatible truss components and compatible products from other manufacturers using the same size and connector type to be considered for a modular configuration.

F31 Single Tube Truss Design

The F31 single tube design of the ProX XT-S820 provides a modular solution for professional truss structures. The 2-inch (50 mm) tubing and 2 mm wall thickness create a compact single-tube segment suitable for compatible staging and event applications.

With an actual length of 8.20 feet (2.5 m), the XT-S820 can be combined with other compatible truss segments and components to create larger structures and customized layouts. The standardized dimensions and conical connection system make it suitable for compatible modular configurations.

Conical Connector System

The ProX XT-S820 utilizes a popular conical connector system and includes one connecting hardware set. The conical connection system allows compatible truss segments to be joined together to create modular structures for staging, events, exhibitions, and installations.

ProX XT series trussing uses industry-standard dimensions and can connect with many other manufacturers' truss products when they use the same size and connector type. Always verify the actual dimensions and connection specifications before combining components from different manufacturers.

Compatibility with Truss Components

The ProX XT-S820 can be combined with compatible truss corners, base plates, connectors, junctions, and accessories to create a variety of modular configurations. ProX offers a range of components designed to support different truss layouts and applications.

When combining the XT-S820 with another manufacturer's truss, do not rely solely on the appearance of the components. Confirm the tube dimensions, connector dimensions, connector type, and manufacturer's compatibility requirements before assembly.

EN-AWT6 6082 Aluminum Construction

The ProX XT-S820 is constructed from EN-AWT6 6082 aluminum. This material is used throughout the ProX XT series for professional trussing applications where strength, durability, and manageable component weight are important considerations.

The XT-S820 weighs approximately 5.00 lbs and has exterior dimensions of 98.40 inches long x 2.00 inches wide x 2.00 inches high. Its 8.20-foot length provides a longer modular segment while maintaining the compact 2-inch tube profile.

TUV Certified Aluminum Welding

The ProX XT-S820 features TUV-certified aluminum welding. TUV is a third-party certification body and Nationally Recognized Testing Laboratory (NRTL) that provides inspection, testing, certification, and training services with a focus on reliability, safety, and quality.

ProX manufactures its truss products to exacting specifications and uses quality-control and manufacturing techniques designed to provide excellent fitment at each connection point. Proper assembly and installation should always follow the applicable manufacturer and engineering requirements.

Indoor & Outdoor Truss Applications

The ProX XT-S820 is designed for use in a variety of indoor and outdoor productions. It can be incorporated into live entertainment systems, exhibitions, retail displays, nightclubs, event environments, and other compatible permanent or temporary installations.

Its 8.20-foot (2.5 m) length makes the XT-S820 useful when longer single-tube sections are needed within a modular truss layout. The complete structure should always be designed and assembled according to the requirements of the specific application.

Buy ProX XT-S820 from USATRUSS

Shop the ProX XT-S820 8.20 Foot - 2.5M F31 Single Tube Truss Segment | 2mm Wall from USATRUSS. This professional 2.5-meter truss segment features 2-inch tubing, EN-AWT6 6082 aluminum construction, TUV-certified aluminum welding, and a conical connector system for compatible modular truss configurations.

Need help selecting the right truss segments, corners, connectors, base plates, or accessories for your project? Our team can help you identify compatible components for your application. Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-S820?

The ProX XT-S820 is an 8.20-foot (2.5 m) F31 single tube truss segment designed for compatible staging, live entertainment, events, exhibitions, retail displays, nightclubs, and permanent installations.

How long is the ProX XT-S820?

The ProX XT-S820 has an actual length of 8.20 feet (2.5 m). Its exterior dimensions are approximately 98.40 inches long x 2.00 inches wide x 2.00 inches high.

What size tubing does the ProX XT-S820 use?

The ProX XT-S820 uses 2-inch (50 mm) outer diameter tubing with a 0.079-inch (2 mm) wall thickness.

What material is the ProX XT-S820 made from?

The ProX XT-S820 is constructed from EN-AWT6 6082 aluminum and features TUV-certified aluminum welding.

Does the ProX XT-S820 include connecting hardware?

Yes. The ProX XT-S820 includes one connecting hardware set for its conical connection system.
