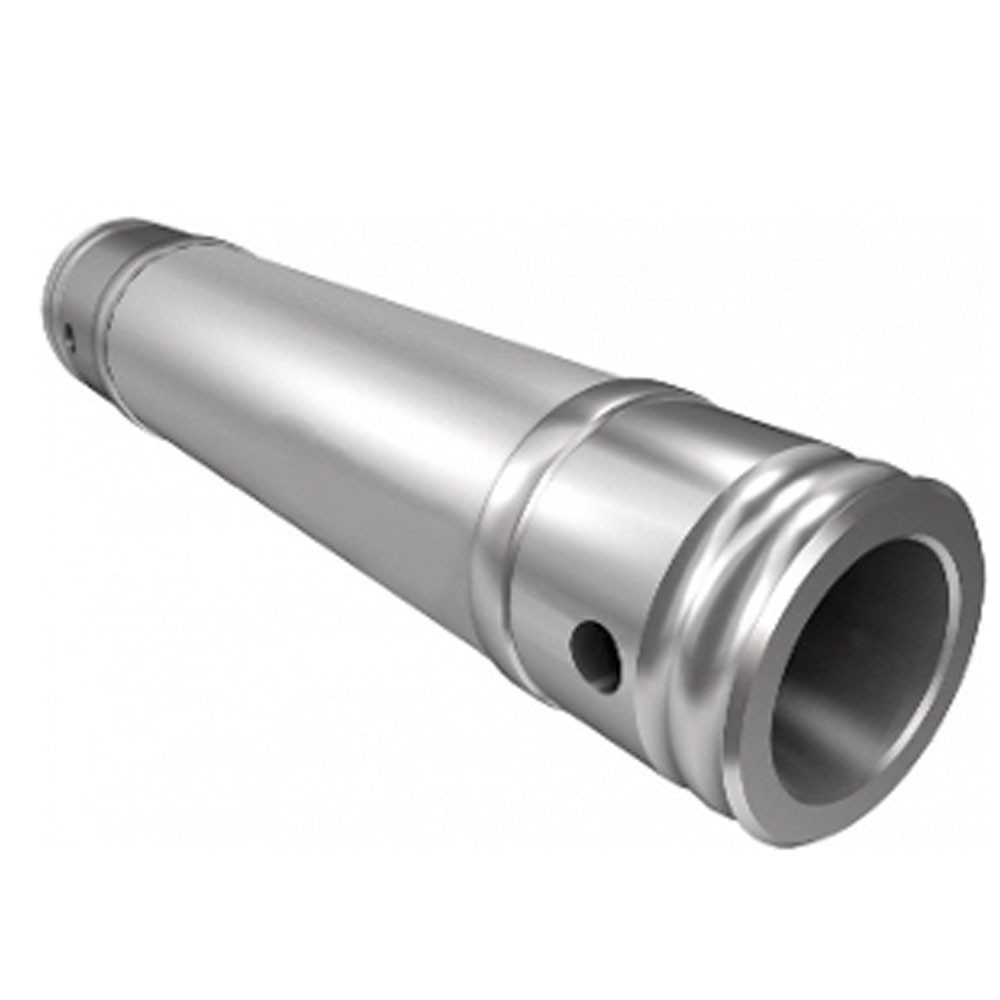

ProX XT-S656 6.56-Foot (2M) F31 Single Tube Truss Segment | 2mm Wall

Product Description

The ProX XT-S656 is a 6.56-foot (2.00 m) F31 single tube truss segment designed for professional staging, live entertainment, exhibitions, retail displays, events, production environments, and other truss applications. This single tube aluminum truss segment provides a modular solution for creating customized truss structures while maintaining a lightweight and practical design.

Part of the ProX F31 Aluminum Truss system, the XT-S656 features a 2 mm (0.079 in) wall thickness and 2-inch (50 mm) outer-diameter tubing. The segment is constructed from EN-AWT6 6082 aluminum and uses a standard conical connector system for connecting compatible truss components.

The ProX XT-S656 measures 6.56 feet (2.00 meters) in length and includes one connecting hardware set. Its industry-standard dimensions make it suitable for use with compatible F31 and other appropriately sized truss components that use matching connector systems.

Key Features

• ProX XT-S656 F31 single tube aluminum truss segment
• 6.56 ft / 2.00 m actual segment length
• 2 in / 50 mm outer tube diameter
• 0.079 in / 2 mm tube wall thickness
• Made from EN-AWT6 6082 aluminum
• Standard conical connector system
• Includes 1 connecting hardware set
• TUV-certified aluminum welding
• Industry-standard truss dimensions
• Lightweight aluminum construction
• Modular design for customized truss configurations
• Compatible with appropriately sized truss components using matching connectors
• Suitable for indoor and outdoor production applications
• Designed for events, exhibitions, displays, staging, and production environments

Technical Specifications

• Brand: ProX
• Model: XT-S656
• Series: F31 Truss
• Truss Type: F31 Single Tube Truss
• Application: Events, Productions, Displays, Exhibitions, and Installations
• Actual Length: 6.56 ft / 2.00 m
• Outer Tube Diameter: 2 in / 50 mm
• Wall Thickness: 0.079 in / 2 mm
• Material: EN-AWT6 6082 Aluminum
• Connector Type: Standard Conical Connector
• Connecting Hardware: 1 Set Included
• Product Weight: 4 lb
• UPC: 741459147952
• Welding: TUV-Certified Aluminum Welding

Product Dimensions & Weight

• Overall Length: 79.80 in / 6.65 ft
• Nominal Segment Length: 6.56 ft / 2.00 m
• Tube Diameter: 2 in / 50 mm
• Wall Thickness: 0.079 in / 2 mm
• Product Weight: 4 lb

Shipping Dimensions & Weight

• Shipping Dimensions: 2.50 in H x 2.50 in W x 80.50 in L
• Shipping Weight: 4.50 lb

Where Can You Use the ProX XT-S656?

The ProX XT-S656 is designed for a variety of event, staging, production, exhibition, and display applications. Its 6.56-foot (2-meter) length makes it a practical building block for modular truss configurations where consistent segment lengths and flexible layouts are required.

The XT-S656 can be used as part of truss structures for live entertainment productions, exhibitions, retail displays, trade show environments, event setups, nightclubs, and permanent installations. Multiple truss segments and compatible components can be combined to create different configurations based on the requirements of a particular project.

The lightweight aluminum construction also makes the XT-S656 a convenient option for applications where modular assembly, transportation, and configuration flexibility are important considerations.

Why Choose the ProX XT-S656 F31 Truss?

The ProX XT-S656 F31 single tube truss combines a modular design with aluminum construction for a practical solution for professional event and display applications. Its 6.56-foot (2-meter) length provides a standard segment size that can be incorporated into larger truss configurations.

The segment is manufactured from EN-AWT6 6082 aluminum and features a 2 mm wall thickness with 2-inch (50 mm) outer-diameter tubing. These specifications provide the construction characteristics of the XT-S656 while keeping the segment relatively lightweight at approximately 4 pounds.

The standard conical connector system allows the XT-S656 to be assembled with compatible truss sections and accessories. ProX states that its truss products use industry-standard dimensions and may connect with compatible products from other manufacturers when the truss size and connector style match.

Standard Conical Connector System

The ProX XT-S656 uses a standard conical connector system for connecting compatible truss components. One connecting hardware set is included with the segment.

The conical connector design allows compatible truss sections, corners, junctions, base plates, and other accessories to be assembled into customized configurations. Because connector dimensions and styles can vary between manufacturers and truss series, always verify the compatibility of components before combining products from different manufacturers.

F31 Single Tube Truss Design

The F31 single tube truss design provides a modular approach to building event, display, and production structures. The XT-S656 can be incorporated into larger configurations using compatible straight segments, corners, junctions, base plates, and other truss accessories.

With a 2-inch (50 mm) tube diameter and 2 mm wall thickness, the XT-S656 is designed as part of the ProX F31 truss system. Its 2-meter segment length can be combined with other available lengths to create configurations suited to different project requirements.

Compatibility with Other Truss Components

The ProX XT-S656 can be used with compatible ProX truss components and accessories that use the appropriate connector system. ProX also indicates that its truss products use industry-standard dimensions and can be compatible with trussing from other manufacturers when the size and connector style are compatible.

Always confirm the physical dimensions, connector type, and intended application before combining truss components from different manufacturers. Compatibility should be verified before installation or use.

Important Load & Safety Information

Truss applications can involve significant equipment loads and structural considerations. The suitability of the ProX XT-S656 for a particular installation depends on the complete truss configuration, span, support points, attached equipment, environmental conditions, and applicable loading requirements.

Always determine the total load of all equipment before installation. Do not assume that a truss segment is suitable for a specific load based solely on its dimensions or material. Review the manufacturer's applicable loading information and installation requirements, and consult a qualified structural or truss engineer for complex, suspended, or load-bearing installations.

Buy ProX XT-S656 from USATRUSS

Order the ProX XT-S656 6.56-Foot (2M) F31 Single Tube Truss Segment from USATRUSS. This 2-meter aluminum truss segment provides a modular solution for building compatible truss configurations for events, productions, exhibitions, displays, and installations.

Need help selecting the right F31 truss segments, connectors, corners, base plates, or accessories for your project? Our team can help you identify compatible components for your application. Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX XT-S656?

The ProX XT-S656 is a 6.56-foot (2.00-meter) F31 single tube aluminum truss segment designed for compatible event, production, exhibition, display, and installation applications. It features 2-inch (50 mm) tubing and a 2 mm wall thickness.

How long is the ProX XT-S656 truss segment?

The ProX XT-S656 has a nominal length of 6.56 feet (2.00 meters), making it a practical segment for building modular F31 truss configurations.

What are the specifications of the ProX XT-S656?

The ProX XT-S656 features 2-inch (50 mm) outer-diameter tubing, a 2 mm (0.079-inch) wall thickness, and EN-AWT6 6082 aluminum construction. The segment weighs approximately 4 pounds and uses a standard conical connector system.

Does the ProX XT-S656 include connecting hardware?

Yes. The ProX XT-S656 includes one connecting hardware set for assembly with compatible truss components. Always verify connector dimensions and compatibility before combining truss components from different manufacturers.

What can the ProX XT-S656 be used for?

The ProX XT-S656 can be incorporated into modular truss configurations for live productions, events, exhibitions, retail displays, trade show environments, nightclubs, and installations. The suitability of a particular configuration depends on the intended application, support arrangement, equipment loads, and applicable safety requirements.
