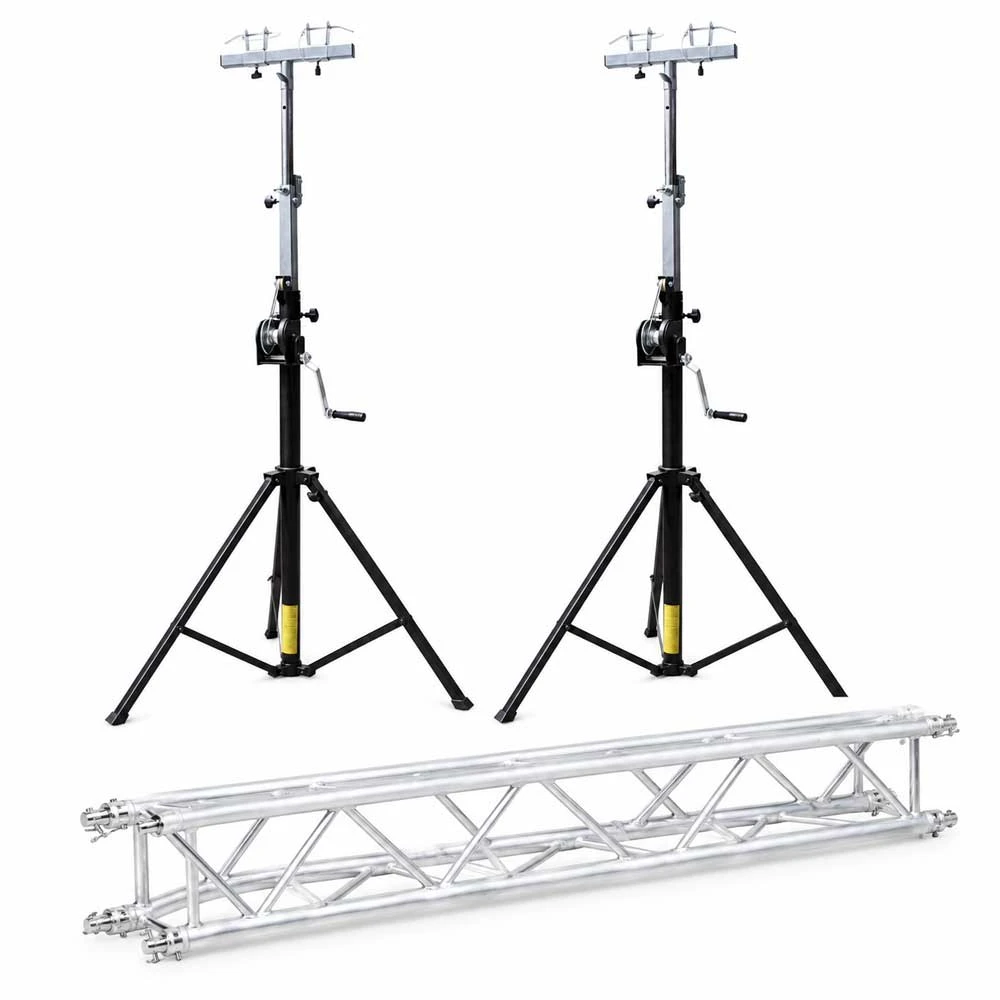

(2) ProX XT-LS132 14 Ft Crank Stands with (1) ProX KT-F34SQ984 9.84 Ft K-Truss Package

Product Description

(2) ProX XT-LS132 14 Ft Crank Stands with (1) ProX KT-F34SQ984 9.84 Ft K-Truss Package

The ProX XT-LS132 Crank Stand and KT-F34SQ984 K-Truss Package from USATRUSS combines two heavy-duty crank stands with one 9.84 ft (3 m) K-Truss segment for compatible display installations, trade show exhibits, DJ booth displays, and other approved non-load-bearing applications. This three-component package provides a coordinated solution for projects that require adjustable-height stands and a square aluminum truss segment.

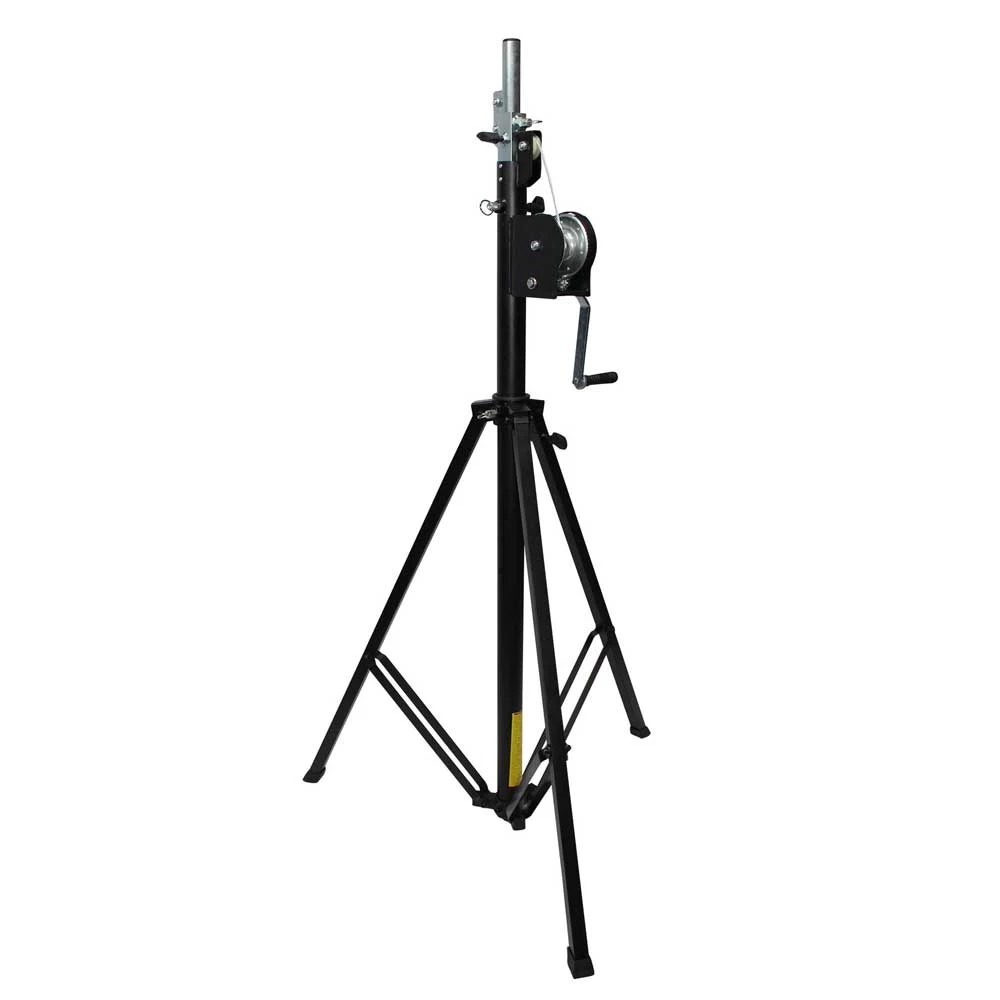

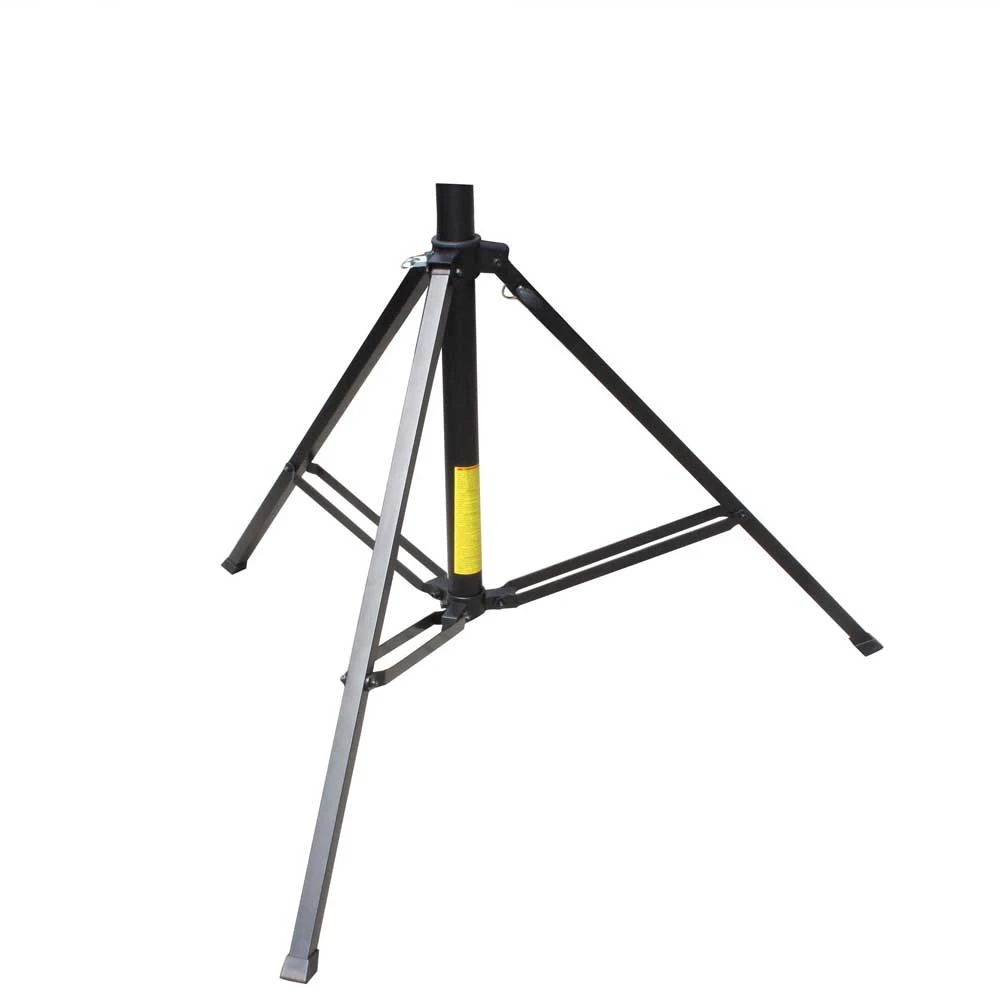

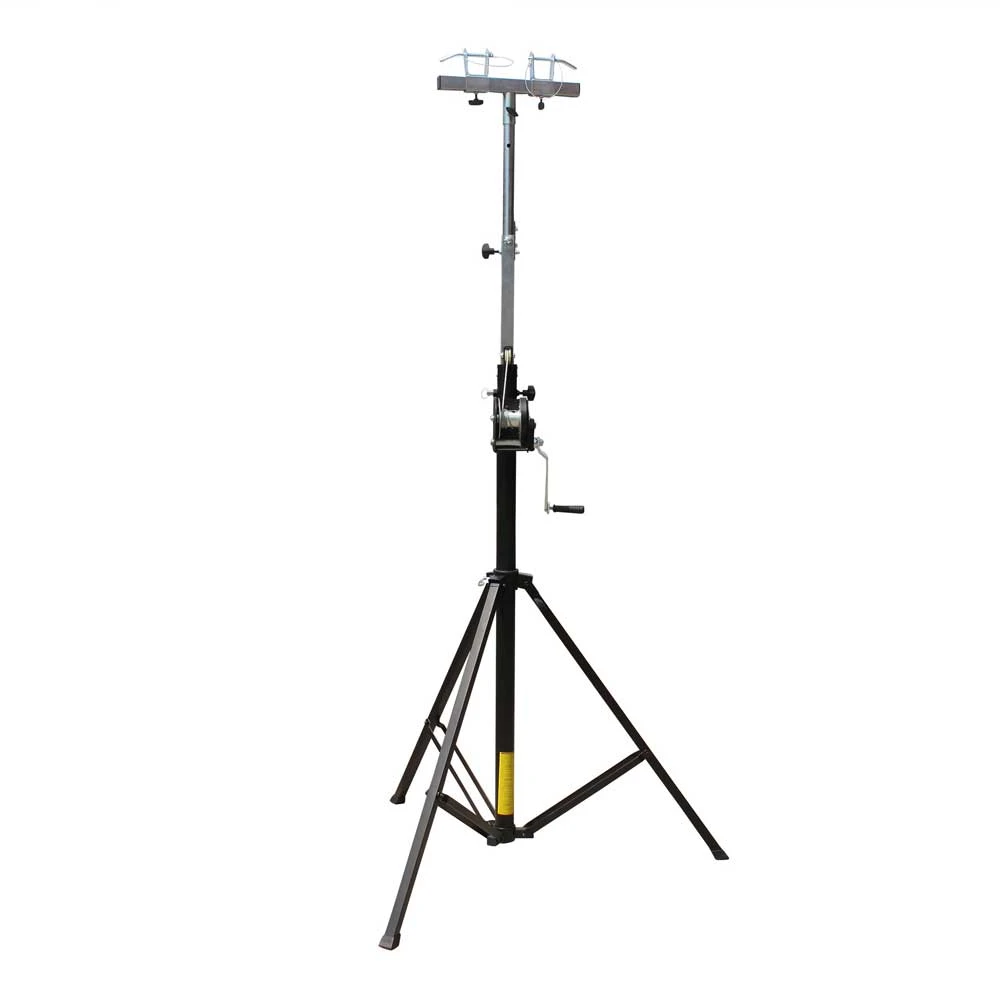

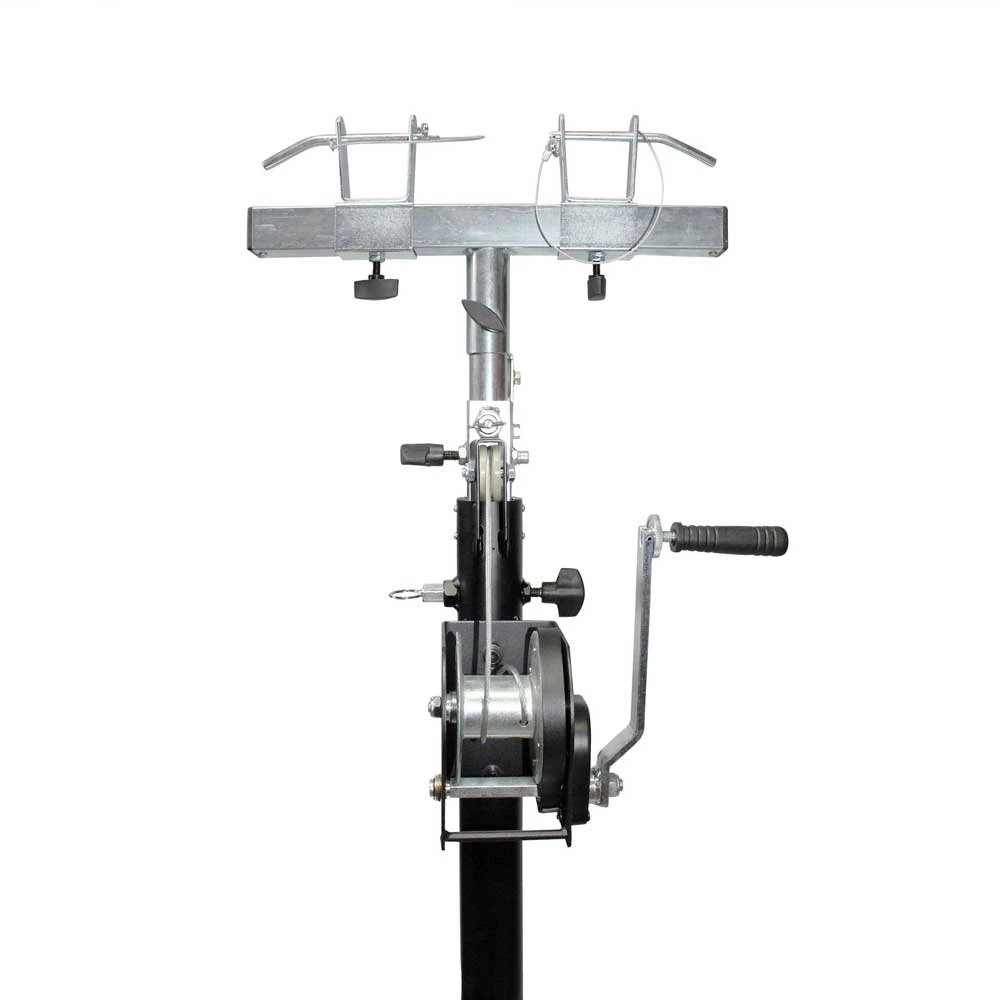

The package includes two ProX XT-LS132 14 ft lighting crank stands. Each stand features steel and aluminum construction, a crank-operated lifting mechanism, adjustable leg braces, nylon-guided leg sliders, and a T-adapter truss mount. The stands offer a maximum height of approximately 14 ft (156 inches), with a manufacturer-rated capacity of 200 lbs per stand when used according to the manufacturer's instructions and approved configurations.

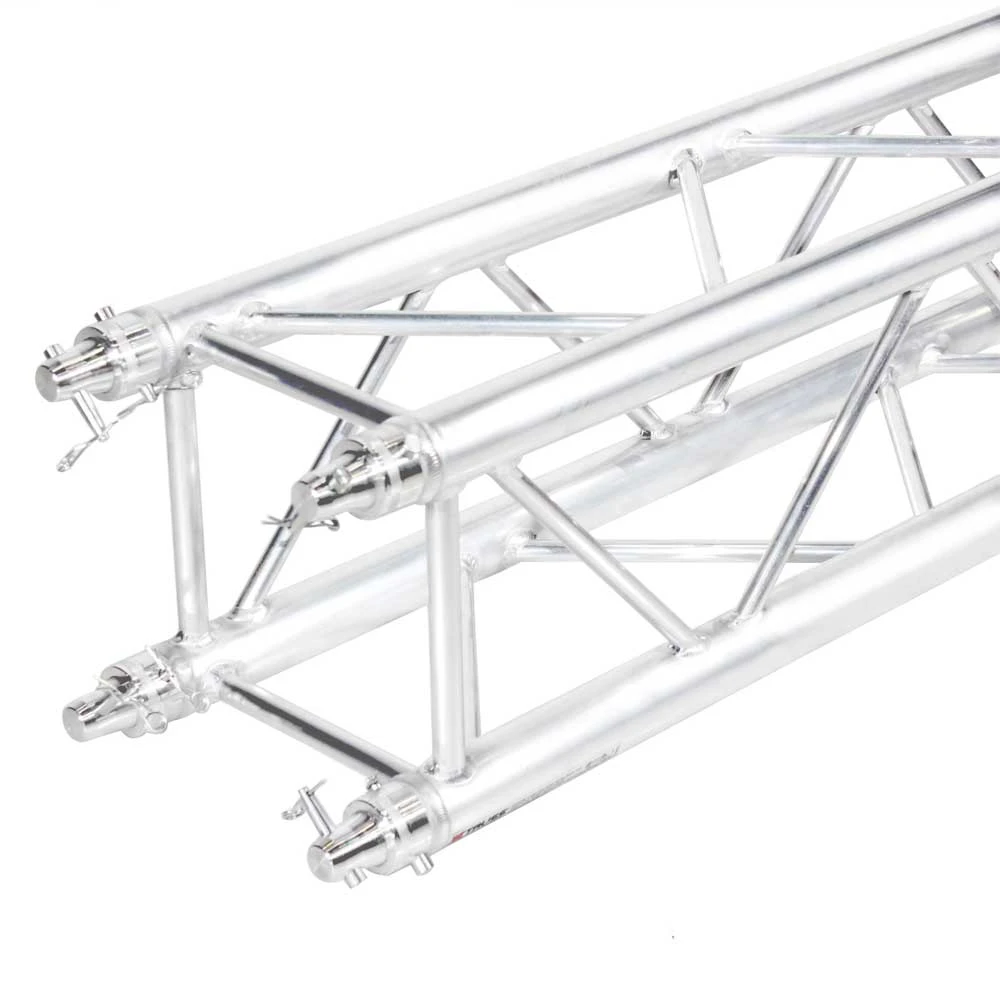

Also included is one ProX KT-F34SQ984 9.84 ft (3 m) K-Truss segment. This economy-grade aluminum truss features a 290 mm x 290 mm square profile, 50 mm main tubes, and 16 mm diagonal braces. Its standard conical connector design supports connections with compatible truss components of the same size and connector style, subject to manufacturer requirements.

The K-Truss segment is designed primarily for display structures and non-load-bearing applications. It has a reduced load chart and must not be treated as a replacement for standard or heavy-duty load-bearing truss. Confirm that the complete configuration is approved for your intended application before installation.

Package Includes

• (2) ProX XT-LS132 14 Ft Heavy-Duty Lighting Crank Stands
• (2) T-adapter truss mounts included with the crank stands
• (1) ProX KT-F34SQ984 9.84 Ft (3 m) K-Truss Aluminum Truss Segment

Key Features

• Three main components in one convenient package.
• Two ProX XT-LS132 crank stands with a maximum height of approximately 14 ft.
• 200 lb manufacturer-rated capacity per stand, subject to the manufacturer's operating requirements.
• Crank-operated height adjustment for controlled raising and lowering.
• Heavy-duty steel and aluminum stand construction.
• Adjustable leg braces and nylon-guided leg sliders.
• T-adapter truss mounts included with both stands.
• One 9.84 ft (3 m) ProX KT-F34SQ984 K-Truss segment.
• 290 mm x 290 mm square truss profile with 50 mm main tubes and 16 mm braces.
• EN-AW T6-6061 aluminum construction for the included K-Truss segment.
• Designed for suitable display structures, trade show exhibits, and approved non-load-bearing applications.

Technical Specifications

• Brand: ProX
• Package configuration: Two crank stands and one K-Truss segment
• Crank stand model: XT-LS132
• Number of crank stands: 2
• Maximum stand height: Approximately 14 ft (156 inches)
• Rated stand capacity: 200 lbs per stand, according to the supplied product specifications
• Stand materials: Steel and aluminum
• Stand adjustment: Crank-operated lifting mechanism
• Included stand accessories: T-adapter truss mounts
• Truss model: KT-F34SQ984
• Number of truss segments: 1
• Truss length: 9.84 ft (3 m)
• Truss profile: 290 mm x 290 mm (11.42 in x 11.42 in)
• Main tube diameter: 50 mm (2 in)
• Truss wall thickness: 1.5 mm
• Diagonal brace diameter: 16 mm (0.63 in)
• Truss material: EN-AW T6-6061 aluminum
• Truss connection type: Standard conical connector system
• Intended truss application: Display and non-load-bearing structures

Applications

• Trade show displays and exhibition booths
• DJ booth display structures
• Event backdrops and visual displays
• Architectural display installations
• Other applications approved for the included components

Important Safety and Compatibility Information

The ProX KT-F34SQ984 K-Truss is an economy-grade truss with a reduced load chart. It is not intended to replace standard or heavy-duty load-bearing truss. The 200 lb rating for each XT-LS132 stand does not establish the allowable capacity of the complete assembled package. Do not use this package to suspend lighting fixtures, overhead equipment, or other loads unless ProX explicitly approves the complete configuration for that application. Review the manufacturer's loading chart, connection requirements, and operating instructions before use. Ensure the stands are positioned on a suitable surface and all required locking mechanisms and safety pins are engaged.

Why Choose This ProX Package from USATRUSS?

This package brings together two height-adjustable ProX crank stands and one 9.84 ft K-Truss segment for convenient purchasing. It is an option for event professionals, DJs, exhibitors, and production teams planning compatible display installations. Contact USATRUSS for assistance confirming component compatibility and choosing the appropriate truss products for your project.

Shop the ProX XT-LS132 Crank Stand and KT-F34SQ984 K-Truss Package at USATRUSS. Visit our Contact USATRUSS page for product assistance and ordering information.

Frequently Asked Questions

What is included in the ProX XT-LS132 and KT-F34SQ984 package?

This package includes two ProX XT-LS132 14 ft crank stands, two T-adapter truss mounts supplied with the stands, and one ProX KT-F34SQ984 9.84 ft (3 m) K-Truss segment.

How tall are the ProX XT-LS132 crank stands?

Each XT-LS132 stand has a maximum height of approximately 14 ft (156 inches). Follow the manufacturer's setup instructions and safety requirements when adjusting the stand height.

What are the dimensions of the included ProX K-Truss?

The KT-F34SQ984 measures 9.84 ft (3 m) long and features a 290 mm x 290 mm square profile, 50 mm main tubes, and 16 mm diagonal braces.

Can this package be used to suspend lighting equipment?

The included KT-F34SQ984 is designed primarily for display and non-load-bearing applications. Do not use this package to suspend lighting or other overhead equipment unless the manufacturer explicitly approves the complete configuration for that purpose. The stands' individual 200 lb ratings do not determine the load capacity of the assembled package.

Where can I buy the ProX XT-LS132 and KT-F34SQ984 package?

You can purchase the package from USATRUSS. Visit our Contact USATRUSS page for product information and ordering assistance.
