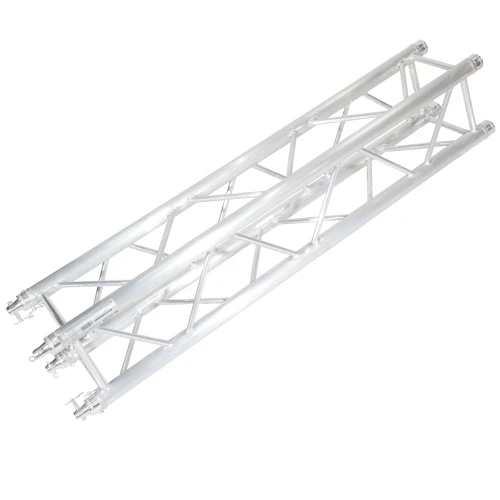

ProX KT-F34SQ984  ProX KT Series F34 Aluminum Truss | 1.5mm Wall is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ Totems, architectural non-loadbearing designs, and much more.  The ProX KT-F34SQ984  is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.

KT-F34 SERIES DIMENSIONS:

• Width: 11.42in / 290mm
• Height: 11.42in / 290mm
• Main Tube: 2in / 50mm
• Wall Thickness:  .06in / 1.5mm
• Braces:  .63in / 16mm

Features

• Compatible in SIZE ONLY w/most major brands F34 Box Square Truss
• Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments!
• Tolerance Free Standard Conical connector
• Material: EN-AW T6-6061 Aluminium Display Grade Quality
• Constructed to the highest quality by certified welders
• K Series Trussing is an Economy Light-Structural Product primarily designed for display structures.
• The K-Truss™ load capacity is 75% of the 2mm SQ series.
• Engineering Drawings and Design Copyright © 2019 by ProX Live Performance Gear®
