ProX XT-SQ328BLK 3.28ft F34 Black Square Truss Segment

Product Description

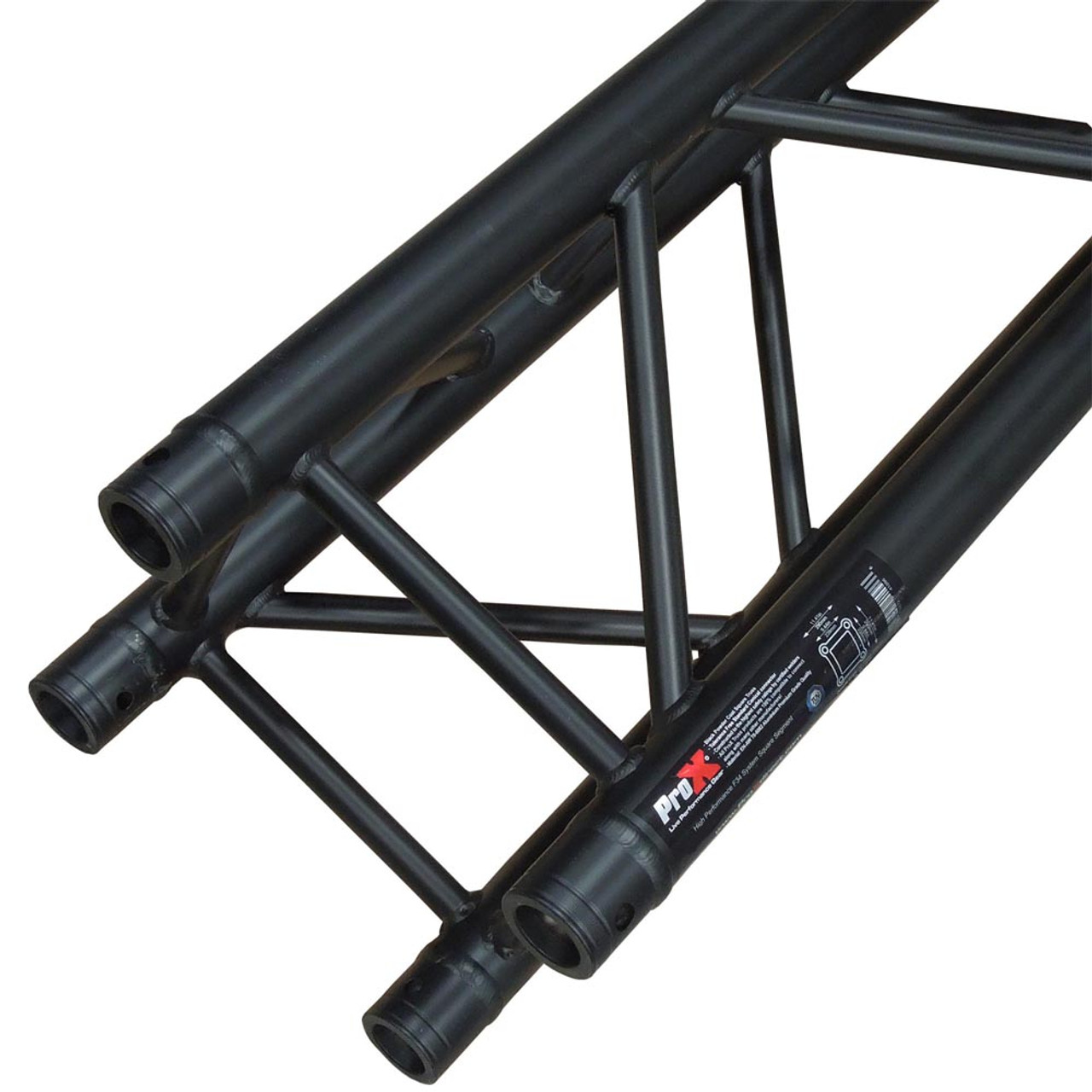

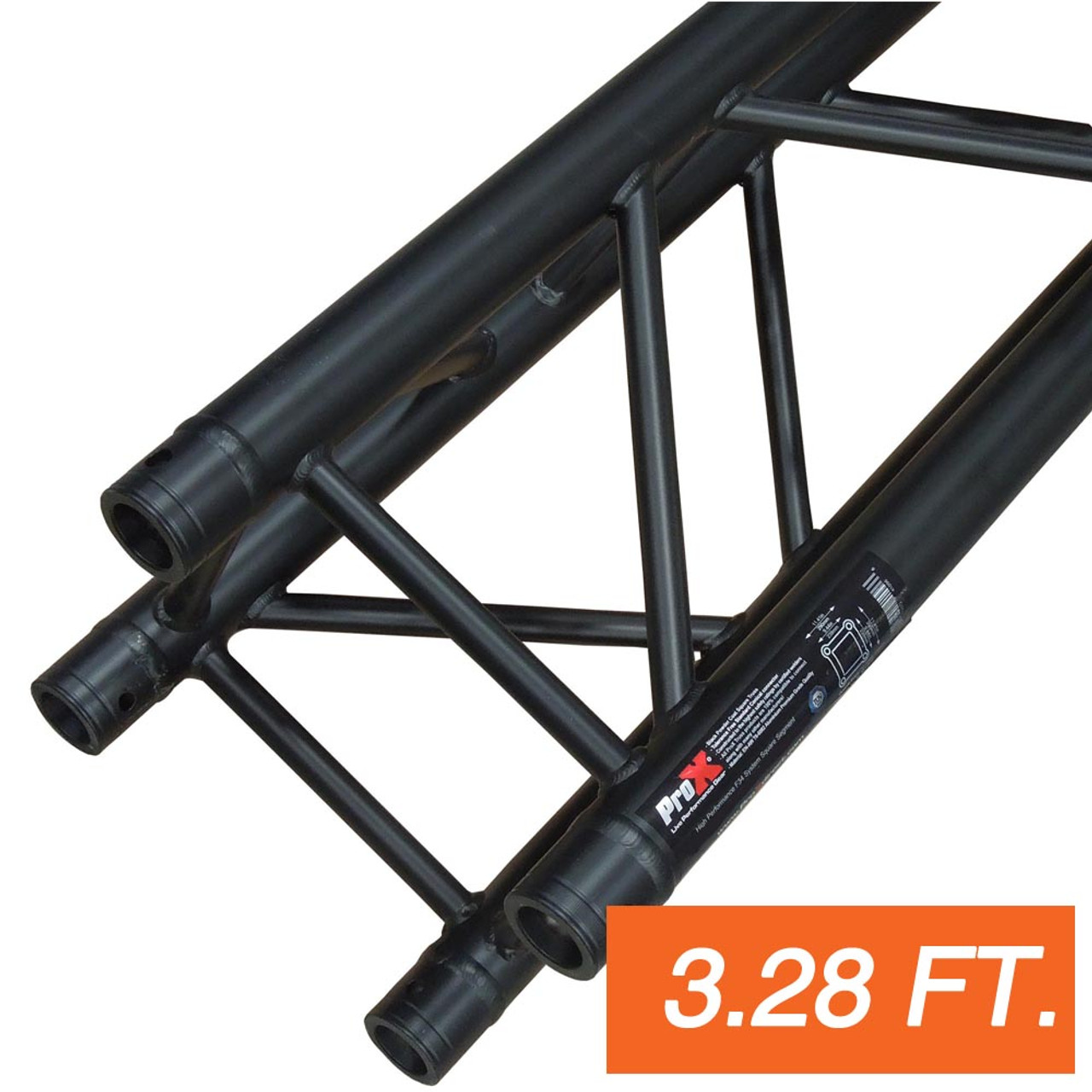

ProX XT-SQ328BLK 3.28ft F34 Square Truss Segment – Black Powder Coated

The ProX XT-SQ328BLK | 2mm Wall Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors, and accessories that add stability while expanding on limitless design configurations.

Powder coating provides a stronger finish that is more resistant to damage than paint!  Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display.  Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

ProX Goes Green - Unlike many liquid paints, powder coatings offer a smaller carbon footprint which reduces the adverse effects on the environment.  Powder coatings contain no solvents and release little or no amount of Volatile Organic Compounds (VOC) into the atmosphere!

• Tolerance Free Conical Connector System
• Main tube wall thickness of .08in (2mm)
• ProX Heavy-Duty Connector Sockets

XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm
• Actual Height: 3.28 ft (1 Meter) Square Truss Segment
• Actual Weight: 19 lbs
• Includes connecting hardware set.

Features

• Manufactured in our Own Factory!
• Material: EN-AWT6 6082 Aluminum
• 2mm Wall Thickness
• TUV Certified Aluminium Welding
• Black Powder Coated

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

 ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers' F34 trussing products.

Specifications:

To Fit

• Standard F34 Trussing Systems

Dimensions

• 11.42"L x 11.42"W x 39.36"H
• Weight: 19.00 lbs

Shipping Dimensions

• 12.00"L x 12.00"D x 40.00"H
• Shipping Weight: 20.00 lbs

Frequently Asked Questions

What is the ProX XT-SQ328BLK F34 3.28ft Black Square Truss Segment?

The ProX XT-SQ328BLK is a 3.28ft (1.00m) F34 square truss segment designed for professional stage, lighting, and event structures. It provides a strong and reliable solution for creating custom truss systems.

Is the ProX XT-SQ328BLK compatible with F34 truss systems?

Yes, the ProX XT-SQ328BLK is designed for standard F34 square truss configurations and uses a conical connector system for connecting compatible truss components.

Where can the ProX XT-SQ328BLK truss segment be used?

This black F34 truss segment is ideal for concerts, DJ setups, stage lighting, theaters, exhibitions, live productions, and permanent entertainment installations.

What are the key features of the ProX XT-SQ328BLK?

The ProX XT-SQ328BLK features durable EN-AWT6 6082 aluminum construction, a black powder-coated finish, 2mm wall thickness, heavy-duty connector sockets, and includes a connecting hardware set for easy installation.

Why choose the ProX XT-SQ328BLK F34 Black Square Truss Segment?

The ProX XT-SQ328BLK offers professional-grade strength, reliable connections, and a sleek black finish, making it an excellent choice for building flexible and dependable stage and event truss structures.
