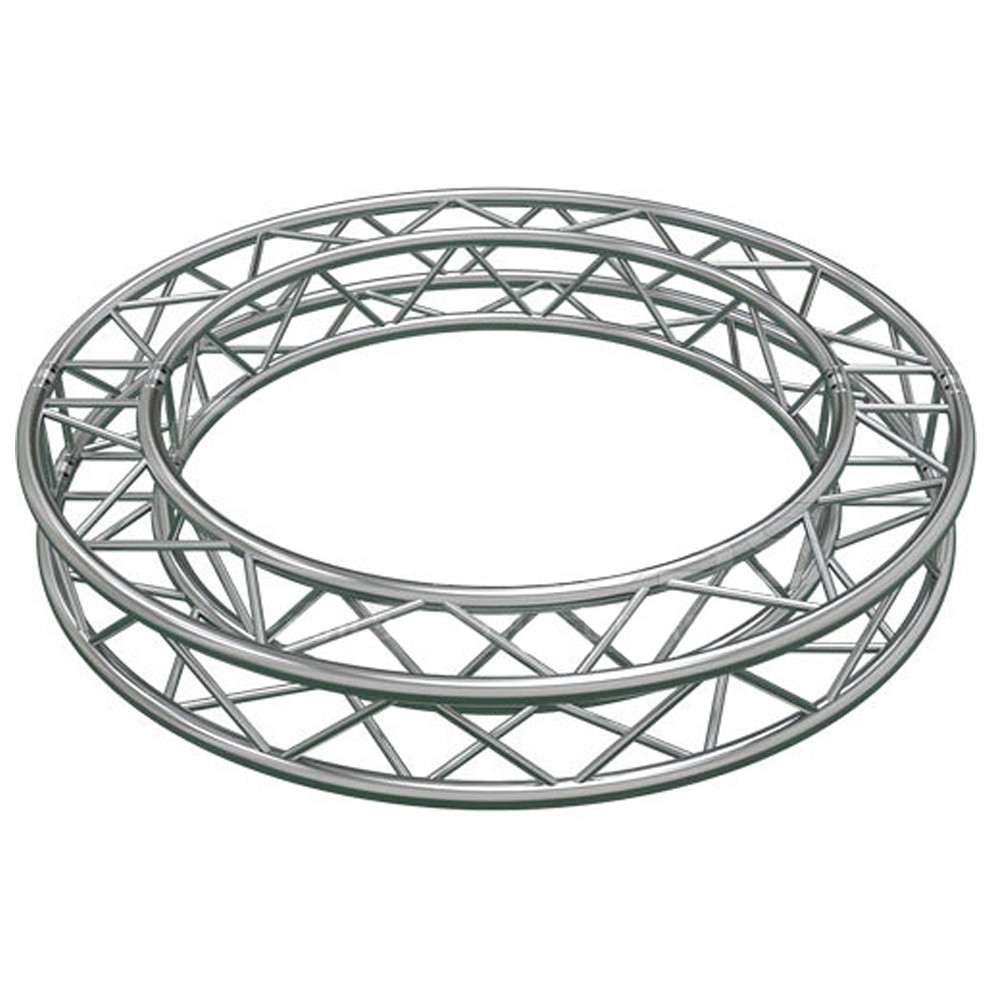

Global Truss SQ-C10-30 F34 32.8ft Circle Truss System

Product Description

Global Truss SQ-C10-30 F34 32.8ft Circle Truss System

The Global Truss SQ-C10-30 F34 Circle Truss System is a heavy-duty 10M (32.8ft) professional circular truss designed for large-scale stage productions, concerts, exhibitions, and event installations. Built from high-strength aluminum, it delivers maximum durability, stability, and F34 system compatibility.

• Outside Diameter: 32.8 ft (10 m)
• Inside Diameter: 30.9 ft
• Overall Width: 11 7/16 in (290 mm)
• Main Tubing Diameter: 2 in (50 mm) high-strength aluminum
• Diagonal Bracing: 3/4 in (20 mm) reinforced support
• Wall Thickness: 0.08 in (2 mm) heavy-duty construction
• Kit Includes: 12 × SQ-C10 ARC30 curved truss sections
• Unit Weight: 190.5 kg (420 lbs)

Frequently Asked Questions (FAQ) – Global Truss SQ-C10-30 F34 32.8ft Circle Truss System

What is the Global Truss SQ-C10-30 used for?

The Global Truss SQ-C10-30 F34 circle truss system is used in concerts, exhibitions, stage productions, and large events to create a strong 360° overhead rigging and lighting structure.

What size circle does the SQ-C10-30 truss form?

It forms a full 32.8 ft (10 m) diameter circular truss, making it ideal for large venues requiring wide, symmetrical stage designs and central rigging setups.

How is the SQ-C10-30 circle truss assembled?

The system is assembled using 12 precision 30-degree curved F34 truss sections that connect together to create a complete and balanced circular structure.

Is the SQ-C10-30 compatible with other F34 truss systems?

Yes, it is fully compatible with Global Truss F34 straight and corner truss components, allowing flexible integration into existing stage and rigging systems.

Can lighting and LED equipment be mounted on this truss?

Yes, it is designed for professional rigging of lighting fixtures, LED screens, speakers, and event production equipment when properly load-calculated and installed.
