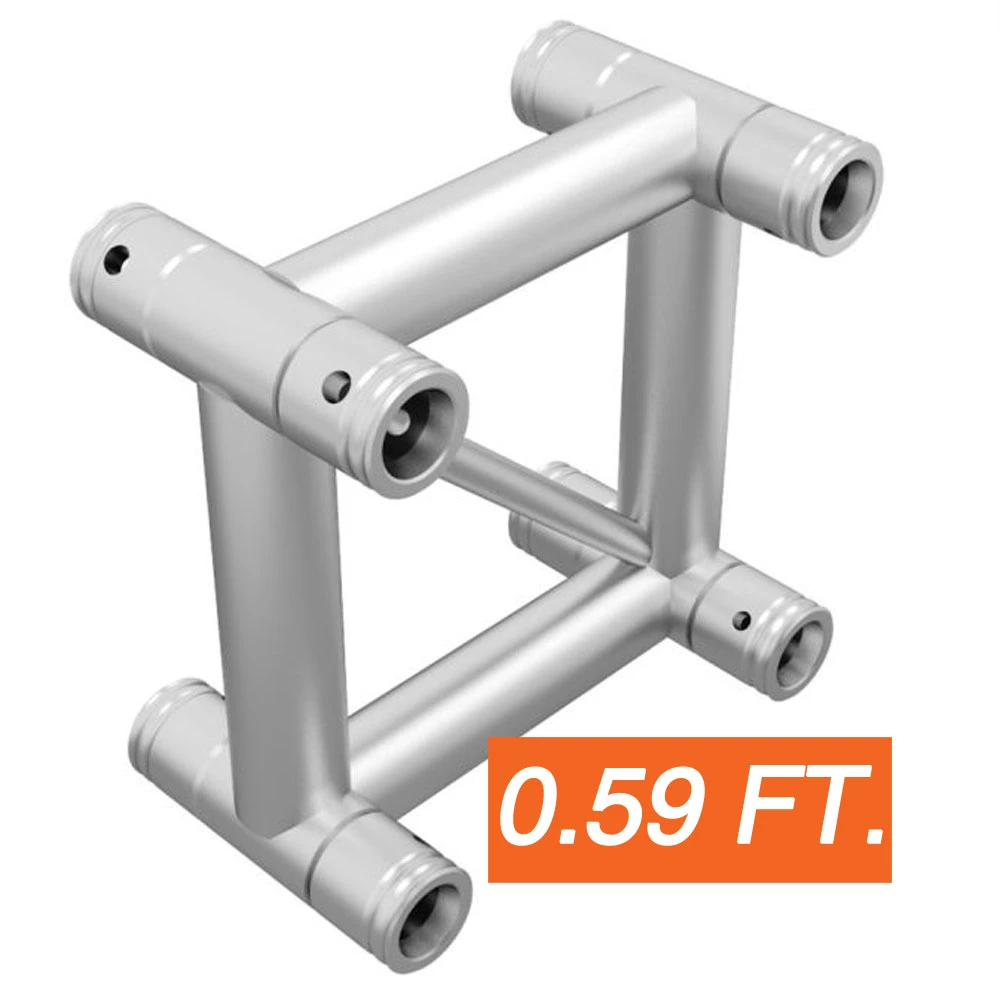

Global Truss SQ-2918P 0.59ft F34 Square Truss Segment

Product Description

The Global Truss SQ-2918P is a compact F34 square truss segment designed for professional stage, event, lighting, exhibition, and entertainment production applications. Measuring 0.59 ft (180 mm / 7.08 in) in length with a 290 mm (11 7/16 in) square profile, this short truss section is useful when precise dimensions are required for modular F34 truss configurations.

As part of the Global Truss F34 Square Truss system, the SQ-2918P features 50 mm (2 in) tubing with a 2 mm wall thickness and 20 mm (0.79 in) diagonal bracing with a 2 mm wall thickness. The truss is manufactured from EN-AW 6082 T6 aluminum and weighs approximately 10.34 lb (4.69 kg).

Its compact 180 mm length makes the SQ-2918P particularly useful when a short F34 truss section is needed to achieve a specific overall dimension or configuration.

Key Features

• Global Truss F34 Square Truss segment
• 0.59 ft / 180 mm / 7.08 in overall length
• 290 mm / 11 7/16 in square profile
• 50 mm / 2 in main tubing
• 2 mm main tube wall thickness
• 20 mm / 0.79 in diagonal bracing
• 2 mm diagonal brace wall thickness
• EN-AW 6082 T6 aluminum construction
• 10.34 lb / 4.69 kg unit weight
• Designed for professional stage and event truss applications
• Compact segment for precise F34 truss configurations
• Short straight section for specialized F34 layouts

Technical Specifications

• Brand: Global Truss
• Model: SQ-2918P
• Truss Series: F34 Square Truss
• Component Type: Straight Segment
• Overall Length: 0.59 ft / 180 mm / 7.08 in
• Overall Width: 290 mm / 11 7/16 in
• Main Tube Diameter: 50 mm / 2 in
• Main Tube Wall Thickness: 2 mm
• Diagonal Bracing: 20 mm / 0.79 in
• Diagonal Brace Wall Thickness: 2 mm
• Material: EN-AW 6082 T6 Aluminum
• Unit Weight: 10.34 lb / 4.69 kg

Where Can You Use the SQ-2918P?

The Global Truss SQ-2918P can be incorporated into professional stage and event truss systems for lighting structures, entertainment production, exhibitions, trade shows, displays, and other applications requiring an F34 square truss configuration.

Because it measures only 0.59 ft (180 mm / 7.08 in) in length, this short F34 truss segment can be useful when a project requires precise dimensional adjustments or a compact straight section within a modular truss configuration.

Why Choose the Global Truss F34 System?

The Global Truss F34 Square Truss system is a 290 mm square truss format designed for professional entertainment and event applications. The SQ-2918P features 50 mm tubing, 20 mm diagonal bracing, and 2 mm wall thickness for both the main tubing and diagonal braces, providing a compact straight-section option within the F34 product range.

Constructed from EN-AW 6082 T6 aluminum, the SQ-2918P is part of the Global Truss F34 range, which includes multiple straight-segment lengths along with corners, junctions, and other components for modular truss configurations.

Buy Global Truss SQ-2918P from USATRUSS

Order the Global Truss SQ-2918P 0.59ft F34 Square Truss Segment from USATRUSS. We specialize in professional stage and event truss systems and offer Global Truss products to customers across the United States.

Need help selecting the right F34 truss components for your project? Our team can help you choose the right truss sections and components for your application. Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the Global Truss SQ-2918P?

The Global Truss SQ-2918P is a compact F34 square truss segment measuring 0.59 ft (180 mm / 7.08 in) in length and designed for professional stage, event, lighting, exhibition, and entertainment applications.

What are the dimensions of the SQ-2918P?

The SQ-2918P has an overall length of 0.59 ft (180 mm / 7.08 in) and an overall square profile of 290 mm (11 7/16 in).

What tubing and bracing does the SQ-2918P use?

The SQ-2918P uses 50 mm (2 in) main tubing with a 2 mm wall thickness and 20 mm (0.79 in) diagonal bracing with a 2 mm wall thickness.

Is the SQ-2918P part of the Global Truss F34 system?

Yes. The Global Truss SQ-2918P is part of the F34 Square Truss straight-segment range and provides a compact 180 mm straight section for modular F34 truss configurations.

Where can I buy the Global Truss SQ-2918P?

The Global Truss SQ-2918P is available through USATRUSS, a U.S. supplier of professional stage and event truss systems. Contact USATRUSS or call 1-800-856-8397 for product assistance.
