Product Description

ProX XT-BTBP36A

ProX XT-BTBP36A 30 Inch Aluminum BoltX Base Plate for Standard 12-16 Inch Bolted or F34 Box Truss

ProX XT-BTBP36A BoltX™ Professional Box Truss Base Plate is designed and engineered for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses. Setting ourselves apart from other box truss manufacturers BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends.

The XT-BTBP36A mates perfectly with the BoltX™ Truss sections. Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups. The base plate has four hand holes for easy lifting and carrying. The plate is drilled for an offset position and has a slotted X for quick center mounting.

Compatible with most other 12" Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern. Each base plate includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.

Features

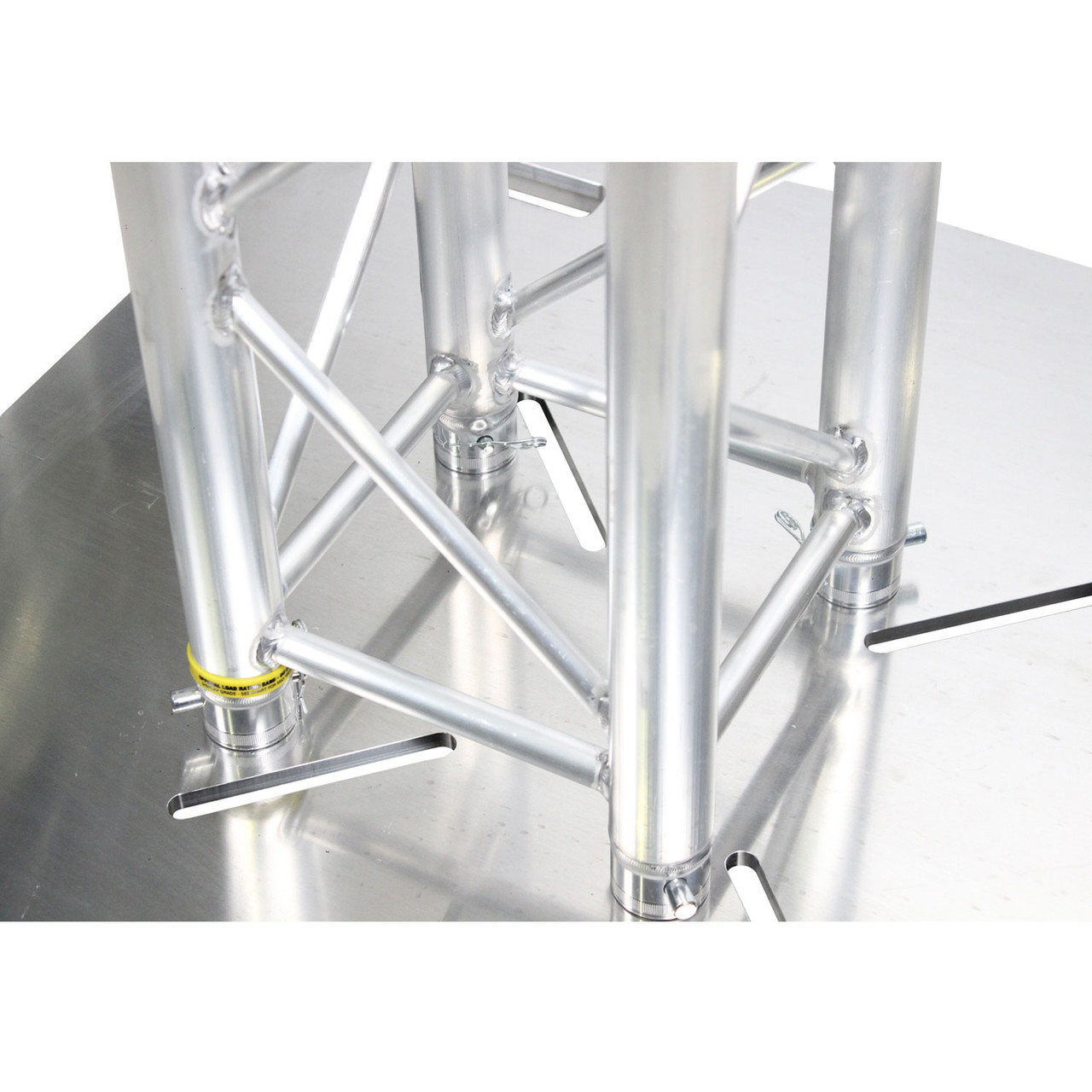

• Mates to 12x12" / 16x16" / F34 Professional Box Truss.

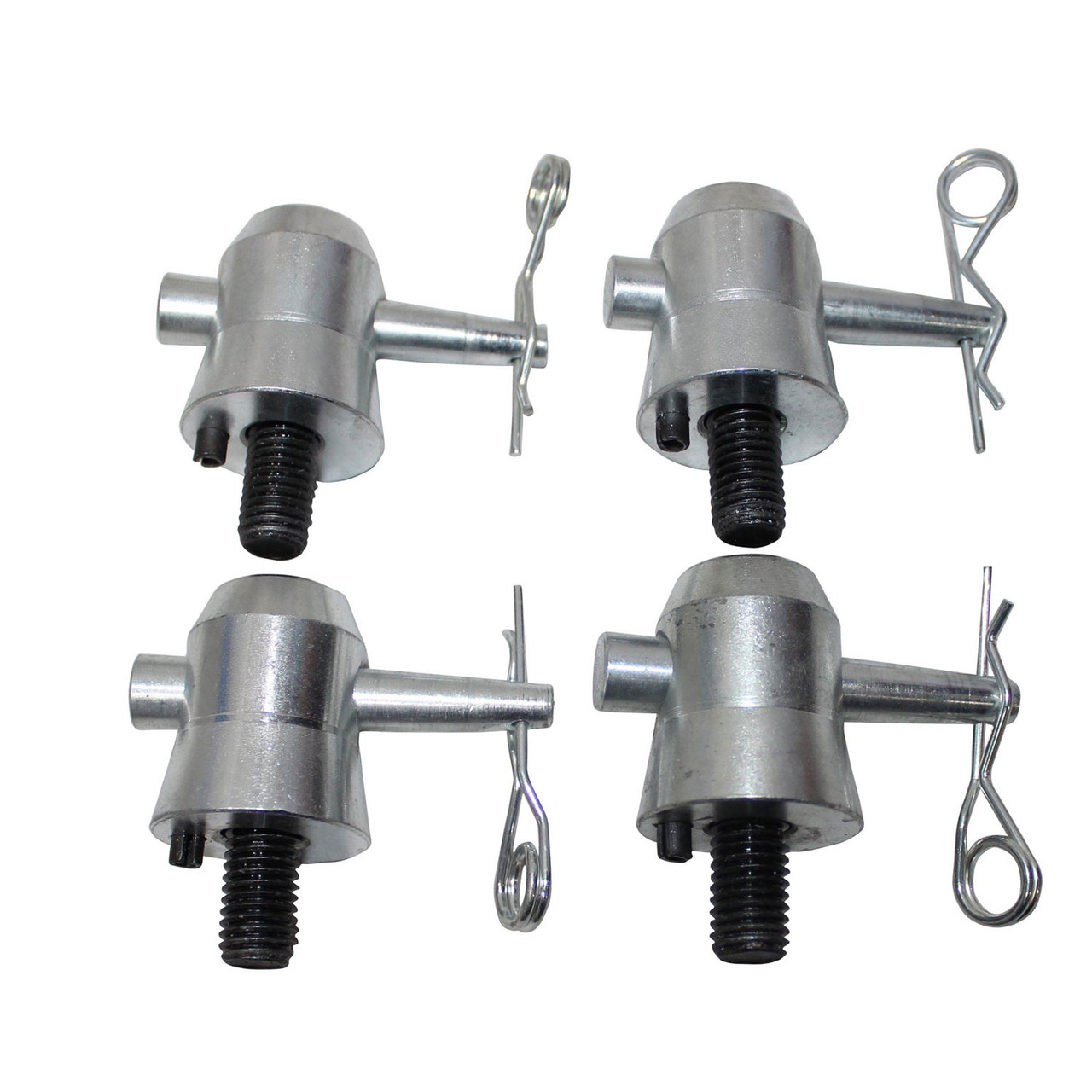

• Also Drilled to Fit F34 Trussing (Conical Connectors Included)
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes

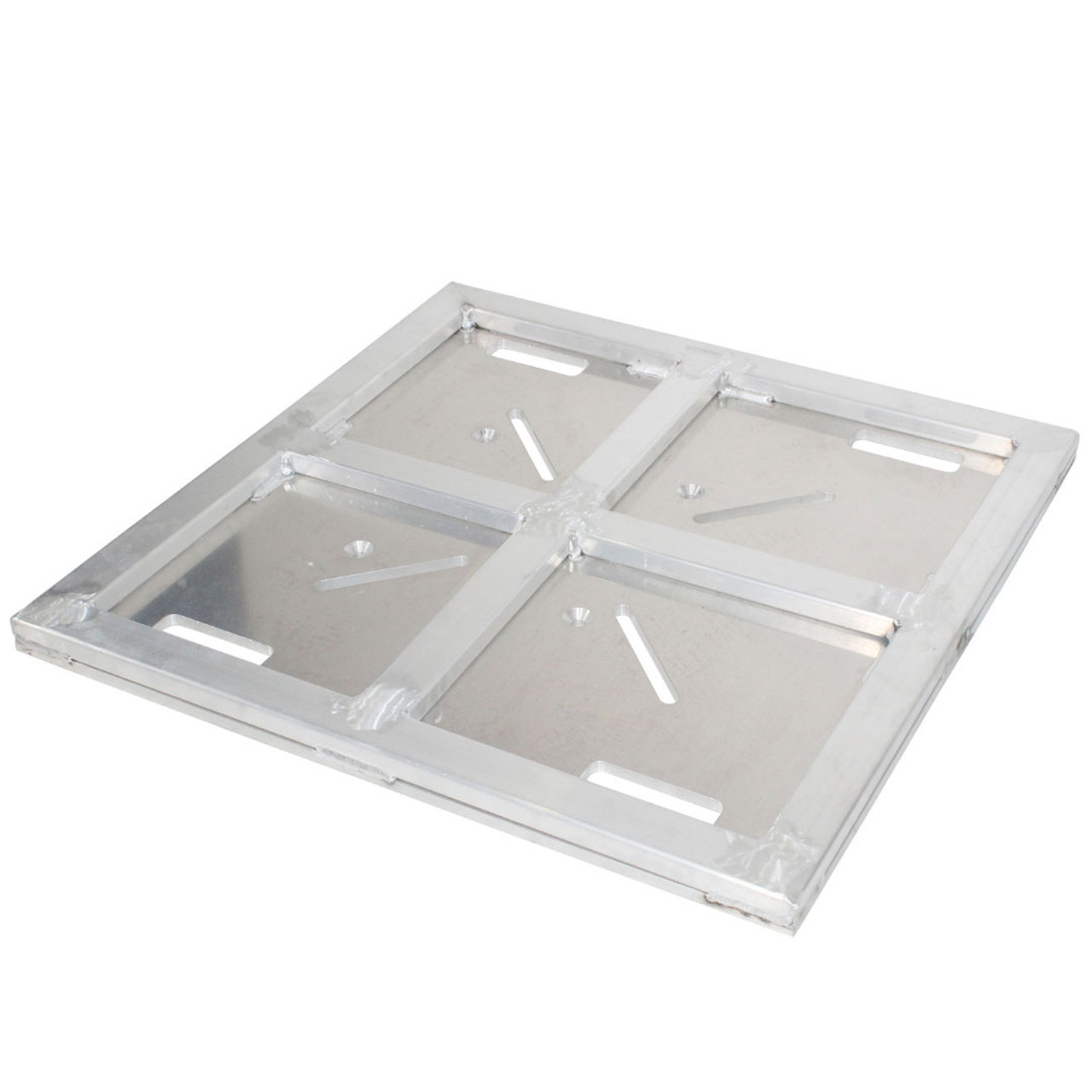

• Four Convenient Hand Holes for Lifting
• Slotted and Drilled for Easy Mounting
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12" Professional Box Truss Manufacturers
• Aluminum 1/2" Plate welded to 1" x 1.5" Solid Aluminum Extrusions for ultimate strength
• Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
• Finish: Natural aluminum

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX BoltX™ Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers 12 In. Bolted Box trussing products.

Specification

• Exterior Dimensions & Weight: 2.00"H x 35.00"W x 35.00"L - Weight: 68.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 3.00"H x 37.00"W x 37.00"L - Shipping Weight: 70.00 lbs
• Suggested Shipping Method: Parcel
