Product Description

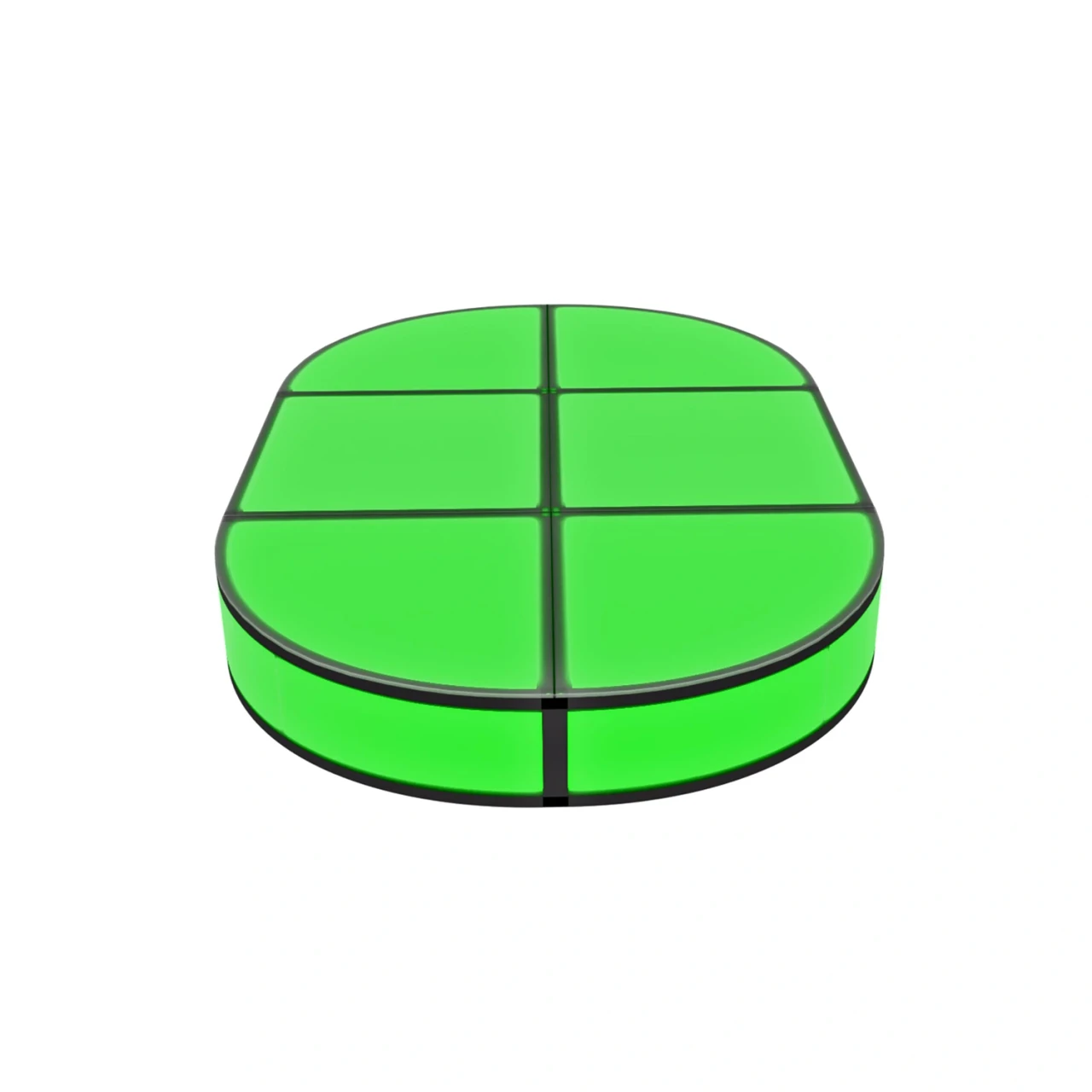

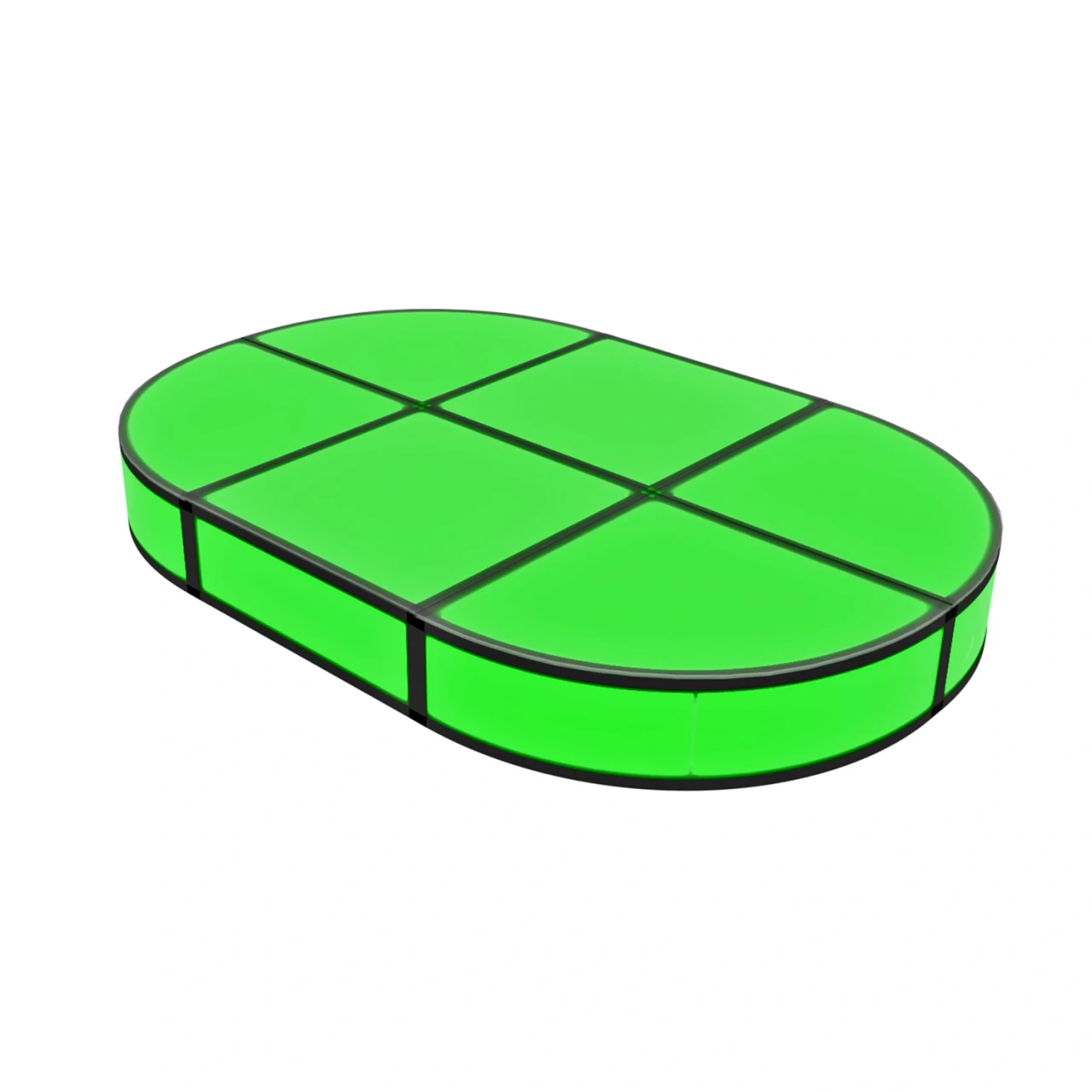

ProX XSAP-6X4-8RC LUMOStage LED Acrylic Stage Riser

6X4 ft - 8" Curved Platform ProX LUMOStage™ Modular Illuminated Acrylic Stage Platform System with Interlocking Cube Sections

Introducing the ProX LUMOStage™, a modular illuminated acrylic stage platform system built for production professionals, DJs, event designers, and entertainers who want a setup that transforms any space into an immersive visual experience. Constructed from high quality translucent white acrylic, the LUMOStage™ system is purpose built to house your own lighting inside each cube section, turning your stage, dance floor, or riser into a full color glowing centerpiece that commands attention from every corner of the room.

Acrylic Construction Every LUMOStage™ panel is crafted from durable, high quality white translucent acrylic that withstands the demands of live events while remaining easy to clean and maintain. The translucent surface diffuses light evenly across the top and through the side panels, creating a smooth and consistent glow edge to edge across your entire build. Each panel includes a 0.40 inch (10mm) thick top acrylic surface along with two side panels.

Safe Working Load Each LUMOStage™ cube is rated at a safe working load of 300 lbs evenly distributed, making it a dependable surface for dancers, performers, and equipment alike.

Open Base Design with Pre-Cut Cable Routing The underside of each cube is open, with the exception of the internal support structure, giving you direct access for wiring and lighting installation. A pre-cut hole for power cable routing is built into each unit, allowing you to run cables cleanly in and out without cutting or modifying the panels yourself. The color your stage becomes is entirely determined by the lighting you choose, giving you complete creative control over the look and feel of your build.

Modular 2 x 2 ft Panel System Each LUMOStage™ cube measures 2 x 2 ft and connects directly to additional units, allowing you to scale your build in any direction. Whether you are creating a compact DJ riser, a multi section dance floor, a drum riser, or a fully custom shaped platform, the system adapts to the footprint your event requires. Interior security clamps are included with each unit and keep every connected section locked firmly in place. Each unit connects to the next using a secure interlocking mechanism that keeps the entire platform locked together as one solid surface, preventing shifting or separation during live use.

Multiple Configuration Options Connect units side by side to expand your floor space, stack compatible heights to create tiered multi-level builds, or combine straight and curved panels to shape a platform that fits your venue perfectly. The LUMOStage™ system is suitable for both indoor and outdoor use, making it a versatile addition to any production inventory. Ideal applications include disco clubs, party halls, lounges, weddings, trade shows, retail displays, DJ setups, drum risers, and home entertainment spaces.

Important Safety Note The acrylic surface of the LUMOStage™ can become very slippery when wet. To minimize the risk of slipping while preserving the look and lighting performance of your build, we recommend applying a professional clear grip tape to the surface. Clear grip tape maintains the visual integrity of the acrylic and does not interfere with light diffusion or the overall aesthetics of your setup, while providing a meaningful improvement in surface traction during use.

Scalable by Design The LUMOStage™ system is built to grow with you. Every panel, height variant, and curved piece is designed to work together as one cohesive system. The specific piece count and height configuration included in this package are listed below in the features section.

Features

• Modular 2 x 2 ft translucent white acrylic cube platform sections connect together for unlimited configuration options
• Two 8 inch square platforms
• Four curved quarter panels in 8 inch height for smooth, polished stage edges
• 0.40 inch (10mm) thick top acrylic surface built for durability and consistent light diffusion
• Safe Working Load: 300 lbs evenly distributed per panel
• Full perimeter illumination translucent acrylic diffuses light evenly across top surface and all side fascia panels
• Pre-cut hole for clean power cable routing in and out of each cube section
• Open underside base design for easy internal lighting and wiring installation
• Interior security clamps included lock connected units firmly in place
• Secure interlocking connection mechanism keeps all connected units locked together as one solid, stable surface during live use
• Each unit includes top panel and (2) side panels
• Supports personal LED lighting installation inside each cube for full color customization (lighting sold separately)
• Suitable for indoor and outdoor use
• Easy setup and breakdown with no permanent installation required
• Ships unassembled for efficient packaging and transport
• Scalable system every panel and variant works together as one cohesive platform
• Ideal for disco clubs, party halls, lounges, weddings, trade shows, retail displays, DJ setups, drum risers, and home entertainment

Package Contents

• XSA-2X2-8 (2) LumoStage 8" High Acrylic Platform Cube - LED Light Box Section
• XSA-2X2-8QR (4) LumoStage 8" High Quarter Round Acrylic Cube - LED Light Box Section

Exterior Dimensions & Weight

• XSA-2X2-8 (2): 4.50"H x 24.00"W x 24.00"L - Weight: 22.00 lbs

Shipping Dimensions & Weight

• Box 1 of 2: XSA-2X2-8QR (4 boxes) 9.00"H x 24.50"W x 25.00"L - Shipping Weight: 22.00 lbs
• Box 2 of 2: XSA-2X2-8 (2 boxes) 5.50"H x 25.00"W x 25.00"L - Shipping Weight: 24.00 lbs

• Suggested Shipping Method: Parcel

Frequently Asked Questions - FAQ

What is the ProX XSAP-6X4-8RC?
A: The ProX XSAP-6X4-8RC is a 6' x 4' modular LUMOStage™ acrylic stage platform designed for illuminated DJ and event setups.

What does "8RC" mean?
A: It features an 8-inch stage height with rounded corner (RC) panels for a finished curved appearance.

Can I add LED lighting inside the platform?
A: Yes. The translucent acrylic panels are designed to work with compatible LED lighting for an illuminated stage effect.

Is the XSAP-6X4-8RC expandable?
A: Yes. LUMOStage™ is modular, so you can connect additional panels to create larger stage layouts.

Does the stage include cable routing?
A: Yes. Built-in cable-routing holes help keep power and lighting cables neatly hidden inside the platform.

Does the ProX XSAP-6X4-8RC ship assembled?
A: No. The platform ships unassembled for easier transport and is assembled on-site.
