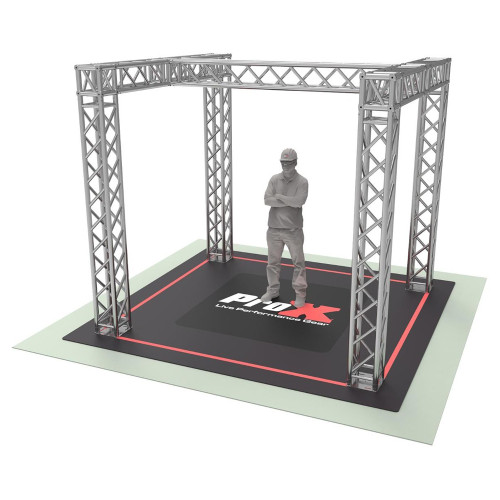

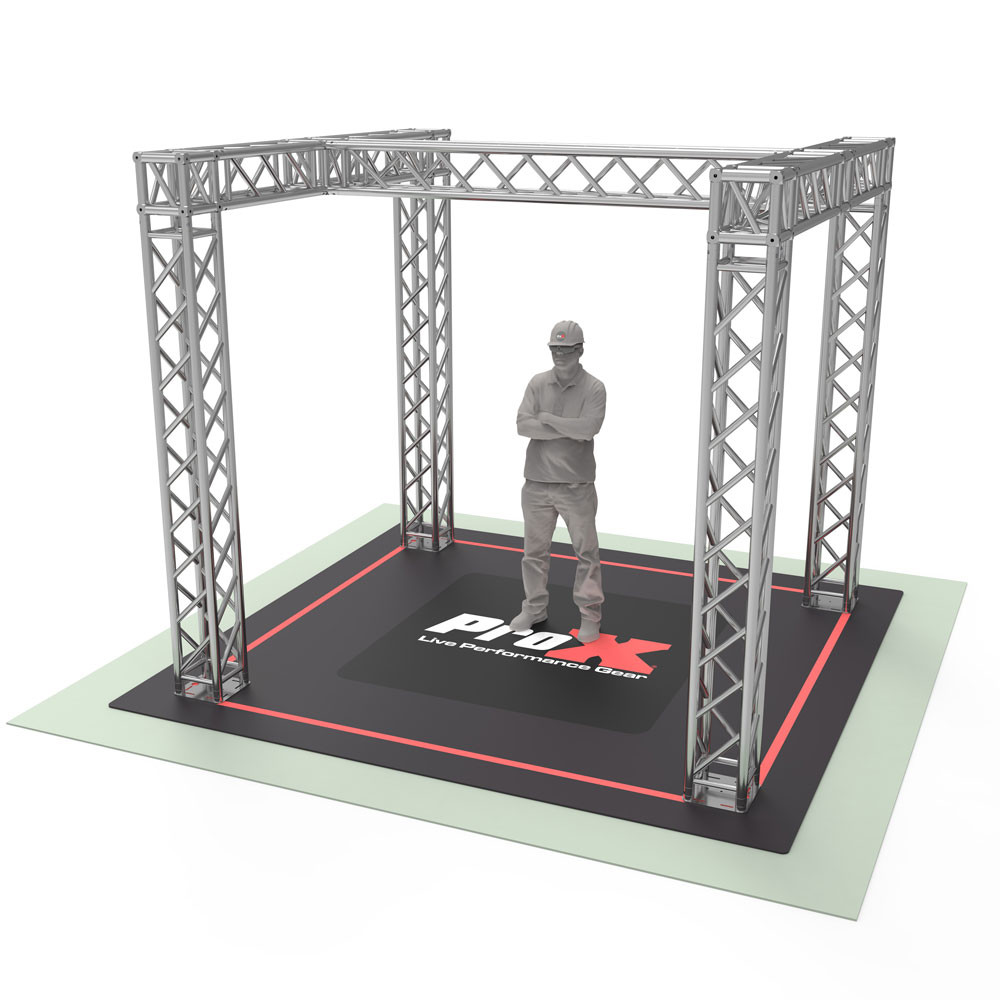

ProX KTP-E1099H 9.42' x 9.42' x 9.20' H-Shape Trade Show Booth

Product Description

The ProX KTP-E1099H is a complete K-Series light-duty truss trade show booth measuring 9.42 ft W x 9.42 ft L x 9.20 ft H and featuring an H-shape design in the center. This modular truss system is ideal for trade show booths, exhibitor displays, kiosks, DJ booths, pop-up shops, retail spaces, concerts, live performances, speeches, church gatherings, and other event applications.

Built by ProX Truss, the KTP-E1099H provides a rugged yet lightweight staging support solution designed for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, and permanent installations. The K-Series truss system combines a professional appearance with a flexible design for small to medium temporary booths and trade show displays.

The ProX KTP-E1099H features an H-shape configuration that creates a distinctive center design for exhibition and event setups. ProX offers a wide range of temporary booth and trade show solutions for indoor and outdoor events, with custom DJ and production set projects supported by its engineering and design team.

ProX Truss products are designed to connect with compatible trussing from many other manufacturers. ProX states that its trussing is constructed to high safety standards by certified welders, providing a reliable solution for professional staging and display applications.

Key Features

• ProX K-Series light-duty F34 aluminum truss system
• 9.42 ft W x 9.42 ft L x 9.20 ft H overall booth dimensions
• H-shape design in the center
• Rugged yet lightweight trussing solution
• Designed for small to medium temporary booths and trade show displays
• Ideal for trade show booths and exhibitor displays
• Suitable for kiosks, pop-up shops, and retail spaces
• Suitable for DJ booths and mobile production setups
• Ideal for concerts and live performances
• Suitable for speeches and church gatherings
• Designed for indoor and outdoor event applications
• Modular truss system for flexible configurations
• Compatible with many other manufacturers' trussing when connection specifications match
• Constructed to high safety standards by certified welders

Technical Specifications

• Brand: ProX
• Model: KTP-E1099H
• Series: K-Series
• Truss Type: F34 Square Truss
• Design: H-Shape Center Design
• Application: Light-Duty Truss / Trade Show Display
• Overall Width: 9.42 ft
• Overall Length: 9.42 ft
• Overall Height: 9.20 ft
• Truss Profile: 11.42 in / 290 mm Square
• Main Tube Diameter: 2 in / 50 mm
• Main Tube Wall Thickness: 0.06 in / 1.5 mm
• Brace Diameter: 0.63 in / 16 mm
• Construction: Aluminum
• Connector Type: Conical Connector System

Package Contents

• 2 x XT-BP12AX2: Pair of 12 in Aluminum 6 mm Truss Top Plates for F34, F32, and F31 Conical Square Truss with Connectors
• 5 x KT-F34SQ820: 8.20 ft / 2.5 m K-Truss F34 Economy Aluminum Truss for displays and non-load bearing systems
• 4 x XT-JB6W-2W: 6-Way Square Truss Junction Block with 2-Way 8 Half Conical Couplers
• 2 x XT-JB6W-4W: 6-Way Square Truss Junction Block with 4-Way 16 Half Conical Couplers
• 4 x KT-F34SQ328: 3.28 ft / 1 m K-Truss F34 Economy Aluminum Truss for displays and non-load bearing systems

Exterior Dimensions & Weight

• KT-F34SQ328 (4): 11.42 in H x 11.42 in W x 39.36 in L - Weight: 11 lb each
• XT-JB6W-4W (2): 11.45 in H x 11.45 in W x 11.45 in L - Weight: 17 lb each
• XT-JB6W-2W (4): 11.45 in H x 11.45 in W x 11.45 in L - Weight: 17 lb each
• KT-F34SQ820 (5): 11.42 in H x 11.42 in W x 98.40 in L - Weight: 22 lb each

Shipping Dimensions & Weight

• Box 1 of 5: KT-F34SQ328 (4 boxes) - 12 in H x 12 in W x 41 in L - Shipping Weight: 12.50 lb
• Box 2 of 5: XT-JB6W-4W (2 boxes) - 12.50 in H x 12.50 in W x 12.50 in L - Shipping Weight: 17.50 lb
• Box 3 of 5: XT-JB6W-2W (4 boxes) - 12 in H x 12.50 in W x 12.50 in L - Shipping Weight: 17.50 lb
• Box 4 of 5: KT-F34SQ820 (5 boxes) - 12 in H x 12 in W x 100 in L - Shipping Weight: 24 lb
• Box 5 of 5: Pack of 2 (2 boxes) - 5 in H x 14 in W x 14 in L - Shipping Weight: 10 lb

Where Can You Use the ProX KTP-E1099H?

The ProX KTP-E1099H is designed for a wide range of trade show, exhibition, retail, entertainment, and event applications. Its H-shape center design provides a distinctive structure for creating professional-looking booths and displays.

This K-Series truss booth is ideal for trade show booths, exhibitor displays, kiosks, pop-up shops, retail spaces, and DJ booths. It can also be used for concerts, live performances, speeches, church gatherings, mobile productions, and other event setups.

The modular design makes the KTP-E1099H suitable for small to medium temporary booth installations as well as selected permanent applications where a light-duty truss system is appropriate.

Why Choose the ProX K-Series F34 Truss?

The ProX K-Series F34 Truss provides a rugged yet lightweight solution for professional staging, trade show, and display applications. It is designed to provide the appearance and functionality of a professional truss system while remaining suitable for mobile and temporary installations.

ProX offers a wide range of small to medium temporary booth and trade show solutions designed for different indoor and outdoor event environments. The K-Series can be used for applications ranging from simple exhibitor displays to more customized DJ and production setups.

The KTP-E1099H is particularly useful when a unique booth configuration is desired. Its H-shape center design provides additional visual structure while the modular F34 truss components allow the system to be adapted with compatible components and accessories.

H-Shape Trade Show Booth Design

The defining feature of the ProX KTP-E1099H is its H-shape design in the center. This configuration creates a distinctive visual layout compared with a standard rectangular truss booth and can help create separate areas within an exhibition or event space.

The H-shape design is suitable for exhibitor displays, retail spaces, kiosks, DJ setups, presentations, and event productions. The modular K-Series construction also allows compatible truss components to be used for future configurations and custom display designs.

Compatible Truss Systems

ProX K-Series trussing is designed to connect with compatible trussing from many other manufacturers. Compatibility depends on matching the appropriate truss dimensions and connector style.

Before combining truss components from different manufacturers, always verify that the components are properly matched and compatible for the intended application. Follow the applicable manufacturer's assembly and safety requirements.

Important Load Information

The ProX KTP-E1099H is a light-duty truss system intended for appropriate display and staging applications. Before attaching lighting fixtures, displays, screens, speakers, or other equipment, always determine the total equipment load and verify that the complete truss configuration is suitable for the intended application.

Always know the load weight of your equipment. Follow the manufacturer's applicable loading information, assembly instructions, and safety requirements before using the truss system.

Buy ProX KTP-E1099H from USATRUSS

Order the ProX KTP-E1099H 9.42 ft x 9.42 ft x 9.20 ft H-Shape Trade Show Booth from USATRUSS. This K-Series F34 truss package provides a professional and modular solution for trade shows, exhibitor displays, kiosks, retail spaces, DJ booths, concerts, live performances, and other event applications.

Need help selecting the right F34 truss components for your project? Our team can help you choose compatible truss sections, junction blocks, top plates, connectors, and accessories for your application. Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the ProX KTP-E1099H?

The ProX KTP-E1099H is a complete K-Series F34 aluminum truss trade show booth measuring approximately 9.42 ft W x 9.42 ft L x 9.20 ft H. It features an H-shape design in the center and is designed for trade shows, exhibitor displays, kiosks, DJ booths, events, and other applications.

What are the dimensions of the ProX KTP-E1099H?

The assembled ProX KTP-E1099H measures approximately 9.42 ft wide x 9.42 ft long x 9.20 ft high. The system uses F34 square truss with an approximately 11.42 in / 290 mm square profile.

What is included with the ProX KTP-E1099H?

The ProX KTP-E1099H package includes five KT-F34SQ820 8.20 ft truss segments, four KT-F34SQ328 3.28 ft truss segments, four XT-JB6W-2W junction blocks, two XT-JB6W-4W junction blocks, and two pairs of XT-BP12AX2 aluminum truss top plates.

What is the ProX KTP-E1099H used for?

The ProX KTP-E1099H is designed for trade show booths, exhibitor displays, kiosks, DJ booths, pop-up shops, retail spaces, concerts, live performances, speeches, church gatherings, and mobile production setups.

Is the ProX KTP-E1099H load bearing?

The ProX KTP-E1099H is a light-duty truss system designed for appropriate display and staging applications. Always determine the total equipment load and verify the applicable loading information before attaching lighting, displays, screens, speakers, or other equipment to the truss.
