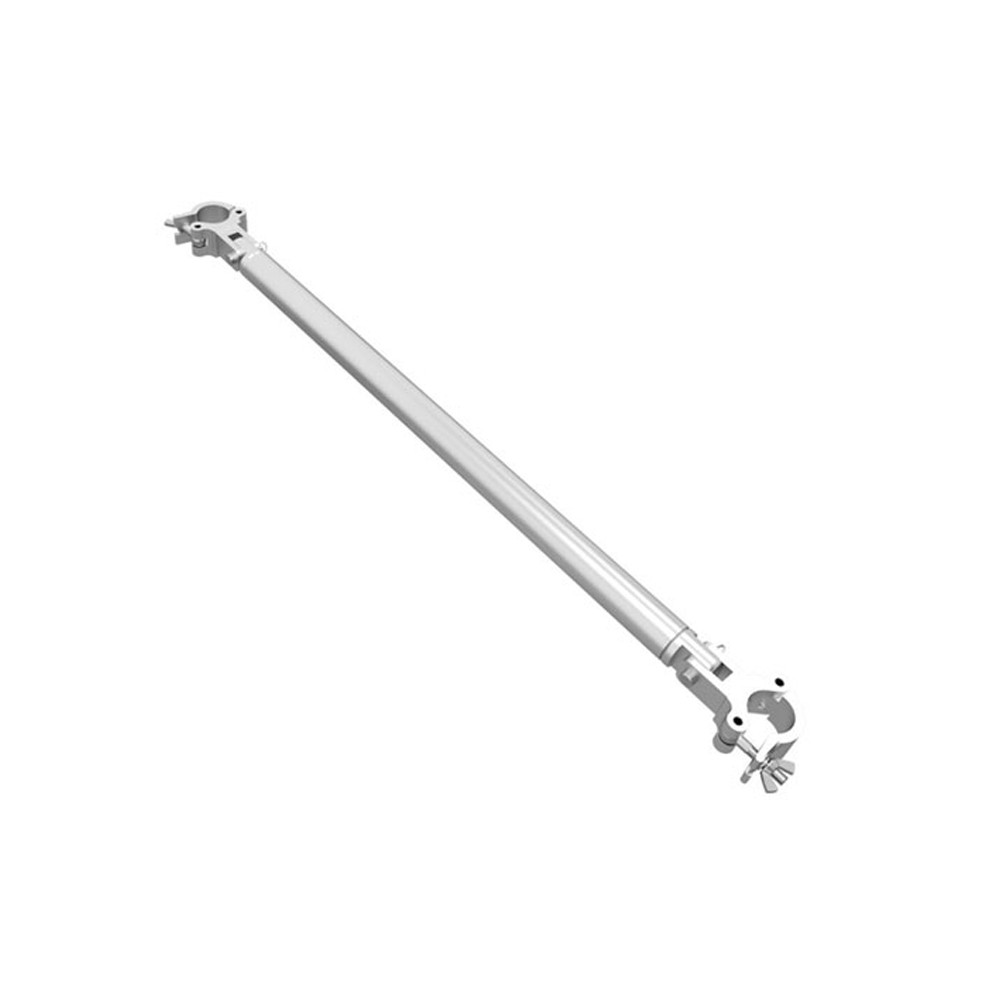

Global Truss ST-5050 Truss Corner Brace

Product Description

The Global Truss ST-5050 is a professional truss corner brace with 180-degree hinged clamp rotation, designed to provide a flexible connection and bracing solution for compatible stage, lighting, event, and entertainment truss systems. The ST-5050 features a hinged clamp design that allows the connection points to rotate through 180 degrees, making it useful for truss corner and structural support applications.

Designed for compatibility with Global Truss F31, F32, F33, F34, and DT44P truss systems, the ST-5050 accommodates tubing sizes from 48 mm to 51 mm. The brace has a 37.40 in tube length and a 0.08 in (2 mm) tube wall thickness, with a published unit weight of approximately 12 lb.

The Global Truss ST-5050 is a useful accessory for professional truss installations where a hinged connection and adjustable clamp rotation are required. Its 180-degree hinged clamp rotation provides flexibility when positioning compatible truss components for stage productions, concerts, exhibitions, lighting structures, and event installations.

Key Features

• Global Truss ST-5050 professional truss corner brace
• 180-degree hinged clamp rotation
• Compatible with F31, F32, F33, F34, and DT44P truss systems
• Designed for compatible truss tubing from 48 mm to 51 mm
• 37.40 in tube length
• 0.08 in / 2 mm tube wall thickness
• Approximately 12 lb unit weight
• Provides a flexible hinged connection for compatible truss applications
• Useful for professional stage, lighting, event, exhibition, and entertainment truss systems
• Designed for use with compatible Global Truss truss configurations
• Suitable for applications requiring adjustable clamp rotation

Technical Specifications

• Brand: Global Truss
• Model: ST-5050
• SKU: ACC0079
• Product Type: Truss Corner Brace
• Clamp Rotation: 180 degrees hinged rotation
• Compatible Truss Systems: F31, F32, F33, F34, DT44P
• Tube Length: 37.40 in
• Tube Wall Thickness: 0.08 in / 2 mm
• Minimum Tube Size: 48 mm
• Maximum Tube Size: 51 mm
• Compatible Tube Range: 48–51 mm
• Unit Weight: 12 lb

Where Can You Use the Global Truss ST-5050?

The Global Truss ST-5050 can be used with compatible stage and event truss systems for concerts, live entertainment, stage lighting, exhibitions, trade shows, conventions, theatrical productions, and other professional production environments.

Its 180-degree hinged clamp rotation makes the ST-5050 useful when a flexible connection point is required around a truss corner or structural configuration. The hinged design allows the clamp connection to be positioned through a broad range of angles while working with compatible truss tubing.

The ST-5050 is compatible with several Global Truss systems, including F31, F32, F33, F34, and DT44P. This makes it a versatile truss accessory for production professionals working with different Global Truss configurations.

Why Choose the Global Truss ST-5050?

The Global Truss ST-5050 is designed for applications where a conventional fixed truss connection may not provide the flexibility required for a particular configuration. Its 180-degree hinged clamp rotation allows the brace connection to accommodate different positioning requirements within compatible truss structures.

The ST-5050 supports compatible tubing from 48 mm to 51 mm and is designed for use with F31, F32, F33, F34, and DT44P Global Truss systems. Its 37.40-inch tube length and 2 mm wall thickness provide a substantial brace configuration for professional truss applications.

Global Truss offers a broad range of professional truss clamps, braces, couplers, spacers, hinges, hangers, and rigging accessories, allowing production professionals to select compatible components for different stage and event structures.

Global Truss ST-5050 Compatibility

The ST-5050 is specified by Global Truss for compatibility with the following truss systems:

• Global Truss F31
• Global Truss F32
• Global Truss F33
• Global Truss F34
• Global Truss DT44P

The compatible tube range is 48 mm to 51 mm. Always verify the dimensions, connection method, configuration, and intended application before installing the ST-5050 into a truss structure.

Buy Global Truss ST-5050 from USATRUSS

Order the Global Truss ST-5050 Truss Corner Brace with 180-Degree Hinged Clamp Rotation from USATRUSS. The ST-5050 is designed for compatible F31, F32, F33, F34, and DT44P truss systems and provides a flexible hinged connection for professional stage, lighting, event, exhibition, and entertainment applications.

USATRUSS specializes in professional stage and event truss systems and offers Global Truss products to customers across the United States. If you need help selecting compatible truss clamps, braces, or other Global Truss accessories for your project, our team can help.

Contact USATRUSS or call 1-800-856-8397 for assistance with your truss requirements.

Frequently Asked Questions

What is the Global Truss ST-5050?

The Global Truss ST-5050 is a professional truss corner brace with 180-degree hinged clamp rotation. It is designed for use with compatible Global Truss F31, F32, F33, F34, and DT44P truss systems.

What truss systems are compatible with the ST-5050?

The Global Truss ST-5050 is compatible with F31, F32, F33, F34, and DT44P truss systems. The manufacturer specifies a compatible tube size range of 48 mm to 51 mm.

How much can the ST-5050 clamp rotate?

The Global Truss ST-5050 features a 180-degree hinged clamp rotation, allowing the connection to be positioned through a broad range of angles for compatible truss applications.

What are the dimensions and weight of the ST-5050?

The current Global Truss specification lists a 37.40 in tube length, 0.08 in (2 mm) tube wall thickness, and approximately 12 lb unit weight. The ST-5050 is designed for compatible tubing from 48 mm to 51 mm.

Where can I buy the Global Truss ST-5050?

You can purchase the Global Truss ST-5050 from USATRUSS. If you need help selecting compatible Global Truss accessories or determining the correct component for your application, contact USATRUSS or call 1-800-856-8397.
