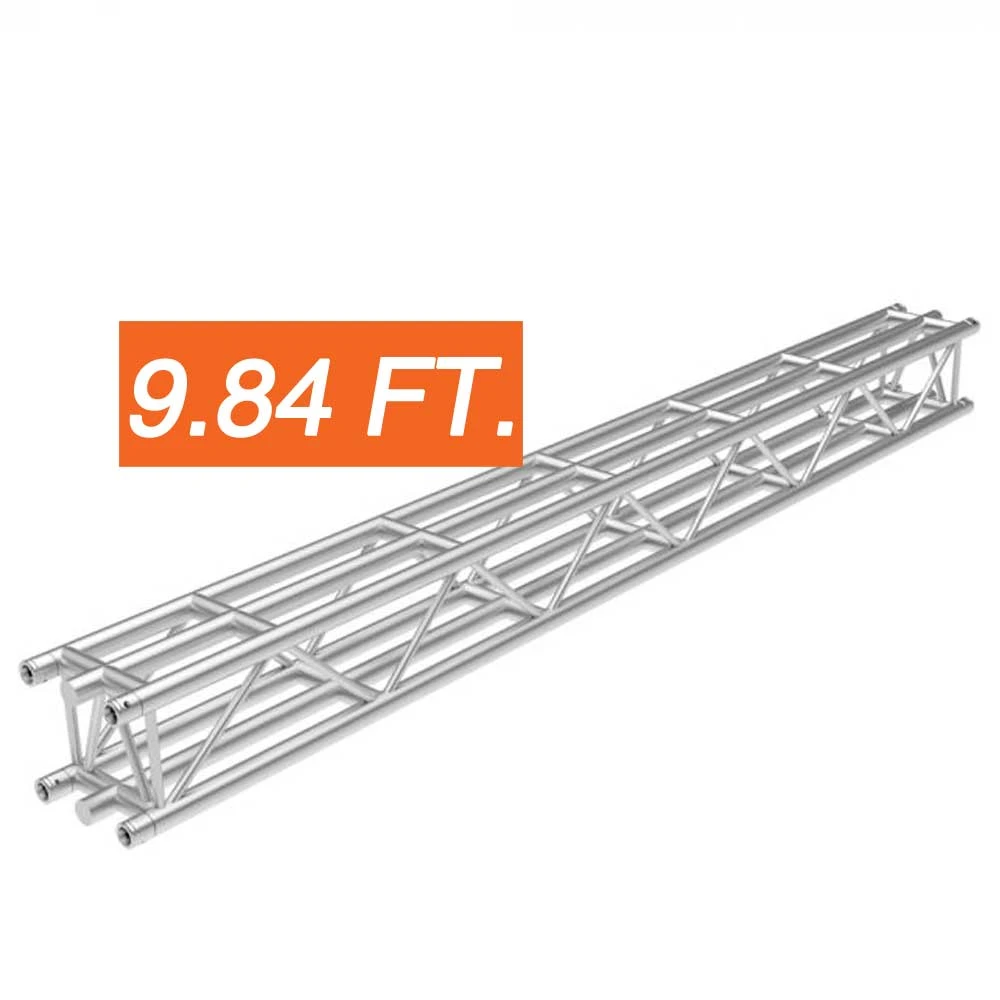

Global Truss DT36-300 9.84Ft (3m) DT36 Square Truss Segment

Product Description

The Global Truss DT36-300 is a 9.84-foot (3-meter) straight segment from the professional DT36 Square Truss series. Designed for stage lighting, concerts, live events, exhibitions, trade shows, entertainment, and production applications, this 290 mm square truss section provides a professional straight component for compatible DT36 truss configurations.

The DT36-300 features a 290 mm (11.41-inch) square profile with 50 mm (1.96-inch) main tubing and 20 mm (0.78-inch) diagonal bracing. The main tubes have a 3 mm wall thickness, while the diagonal braces have a 3 mm wall thickness. Global Truss specifies EN-AW 6082 T6 aluminum for the DT36 Square Truss system.

The Global Truss DT36-300 uses the DT36 connection system and includes connecting hardware for assembly with compatible truss components. Straight segments and other compatible DT36 components can be combined to create customized truss structures. The DT36-300 is also compatible with specified center-chord clamps including PRO CLAMP, TRIGGER CLAMP, EYE CLAMP, and X-PRO CLAMP. Always verify component compatibility, structural requirements, equipment loads, support methods, and applicable safety requirements before installation.

Key Features

• Global Truss DT36-300 DT36 Square Truss Segment
• 9.84 ft / 3 m straight truss segment
• 290 mm / 11.41 in square truss profile
• 50 mm / 1.96 in main tube diameter
• 20 mm / 0.78 in diagonal brace diameter
• 3 mm main tube wall thickness
• 3 mm diagonal brace wall thickness
• EN-AW 6082 T6 aluminum construction
• Professional DT36 square truss system
• Compatible DT36 connection system
• Connecting hardware included
• Compatible with PRO CLAMP, TRIGGER CLAMP, EYE CLAMP, and X-PRO CLAMP center-chord clamps
• Designed for compatible DT36 truss components
• Suitable for stage, lighting, event, exhibition, and production applications

Technical Specifications

• Brand: Global Truss
• Model: DT36-300
• Manufacturer SKU: DT360105
• Truss Series: DT36
• Truss Type: Square Truss Straight Segment
• Length: 9.84 ft / 3 m
• Overall Width: 11.41 in / 290 mm
• Overall Height: 11.41 in / 290 mm
• Main Tube Diameter: 1.96 in / 50 mm
• Main Tube Wall Thickness: 3 mm
• Diagonal Brace Diameter: 0.78 in / 20 mm
• Diagonal Brace Wall Thickness: 3 mm
• Material: EN-AW 6082 T6 Aluminum
• Connection System: DT36 Connection System
• Connecting Hardware: Included
• Unit Weight: 69 lbs / 31.33 kg
• Compatible Center-Chord Clamps: PRO CLAMP, TRIGGER CLAMP, EYE CLAMP, X-PRO CLAMP

Where Can You Use the Global Truss DT36-300?

The Global Truss DT36-300 is designed for compatible DT36 square truss configurations used in professional staging, lighting, event production, exhibitions, entertainment, displays, and production environments.

• Stage lighting structures
• Concert production
• Live entertainment setups
• Event production
• Trade show booths
• Exhibition stands
• DJ setups
• Lighting support structures
• Event technology installations
• Retail displays
• Nightclubs and entertainment venues
• Mobile productions
• Production company installations
• Custom truss structures
• Permanent installations

Why Choose the Global Truss DT36-300?

The Global Truss DT36-300 provides a 9.84-foot (3-meter) straight section for building compatible DT36 square truss structures. Its 290 mm square profile makes it suitable for professional stage, lighting, event, exhibition, and production configurations.

The DT36-300 combines EN-AW 6082 T6 aluminum with 50 mm main tubing, 20 mm diagonal braces, and 3 mm main tube wall thickness. The DT36 series is designed for professional entertainment and event applications where compatible square truss components are required.

With connecting hardware included, the DT36-300 can be assembled with compatible DT36 components and straight segments to create different truss layouts and configurations. Compatible center-chord clamps can also be used where appropriate. Always confirm the complete structure's engineering requirements, component compatibility, loading conditions, support method, and applicable safety requirements before use.

DT36 Square Truss Design

The DT36 Square Truss is a 290 mm square truss system featuring 50 mm main tubing and 20 mm diagonal bracing. Global Truss specifies EN-AW 6082 T6 aluminum, 3 mm main tube wall thickness, and 3 mm diagonal brace wall thickness for the DT36 series.

The DT36-300 provides a 9.84-foot (3-meter) straight section that can be combined with compatible DT36 straight segments and other system components. Global Truss offers DT36 straight segment lengths including 1 m, 1.5 m, 2 m, 2.5 m, and 3 m for creating different truss layouts and configurations.

DT36-300 Connection System

The Global Truss DT36-300 is designed for connection with compatible DT36 truss components. Global Truss specifies that connecting hardware is included with DT36 straight truss segments.

The DT36 system uses compatible conical connection components for assembling truss sections. The DT36-300 can also accommodate compatible center-chord clamps specified by Global Truss, including PRO CLAMP, TRIGGER CLAMP, EYE CLAMP, and X-PRO CLAMP.

For safe installation, use the manufacturer-specified connecting components and inspect all truss sections and hardware before assembly. Do not combine truss components unless their dimensions, connector style, hardware, and structural requirements have been confirmed as compatible.

Buy Global Truss DT36-300 from USATRUSS

Shop Global Truss DT36-300 9.84 Ft 3m DT36 square truss with a 3mm main tube wall, 50mm tubing, 20mm diagonal braces, EN-AW 6082 T6 aluminum construction, and connecting hardware from USATRUSS. Buy online today for professional stage, lighting, event, exhibition, and production applications.

The DT36-300 provides a 3-meter straight section with a 290 mm square profile and is designed for use with compatible DT36 Square Truss components. Its 9.84-foot length provides a long straight section for creating precise truss layouts and adjusting the dimensions of compatible DT36 structures.

Need help selecting compatible Global Truss or ProX truss components for your project? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the Global Truss DT36-300?

The Global Truss DT36-300 is a 9.84-foot (3-meter) straight segment from the DT36 professional square truss series, designed for compatible stage, lighting, event, exhibition, and production applications.

What are the dimensions of the DT36-300?

The DT36-300 is 9.84 feet (3 meters) long and has an overall square truss profile of approximately 11.41 inches (290 mm).

What is the wall thickness of the Global Truss DT36-300?

The DT36-300 has a 3 mm wall thickness on its main tubes. Its 20 mm diagonal braces have a 3 mm wall thickness.

What material is the DT36-300 made from?

The Global Truss DT36-300 is manufactured from EN-AW 6082 T6 aluminum and is part of the DT36 Square Truss series.

Does the DT36-300 include connecting hardware?

Yes. The DT36-300 is designed to use the DT36 connection system, with connecting hardware included for assembly with compatible DT36 truss components.

How much does the Global Truss DT36-300 weigh?

The Global Truss DT36-300 weighs approximately 69 lbs (31.33 kg) and is designed as a 3-meter straight segment for the DT36 Square Truss system.

What clamps are compatible with the DT36-300?

Global Truss lists the PRO CLAMP, TRIGGER CLAMP, EYE CLAMP, and X-PRO CLAMP as compatible center-chord clamps for the DT36-300. Always verify the intended application and installation requirements before use.
