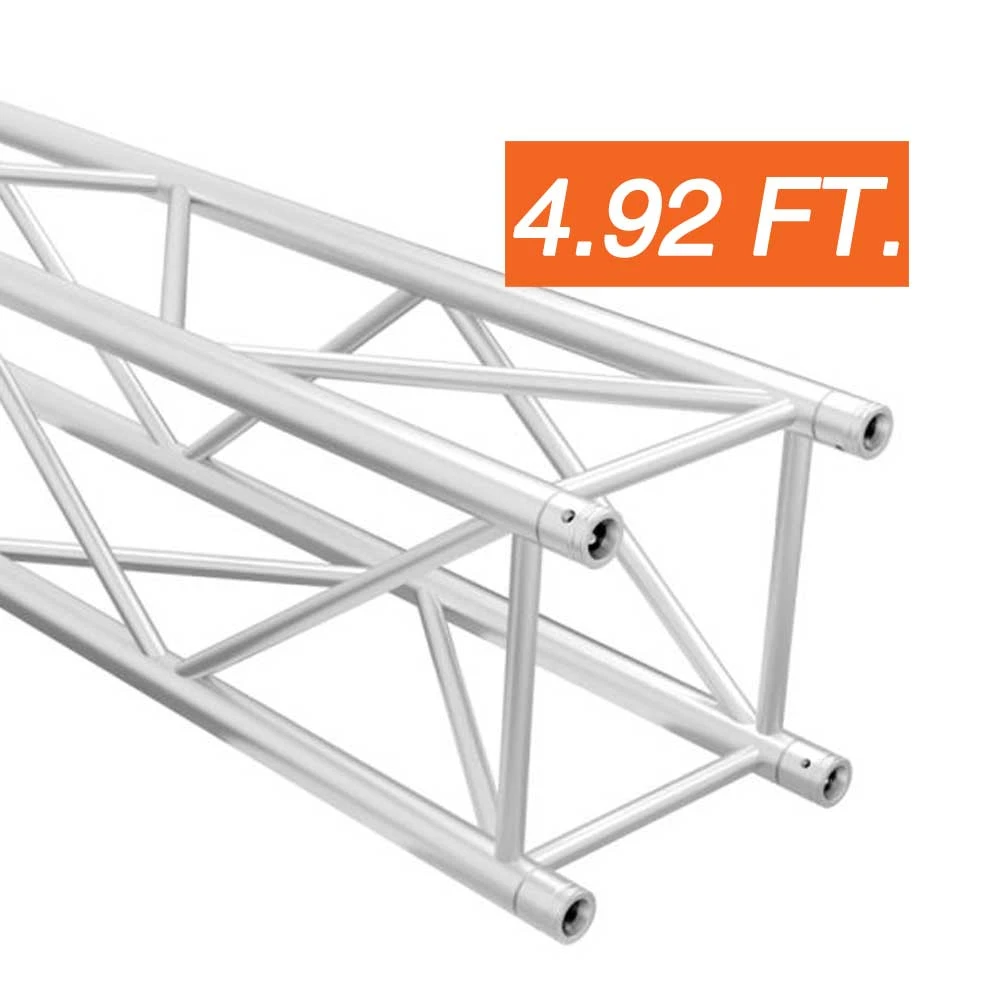

Global Truss DT-4163P 4.92Ft (1.5m) DT44P Square Truss Segment

Product Description

The Global Truss DT-4163P is a 4.92-foot (1.5-meter) straight segment from the professional DT44P Square Truss series. Designed for stage lighting, concerts, live events, exhibitions, trade shows, entertainment, AV production, and professional event applications, this 400 mm square truss section provides a versatile straight component for compatible DT44P truss configurations.

The DT-4163P features a 400 mm (15.75-inch) square profile with 50 mm (1.97-inch) main tubing and 20 mm (0.79-inch) diagonal bracing. The main tubes and diagonal braces have a 3 mm wall thickness. Global Truss specifies EN-AW 6082 T6 aluminum for the DT44P Square Truss system, providing a professional aluminum construction for compatible event, lighting, exhibition, and production structures.

The Global Truss DT-4163P uses the DT44P connection system and includes connecting hardware for assembly with compatible truss components. The 1.5-meter straight section can be combined with compatible DT44P components and other straight segments to create customized truss layouts and structures. Always verify component compatibility, structural requirements, equipment loads, support methods, and applicable safety requirements before installation.

Key Features

• Global Truss DT-4163P DT44P Square Truss Segment
• 4.92 ft / 1.5 m straight truss segment
• 400 mm / 15.75 in square truss profile
• 50 mm / 1.97 in main tube diameter
• 20 mm / 0.79 in diagonal brace diameter
• 3 mm main tube wall thickness
• 3 mm diagonal brace wall thickness
• EN-AW 6082 T6 aluminum construction
• Professional DT44P square truss system
• Compatible DT44P connection system
• Connecting hardware included
• 4.92 ft / 1.5 m straight truss section
• Designed for compatible DT44P truss components
• Suitable for stage, lighting, event, exhibition, AV, and production applications

Technical Specifications

• Brand: Global Truss
• Model: DT-4163P
• Manufacturer SKU: DT440027
• Truss Series: DT44P
• Truss Type: Square Truss Straight Segment
• Length: 4.92 ft / 1.5 m
• Overall Width: 15.75 in / 400 mm
• Overall Height: 15.75 in / 400 mm
• Main Tube Diameter: 1.97 in / 50 mm
• Main Tube Wall Thickness: 3 mm
• Diagonal Brace Diameter: 0.79 in / 20 mm
• Diagonal Brace Wall Thickness: 3 mm
• Material: EN-AW 6082 T6 Aluminum
• Connection System: DT44P Connection System
• Connecting Hardware: Included
• Unit Weight: 35 lbs / 15.89 kg

Where Can You Use the Global Truss DT-4163P?

The Global Truss DT-4163P is designed for compatible DT44P square truss configurations used in professional staging, lighting, event production, exhibitions, entertainment, AV installations, displays, and production environments.

• Stage lighting structures
• Concert production
• Live entertainment setups
• Event production
• Trade show booths
• Exhibition stands
• DJ setups
• Lighting support structures
• Event technology installations
• Retail displays
• Nightclubs and entertainment venues
• Mobile productions
• Production company installations
• Custom truss structures
• Permanent installations

Why Choose the Global Truss DT-4163P?

The Global Truss DT-4163P provides a 4.92-foot (1.5-meter) straight section for building compatible DT44P square truss structures. Its 400 mm square profile makes it suitable for professional stage, lighting, event, exhibition, AV, and production configurations requiring a versatile straight truss section.

The DT-4163P combines EN-AW 6082 T6 aluminum with 50 mm main tubing, 20 mm diagonal braces, and 3 mm wall thickness on both the main tubes and diagonal braces. The DT44P series is designed for professional entertainment and event applications where compatible square truss components are required.

With connecting hardware included, the DT-4163P can be assembled with compatible DT44P components and straight segments to create different truss layouts and configurations. Its 1.5-meter length provides an option between shorter and longer DT44P straight sections when planning a compatible truss structure. Always confirm the complete structure's engineering requirements, component compatibility, loading conditions, support method, and applicable safety requirements before use.

DT44P Square Truss Design

The DT44P Square Truss is a 400 mm square truss system featuring 50 mm main tubing and 20 mm diagonal bracing. Global Truss specifies EN-AW 6082 T6 aluminum, 3 mm main tube wall thickness, and 3 mm diagonal brace wall thickness for the DT44P system.

The DT-4163P provides a 4.92-foot (1.5-meter) straight section that can be combined with compatible DT44P straight segments and other system components. Global Truss offers multiple DT44P straight segment lengths, allowing different options for creating truss layouts and configurations.

DT-4163P Connection System

The Global Truss DT-4163P is designed for connection with compatible DT44P truss components. Global Truss states that connecting hardware is included with each DT44P truss segment.

The DT44P system uses compatible connection components for assembling truss sections. The DT-4163P can be incorporated into compatible DT44P structures using the manufacturer-specified connection hardware and components.

For safe installation, inspect all truss sections, connectors, pins, clips, and hardware before assembly. Do not combine truss components unless their dimensions, connector style, hardware, and structural requirements have been confirmed as compatible.

Buy Global Truss DT-4163P from USATRUSS

Shop Global Truss DT-4163P 4.92 Ft 1.5m DT44P Square Truss with a 400 mm square profile, 3 mm wall thickness, 50 mm main tubing, 20 mm diagonal braces, EN-AW 6082 T6 aluminum construction, and connecting hardware from USATRUSS. Buy online today for professional stage, lighting, event, exhibition, AV, and production applications.

The DT-4163P provides a 1.5-meter straight section with a 400 mm square profile and is designed for use with compatible DT44P Square Truss components. Its 4.92-foot length provides a versatile straight section for creating precise truss layouts and adjusting the dimensions of compatible DT44P structures.

Need help selecting compatible Global Truss or ProX truss components for your project? Contact USATRUSS or call 1-800-856-8397 for assistance.

Frequently Asked Questions

What is the Global Truss DT-4163P?

The Global Truss DT-4163P is a 4.92-foot (1.5-meter) straight segment from the professional DT44P Square Truss series, designed for compatible stage, lighting, event, exhibition, AV, and production applications.

What are the dimensions of the Global Truss DT-4163P?

The DT-4163P is 4.92 feet (1.5 meters) long and features an overall square truss profile of approximately 15.75 inches (400 mm). It uses 50 mm main tubing and 20 mm diagonal bracing.

What material is the Global Truss DT-4163P made from?

The Global Truss DT-4163P is manufactured from EN-AW 6082 T6 aluminum. The DT44P system features 3 mm wall thickness on the main tubes and diagonal braces.

Does the Global Truss DT-4163P include connecting hardware?

Yes. Global Truss states that connecting hardware is included with DT44P straight truss segments, including the DT-4163P, for assembly with compatible DT44P components.

How much does the Global Truss DT-4163P weigh?

The Global Truss DT-4163P weighs approximately 35 lbs (15.89 kg) and is designed as a 1.5-meter straight segment for the DT44P Square Truss system.
