Product Description

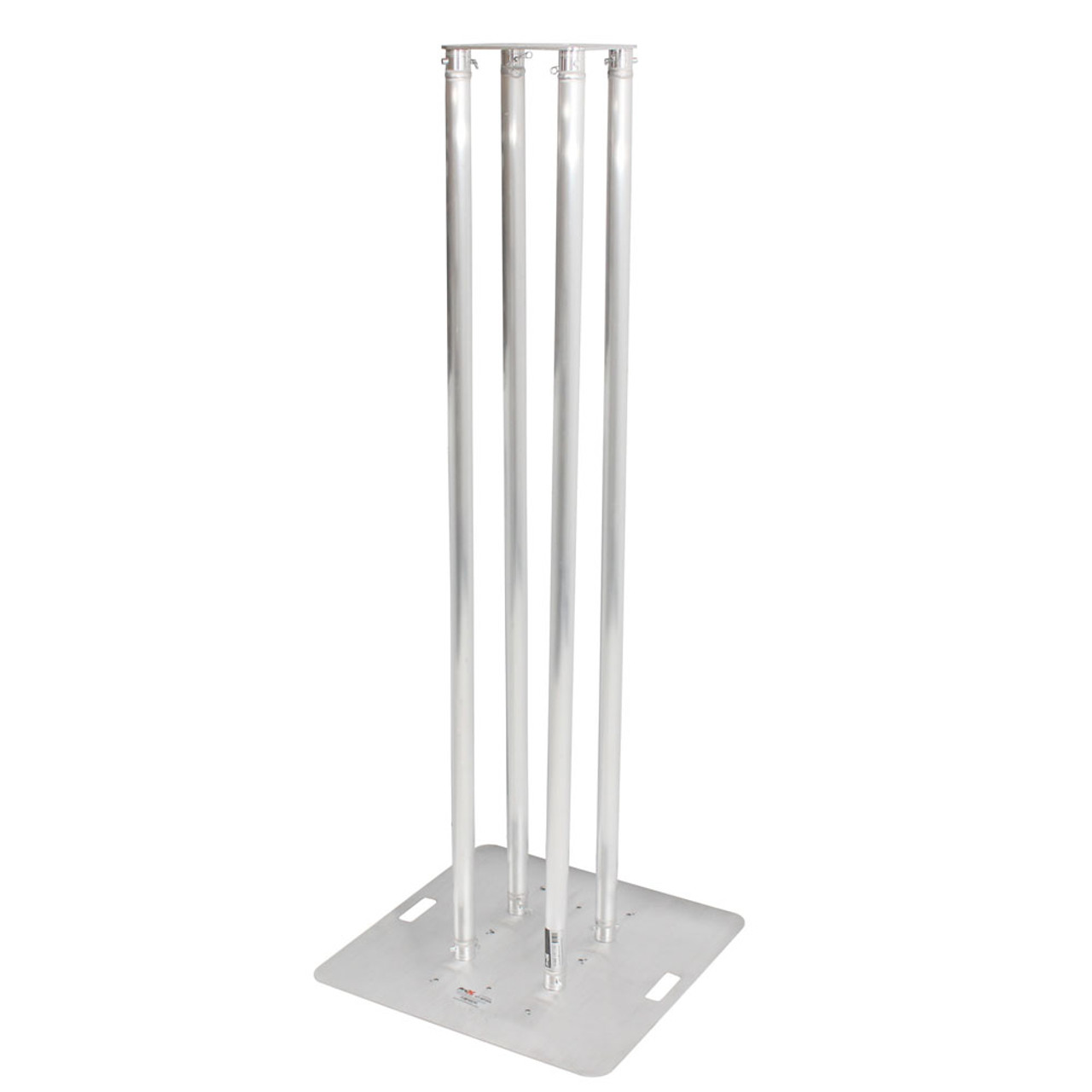

ProX XT-S4X820TOTEM 8.20ft Totem Package Includes a 12in Top Plate, 30in Base Plate and Four 2.5m F31 Tubes W-White Scrim Cover
The ProX XT-S4X820 TOTEM Truss Totem Package assembles some of the most popular products that are used for DJ Totems. At the core is four of the ProX XT-S820 Single Tube Truss sections which are made with 2mm EN-AWT6 6082 Aluminum for safety and strength, an XT-BP30A 30 In. x 30 In. 8mm Aluminum Base Plate, and an XT-BP12A 12" X 12" F34 8mm Aluminum Top Plate W/Slots and Mounting Holes. You can use the totem exposed as "all-aluminum" or dress it up for a smooth, finished appearance with the included XTC-SQ820TS-W White Lycra-Spandex Cover.
Add Optional (Not Included) LED Lights like the X-PAR36RGBWA or the X-LEDPAR86 to really make your totem setup pop with color.
Features
- Tolerance Free Standard Conical connector
- Multi-Hole 12" Top Plate for Easy Mounting of Lighting/Accessories
- Constructed to the highest quality by certified welders
- Four F31 2mm Single Truss Tubes
- Base Plate and Top Plate are 8mm Aluminum
- Includes Carry Bag for White Lycra Spandex Truss Cover
Package Contents
- XT-S820 (4) 8.20 Foot - 2.5M F31 Single Tube Truss Segment | 2mm Wall
- XT-BP12A (1) 12" Aluminum 6mm Truss Top Plate for F34 F32 F31 Conical Square Truss with Connectors
- XT-BP24A (1) 24" Aluminum 6mm Truss Base Plate for F34 F32 F31 Conical Square Truss with Connectors
- XTC-SQ820TS-W (1) White 8.20Ft 2.50 meter Lycra Cover Scrim Sleeve fits 12In. Quad Box Truss Segment
Specification:
Exterior Dimensions & Weight
- XTC-SQ820TS-W (1): 1.50"H x 8.00"W x 8.00"L - Weight: 1.00 lbs
- XT-BP24A (1): 0.50"H x 24.00"W x 24.00"L - Weight: 14.00 lbs
- XT-BP12A (1): 1.50"H x 12.00"W x 12.00"L - Weight: 4.00 lbs
- XT-S820 (4): 2.00"H x 2.00"W x 98.40"L - Weight: 5.00 lbs
Shipping Dimensions & Weight
- Box 1 of 4: XTC-SQ820TS-W 2.00"H x 8.50"W x 8.50"L - Shipping Weight: 1.25 lbs
- Box 2 of 4: XT-BP24A 3.00"H x 25.00"W x 25.00"L - Shipping Weight: 17.00 lbs
- Box 3 of 4: XT-BP12A 2.00"H x 13.00"W x 13.00"L - Shipping Weight: 5.00 lbs
- Box 4 of 4: XT-S820 (4 boxes) 2.50"H x 2.50"W x 102.00"L - Shipping Weight: 6.00 lbs
