Product Description

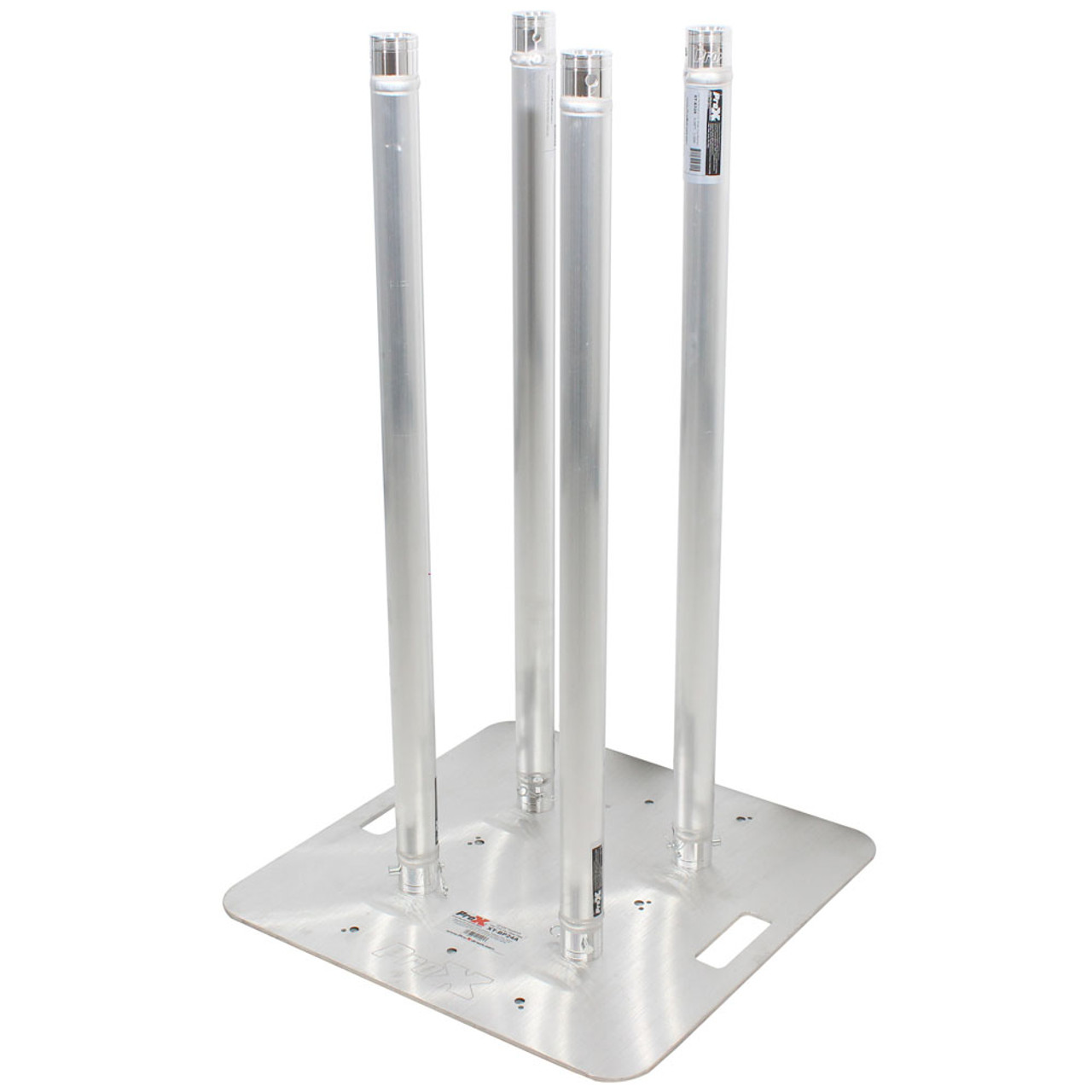

ProX XT-S4X328TOTEM 3.28 Foot Totem Package Includes a 12in Top Plate, 24in Base Plate and Four 1M F31 Tubes W/White Scrim Cover
The ProX XT-S4X328 TOTEM Truss Totem Package assembles some of the most popular products that are used for DJ Totems. At the core are four of the ProX XT-S328 Single Tube Truss sections which are made with 2mm EN-AWT6 6082 Aluminum for safety and strength, an XT-BP24A 24 In. x 24 In. 8mm Aluminum Base Plate, and an XT-BP12A 12" X 12" F34 8mm Aluminum Top Plate W/Slots and Mounting Holes. You can use the totem exposed as "all-aluminum" or dress it up for a smooth, finished appearance with the included XTC-SQ328TS-W White Lycra-Spandex Cover.
Add Optional (Not Included) LED Lights like the X-PAR36RGBWA or the X-LEDPAR86 to really make your totem setup pop with color.
Features
- Tolerance Free Standard Conical connector
- Multi-Hole 12" Top Plate for Easy Mounting of Lighting/Accessories
- Constructed to the highest quality by certified welders
- Four F31 2mm Single Truss Tubes
- Base Plate and Top Plate are 8mm Aluminum
- Includes Carry Bag for White Lycra Spandex Truss Cover
Package Contents
- XT-S328 (4) 3.28 Foot - 1M F31 Single Tube Truss Segment | 2mm Wall
- XT-BP12A (1) 12" Aluminum 6mm Truss Top Plate for F34 F32 F31 Conical Square Truss with Connectors
- XT-BP24A (1) 24" Aluminum 6mm Truss Base Plate for F34 F32 F31 Conical Square Truss with Connectors
- XTC-SQ328TS-W (1) White 3.28Ft 1M Lycra Cover Scrim Sleeve fits 12In. Quad Box Truss Segment
Specification:
Exterior Dimensions & Weight
- XTC-SQ328TS-W (1): 1.25"H x 8.00"W x 8.00"L - Weight: 1.00 lbs
- XT-BP24A (1): 0.50"H x 24.00"W x 24.00"L - Weight: 14.00 lbs
- XT-BP12A (1): 1.50"H x 12.00"W x 12.00"L - Weight: 4.00 lbs
- XT-S328 (4): 2.00"H x 2.00"W x 39.40"L - Weight: 2.00 lbs
Shipping Dimensions & Weight
- Box 1 of 4: XTC-SQ328TS-W 1.50"H x 8.00"W x 8.00"L - Shipping Weight: 1.25 lbs
- Box 2 of 4: XT-BP24A 3.00"H x 25.00"W x 25.00"L - Shipping Weight: 17.00 lbs
- Box 3 of 4: XT-BP12A 2.00"H x 13.00"W x 13.00"L - Shipping Weight: 5.00 lbs
- Box 4 of 4: XT-S328 (4 boxes) 2.50"H x 2.50"W x 43.50"L - Shipping Weight: 2.50 lbs
